Tractor Drive

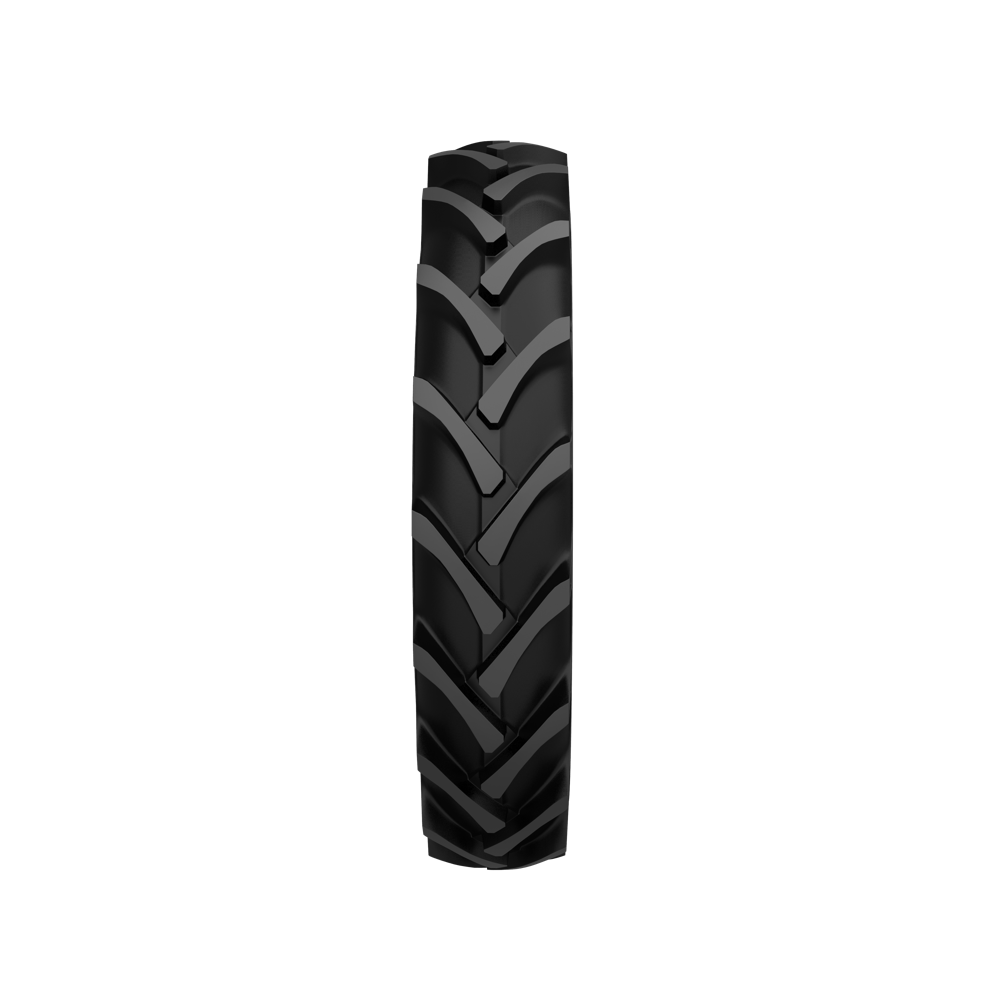

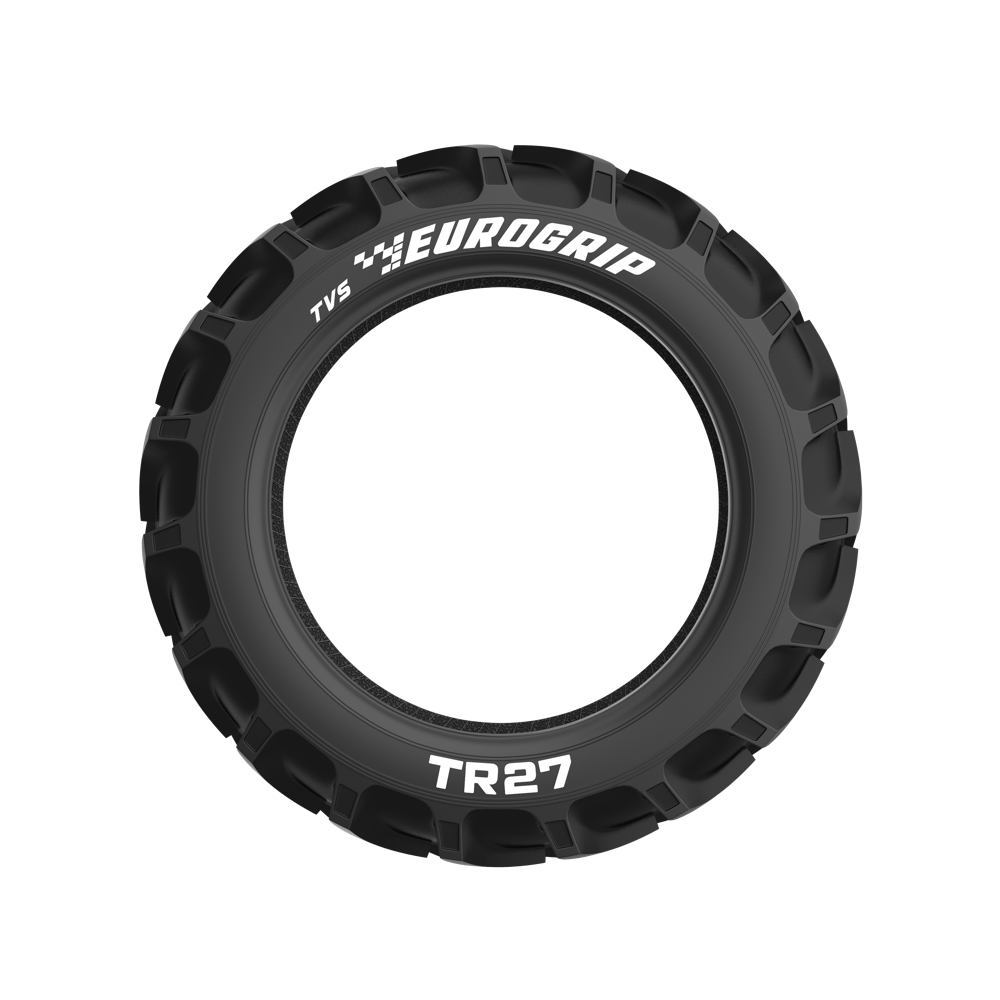

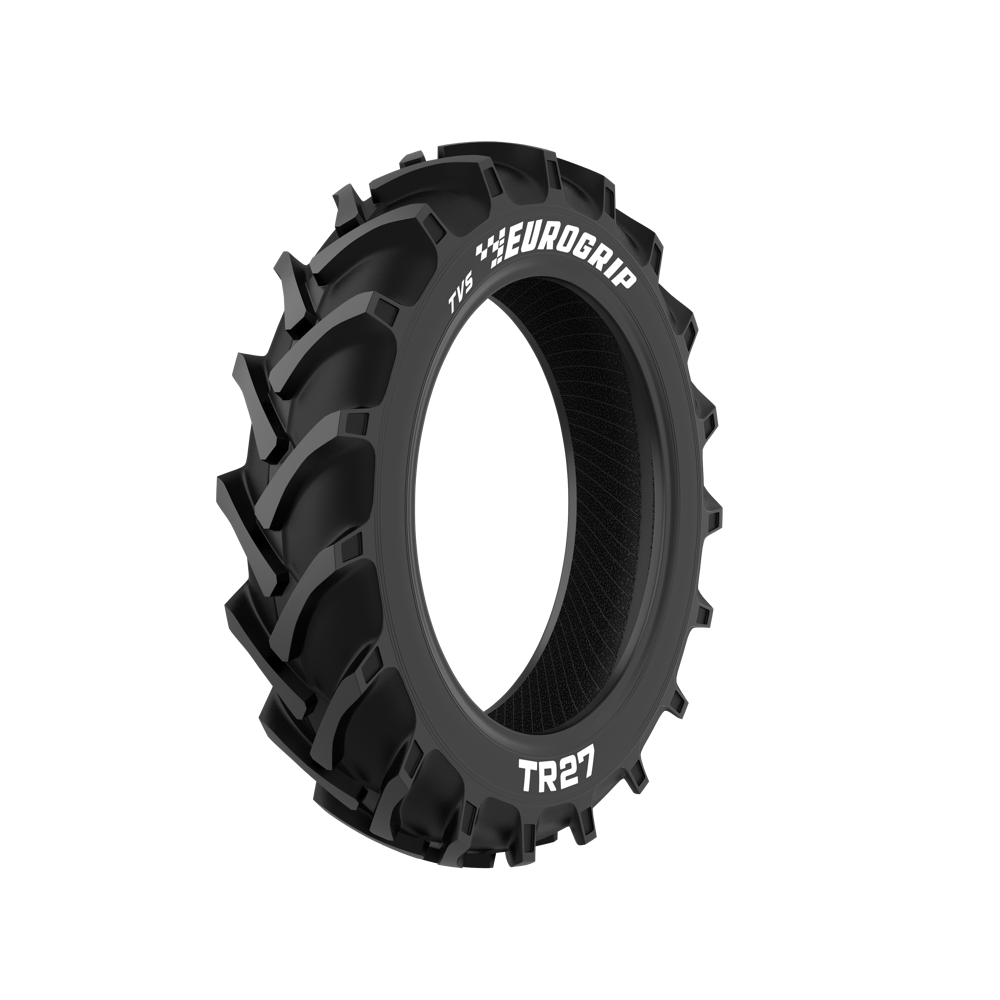

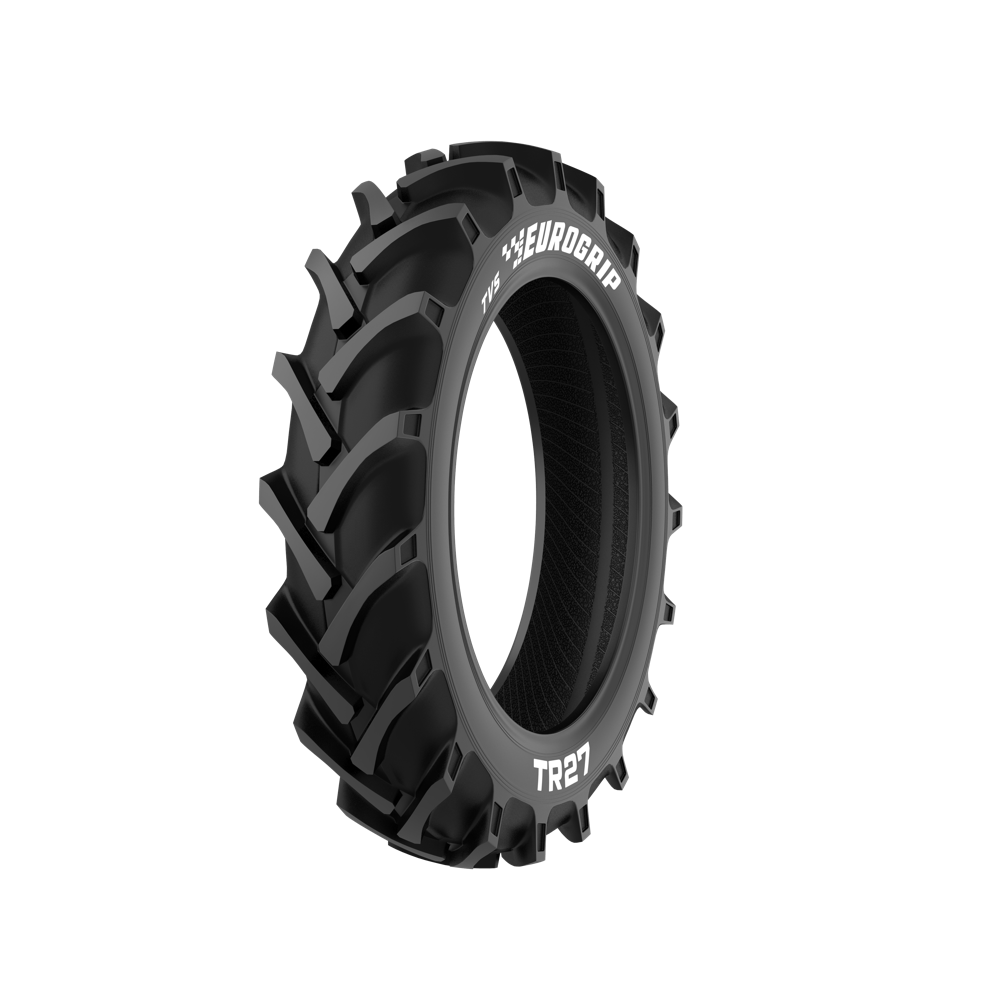

TR 27
Built with low wearing compound the TR 27 R-1 tractor tyre is designed for all year use. The lugs are ideally spaced to provide good self-cleaning. The dual-angle treads provide safe handling on un-even and inclined landscape.
R-1
A8
Bias
Suitable for
Tractor 2WD
Tractor MFWD
Technical Data
| Tyre Size | REC. RIM (inch) | Unloaded dimensions | Ply Rating | Type | LI & SS | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SW (in) | OD (in) | SLR (in) | RC (in) | |||||||||||||||||||||
| 9.5-24 | W8 | 9.8 | 41.7 | 19.2 | 123.2 | 6 | TT | 106A8 + | ||||||||||||||||
|
||||||||||||||||||||||||
| 9.5-24 | W8 | 9.8 | 41.7 | 19.2 | 123.2 | 8 | TT/TL | 112A8 + | ||||||||||||||||
|
||||||||||||||||||||||||
| 9.5-28 | W8 | 9.7 | 45.4 | 20.9 | 134.1 | 8 | TT | 114A6/110A8 + | ||||||||||||||||
|
||||||||||||||||||||||||
| Tyre Size | REC. RIM (mm) | Unloaded dimensions | Ply Rating | Type | LI & SS | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SW (mm) | OD (mm) | SLR (mm) | RC (mm) | ||||||||||||||||
| 9.5-24 | W8 | 250 | 1060 | 488 | 3131 | 6 | TT | 106A8 + | |||||||||||
|
|||||||||||||||||||
| 9.5-24 | W8 | 250 | 1060 | 488 | 3131 | 8 | TT/TL | 112A8 + | |||||||||||
|
|||||||||||||||||||
| 9.5-28 | W8 | 246 | 1153 | 531 | 3406 | 8 | TT | 114A6/110A8 + | |||||||||||
|
|||||||||||||||||||
Technical Data
| Tyre Size | Rec. RIM (inch) |
Alt. RIM (inch) |
Unloaded dimensions (mm) | Type | Ply Rating | Load Index & Speed Symbol | Fabric | Load table | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Section Width | Overall Diameter | Static Load Radius | Rolling Circumference | ||||||||
