Tractor Front – Rib

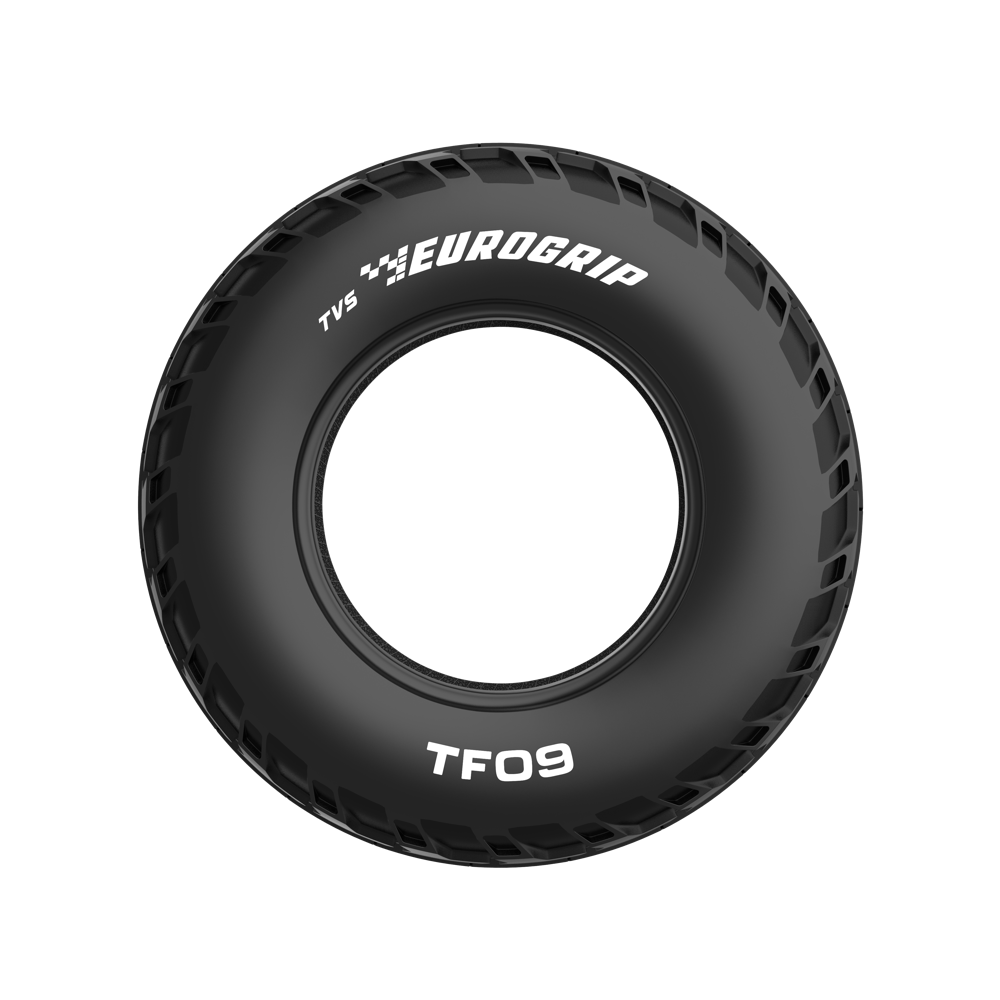

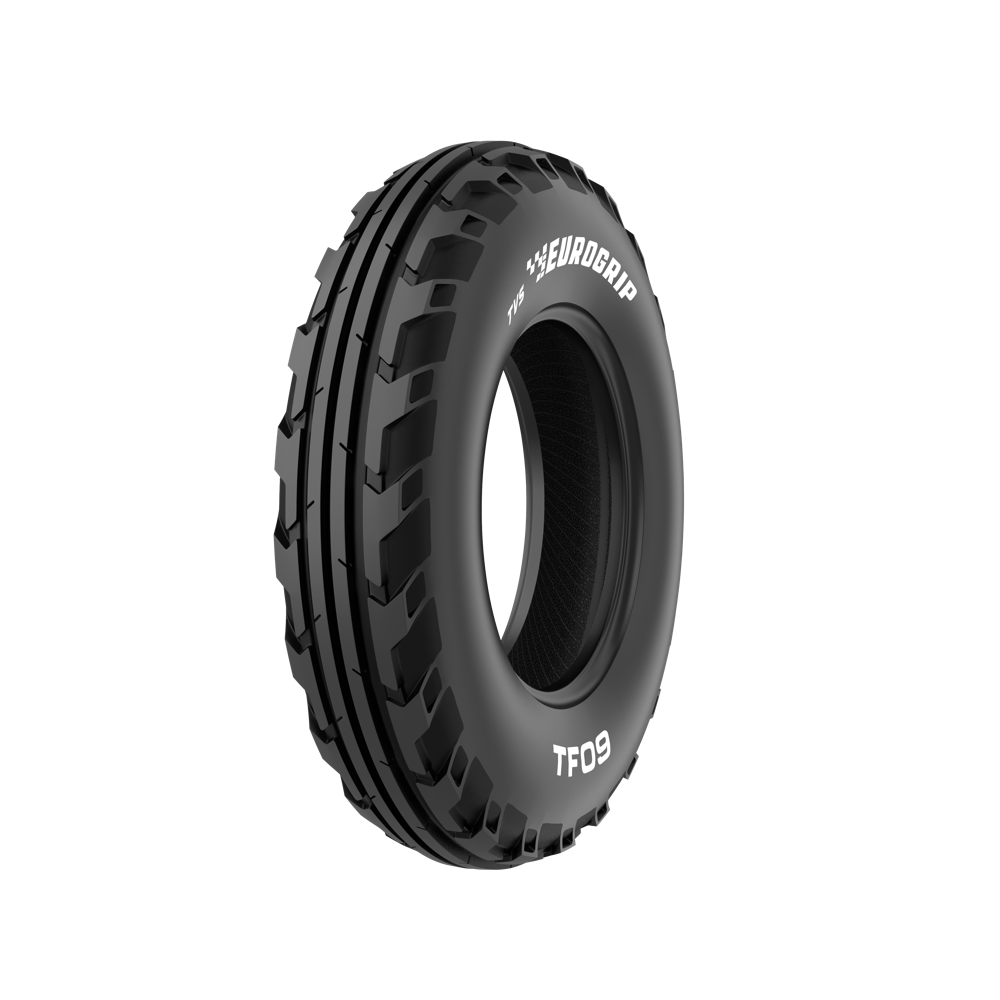

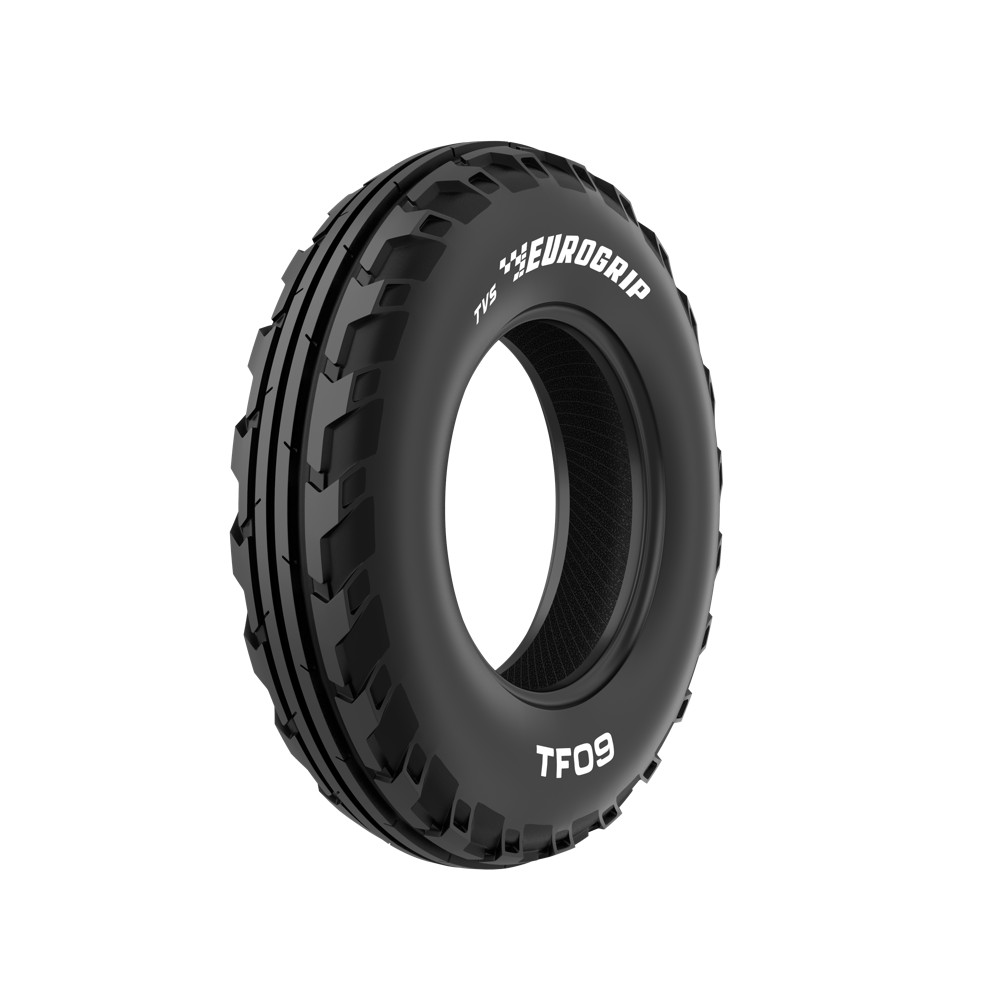

TF 09

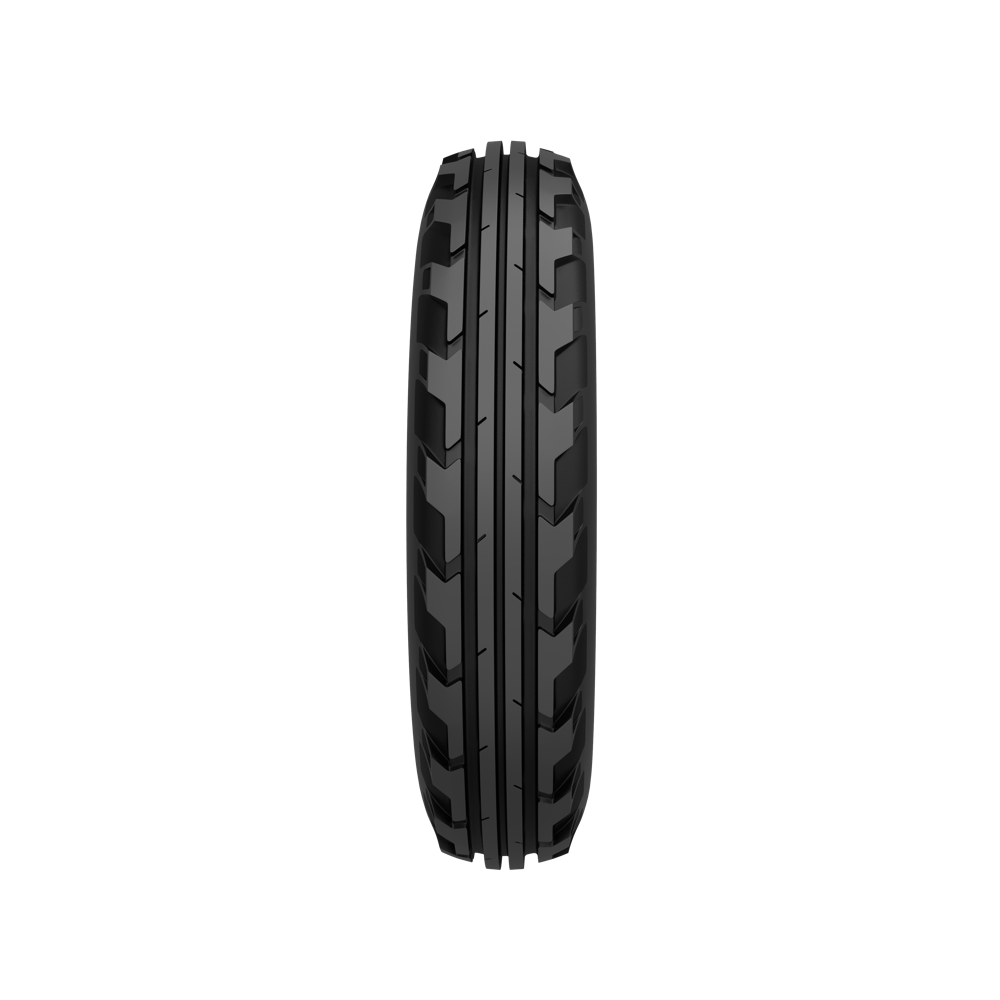

Built with a strong nylon carcass the TF 09 multi-rib F-2 tyre is ideal for use as steering tyre in a two-wheel drive tractor. Its four-rib with notched shoulder rib design provides smooth on road function and good self -leaning in the field.
F-2
A6/A8
Bias
Suitable for
Tractor 2WD
Trailer
Technical Data
| TYRE SIZE | REC. RIM (inch) | ALT. RIM (inch) | UNLOADED DIMENSIONS (mm) | TYPE | PLY RATING | LI & SS | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| SW | OD | SLR | RC | |||||||
| 7.50-16 | 5.50F | - | 210 | 805 | 378 | 2415 | TT | 6 | 98A6 | 90A8 | |
| 7.50-16 | 5.50F | - | 210 | 805 | 378 | 2415 | TT | 8 | 103A6/95A8 | |
IMPERIAL
METRIC
Technical Table 01
| TYRE SIZE | RIM SIZE | REC. RIM | ALT. RIM | UNLOADED DIMENSIONS (mm) | PLY RATING | LOAD INDEX SPEED SYMBOL | ||||
| SW | OD | SLR | RC | |||||||
| 15.0/70-18 | 18 | W13 |
W17 W19 |
400 | 980 | 440 | 2886 | 14 | 128 A8 |
 |
| 16 | 132 A9 |
|
||||||||
Technical Data
| Tyre Size | Rec. RIM (inch) |
Alt. RIM (inch) |
Unloaded dimensions (mm) | Type | Ply Rating | Load Index & Speed Symbol | Fabric | Load table | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Section Width | Overall Diameter | Static Load Radius | Rolling Circumference | ||||||||
