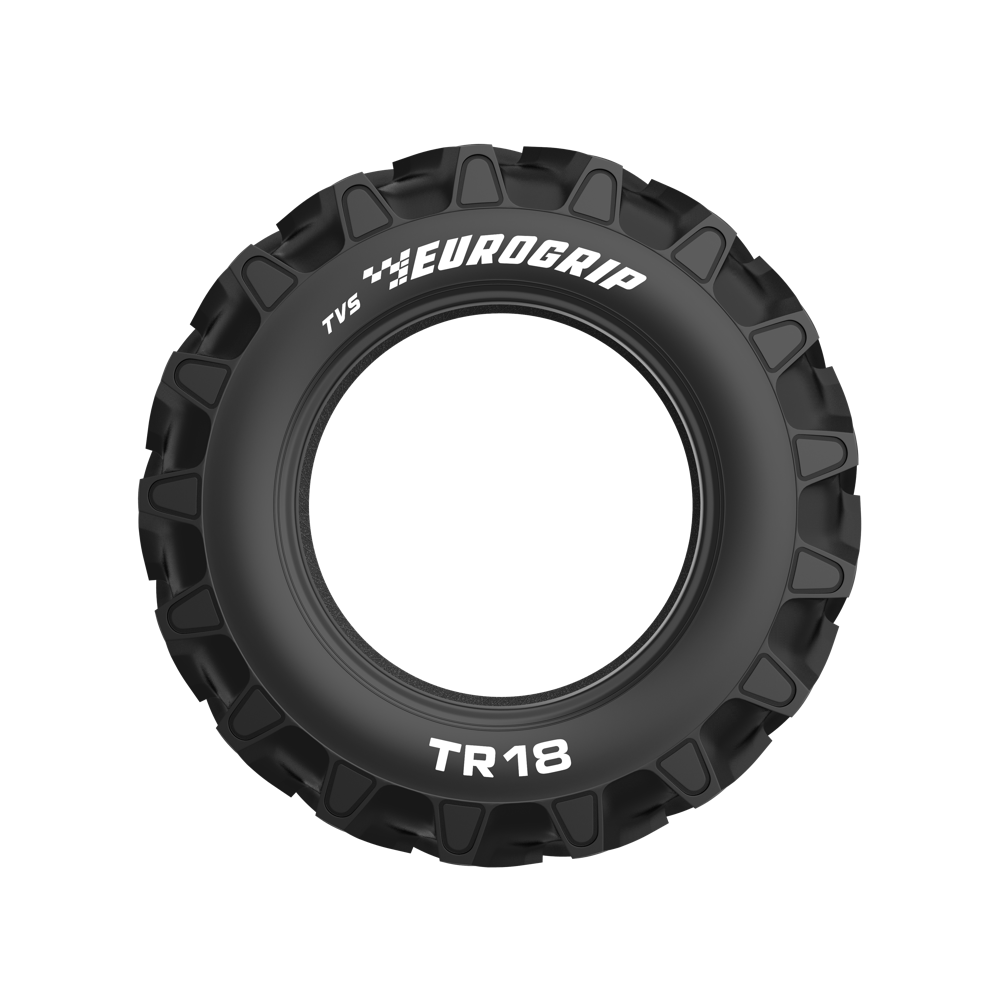

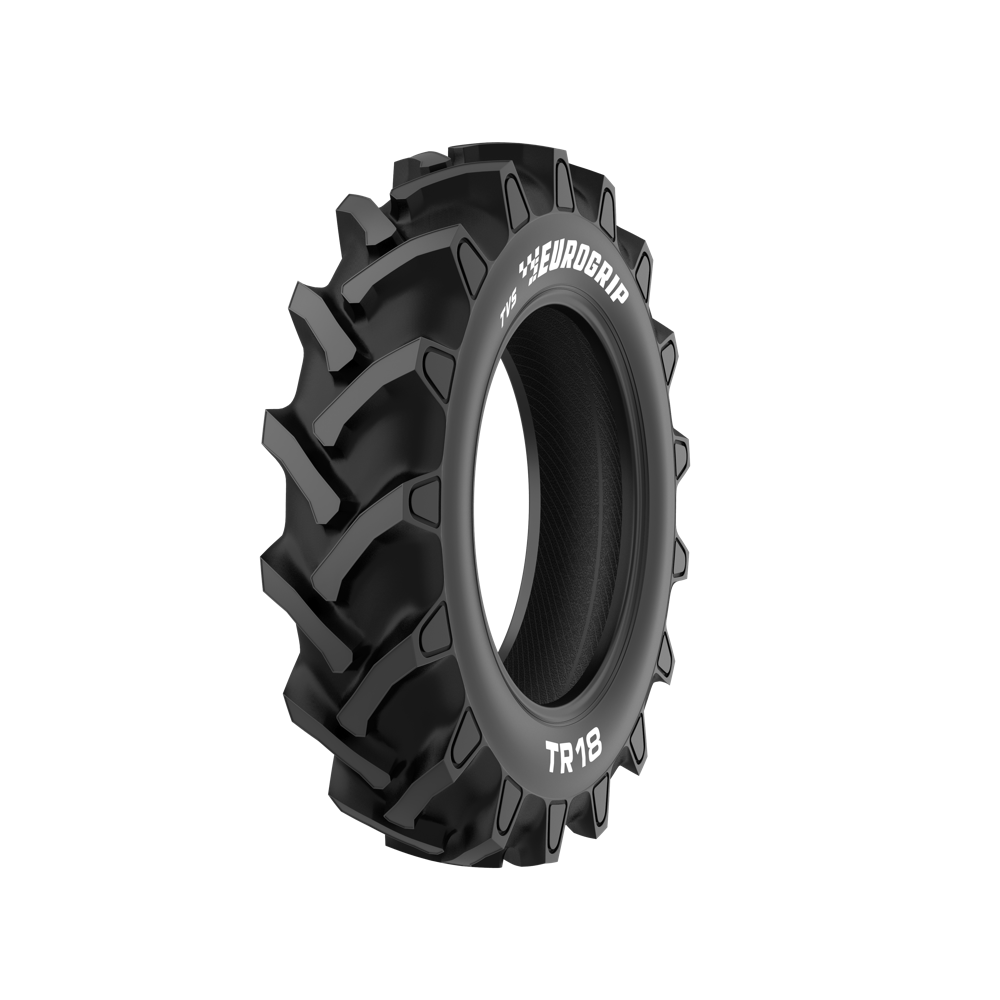

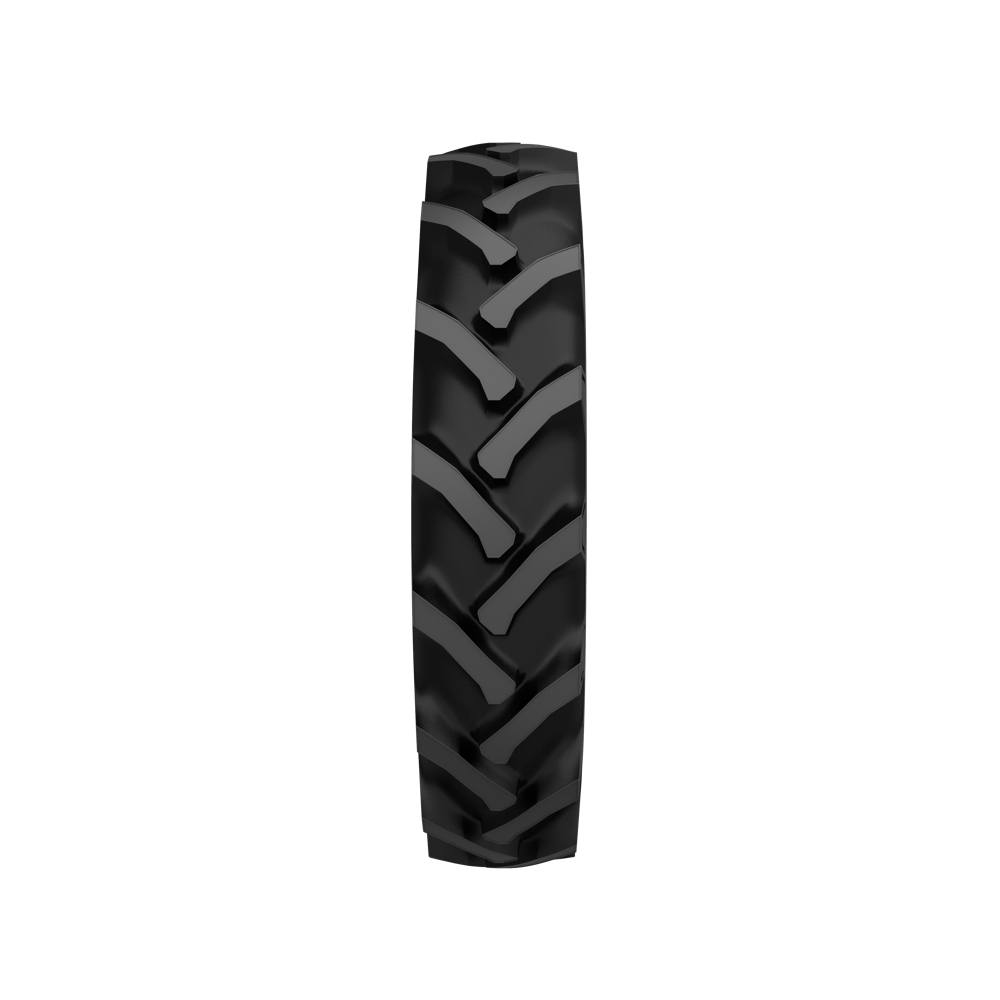

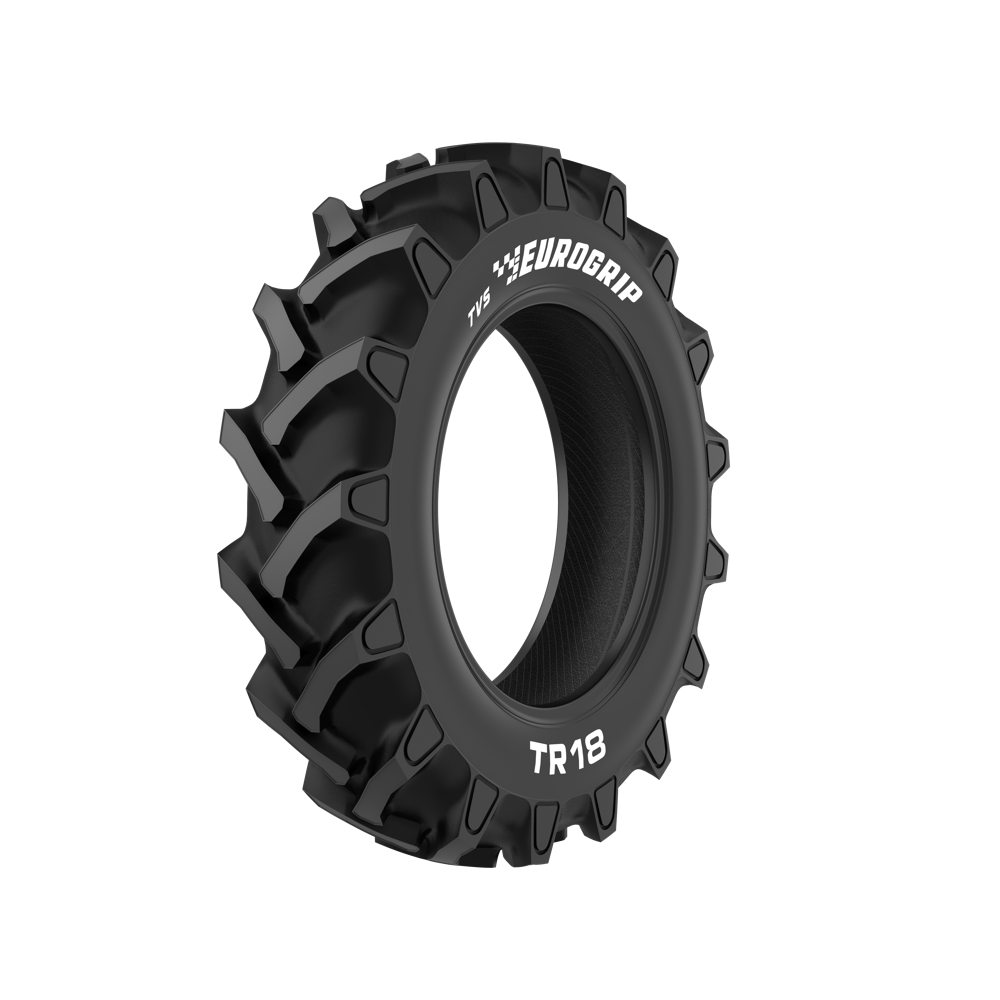

Tractor Drive
TR 18
The R-1 TR 18 tyre is designed for compact and small tractors used predominantly in agriculture. The multi-angle tread design, with wide, strong and deep lugs provide excellent traction and have excellent wear characteristics. The tyre provides superior self-cleaning which is critical for wet agricultural practices. It is a durable tyre with low maintenance.
R-1
A6
Bias
Suitable for
Tractor 2WD
Tractor MFWD
Technical Data
| TYRE SIZE | REC. RIM (inch) | ALT. RIM (inch) | UNLOADED DIMENSIONS (mm) | TYPE | PLY RATING | LI & SS | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| SW | OD | SLR | RC | |||||||
| 8.00-18 | W7 | - | 210 | 845 | 393 | 2535 | TT | 4 | 85A6 | |
| 8.3-20 | W7 | - | 215 | 890 | 410 | 2630 | TT | 6 | 96A6 | |
IMPERIAL
METRIC
Technical Table 01
| TYRE SIZE | RIM SIZE | REC. RIM | ALT. RIM | UNLOADED DIMENSIONS (mm) | PLY RATING | LOAD INDEX SPEED SYMBOL | ||||
| SW | OD | SLR | RC | |||||||
| 15.0/70-18 | 18 | W13 |
W17 W19 |
400 | 980 | 440 | 2886 | 14 | 128 A8 |
 |
| 16 | 132 A9 |
|
||||||||
Technical Data
| Tyre Size | Rec. RIM (inch) |
Alt. RIM (inch) |
Unloaded dimensions (mm) | Type | Ply Rating | Load Index & Speed Symbol | Fabric | Load table | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Section Width | Overall Diameter | Static Load Radius | Rolling Circumference | ||||||||
