Tractor Drive

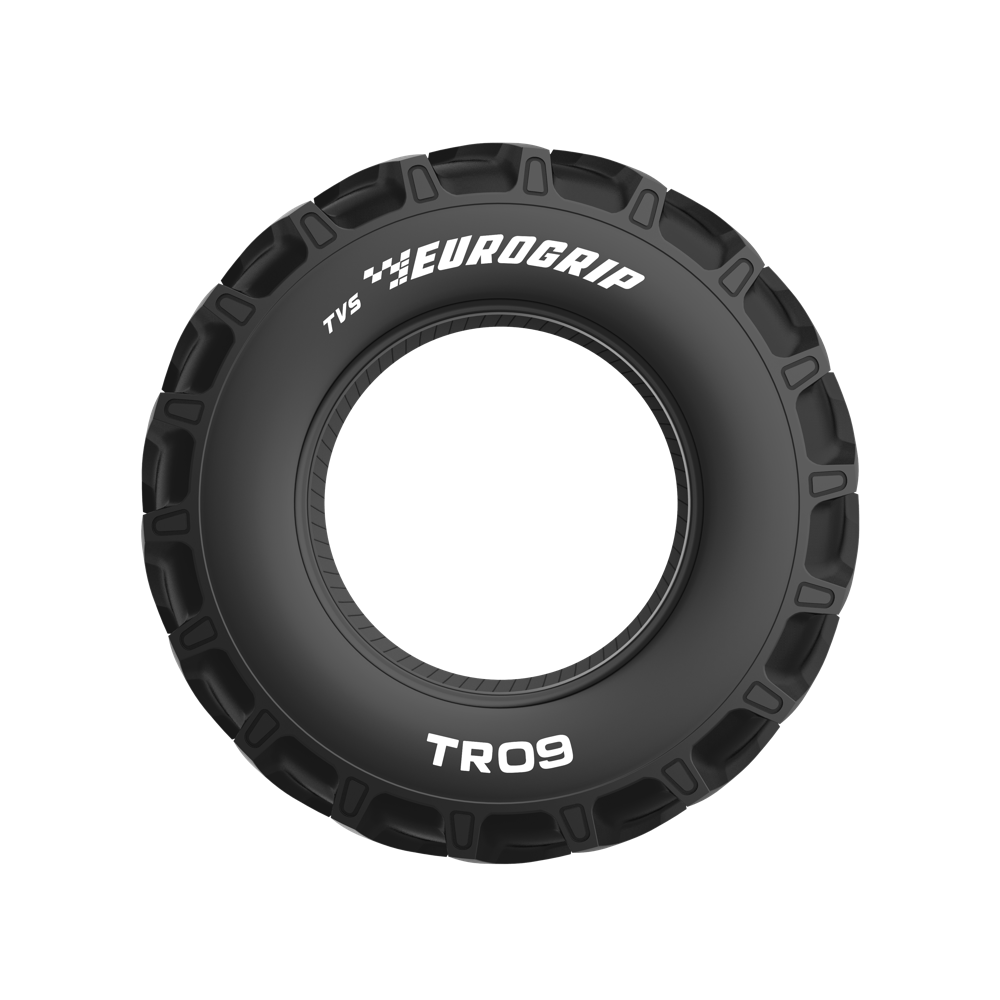

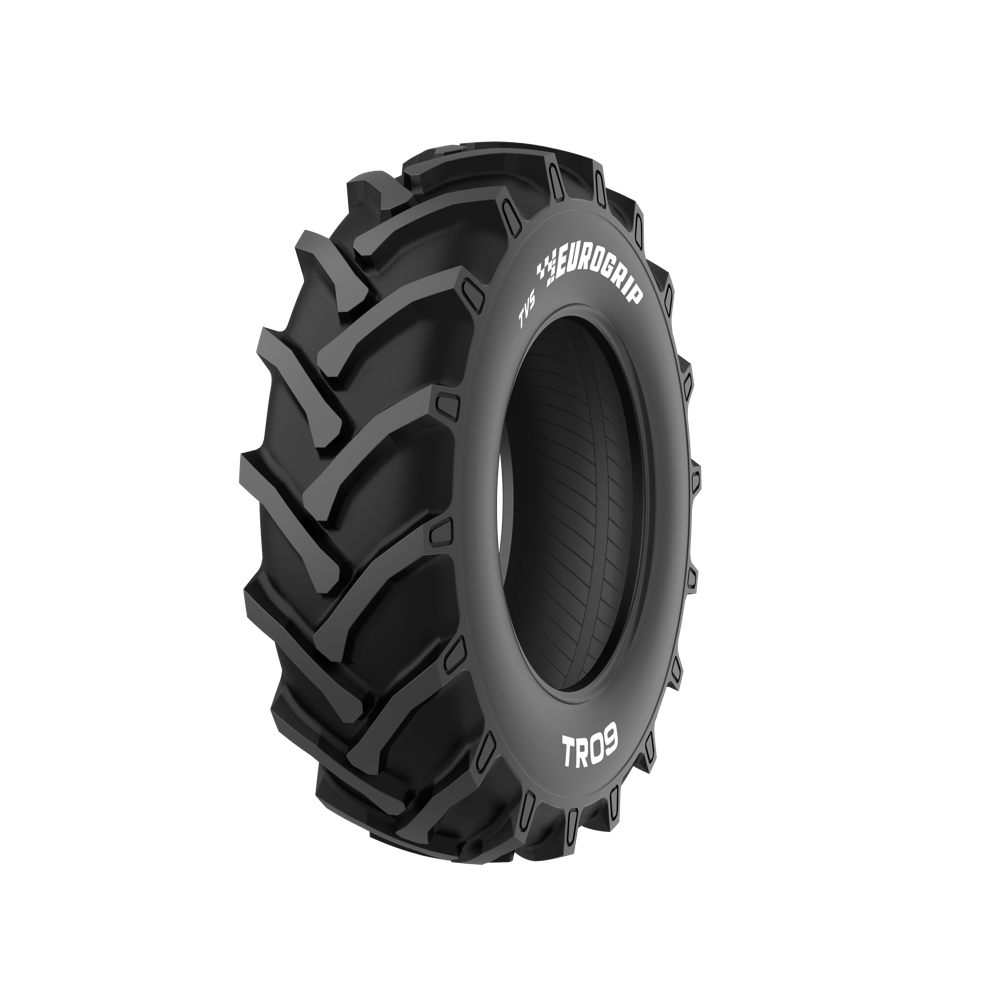

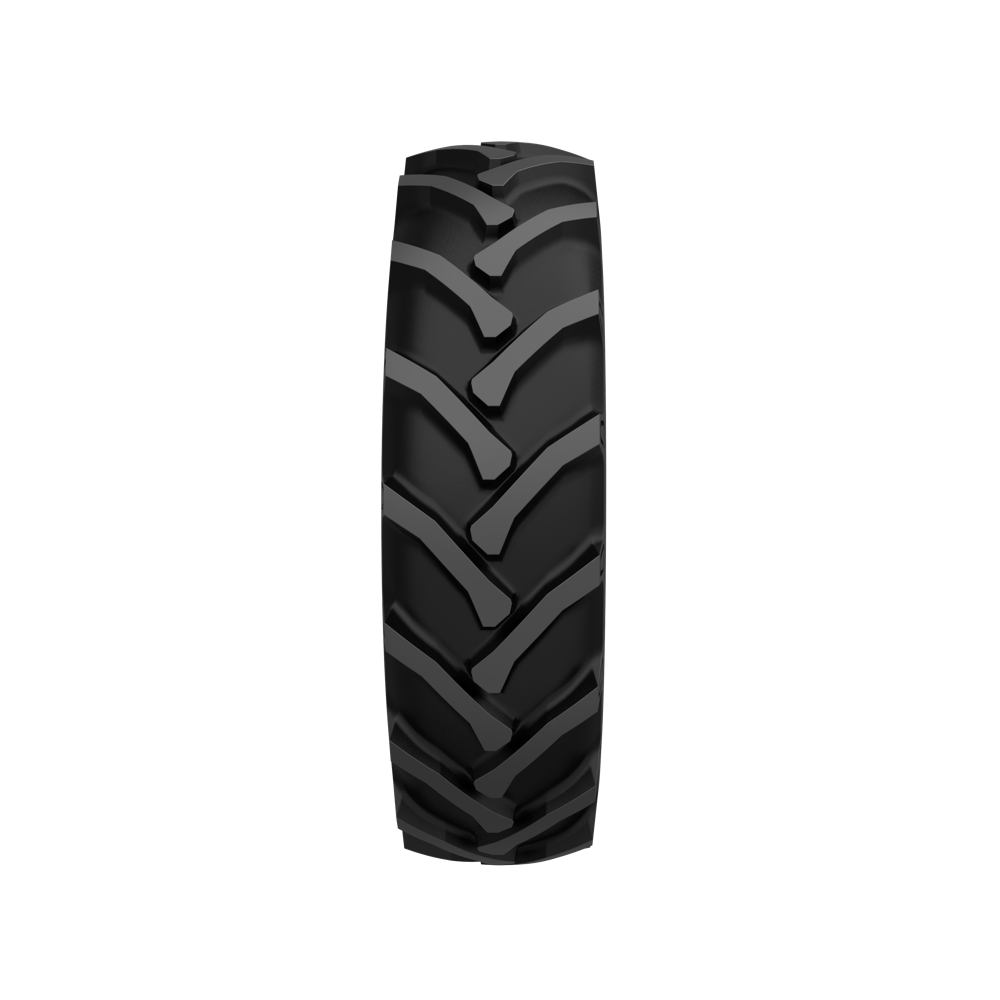

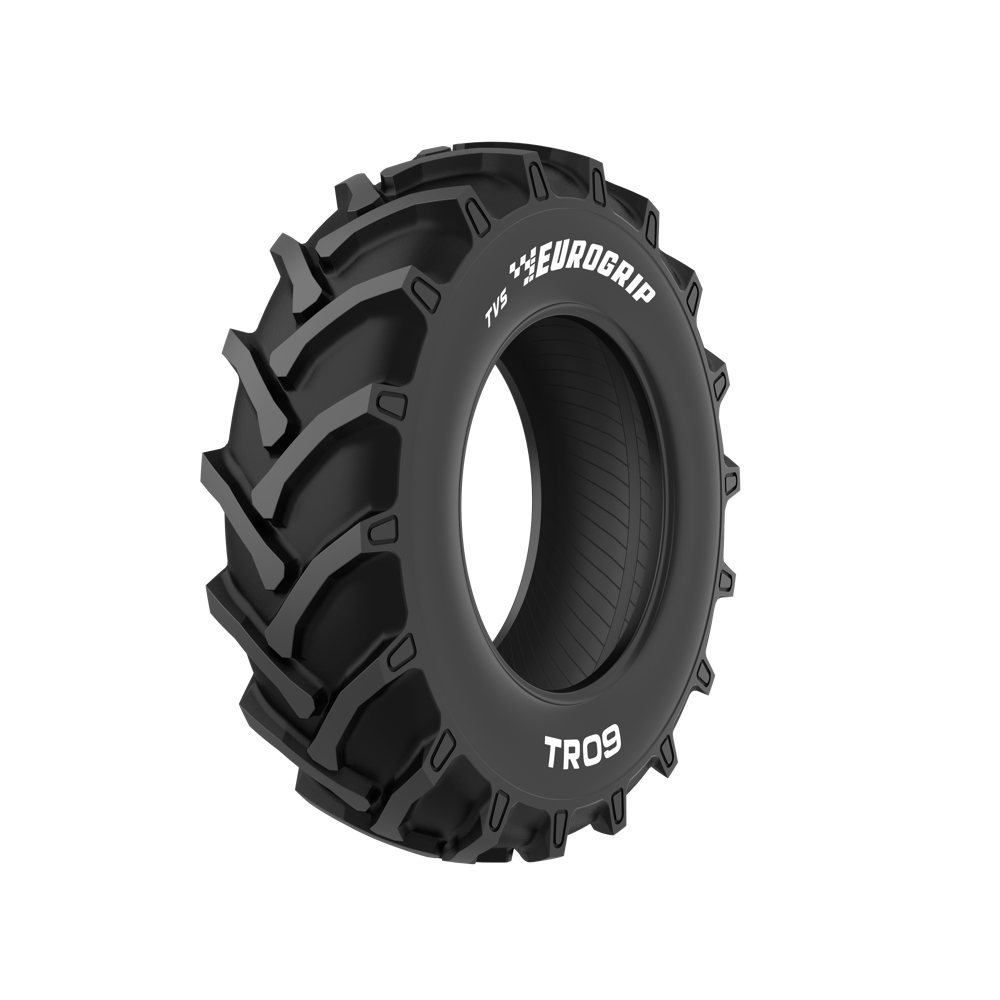

TR 09
The TR 09 R-1 tyre is designed for general farming and soil tillage application. Its dual-angle lugs offer better ride, good traction and self-cleaning. Built with durable compound the TR 09 is a durable, low maintenance tyre.
R-1
A6
Bias
Suitable for
Tractor 2WD
Tractor MFWD
Technical Data
| TYRE SIZE | REC. RIM (inch) | ALT. RIM (inch) | UNLOADED DIMENSIONS (mm) | TYPE | PLY RATING | LI & SS | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| SW | OD | SLR | RC | |||||||
| 12.4-28 | W11 | - | 334 | 1265 | 600 | 3763 | TT, TL | 8 | 123A6 | |
| 12.4-28 | W11 | - | 334 | 1265 | 600 | 3763 | TT, TL | 12 | 125A6 | |
| 16.9-28 | W15L | - | 448 | 1425 | 649 | 4220 | TT, TL | 8 | 135A6 | |
| 16.9-28 | W15L | - | 448 | 1425 | 649 | 4220 | TT, TL | 12 | 143A6 | |
IMPERIAL
METRIC
Technical Table 01
| TYRE SIZE | RIM SIZE | REC. RIM | ALT. RIM | UNLOADED DIMENSIONS (mm) | PLY RATING | LOAD INDEX SPEED SYMBOL | ||||
| SW | OD | SLR | RC | |||||||
| 15.0/70-18 | 18 | W13 |
W17 W19 |
400 | 980 | 440 | 2886 | 14 | 128 A8 |
 |
| 16 | 132 A9 |
|
||||||||
Technical Data
| Tyre Size | Rec. RIM (inch) |
Alt. RIM (inch) |
Unloaded dimensions (mm) | Type | Ply Rating | Load Index & Speed Symbol | Fabric | Load table | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Section Width | Overall Diameter | Static Load Radius | Rolling Circumference | ||||||||
