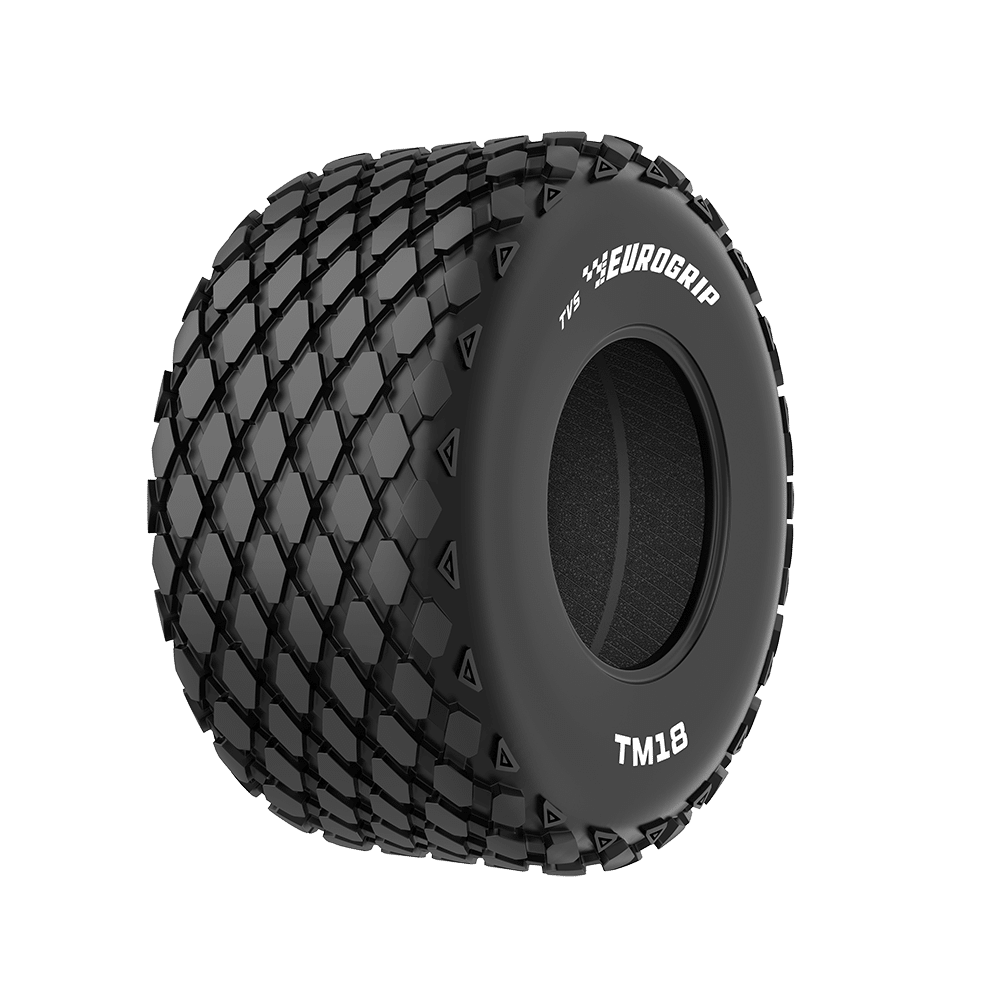

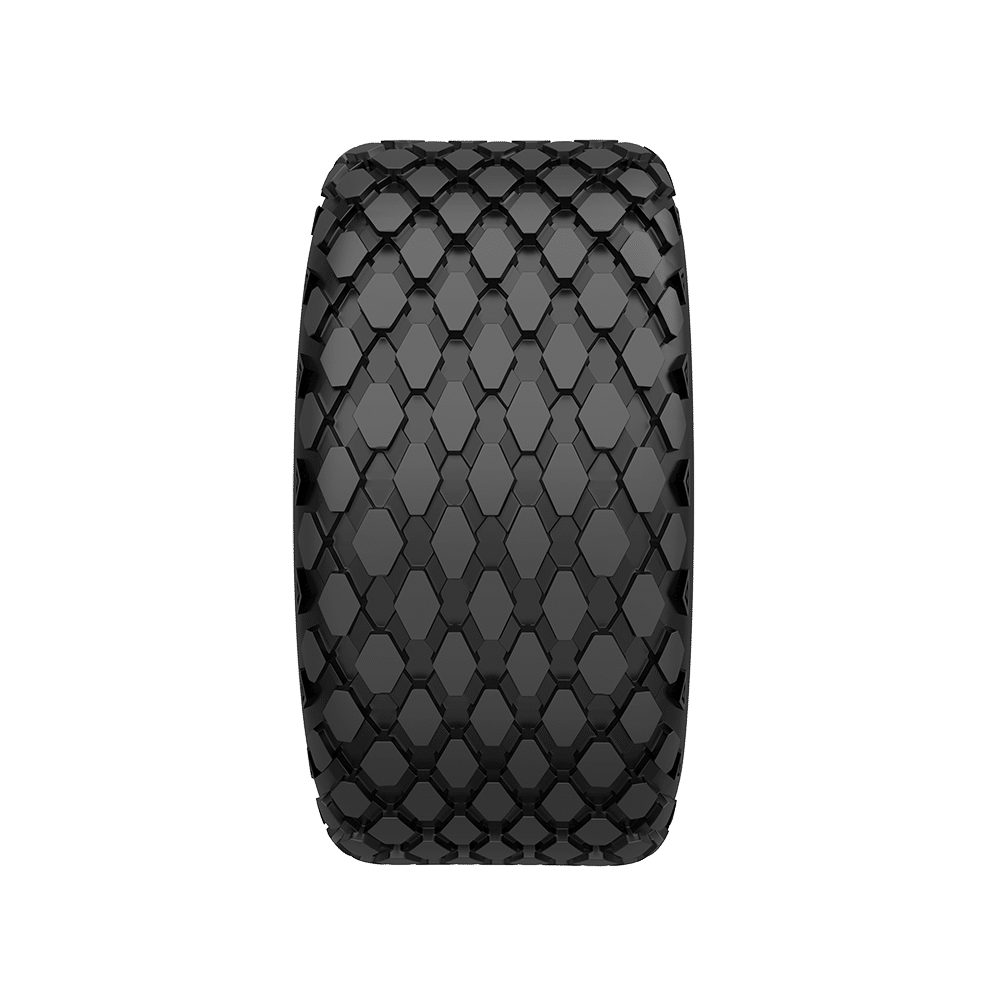

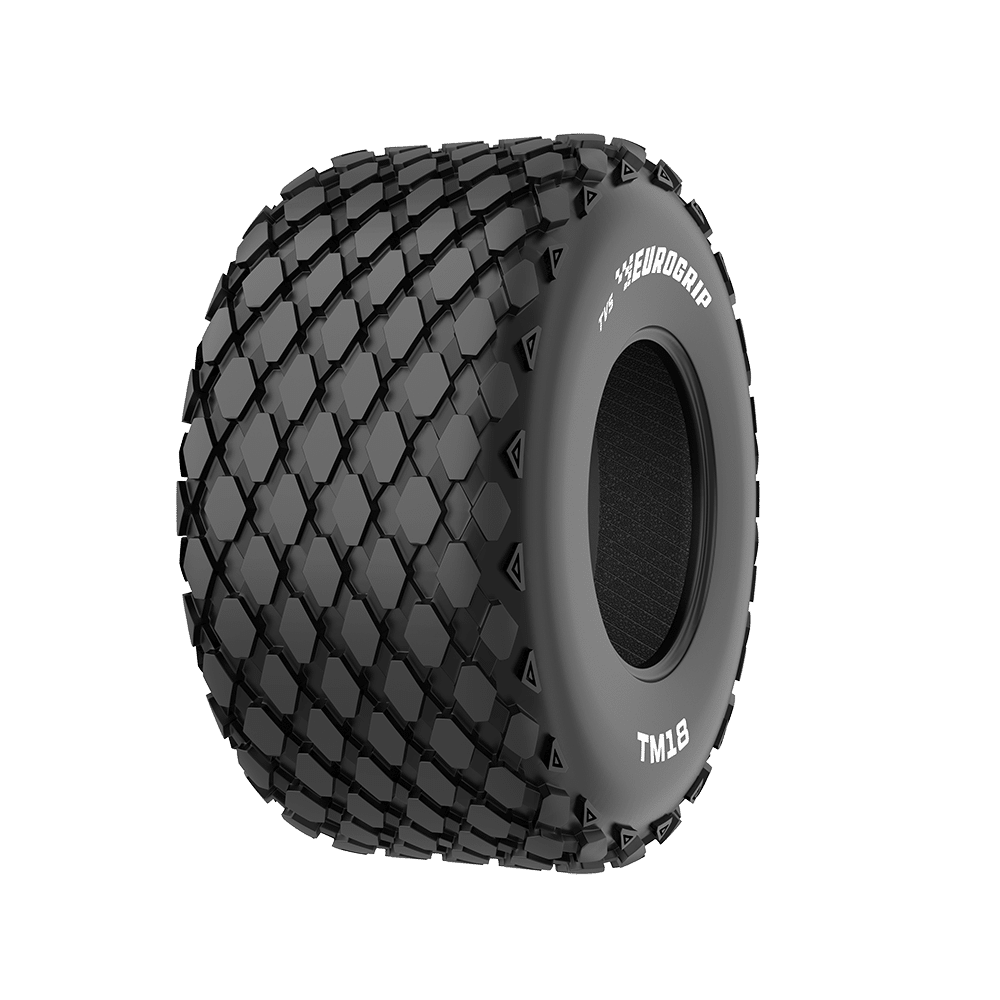

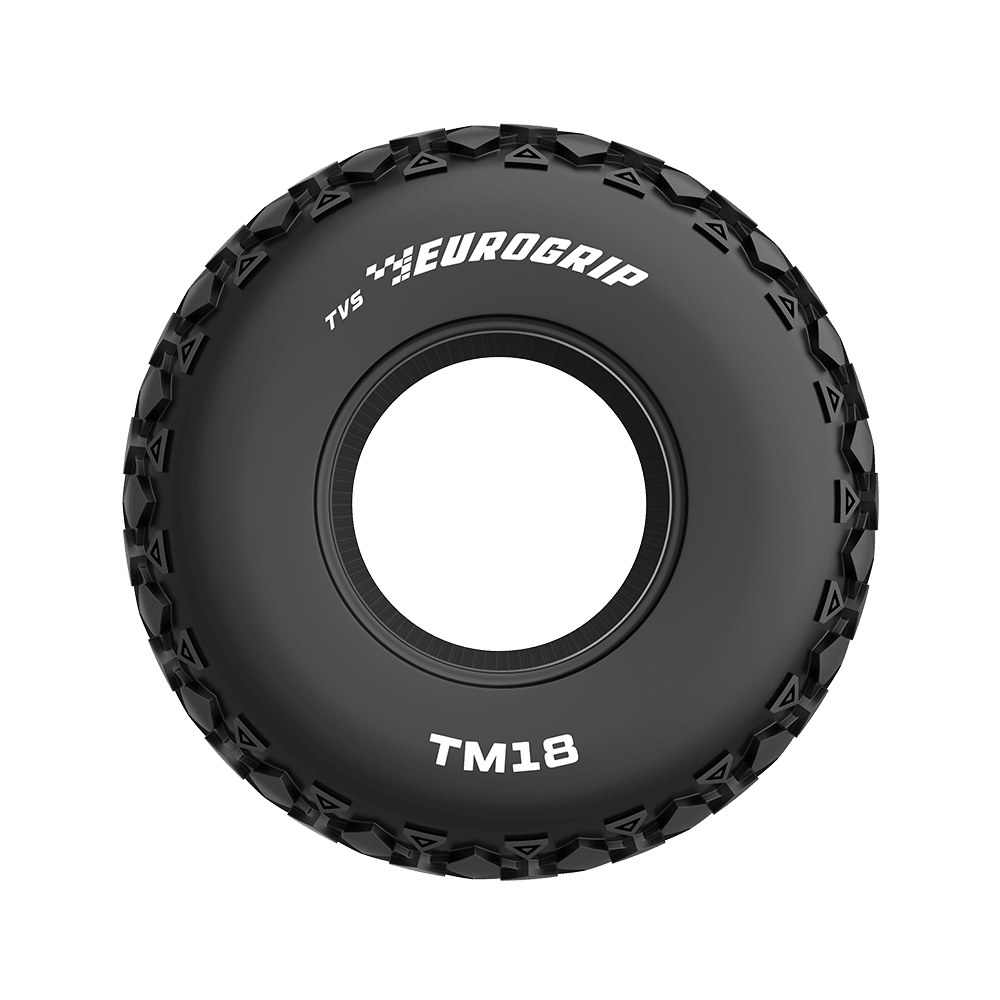

The TM 18 R-3 tyre is designed for wide ranging applications in agriculture. It is ideal for use on machines such as grain wagons, trailers, transport wagons and tractors. Its large diamond shaped blocks assist in spreading the load on a wider surface reducing soil compaction. The rounded shoulders reduce soil disturbance to the minimum. Also, its rugged construction enables the machines and implements to carry heavy load. Special compounds with ozone resistance extend the life of the treads to provide long years of service.
R-3
A8
Bias
Suitable for

Tanker

Liquid Manure Spreader

Trailer

Tractor 2WD

Tractor MFWD
Technical Data
TM 18
...
TYRE SIZE | REC. RIM (inch) | ALT. RIM (inch) | UNLOADED DIMENSIONS (mm) | TYPE | PLY RATING | LI & SS | ||||
---|---|---|---|---|---|---|---|---|---|---|
SW | OD | SLR | RC | |||||||
28L-26 | DW25B | - | 720 | 1570 | 685 | 4545 | TL | 16 | 173A8 |
IMPERIAL
METRIC
Technical Table 01
TYRE SIZE | RIM SIZE | REC. RIM | ALT. RIM | UNLOADED DIMENSIONS (mm) | PLY RATING | LOAD INDEX SPEED SYMBOL | ||||
SW | OD | SLR | RC | |||||||
15.0/70-18 | 18 | W13 |
W17 W19 |
400 | 980 | 440 | 2886 | 14 | 128 A8 |
![]() |
16 | 132 A9 |
![]() |
Technical Data
Intl.
US
Tyre Size | Rec. RIM (inch) |
Alt. RIM (inch) |
Unloaded dimensions (mm) | Type | Ply Rating | Load Index & Speed Symbol | Fabric | Load table | |||
---|---|---|---|---|---|---|---|---|---|---|---|
Section Width | Overall Diameter | Static Load Radius | Rolling Circumference |
