Soil Compactor
TM 09C

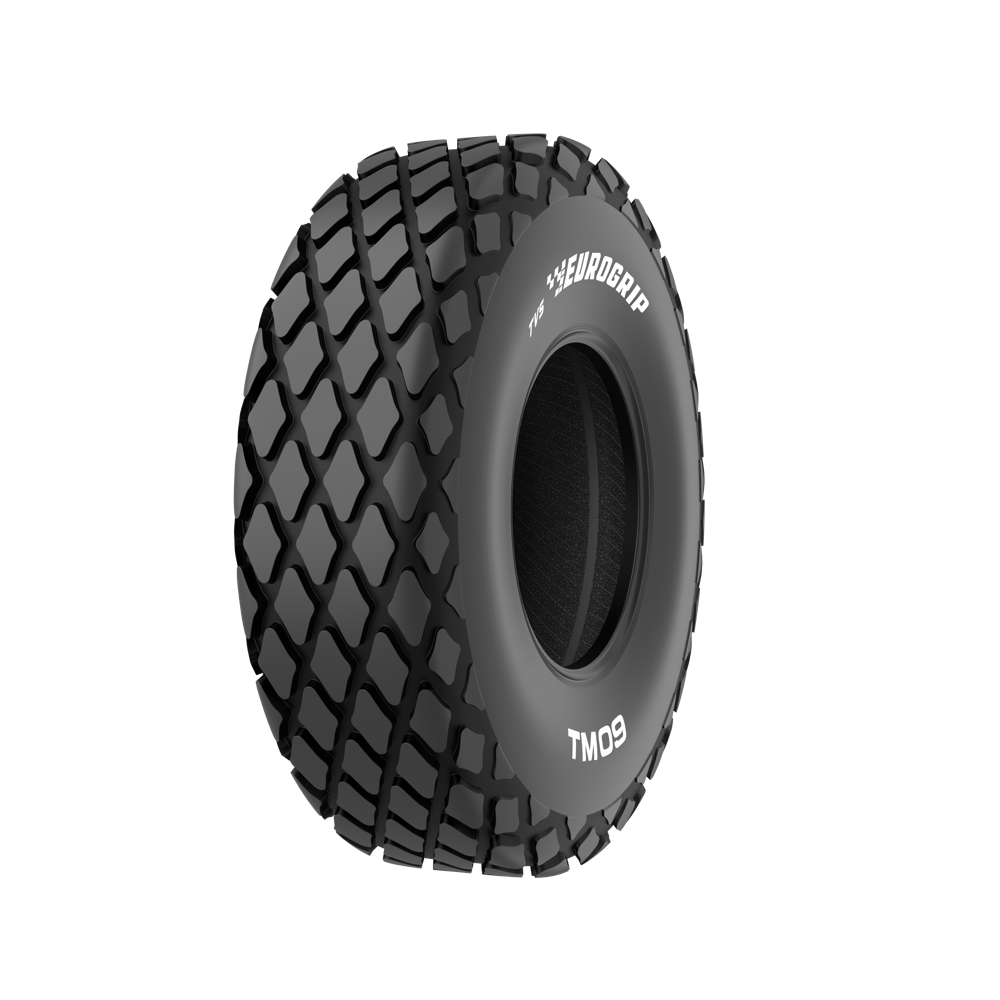

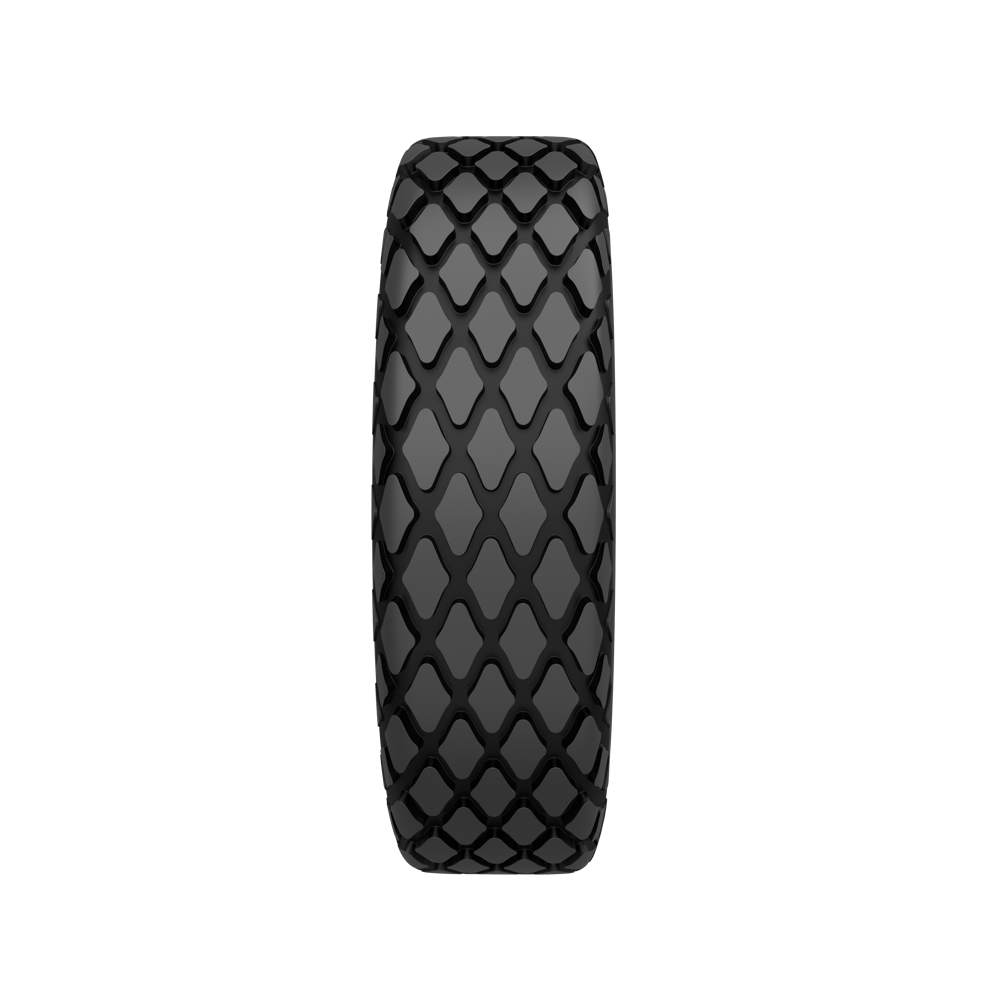

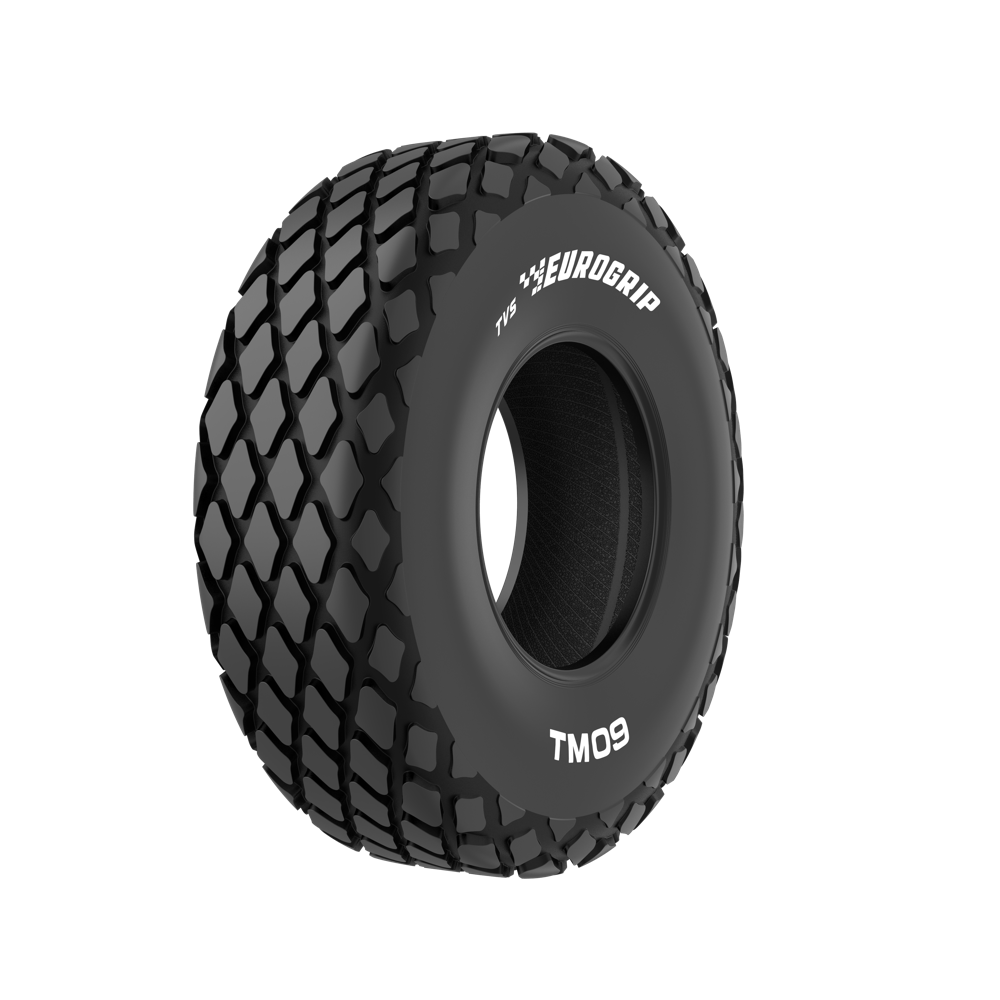

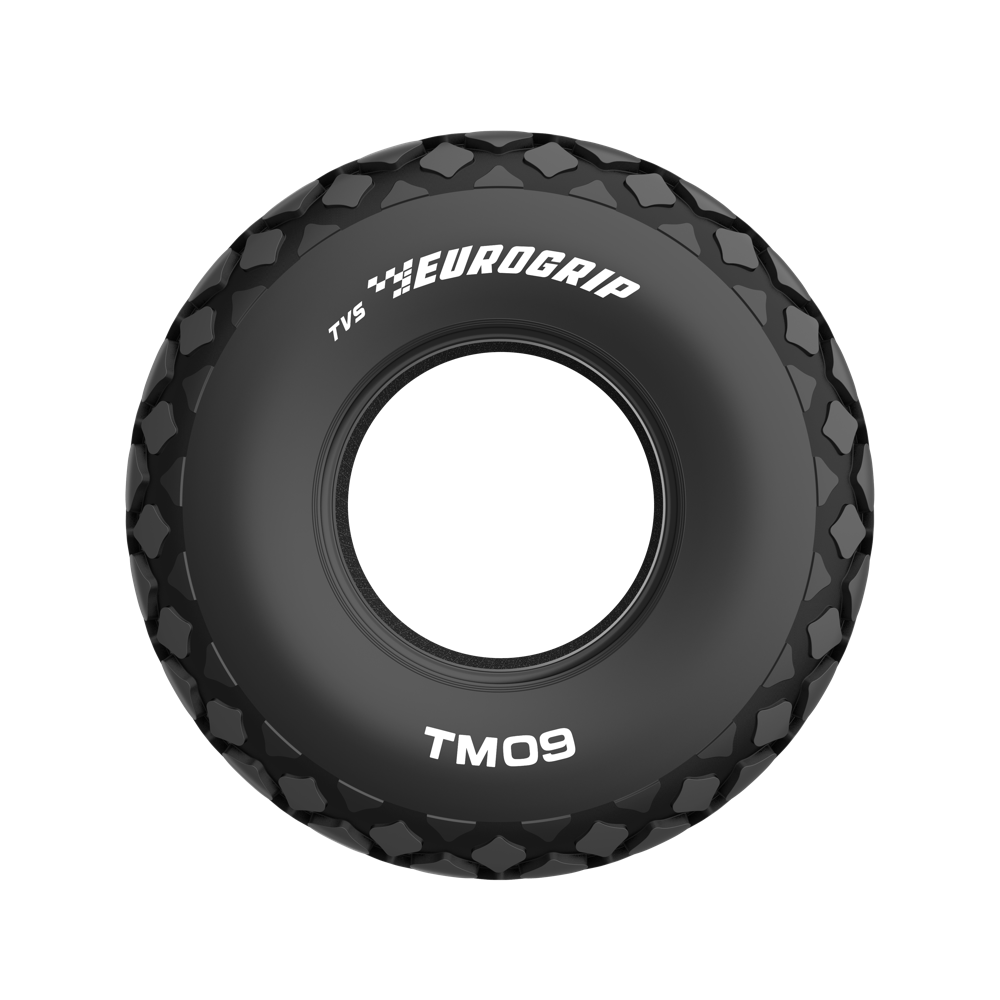

TM 09 R-3 tyre is designed for single drum vibratory soil compactors. In addition it can also be used for medium sizes turf / grassland tractors. They can be used as towed implement tyres for trailers and wagons in fodder transport. The heavy duty variants (TM 09 HD) are built for severe duty agricultural transport machines such as slurry tankers, manure spreaders and grain wagons. Its diamond block design to provide additional flotation and low soil disturbance.
R-3
A2/A8
Bias
Suitable for
Soil Compactor
Technical Data
| TYRE SIZE | REC. RIM (inch) | ALT. RIM (inch) | UNLOADED DIMENSIONS (mm) | TYPE | PLY RATING | LI & SS | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| SW | OD | SLR | RC | |||||||
| 23.1-26 | DW20B | - | 615 | 1555 | 0 | 0 | TL | 12 | 164A6 | 162A8 | |
IMPERIAL
METRIC
Technical Table 01
| TYRE SIZE | RIM SIZE | REC. RIM | ALT. RIM | UNLOADED DIMENSIONS (mm) | PLY RATING | LOAD INDEX SPEED SYMBOL | ||||
| SW | OD | SLR | RC | |||||||
| 15.0/70-18 | 18 | W13 |
W17 W19 |
400 | 980 | 440 | 2886 | 14 | 128 A8 |
 |
| 16 | 132 A9 |
|
||||||||
Technical Data
| Tyre Size | Rec. RIM (inch) |
Alt. RIM (inch) |
Unloaded dimensions (mm) | Type | Ply Rating | Load Index & Speed Symbol | Fabric | Load table | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Section Width | Overall Diameter | Static Load Radius | Rolling Circumference | ||||||||
