Implement-Lug

TLB 522

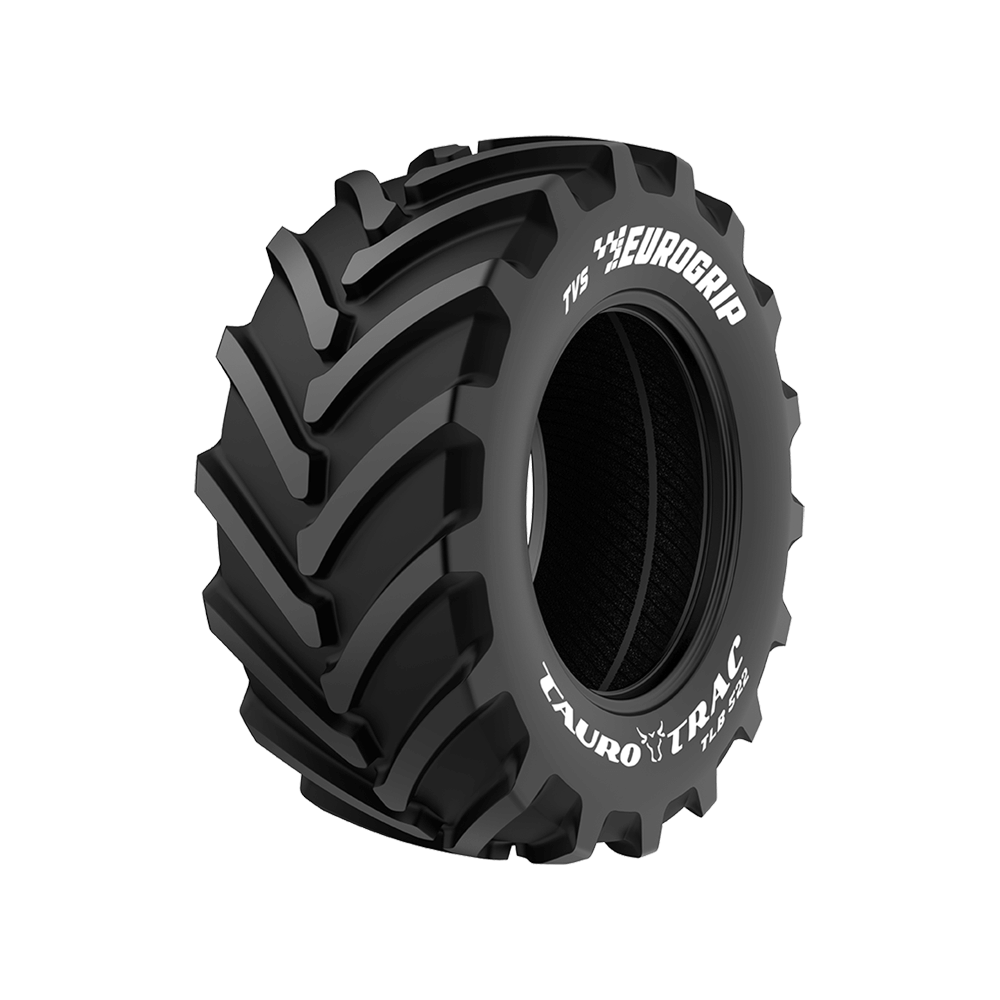

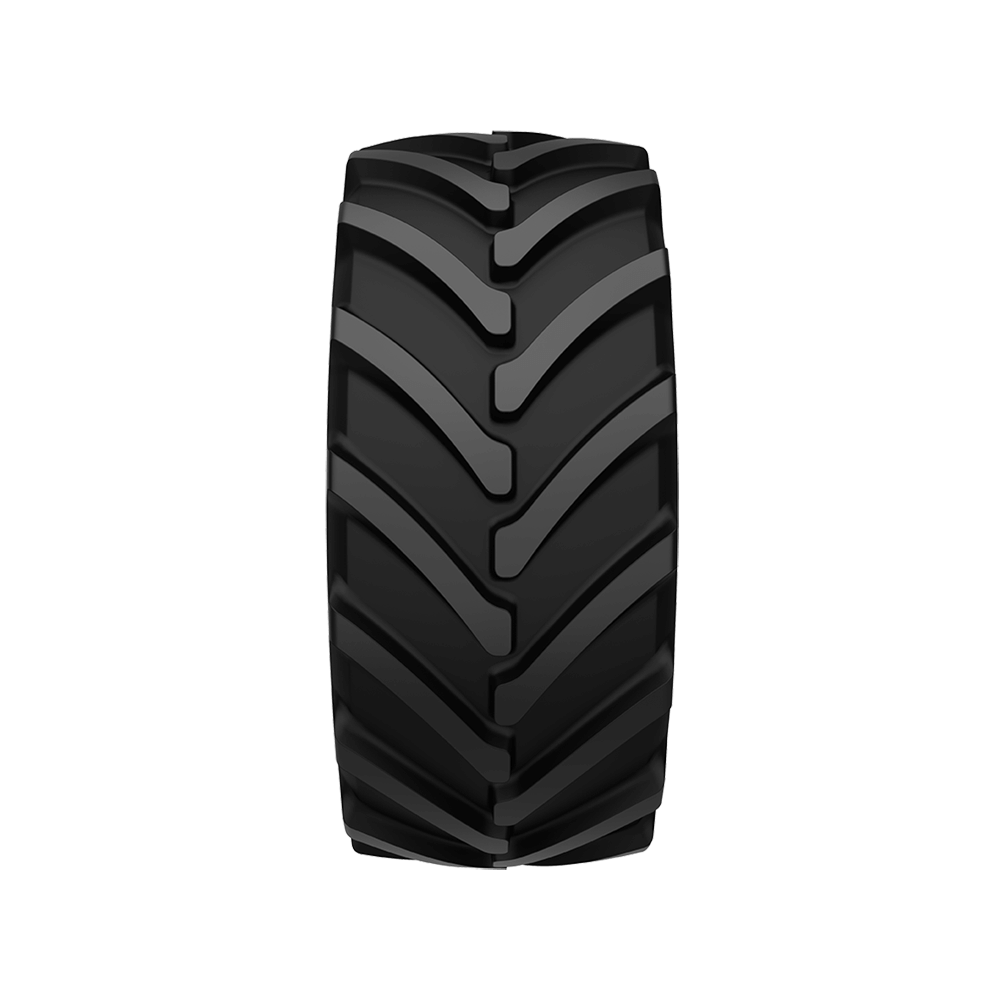

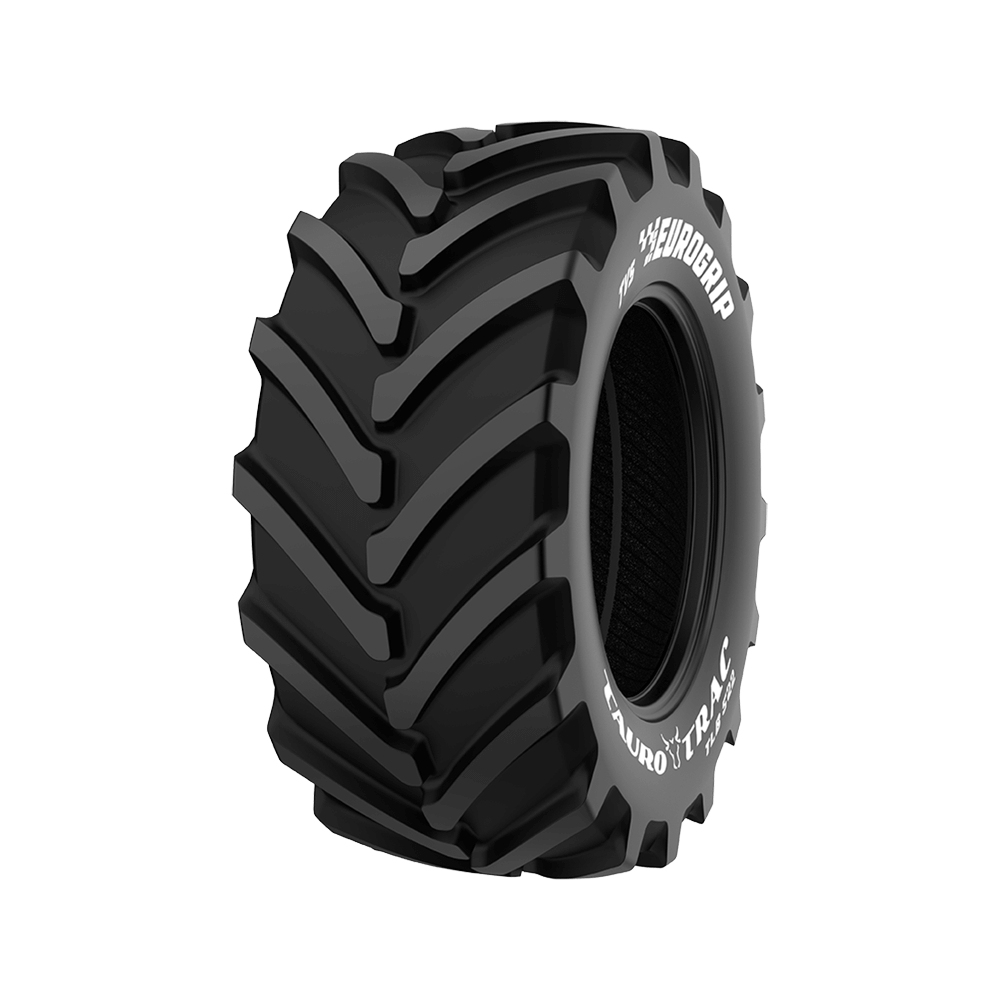

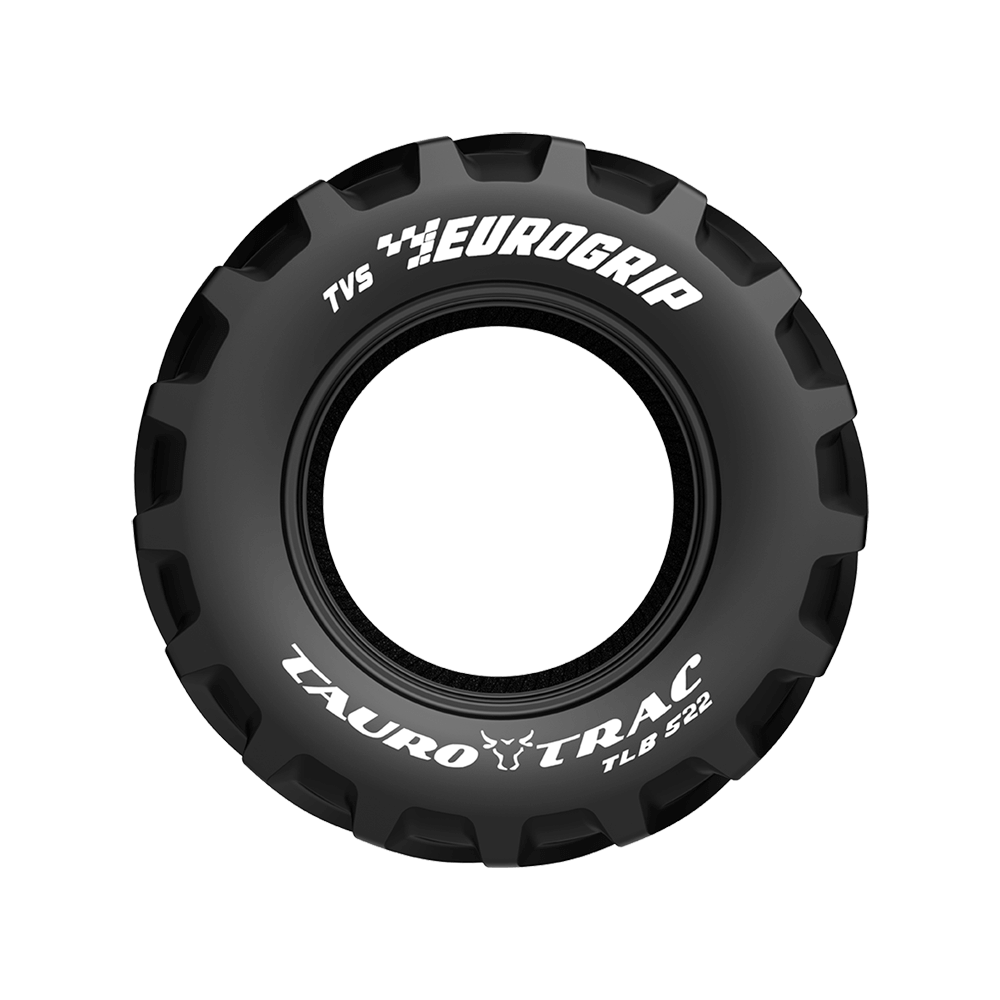

The Tauro trac TLB 522 is a radial tire for Agricultural and Industrial application. The center lug design specially designed for both On and Off road application which makes the TLB 522 a multipurpose tire. The steel belted construction for excellent stability, Puncture resistance and wider footprint for long lasting service. Optimized tread pattern design such way that it gives excellent traction on wet and rough condition. Robust construction which is suitable for machines like telehandler and compact wheel loaders for heavy loading and lifting operation.
 R-4
 A8
 Radial

Suitable for

Multi Purpose Truck

Know more about this product

Technical Data

IMPERIAL

METRIC

Technical Table 01

TYRE SIZE RIM SIZE REC. RIM ALT. RIM UNLOADED DIMENSIONS (mm) PLY RATING LOAD INDEX SPEED SYMBOL
SW OD SLR RC
15.0/70-18 18 W13 W17
W19
400 980 440 2886 14 128 A8
16 132 A9
Technical Data
MM IN
Tyre Size REC. RIM ALT. RIM Unloaded dimension Loaded Static
Radius (in)
Rolling Circ.
(in)
LI & SS
SW (in) OD (in)
425/55R17 13 - 16.6 35.4 16.1 106.5 142A8 | 142B+
INFL.
PRESS
Speed, mph
RECOMMENDED LOAD, lbs
NOT HIGH AND SUSTAINED TORQUE; ROAD TRANSPORT
Cyclic
Applications
PSI Static 6 12 16 19 25 31 6 9
12 4320 2330 2050 1980 1940 1870 1870 2810 2510
23 6890 3740 3260 3170 3110 3000 3000 4490 4010
35 9120 4960 4320 4210 4120 3960 3960 5950 5310
46 11040 6010 5240 5090 5000 4800 4800 7200 6430
58 13440 7290 6370 6190 6080 5840 5840 8760 7820
Tyre Size REC. RIM ALT. RIM Unloaded dimension Loaded Static
Radius (mm)
Rolling Circ.
(mm)
LI & SS
SW (mm) OD (mm)
425/55R17 13 - 421 900 410 2705 142A8 | 142B+
INFL.
PRESS
SPEED, KM/H
RECOMMENDED LOAD, KG
NOT HIGH AND SUSTAINED TORQUE; ROAD TRANSPORT
Cyclic
Applications
Bar Static 10 20 25 30 40 50 10 15
0.8 1960 1060 930 900 880 850 850 1275 1140
1.6 3130 1700 1480 1440 1410 1360 1360 2040 1820
2.4 4140 2250 1960 1910 1870 1800 1800 2700 2410
3.2 5010 2730 2380 2310 2270 2180 2180 3270 2920
4.0 6100 3310 2890 2810 2760 2650 2650 3975 3550
Technical Data
Intl.
US
Tyre Size Rec. RIM
(inch)
Alt. RIM
(inch)
Unloaded dimensions (mm) Type Ply Rating Load Index & Speed Symbol Fabric Load table
Section Width Overall Diameter Static Load Radius Rolling Circumference

TLB 522
