Backhoe Loader
TI 27

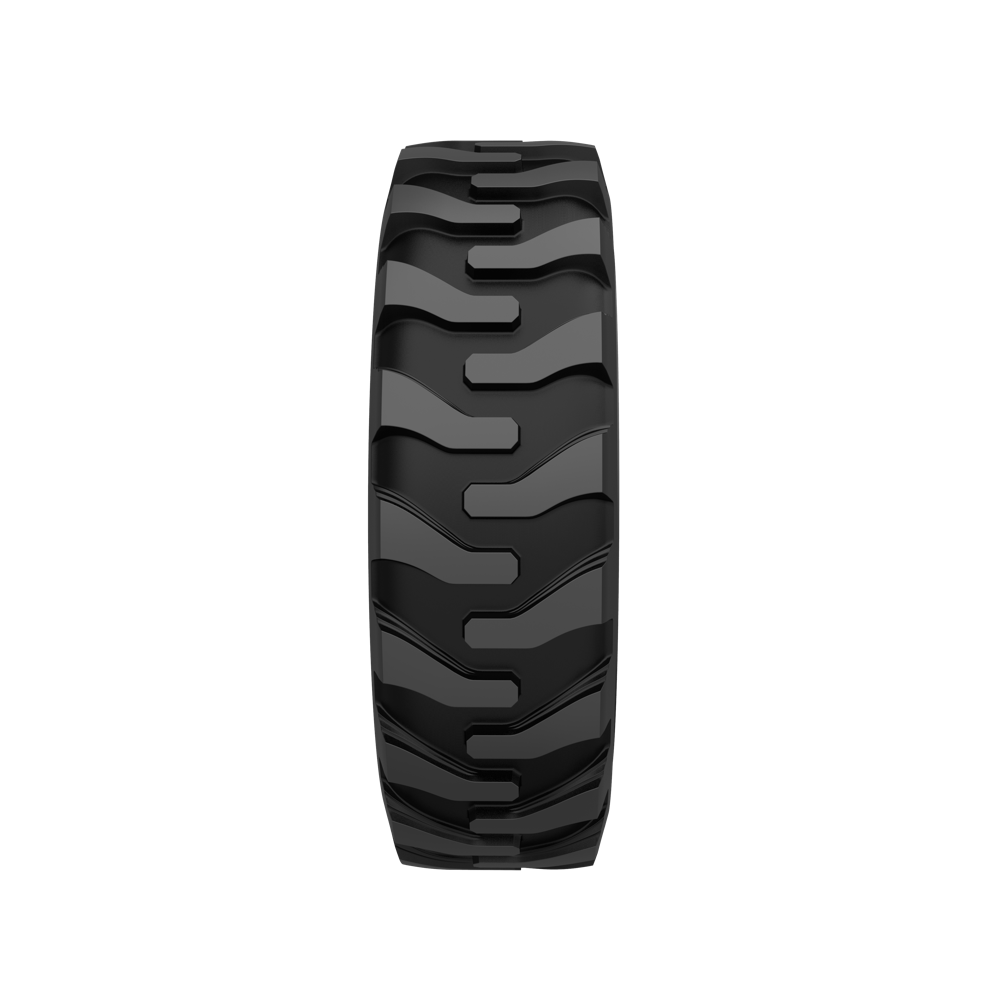

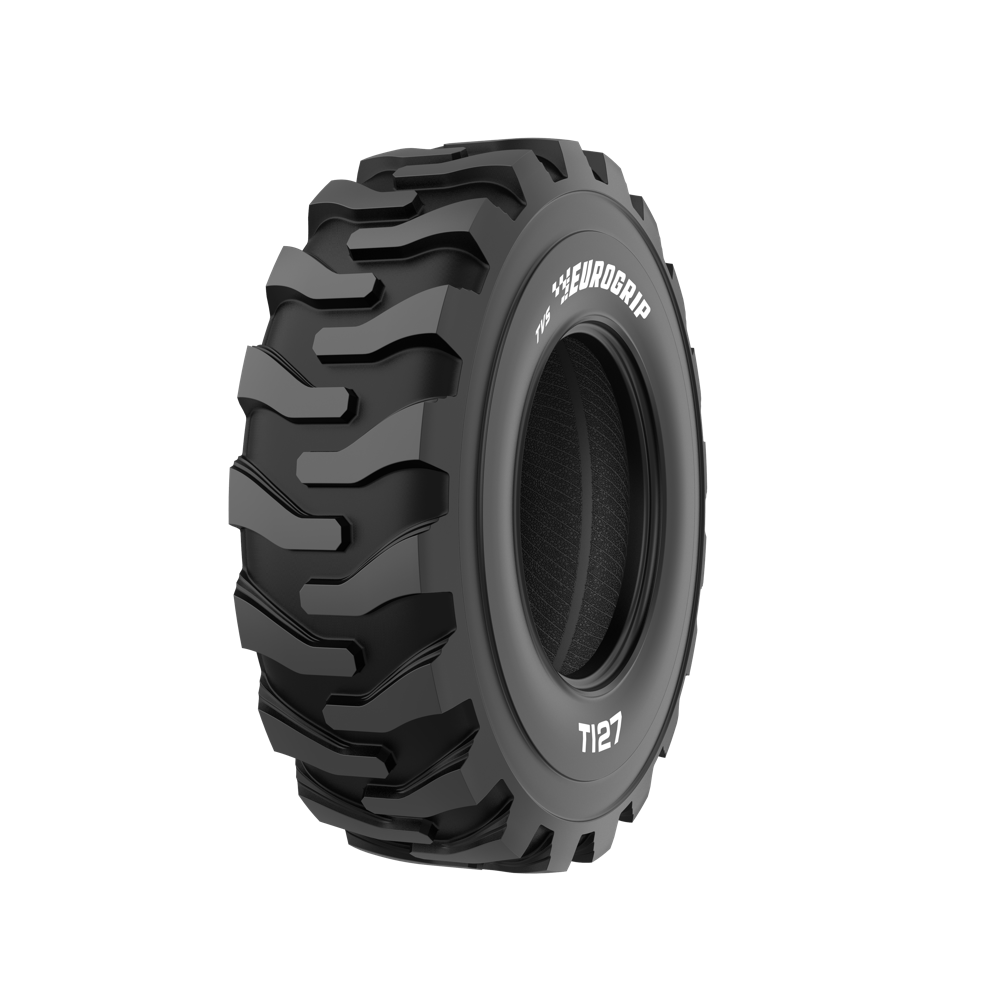

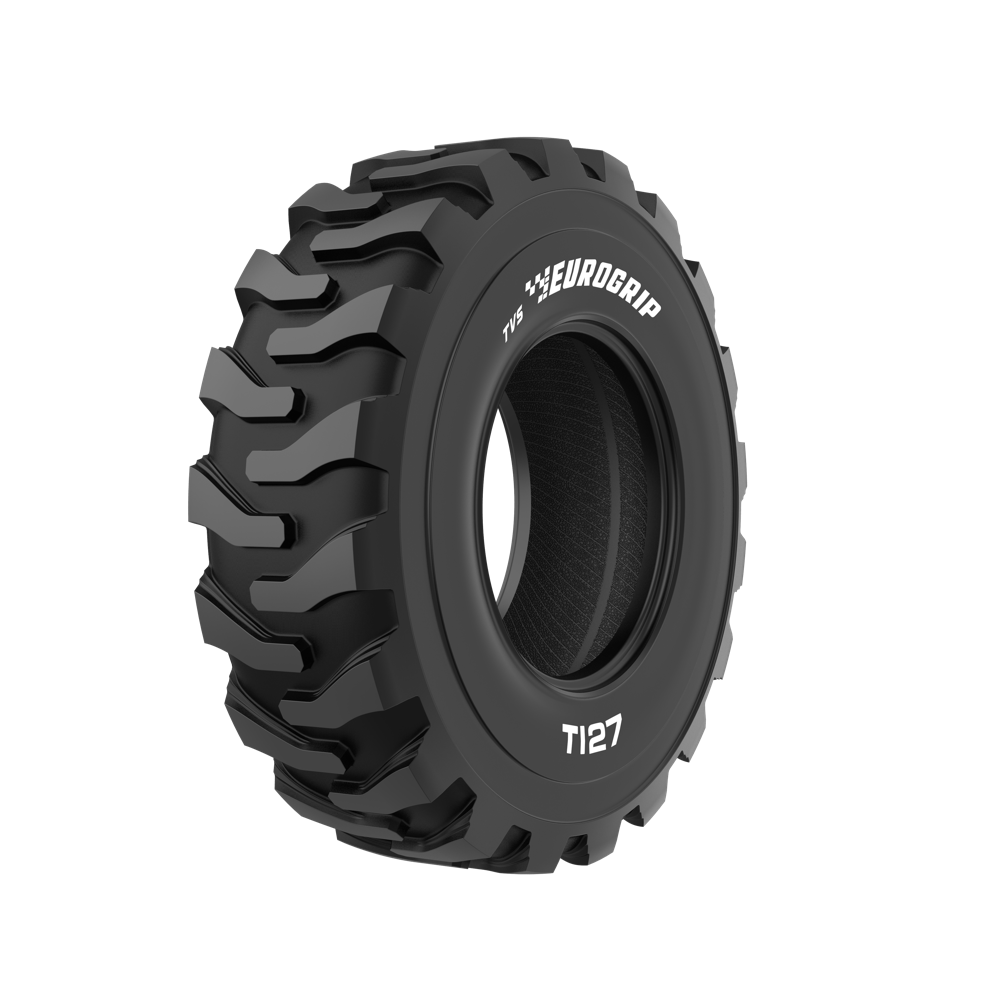

The TI 27 R-4 tyre for construction machinery is designed to provide good performance. Narrow overlapping lugs in the centre which spread wider towards the shoulder, provide good self-cleaning and traction. The stepped lug design provides the tyres with excellent stability. It minimises tyre noise at transport speeds.
R-4
A8
Bias
Suitable for
Backhoe Loader
Compact Wheel Loader
Telescopic Handler
Site Dumper
Technical Data
| TYRE SIZE | REC. RIM (inch) | ALT. RIM (inch) | UNLOADED DIMENSIONS (mm) | TYPE | PLY RATING | LI & SS | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| SW | OD | SLR | RC | |||||||
| 10.5/80-18 | W9 | - | 297 | 904 | 403 | 2649 | TL | 10 | 119A8 | |
| 12.5/80-18 | W9 | - | 334 | 1005 | 449 | 2945 | TL | 12 | 129A8 | |
IMPERIAL
METRIC
Technical Table 01
| TYRE SIZE | RIM SIZE | REC. RIM | ALT. RIM | UNLOADED DIMENSIONS (mm) | PLY RATING | LOAD INDEX SPEED SYMBOL | ||||
| SW | OD | SLR | RC | |||||||
| 15.0/70-18 | 18 | W13 |
W17 W19 |
400 | 980 | 440 | 2886 | 14 | 128 A8 |
 |
| 16 | 132 A9 |
|
||||||||
Technical Data
| Tyre Size | Rec. RIM (inch) |
Alt. RIM (inch) |
Unloaded dimensions (mm) | Type | Ply Rating | Load Index & Speed Symbol | Fabric | Load table | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Section Width | Overall Diameter | Static Load Radius | Rolling Circumference | ||||||||
