Backhoe Loader

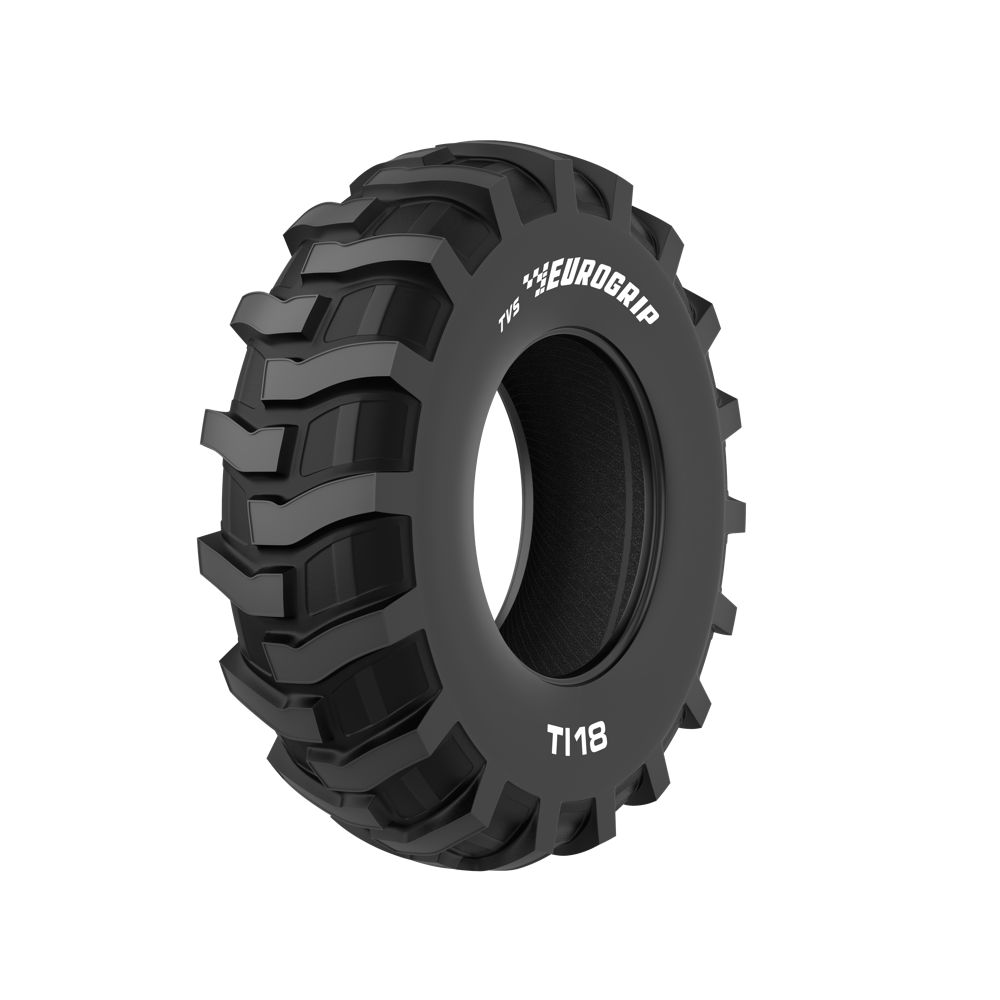

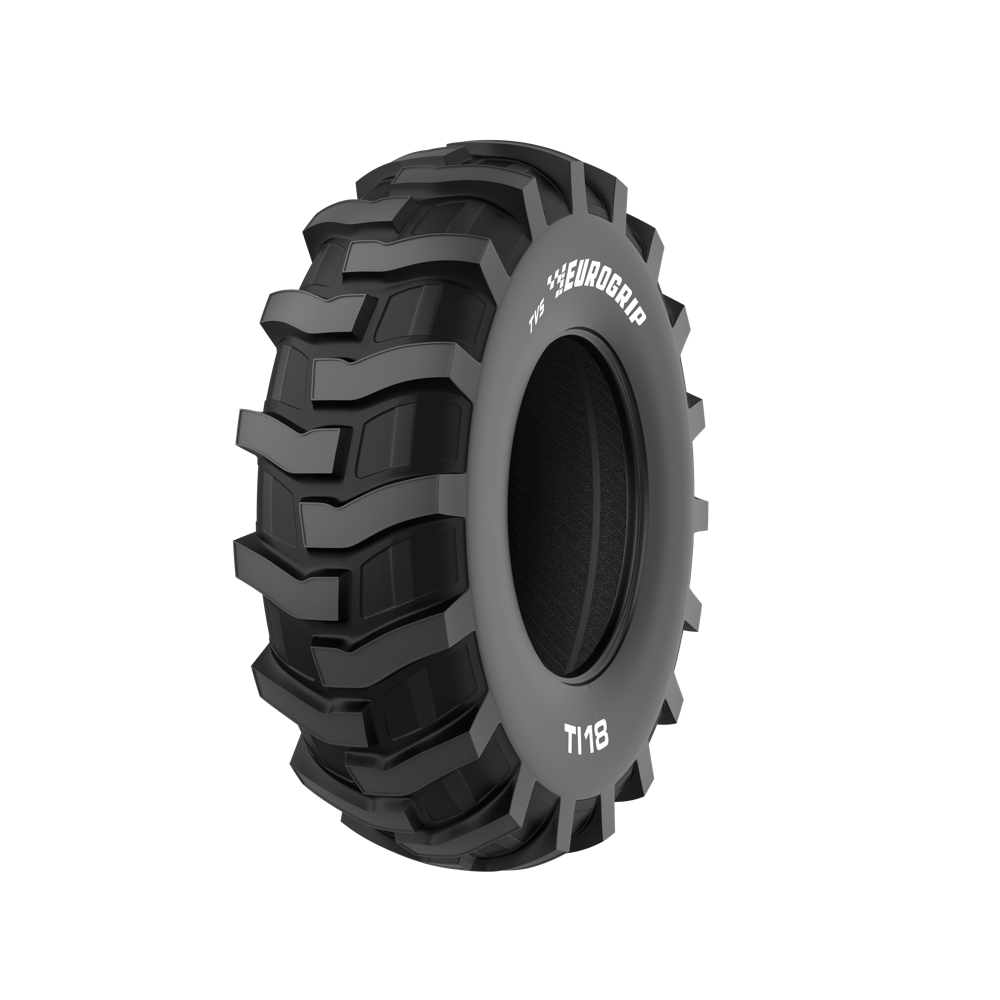

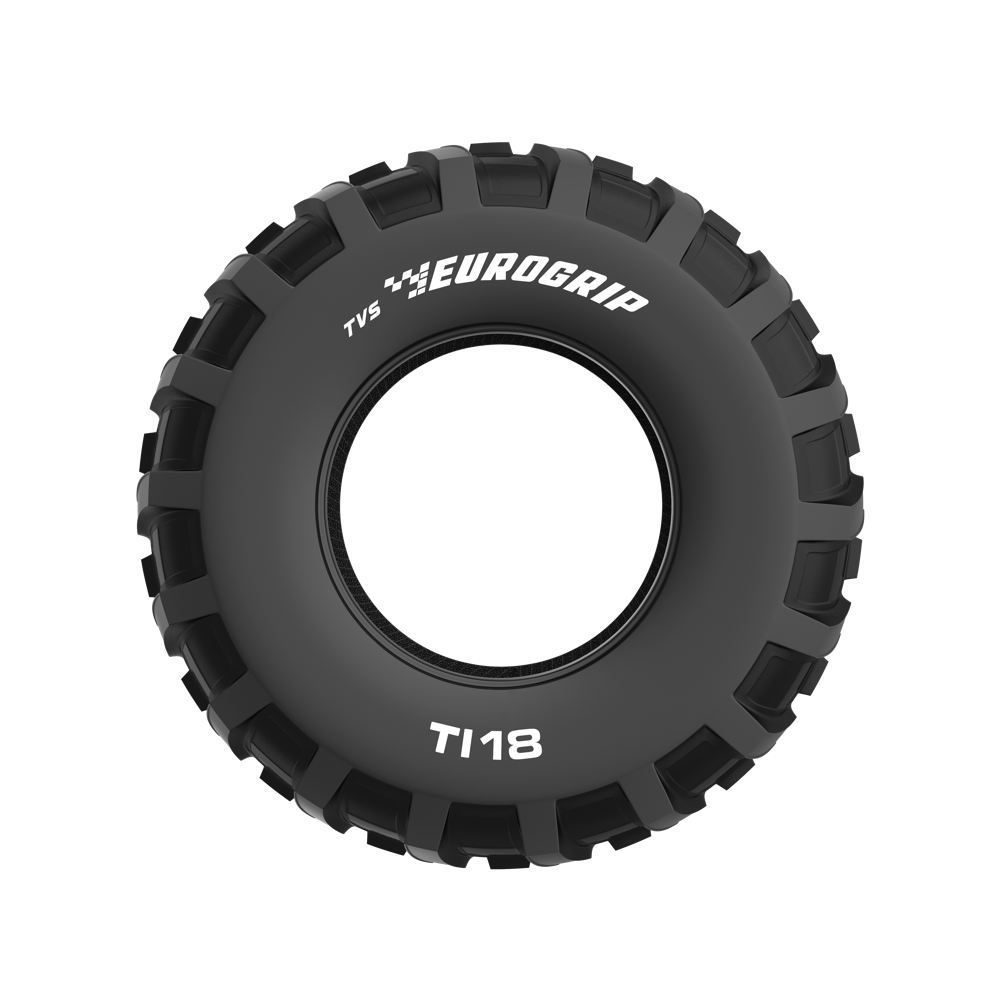

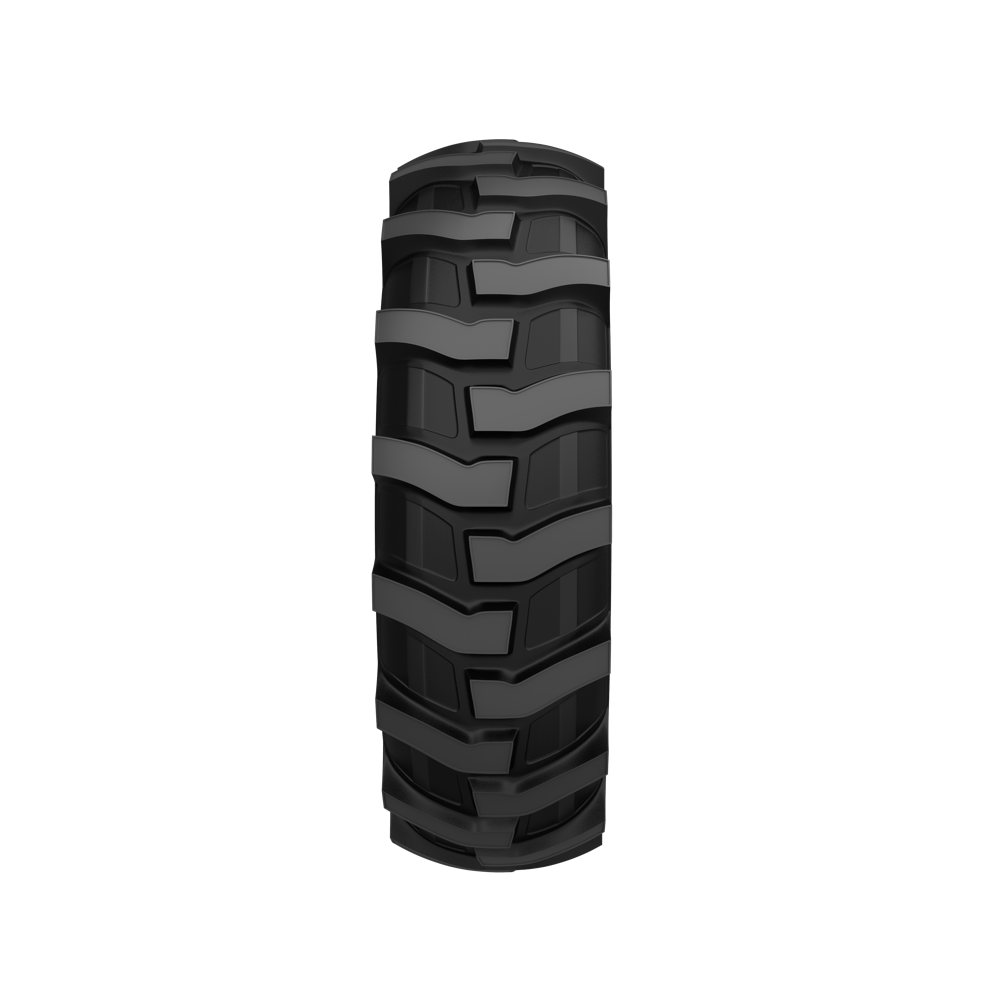

TI 18
The TI 18 R-4 tyre is designed for use in backhoe loaders and industrial tractors for non-agricultural applications. The heavy nylon construction reinforced with special tread compound helps the tyre last longer and provide better performance, both on and off the road.
R-4
A8
Bias
Suitable for
Backhoe Loader
Industrial Tractor
Municipal Tractor
Technical Data
| TYRE SIZE | REC. RIM (inch) | ALT. RIM (inch) | UNLOADED DIMENSIONS (mm) | TYPE | PLY RATING | LI & SS | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| SW | OD | SLR | RC | |||||||
| 16.9-24 | W15L | W14L | 462 | 1339 | 590 | 4090 | TL | 10 | 145A8 | |
| 16.9-24 | W15L | W14L | 462 | 1339 | 590 | 4090 | TL | 12 | 149A8 | |
| 16.9-28 | W15L | W14L | 457 | 1427 | 640 | 4136 | TL | 10 | 147A8 | |
| 17.5L-24 | W15L | W14L | 470 | 1266 | 568 | 3667 | TL | 10 | 144A8 | |
| 19.5L-24 | W16L | - | 491 | 1321 | 592 | 3826 | TL | 12 | 151A8 | |
| 21L-24 | W16L | - | 555 | 1367 | 614 | 3962 | TL | 12 | 155A8 | |
IMPERIAL
METRIC
Technical Table 01
| TYRE SIZE | RIM SIZE | REC. RIM | ALT. RIM | UNLOADED DIMENSIONS (mm) | PLY RATING | LOAD INDEX SPEED SYMBOL | ||||
| SW | OD | SLR | RC | |||||||
| 15.0/70-18 | 18 | W13 |
W17 W19 |
400 | 980 | 440 | 2886 | 14 | 128 A8 |
 |
| 16 | 132 A9 |
|
||||||||
Technical Data
| Tyre Size | Rec. RIM (inch) |
Alt. RIM (inch) |
Unloaded dimensions (mm) | Type | Ply Rating | Load Index & Speed Symbol | Fabric | Load table | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Section Width | Overall Diameter | Static Load Radius | Rolling Circumference | ||||||||
