Backhoe Loader
TI 09

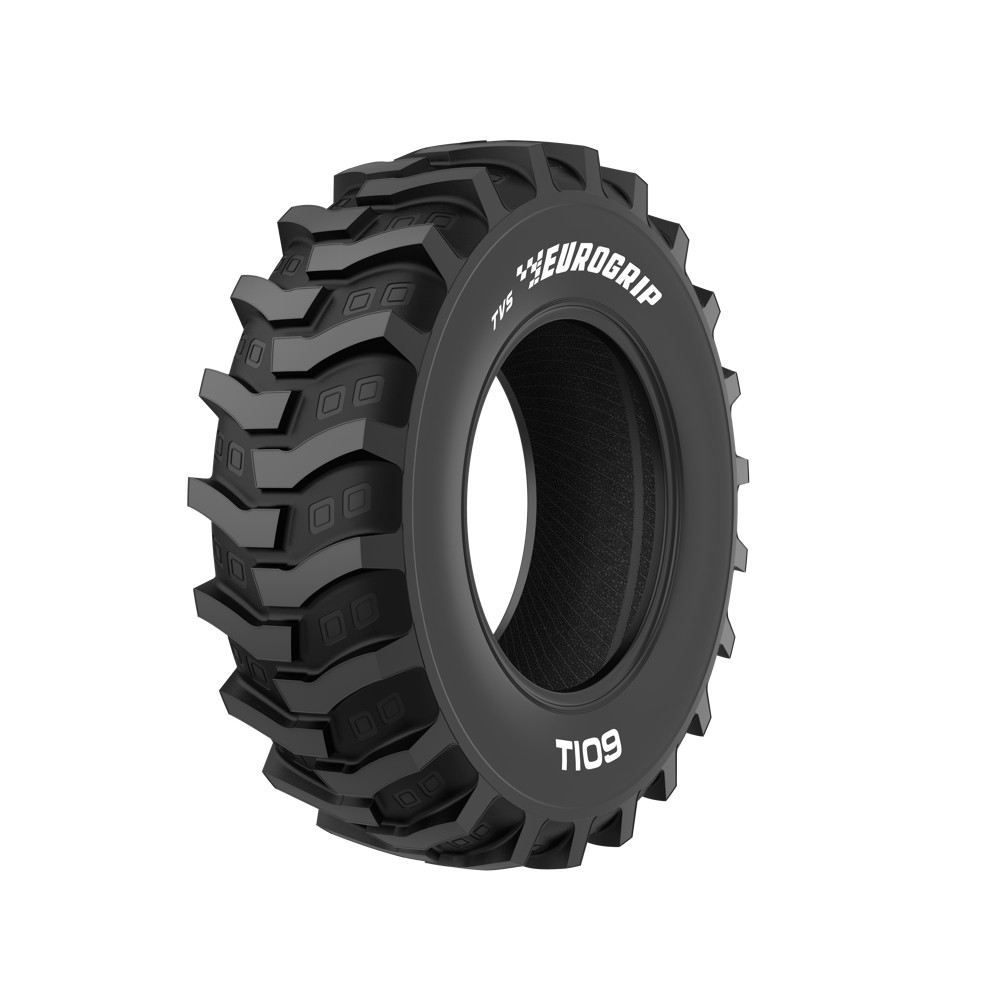

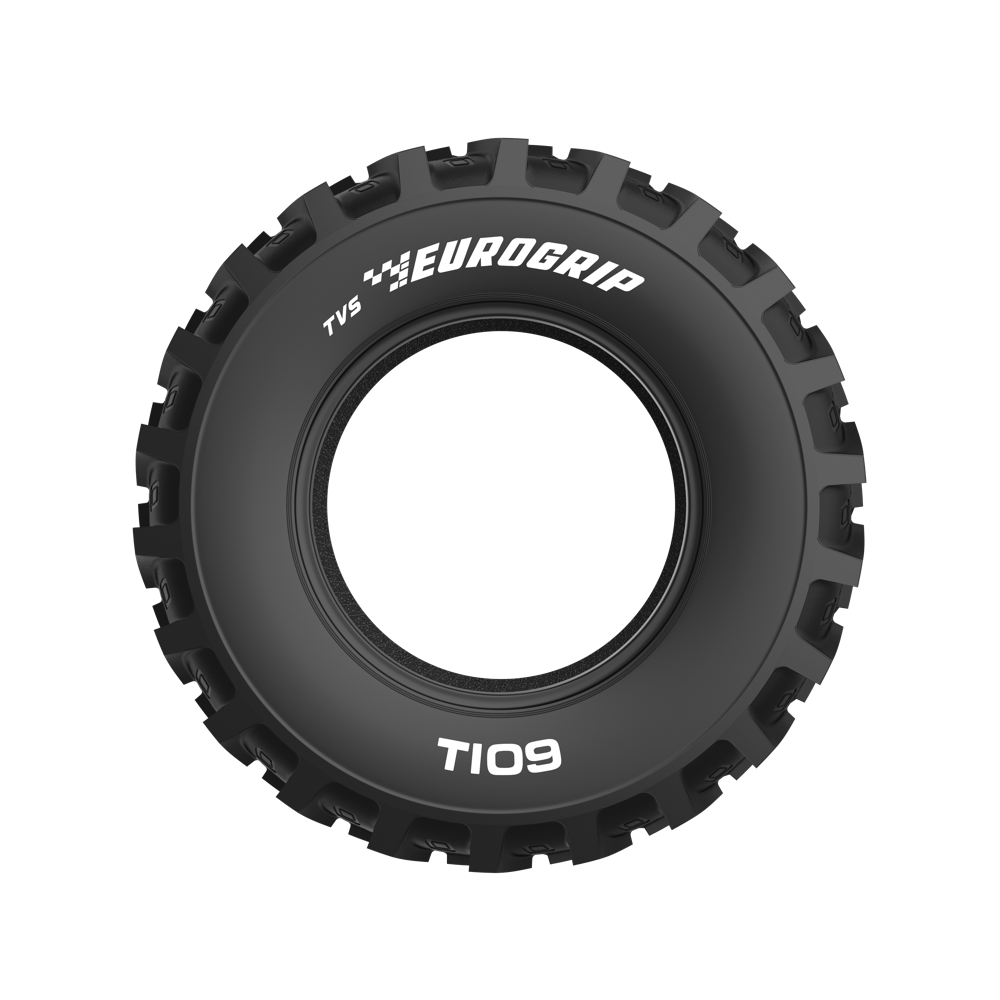

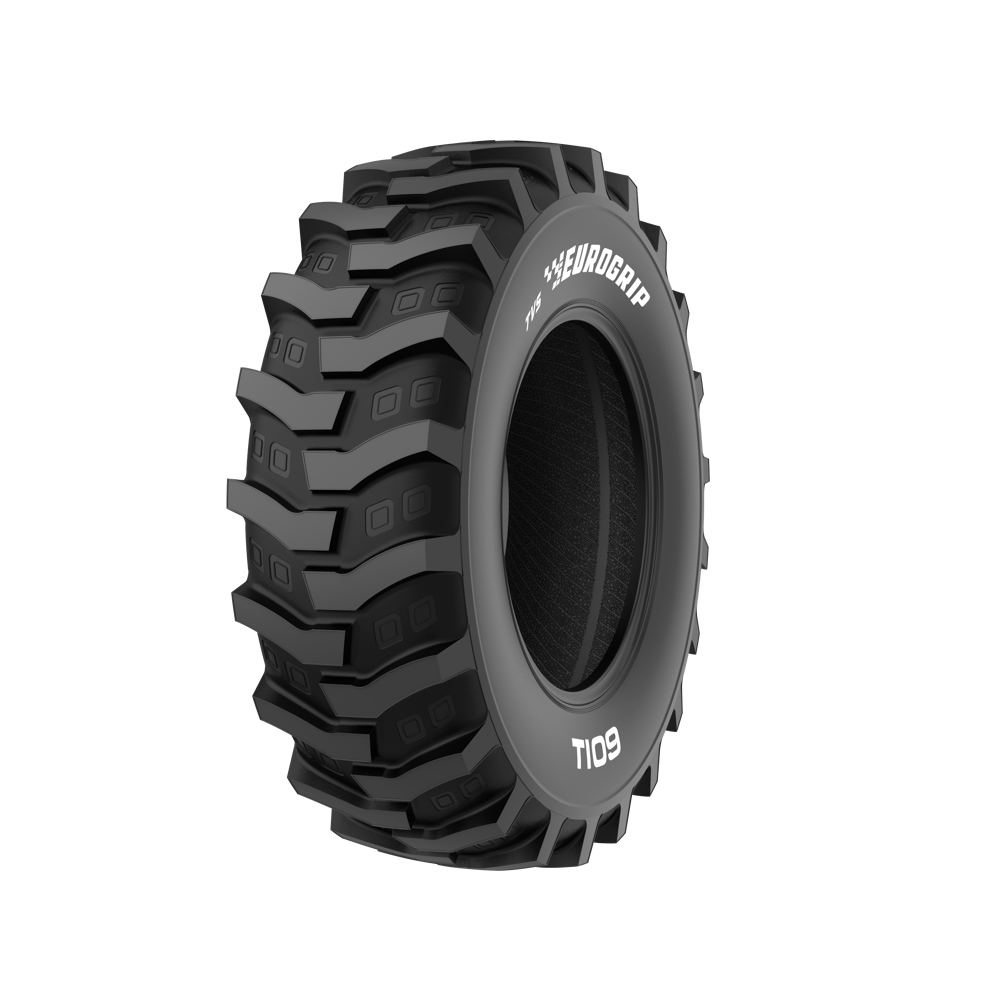

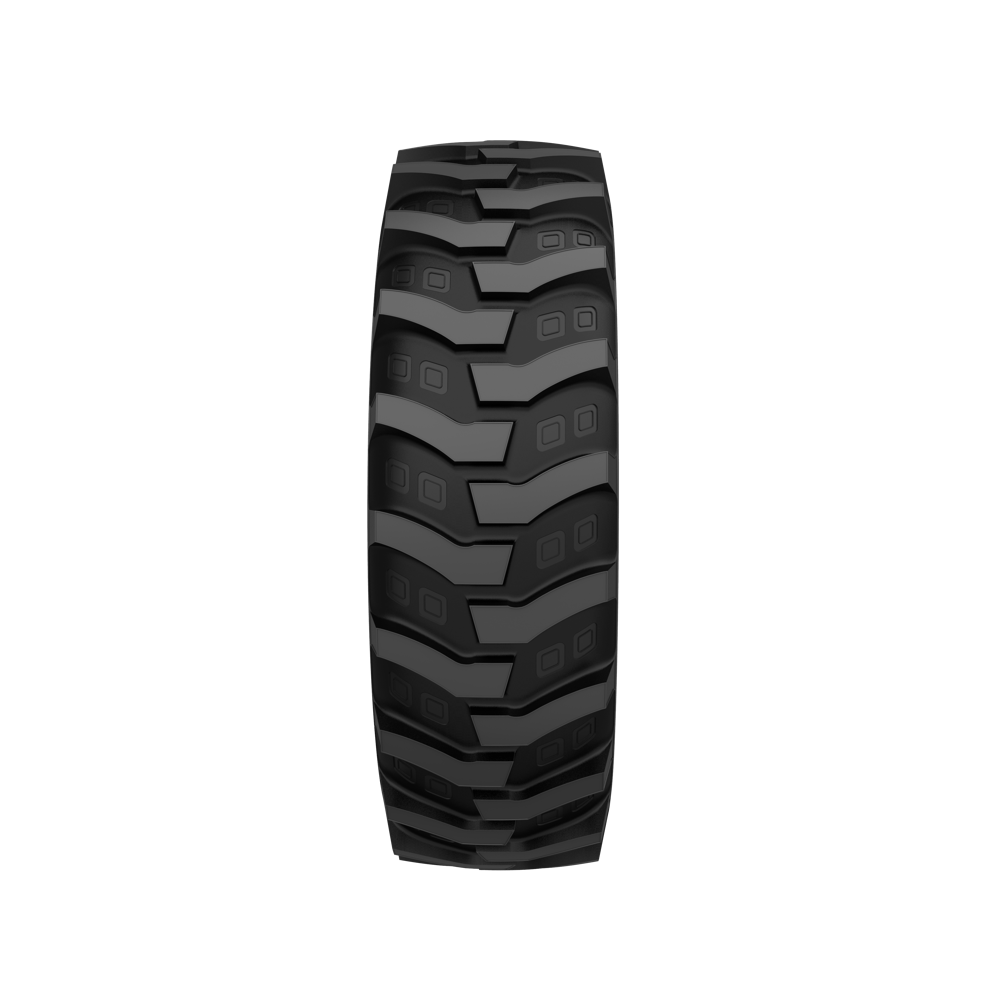

TI 09 is a R-4 tyre industrial and construction tyre designed for use as drive wheel in backhoe loaders and tractors used in construction and industrial applications. The over-lapping lugs ideally spaced have excellent traction and self-cleaning properties. It can be used on both hard such as asphalted road and uneven surfaces, such as construction sites.
R-4
A6/A8
Bias
Suitable for
Backhoe Loader
Industrial Tractor
Municipal Tractor
Technical Data
| TYRE SIZE | REC. RIM (inch) | ALT. RIM (inch) | UNLOADED DIMENSIONS (mm) | TYPE | PLY RATING | LI & SS | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| SW | OD | SLR | RC | |||||||
| 14.9-24 | W13 | W11 W12 | 398 | 1280 | 569 | 3717 | TL | 8 | 137A8 | 138A6 | |
| 14.9-24 | W13 | W11 W12 | 398 | 1280 | 569 | 3717 | TL | 12 | 145A8 | 146A6 | |
| 16.9-28 | W15L | W14L | 460 | 1425 | 637 | 4160 | TL | 12 | 152A8 | 153A6 | |
| 16.9-28 | W15L | W14L | 460 | 1425 | 637 | 4160 | TL | 14 | 155A8 | 156A6 | |
| 17.5L-24 | W15L | W14L | 495 | 1298 | 567 | 3726 | TL | 12 | 148A8 | 149A6 | |
| 18.4-26 | W16L | W15L | 490 | 1430 | 626 | 4127 | TL | 12 | 156A8 | 157A6 | |
| 18.4-26 | W16L | W15L | 490 | 1430 | 626 | 4127 | TL | 14 | 159A8 | 160A6 | |
| 19.5L-24 | W16L | - | 510 | 1322 | 578 | 3811 | TL | 12 | 151A8 | 152A6 | |
| 19.5L-24 | W16L | - | 510 | 1322 | 578 | 3811 | TL | 14 | 154A8 | 155A6 | |
| 21L-24 | W16L | - | 565 | 1405 | 613 | 4047 | TL | 12 | 155A8 | 156A6 | |
IMPERIAL
METRIC
Technical Table 01
| TYRE SIZE | RIM SIZE | REC. RIM | ALT. RIM | UNLOADED DIMENSIONS (mm) | PLY RATING | LOAD INDEX SPEED SYMBOL | ||||
| SW | OD | SLR | RC | |||||||
| 15.0/70-18 | 18 | W13 |
W17 W19 |
400 | 980 | 440 | 2886 | 14 | 128 A8 |
 |
| 16 | 132 A9 |
|
||||||||
Technical Data
| Tyre Size | Rec. RIM (inch) |
Alt. RIM (inch) |
Unloaded dimensions (mm) | Type | Ply Rating | Load Index & Speed Symbol | Fabric | Load table | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Section Width | Overall Diameter | Static Load Radius | Rolling Circumference | ||||||||
