Motor Grader

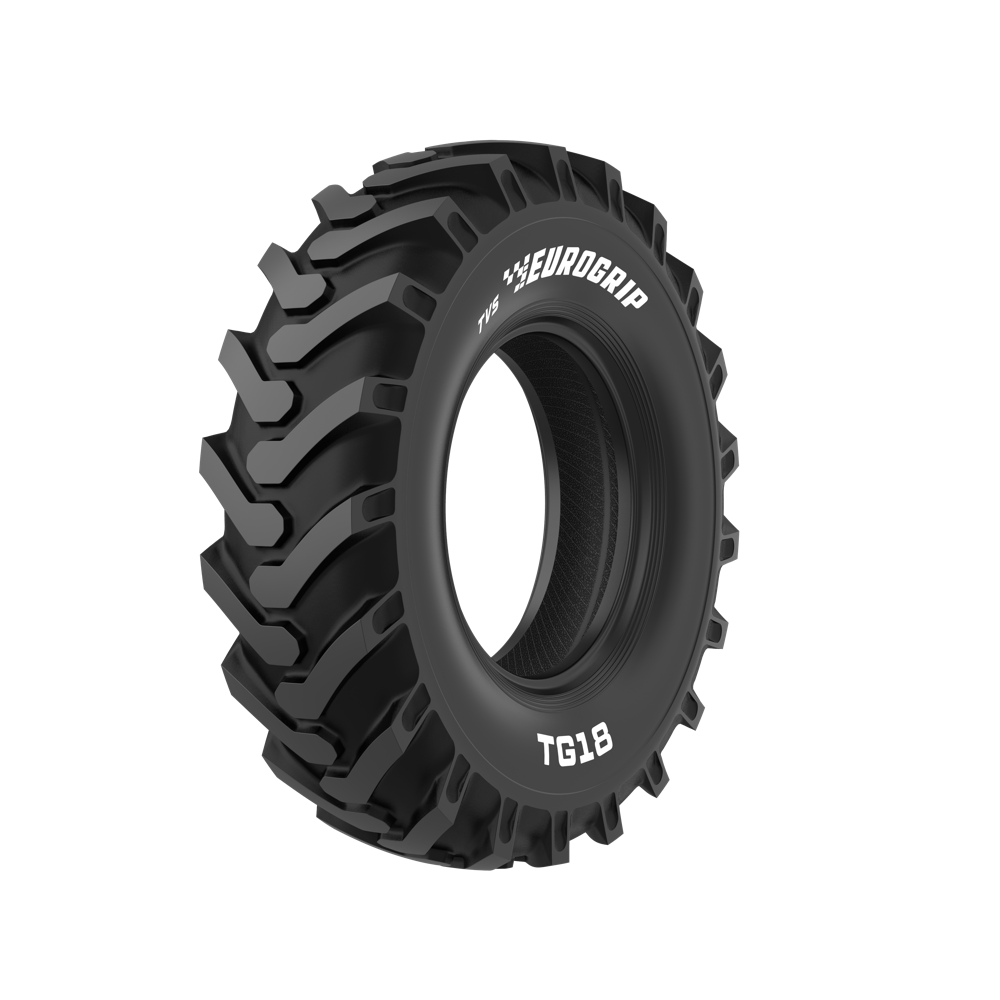

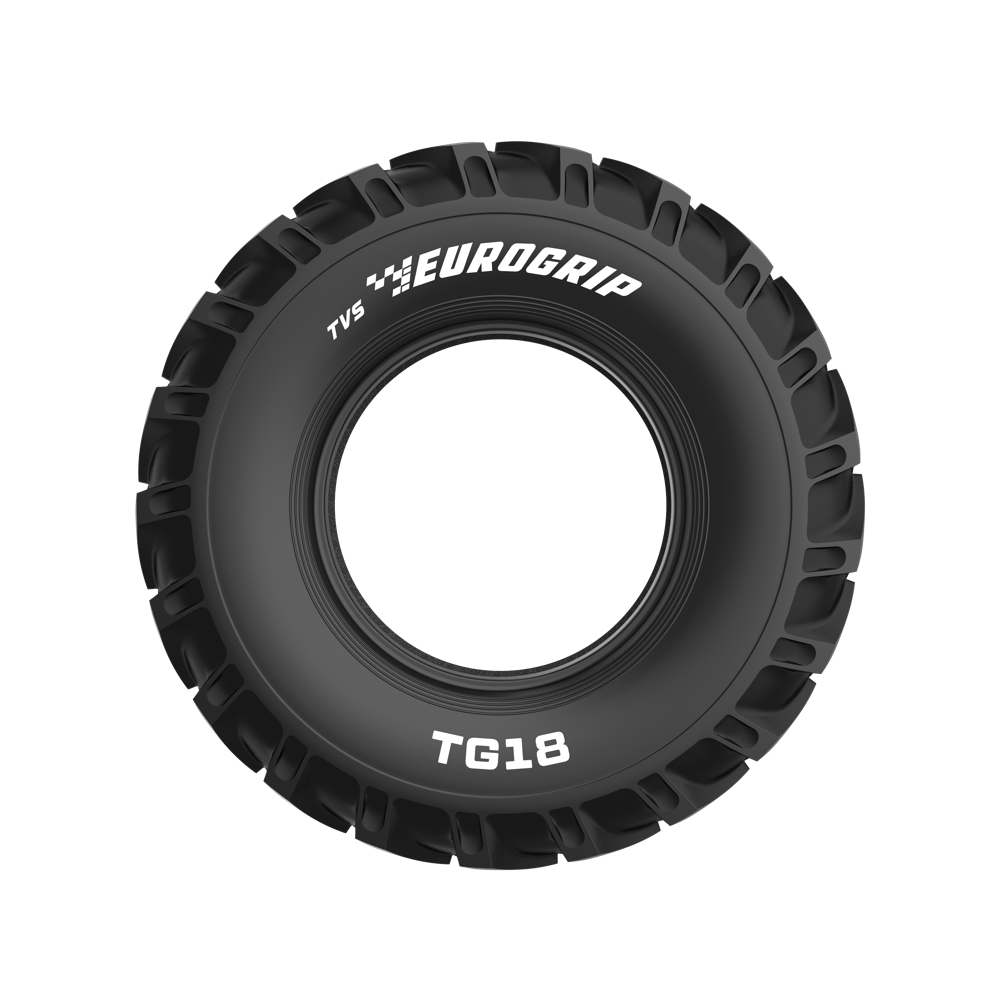

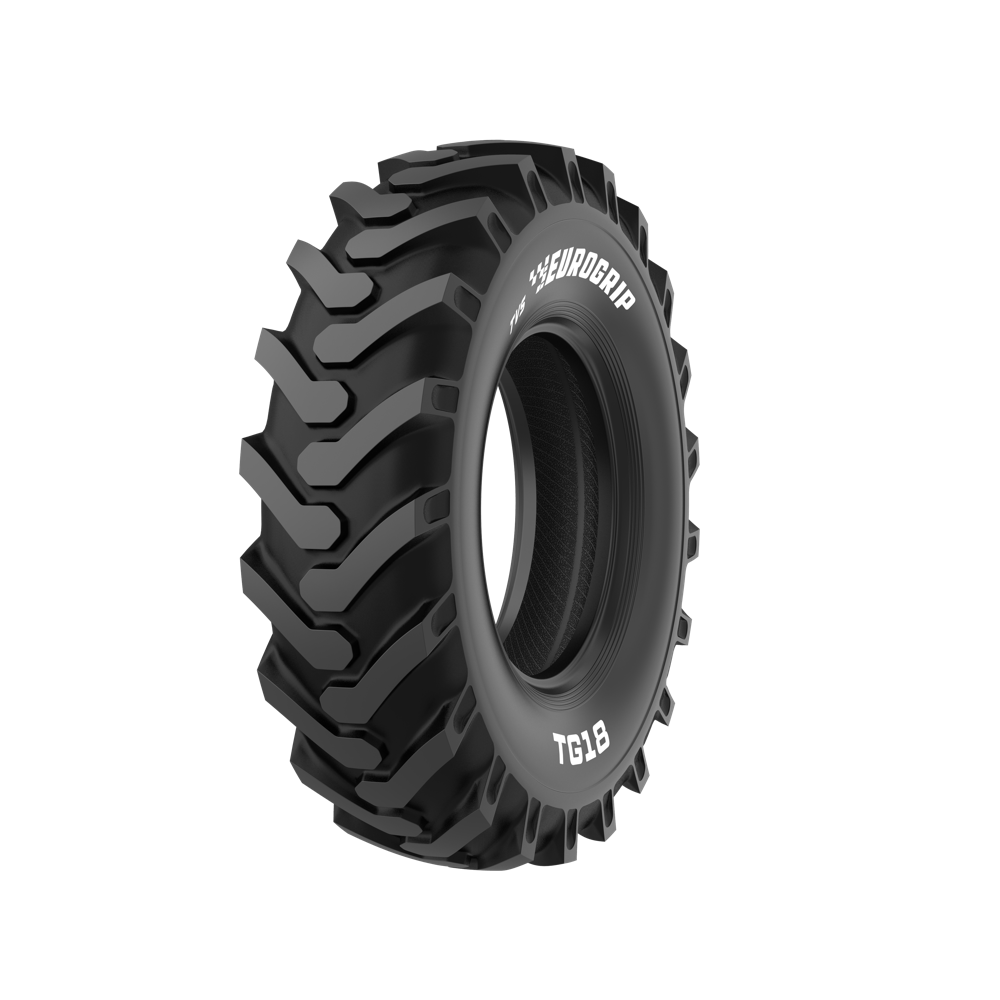

TG 18

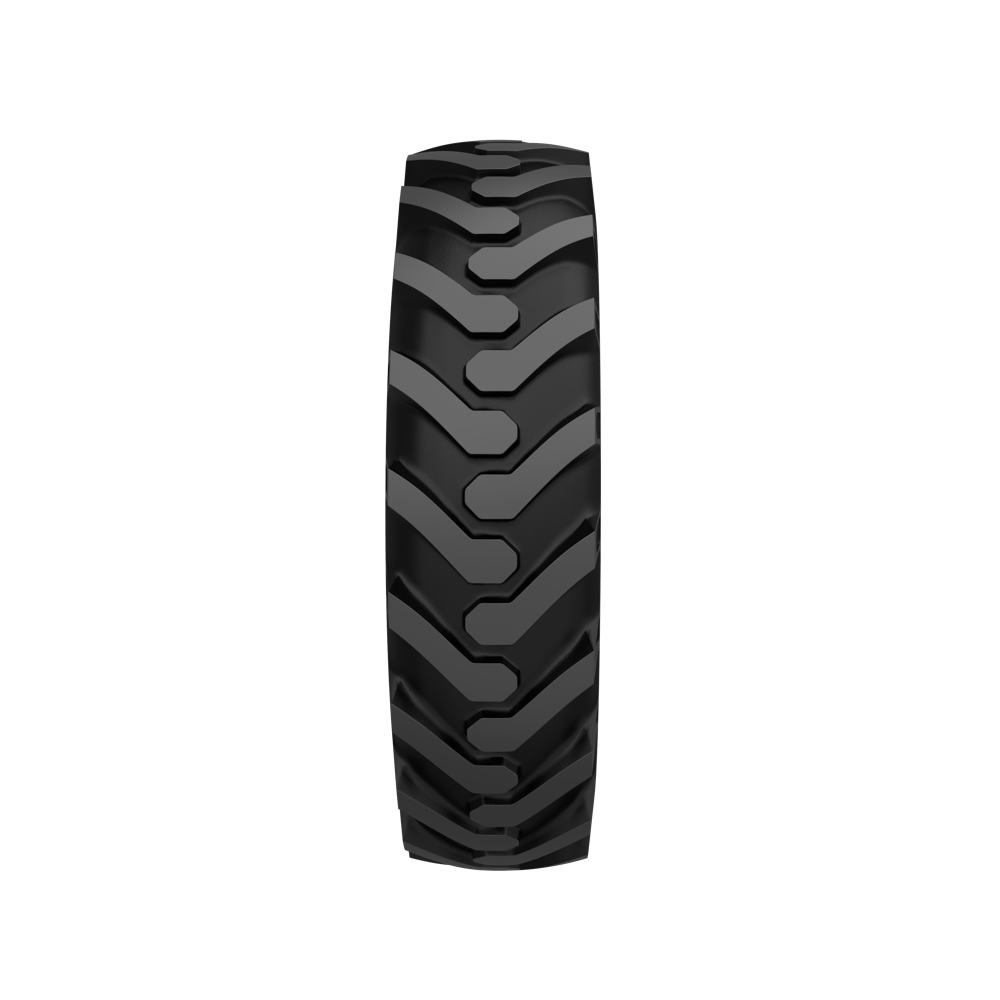

The TG 18, L-2 / G-2 tyre is designed for use on motor graders. Its multi angle lug design, with overlapping nose blocks and aggressive shoulders provide good steering, consistent traction and superior self-cleaning. The tyre is built with ozone and weather resistant compound that can withstand cuts, snags and bruises in the toughest operating conditions.
L-2/G-2
A8
Bias
Suitable for
Motor Grader
Telescopic Handler
Technical Data
| TYRE SIZE | REC. RIM (inch) | ALT. RIM (inch) | UNLOADED DIMENSIONS (mm) | TYPE | PLY RATING | LI & SS | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| SW | OD | SLR | RC | |||||||
| 14.00-24 | 8.00/1.4 | 8.00TGSDC | 384 | 1350 | 608 | 3987 | TT/TL | 16 | 153A8 | |
IMPERIAL
METRIC
Technical Table 01
| TYRE SIZE | RIM SIZE | REC. RIM | ALT. RIM | UNLOADED DIMENSIONS (mm) | PLY RATING | LOAD INDEX SPEED SYMBOL | ||||
| SW | OD | SLR | RC | |||||||
| 15.0/70-18 | 18 | W13 |
W17 W19 |
400 | 980 | 440 | 2886 | 14 | 128 A8 |
 |
| 16 | 132 A9 |
|
||||||||
