Motor Grader
TG 09

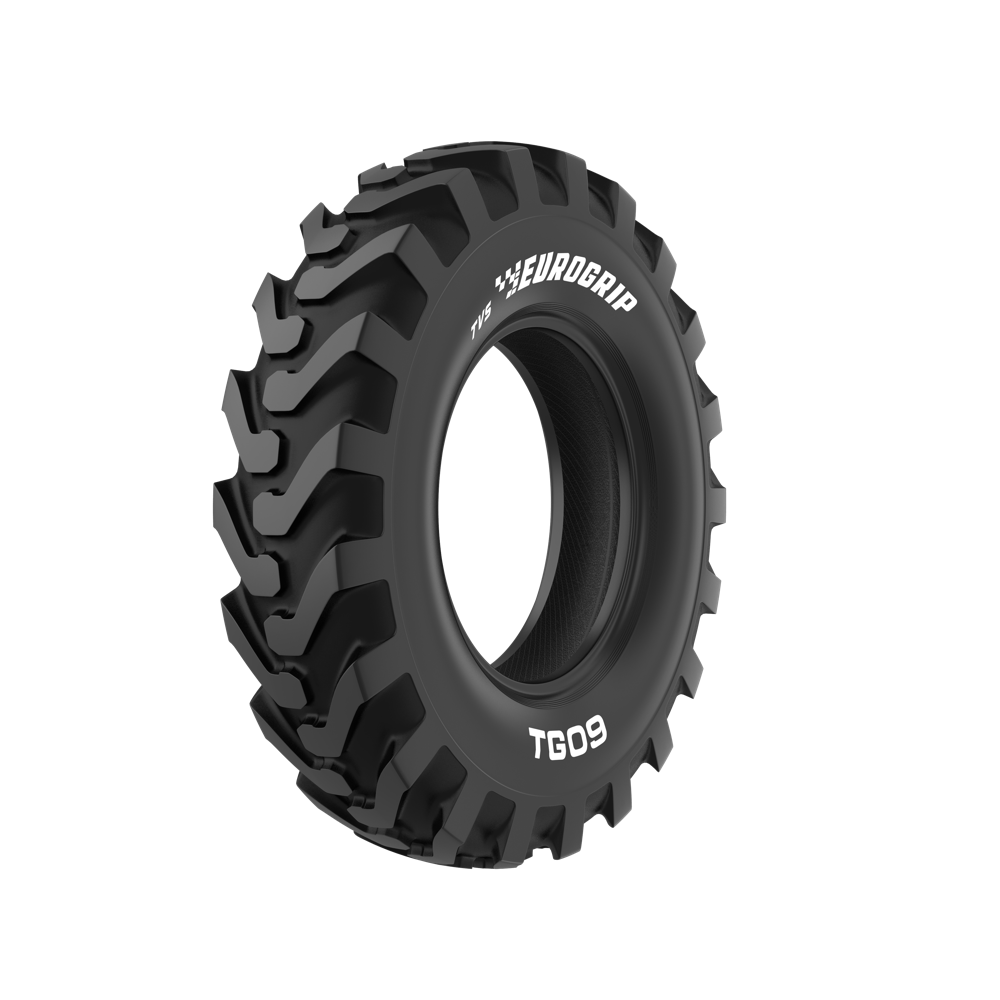

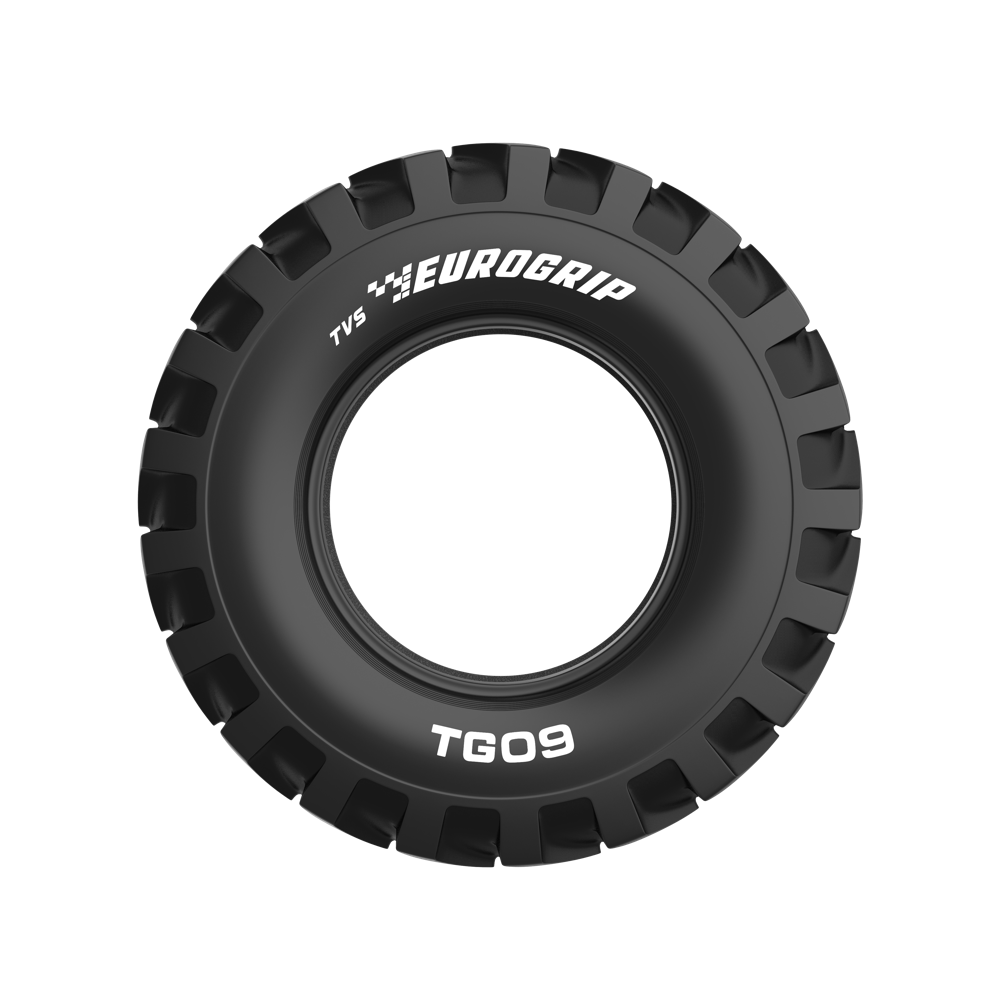

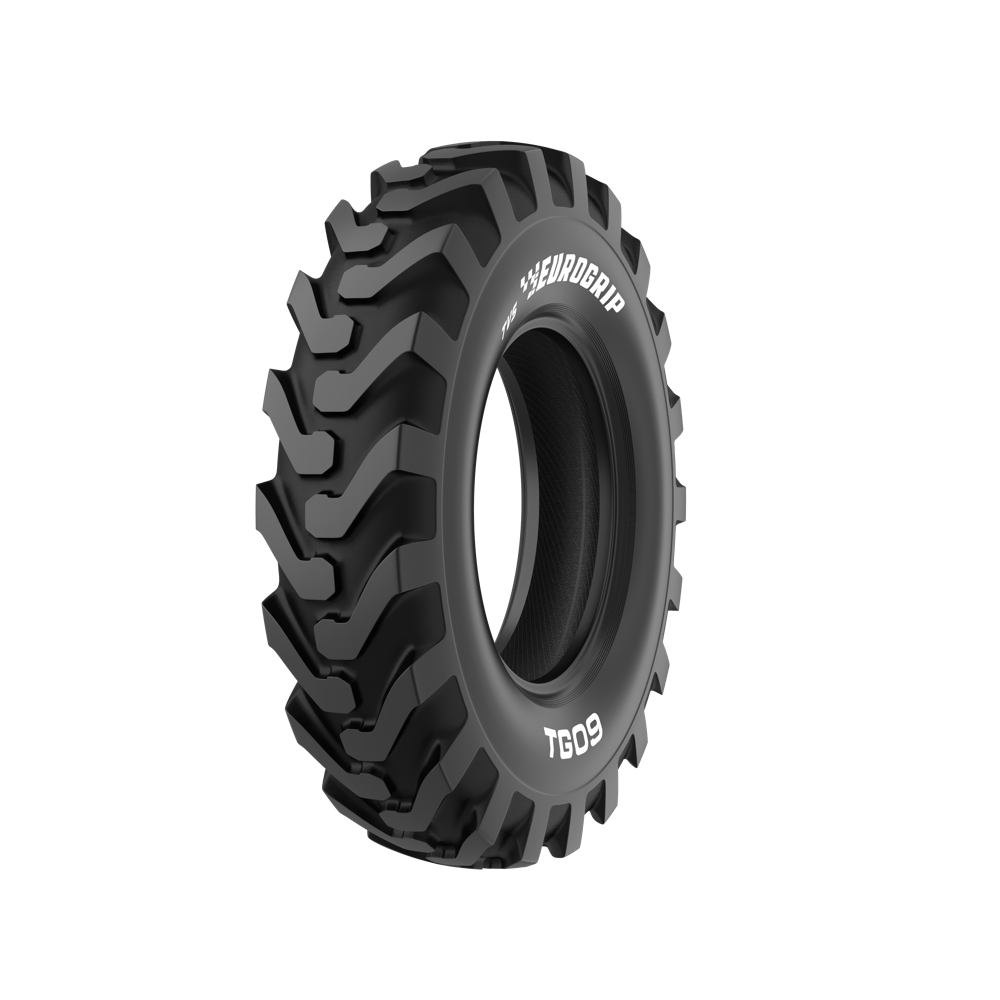

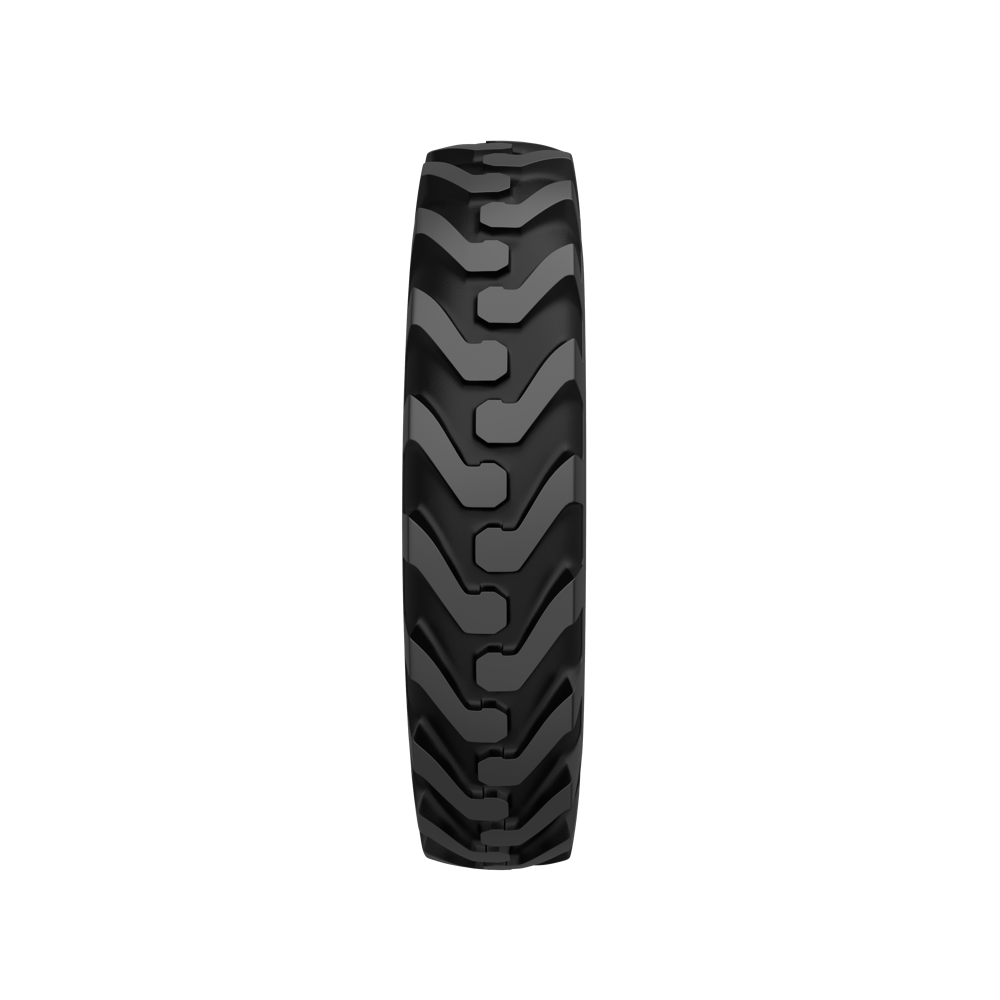

TG 09 is a L-2 / G-2 tyre is designed for good traction and self-cleaning, suited for motor grader and other OTR equipment. It can also be used for larger telescopic handers used in construction sites. The tyre is built with a special compound to resist ozone and weather damages. Its ability to withstand cuts, snags and bruises help it o provide good life in severe operating conditions.
L-2/G-2
A8
Bias
Suitable for
Motor Grader
Telescopic Handler
Technical Data
| TYRE SIZE | REC. RIM (inch) | ALT. RIM (inch) | UNLOADED DIMENSIONS (mm) | TYPE | PLY RATING | LI & SS | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| SW | OD | SLR | RC | |||||||
| 13.00-24 | 8.00/1.4 | 8.00TGSDC | 355 | 1270 | 578 | 3765 | TT, TL | 12 | 143A8 | |
| 13.00-24 | 8.00/1.4 | 8.00TGSDC | 355 | 1270 | 578 | 3765 | TT, TL | 14 | 146A8 | |
| 13.00-24 | 8.00/1.4 | 8.00TGSDC | 355 | 1270 | 578 | 3765 | TT, TL | 16 | 146A8 | |
| 14.00-24 | 8.00/1.4 | 8.00TGSDC | 398 | 1340 | 600 | 3967 | TT, TL | 12 | 147A8 | |
| 14.00-24 | 8.00/1.4 | 8.00TGSDC | 398 | 1340 | 600 | 3967 | TT, TL | 14 | 151A8 | |
| 14.00-24 | 8.00/1.4 | 8.00TGSDC | 398 | 1340 | 600 | 3967 | TT, TL | 16 | 153A8 | |
| 16.00-24 | 10.00/1.7 | 10.00VA SDC | 465 | 1420 | 660 | 4283 | TT, TL | 16 | 160A8 | |
IMPERIAL
METRIC
Technical Table 01
| TYRE SIZE | RIM SIZE | REC. RIM | ALT. RIM | UNLOADED DIMENSIONS (mm) | PLY RATING | LOAD INDEX SPEED SYMBOL | ||||
| SW | OD | SLR | RC | |||||||
| 15.0/70-18 | 18 | W13 |
W17 W19 |
400 | 980 | 440 | 2886 | 14 | 128 A8 |
 |
| 16 | 132 A9 |
|
||||||||
Technical Data
| Tyre Size | Rec. RIM (inch) |
Alt. RIM (inch) |
Unloaded dimensions (mm) | Type | Ply Rating | Load Index & Speed Symbol | Fabric | Load table | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Section Width | Overall Diameter | Static Load Radius | Rolling Circumference | ||||||||
