Tractor Front – Rib

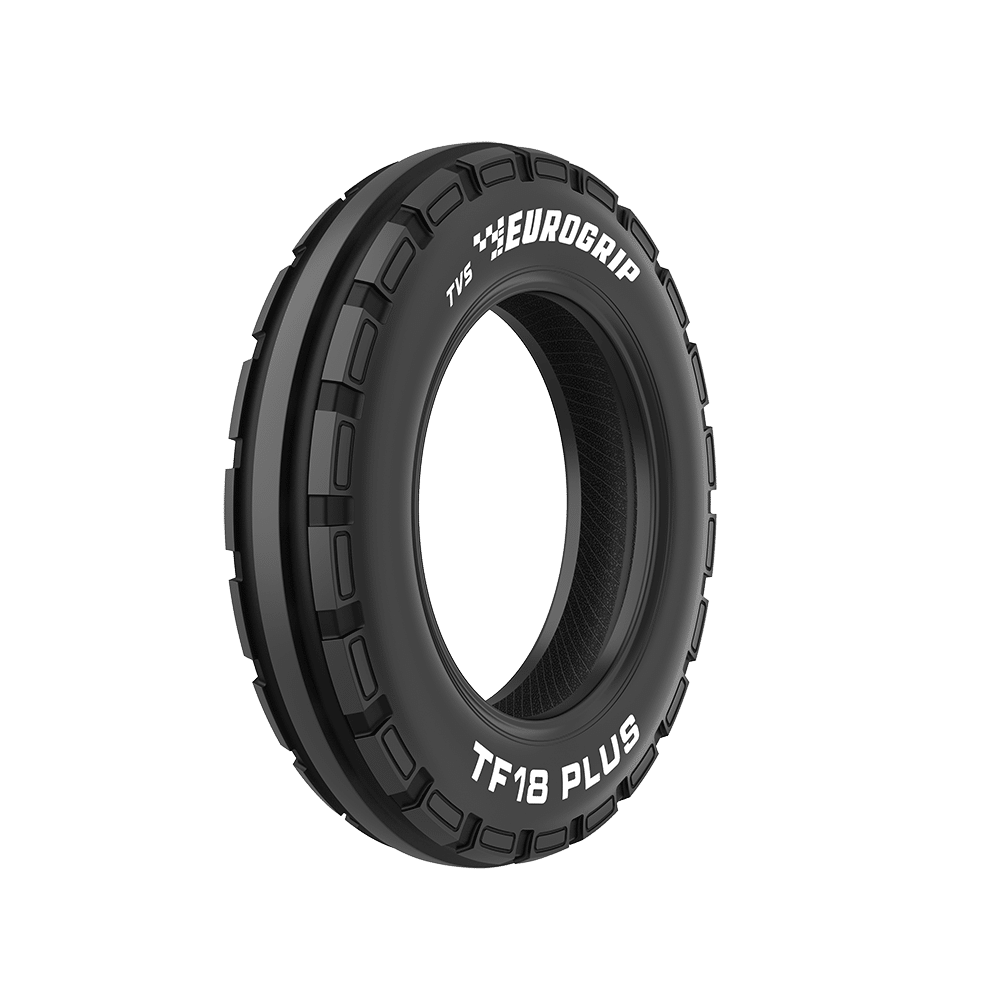

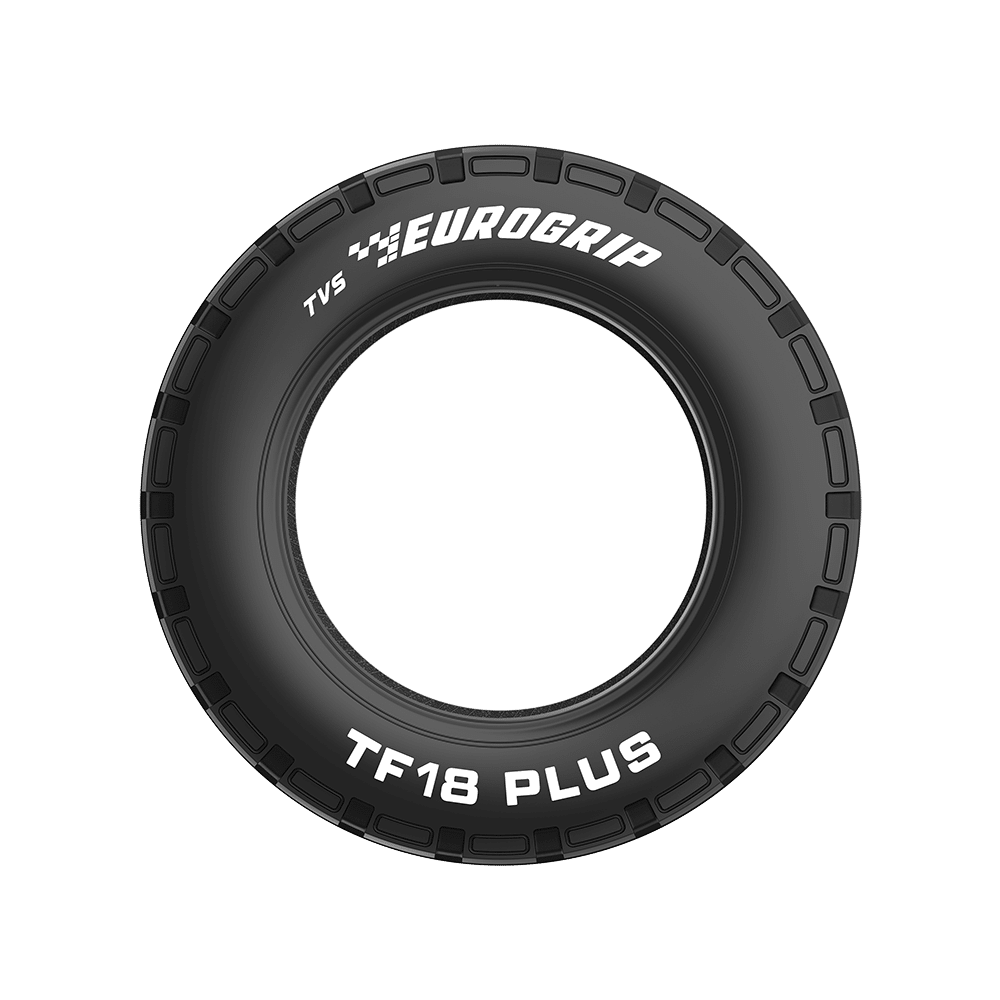

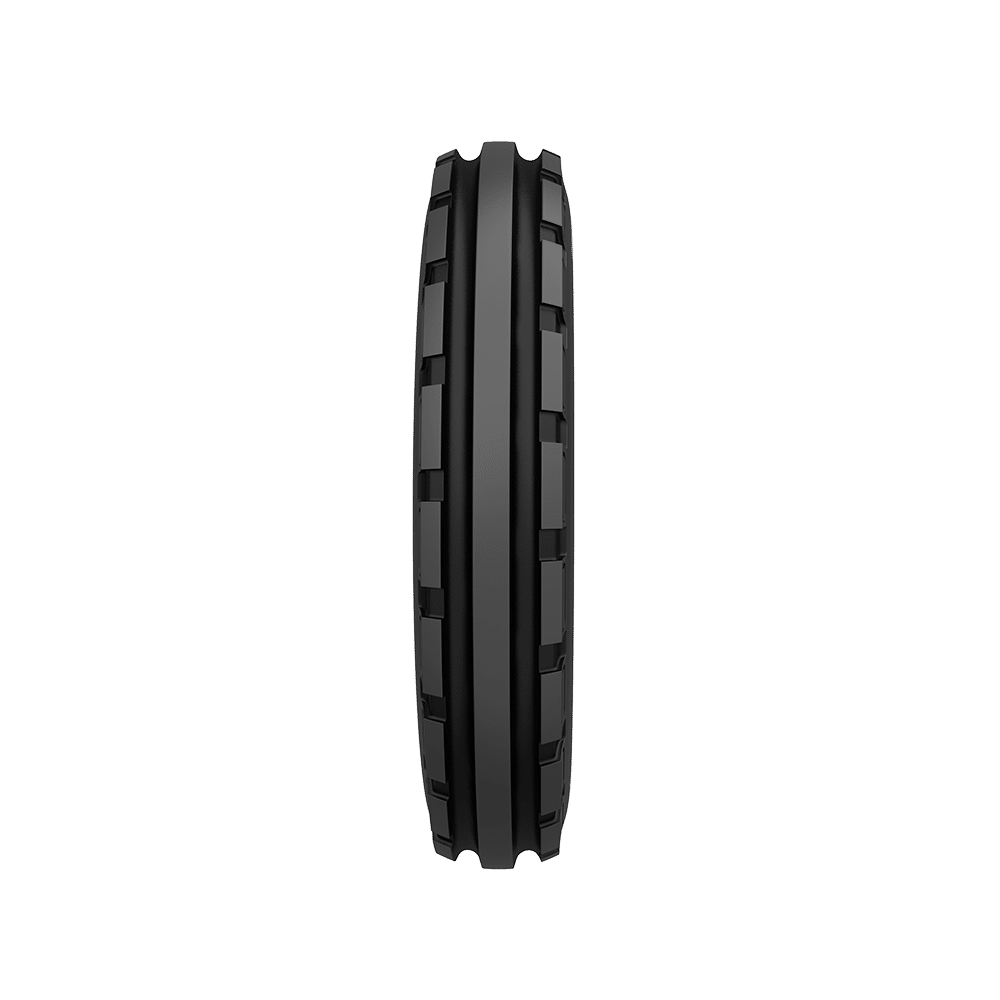

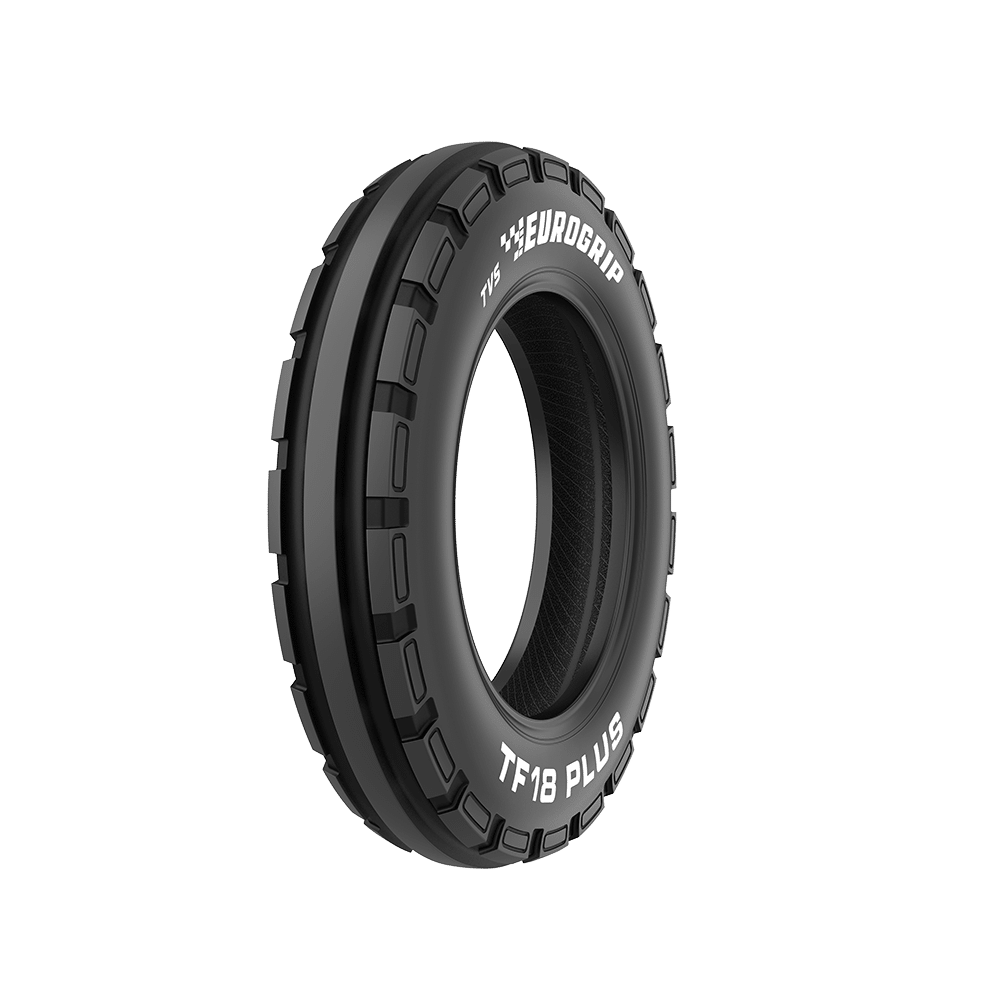

TF 18 PLUS
TF18 PLUS is a F-2 tyre with 3-rib pattern with notches on the shoulder is designed is shoulder for excellent grip on rough terrains excellent load distribution during heavy loads.
F-2
A6/A8
Bias
Suitable for
Tractor 2WD
Compact Tractor
Technical Data
| TYRE SIZE | REC. RIM (inch) | ALT. RIM (inch) | UNLOADED DIMENSIONS (mm) | TYPE | PLY RATING | LI & SS | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| SW | OD | SLR | RC | |||||||
| 5.25-14 | 3.50D | - | 145 | 640 | 315 | 2090 | TT | 8 | 55A6 | 47A8 | |
IMPERIAL
METRIC
Technical Table 01
| TYRE SIZE | RIM SIZE | REC. RIM | ALT. RIM | UNLOADED DIMENSIONS (mm) | PLY RATING | LOAD INDEX SPEED SYMBOL | ||||
| SW | OD | SLR | RC | |||||||
| 15.0/70-18 | 18 | W13 |
W17 W19 |
400 | 980 | 440 | 2886 | 14 | 128 A8 |
 |
| 16 | 132 A9 |
|
||||||||
Technical Data
| Tyre Size | Rec. RIM (inch) |
Alt. RIM (inch) |
Unloaded dimensions (mm) | Type | Ply Rating | Load Index & Speed Symbol | Fabric | Load table | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Section Width | Overall Diameter | Static Load Radius | Rolling Circumference | ||||||||
