Tractor Front – Rib
TF 01

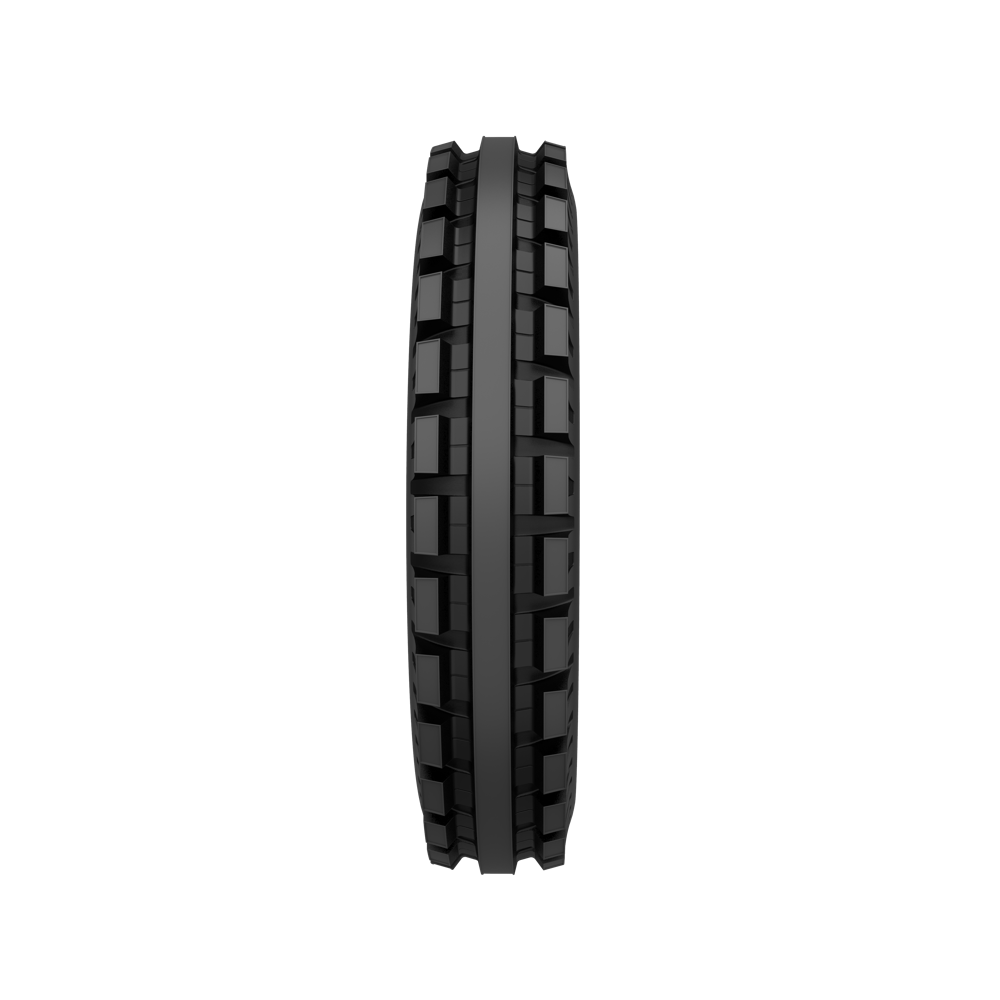

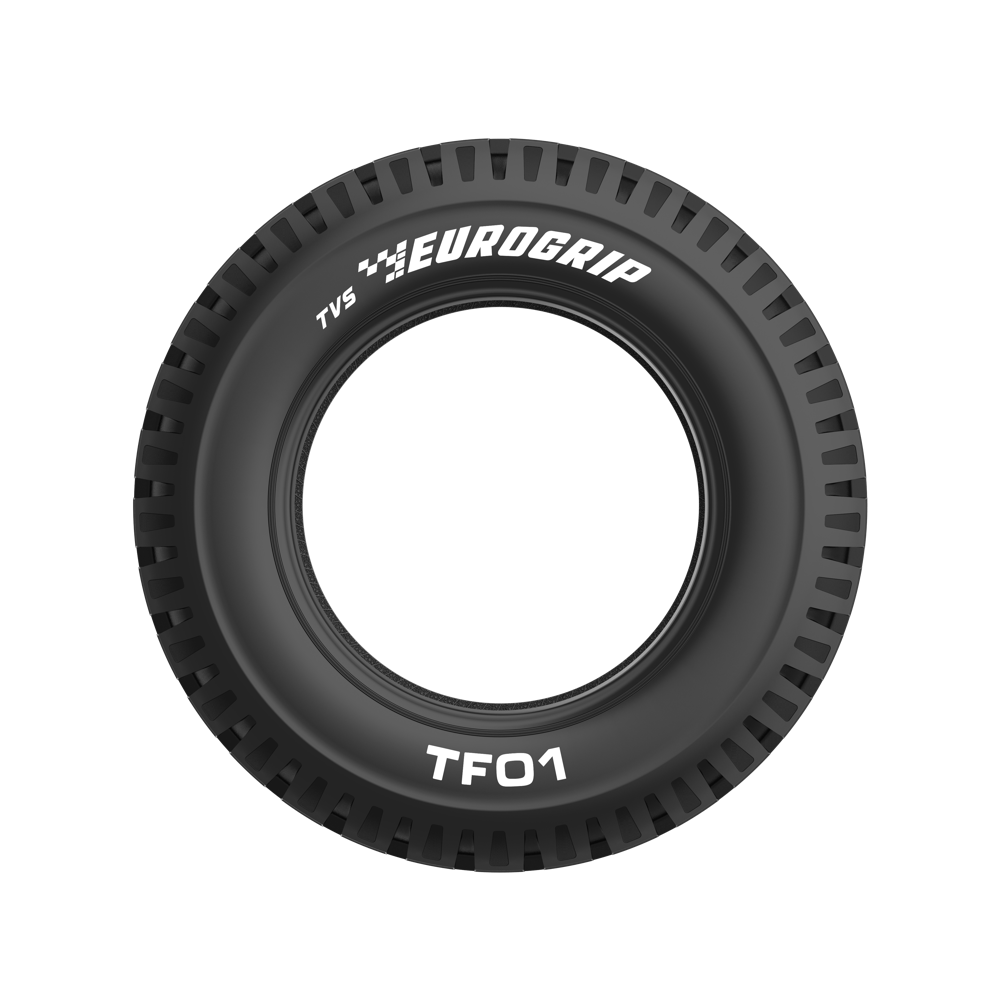

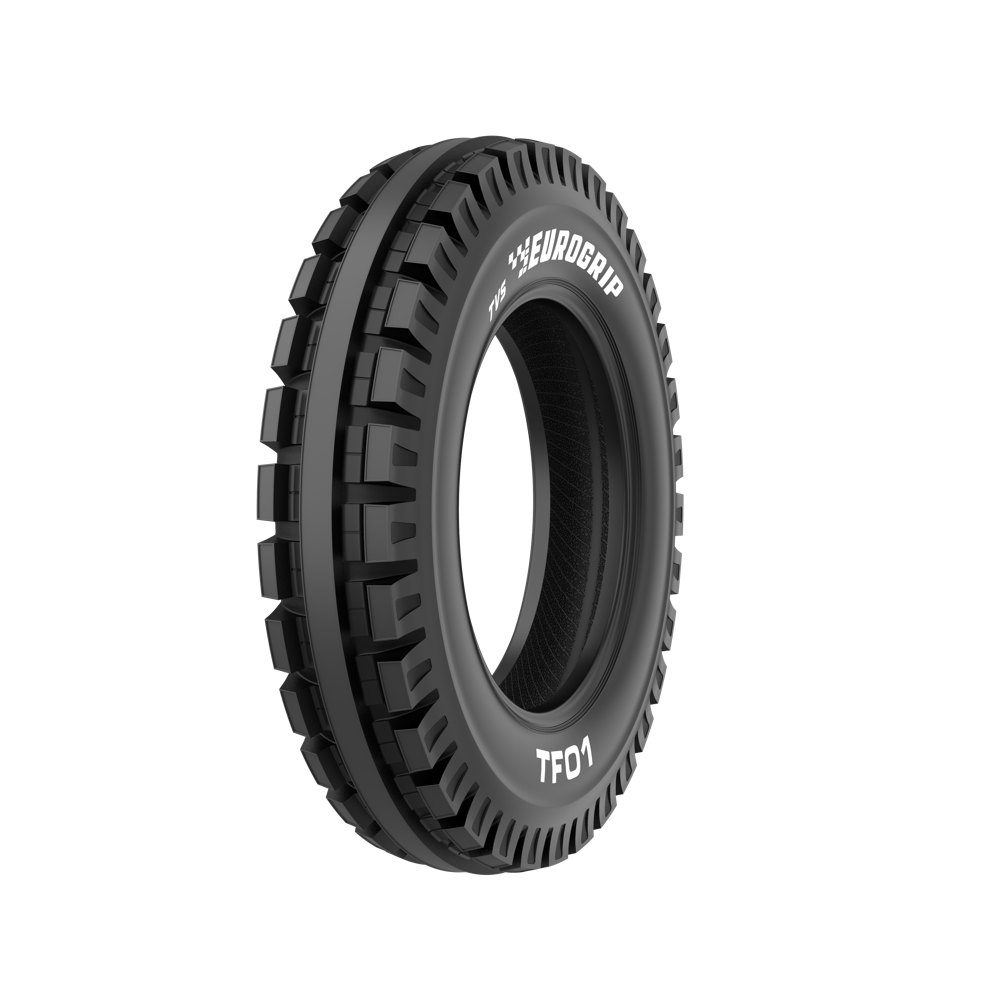

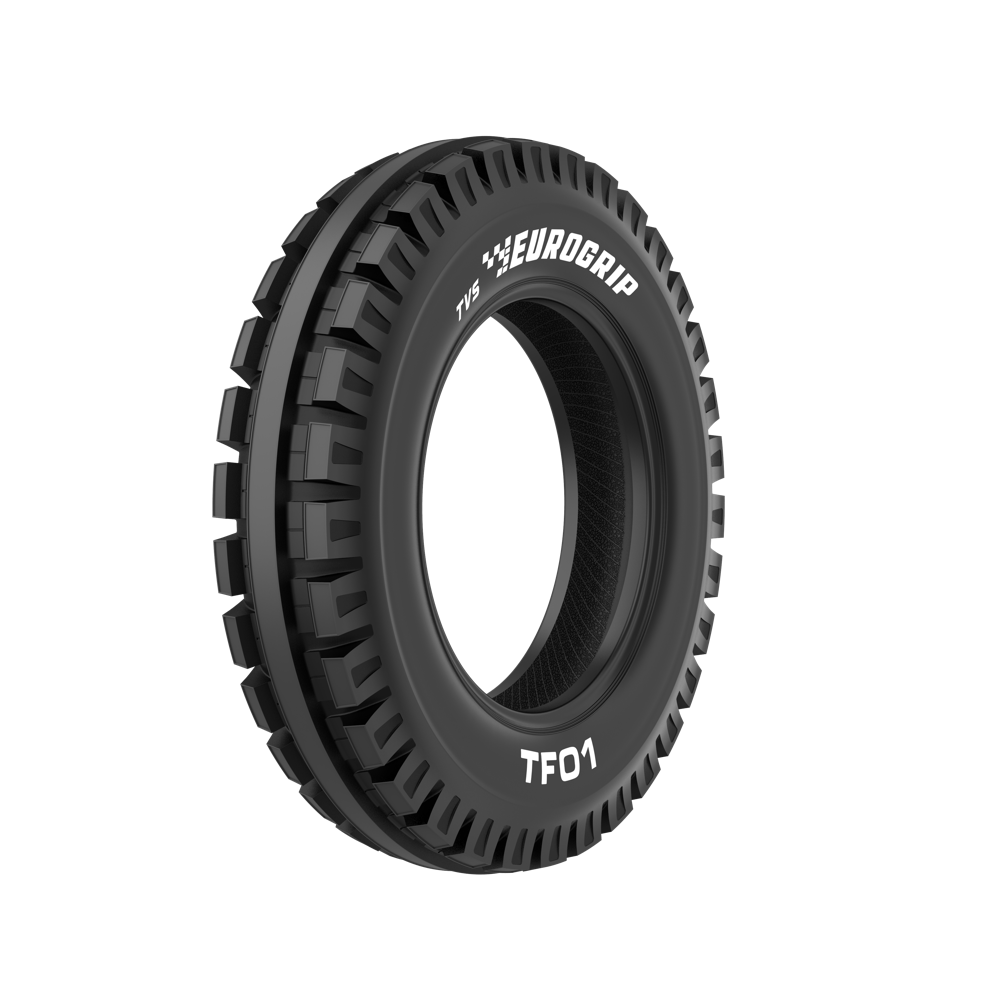

The TF 01 F-2 rib tyre is characterised by its continious central rib and notched shoulder ribs. This 3 rib tyre is designed for use in 2WD tractors as front steering wheel and in towed agricutural implements
F-2
A6/A8
Bias
Suitable for
Tractor 2WD
Technical Data
| TYRE SIZE | REC. RIM (inch) | ALT. RIM (inch) | UNLOADED DIMENSIONS (mm) | TYPE | PLY RATING | LI & SS | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| SW | OD | SLR | RC | |||||||
| 6.00-16 | 4.50E | - | 170 | 735 | 348 | 2205 | TT | 6 | 88A6/80A8 | |
| 6.00-16 | 4.50E | - | 170 | 735 | 348 | 2205 | TT | 8 | 94A6/86A8 | |
IMPERIAL
METRIC
Technical Table 01
| TYRE SIZE | RIM SIZE | REC. RIM | ALT. RIM | UNLOADED DIMENSIONS (mm) | PLY RATING | LOAD INDEX SPEED SYMBOL | ||||
| SW | OD | SLR | RC | |||||||
| 15.0/70-18 | 18 | W13 |
W17 W19 |
400 | 980 | 440 | 2886 | 14 | 128 A8 |
 |
| 16 | 132 A9 |
|
||||||||
Technical Data
| Tyre Size | Rec. RIM (inch) |
Alt. RIM (inch) |
Unloaded dimensions (mm) | Type | Ply Rating | Load Index & Speed Symbol | Fabric | Load table | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Section Width | Overall Diameter | Static Load Radius | Rolling Circumference | ||||||||
