MPT
TE 09

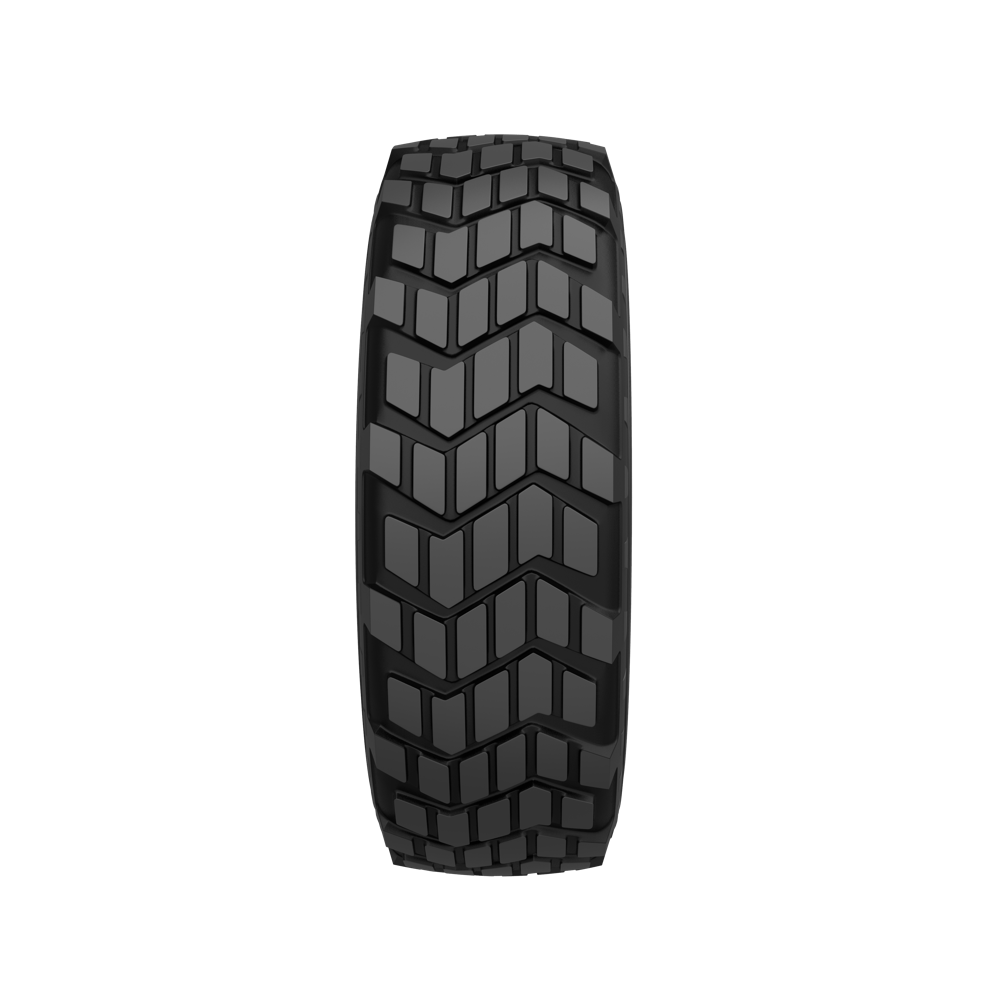

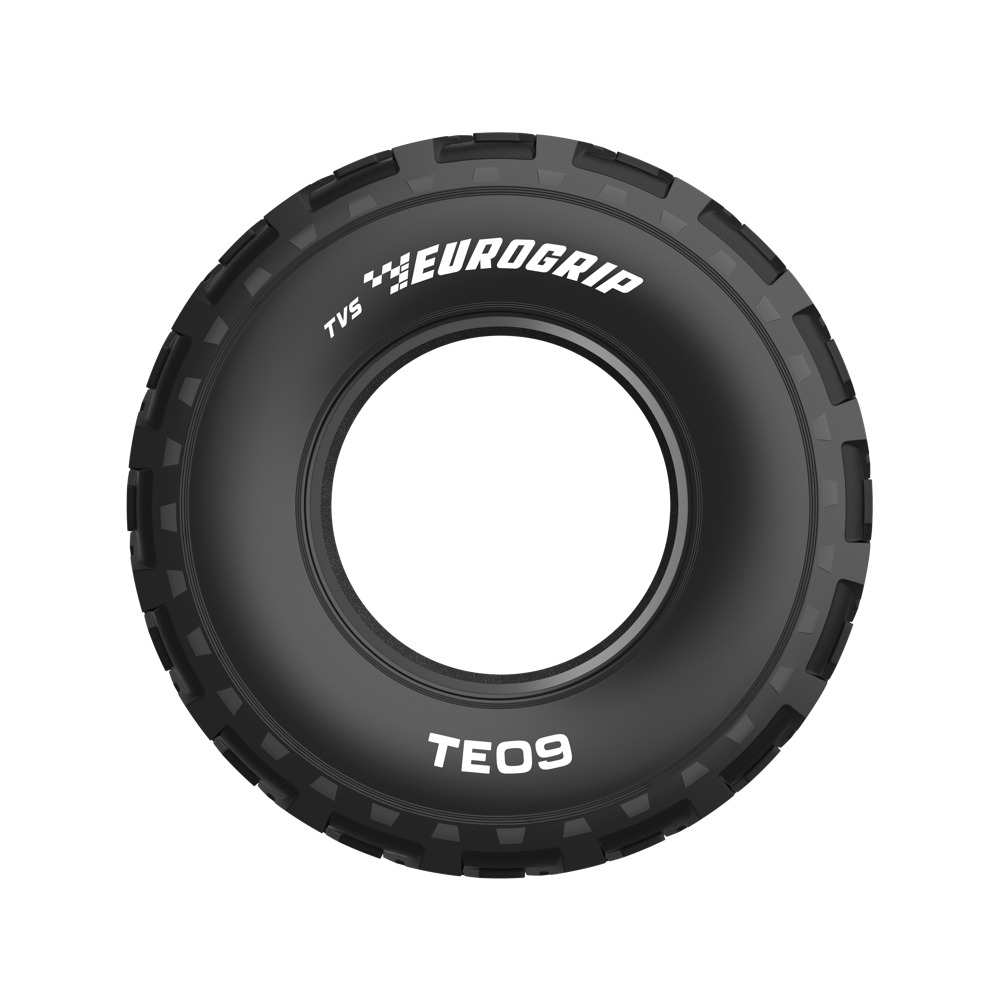

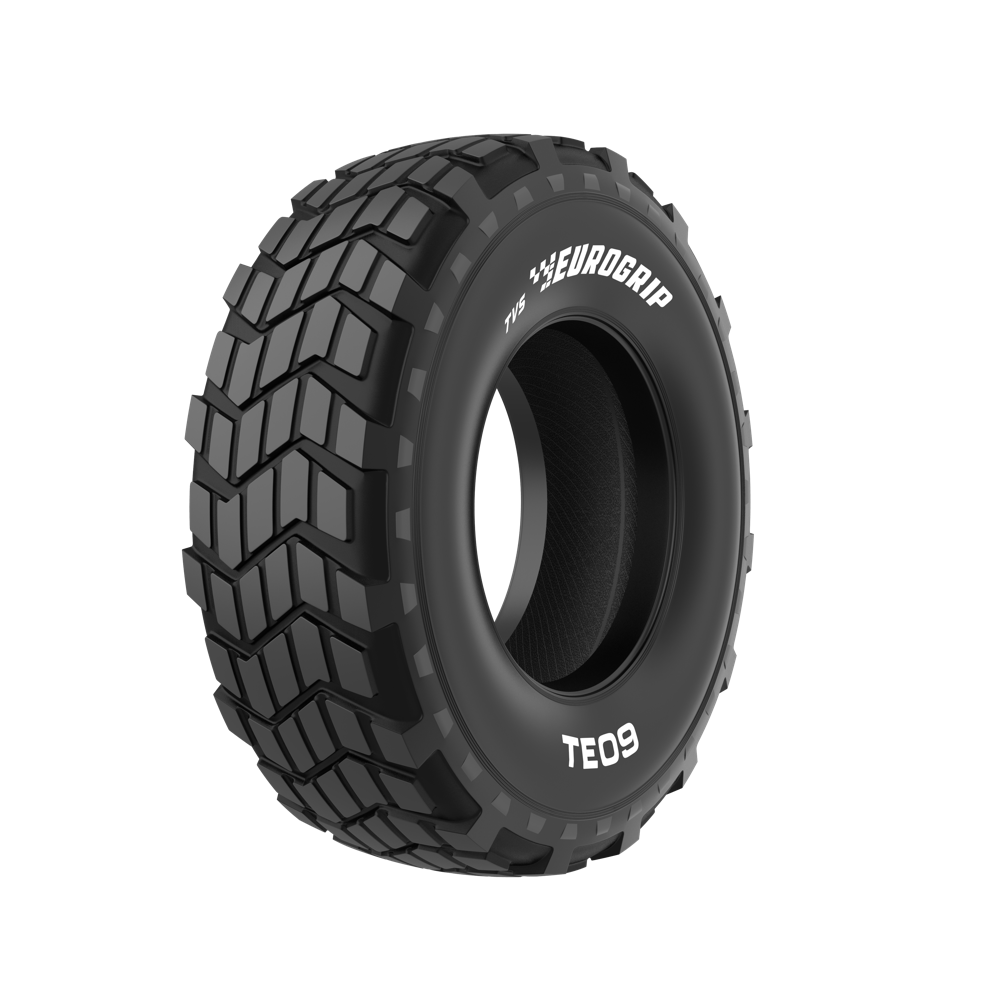

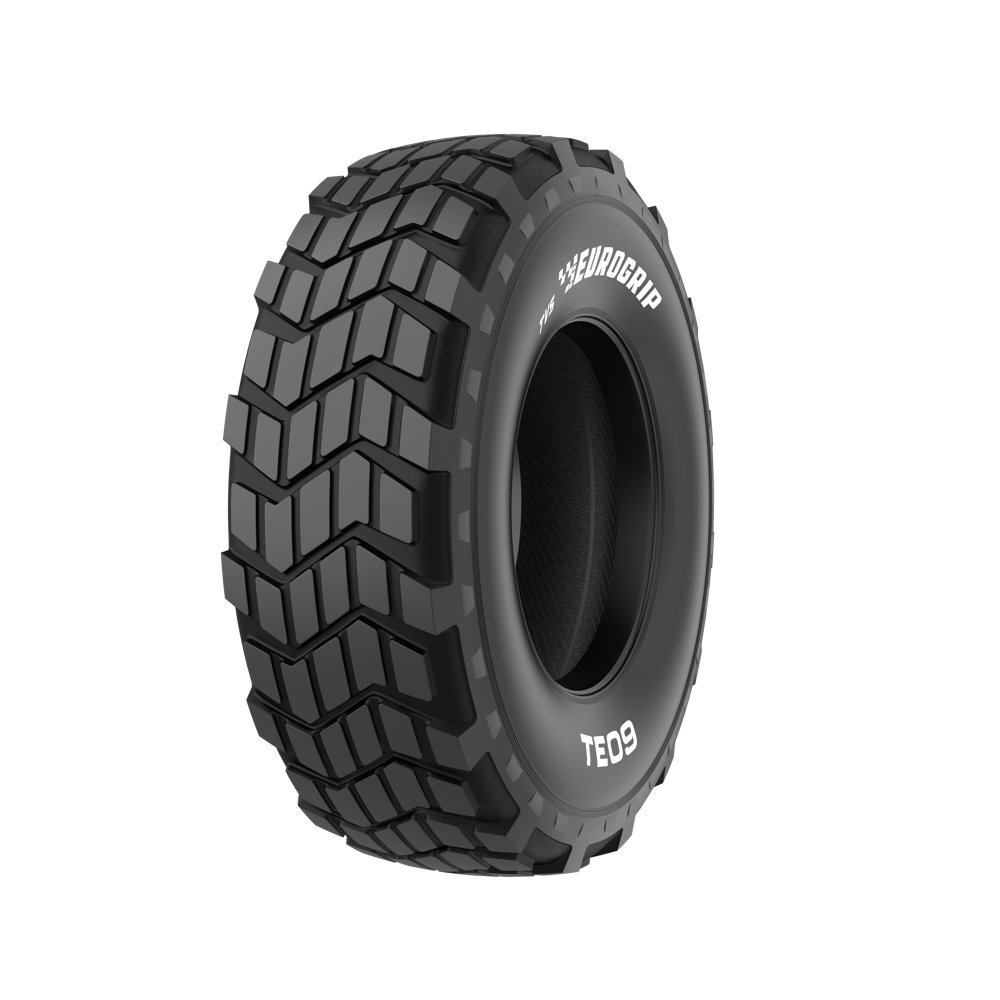

The TE 09 is a multi-purpose tyre designed for use on machines such as Boom lifts, Aerial work platforms, compact wheel loaders etc. Its block type tread design offers good surface contact enabling better stability. It can also be used on loose sandy surfaces where flotation is required.
MPT
F
Bias
Suitable for
Multi Purpose Truck
Compact Wheel Loader
Telescopic Handler
Boom Lift
Technical Data
| TYRE SIZE | REC. RIM (inch) | ALT. RIM (inch) | UNLOADED DIMENSIONS (mm) | TYPE | PLY RATING | LI & SS | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| SW | OD | SLR | RC | |||||||
| 18-22.5 | 14 | - | 480 | 1163 | 521 | 3492 | TL | 16 | 163F | |
| 18-22.5 | 14 | - | 480 | 1163 | 521 | 3492 | TL | 20 | 168F | |
IMPERIAL
METRIC
Technical Table 01
| TYRE SIZE | RIM SIZE | REC. RIM | ALT. RIM | UNLOADED DIMENSIONS (mm) | PLY RATING | LOAD INDEX SPEED SYMBOL | ||||
| SW | OD | SLR | RC | |||||||
| 15.0/70-18 | 18 | W13 |
W17 W19 |
400 | 980 | 440 | 2886 | 14 | 128 A8 |
 |
| 16 | 132 A9 |
|
||||||||
Technical Data
| Tyre Size | Rec. RIM (inch) |
Alt. RIM (inch) |
Unloaded dimensions (mm) | Type | Ply Rating | Load Index & Speed Symbol | Fabric | Load table | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Section Width | Overall Diameter | Static Load Radius | Rolling Circumference | ||||||||
