Implement-Traction

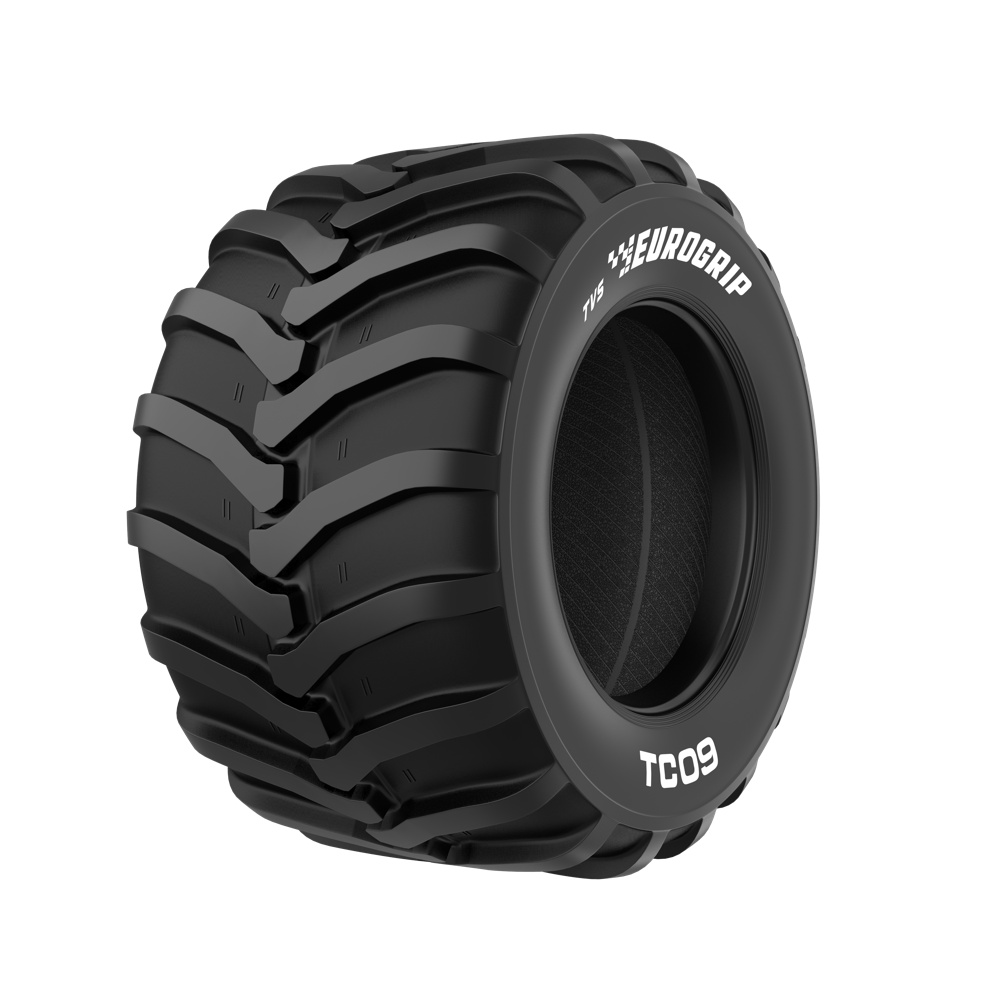

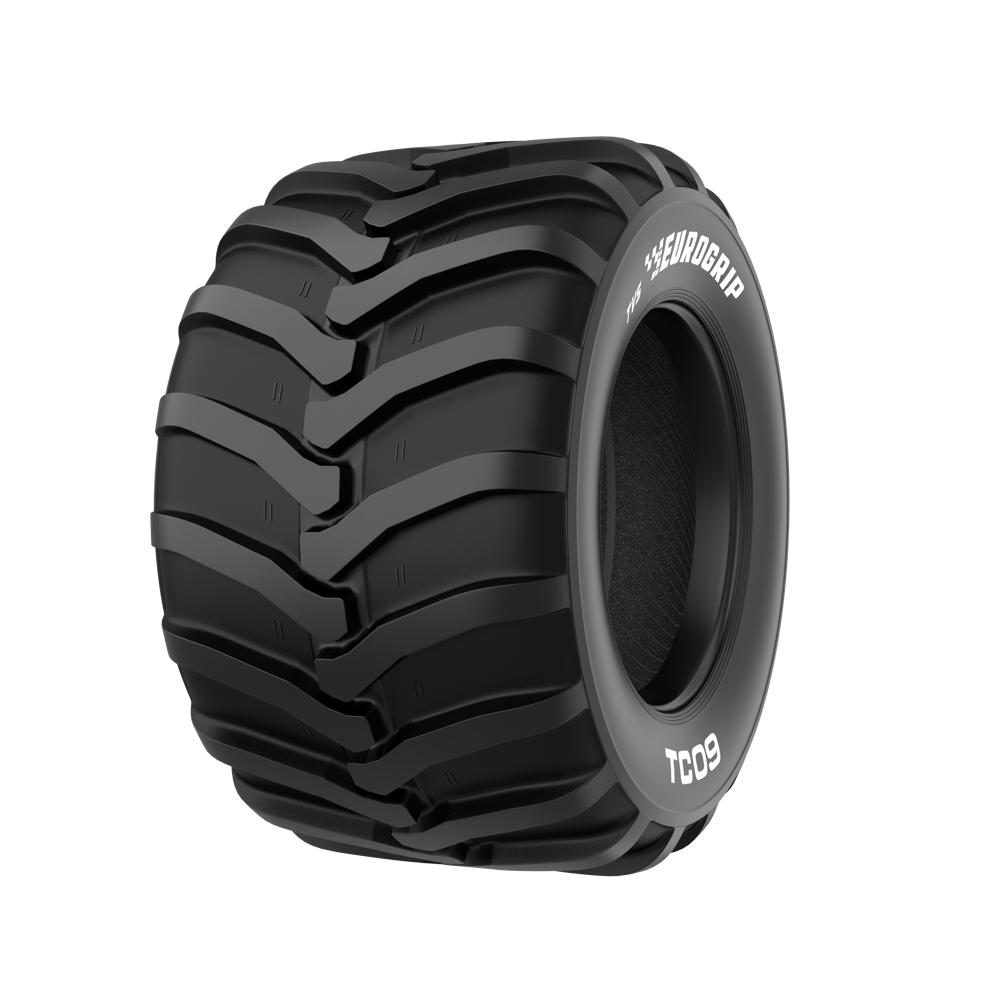

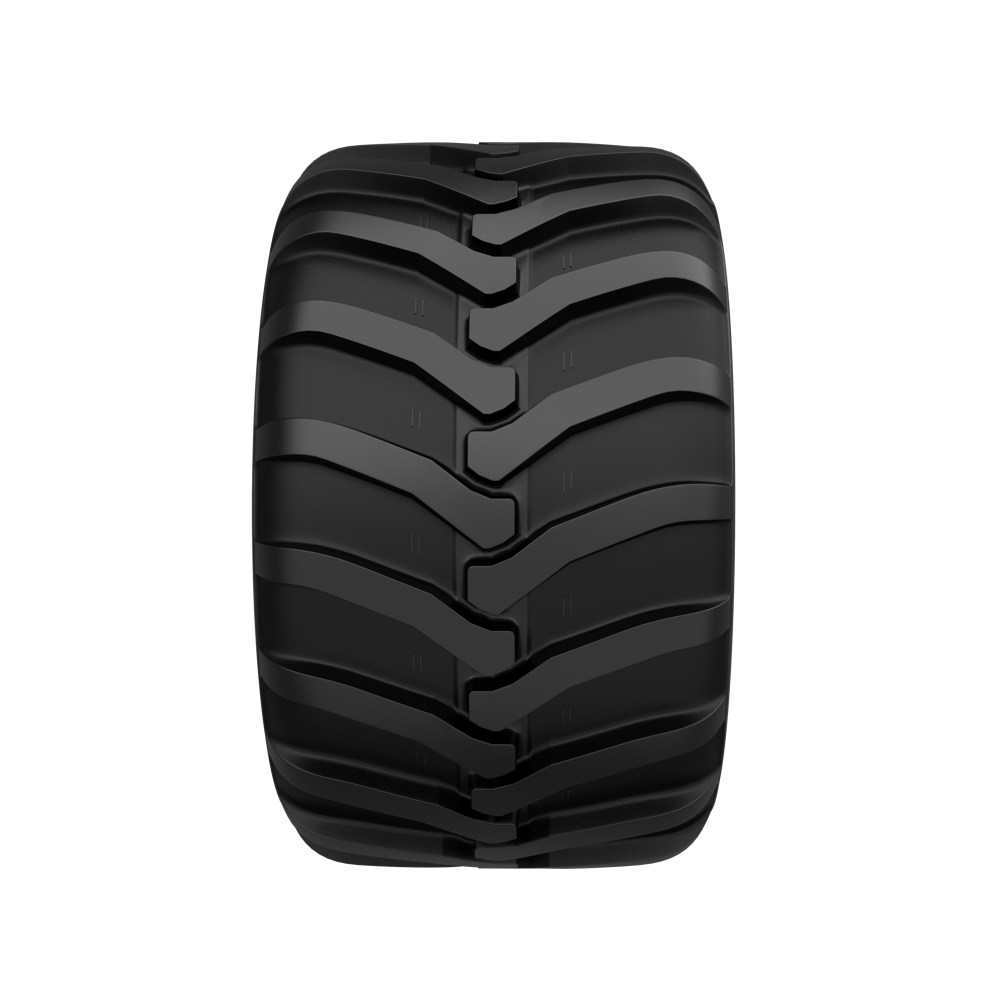

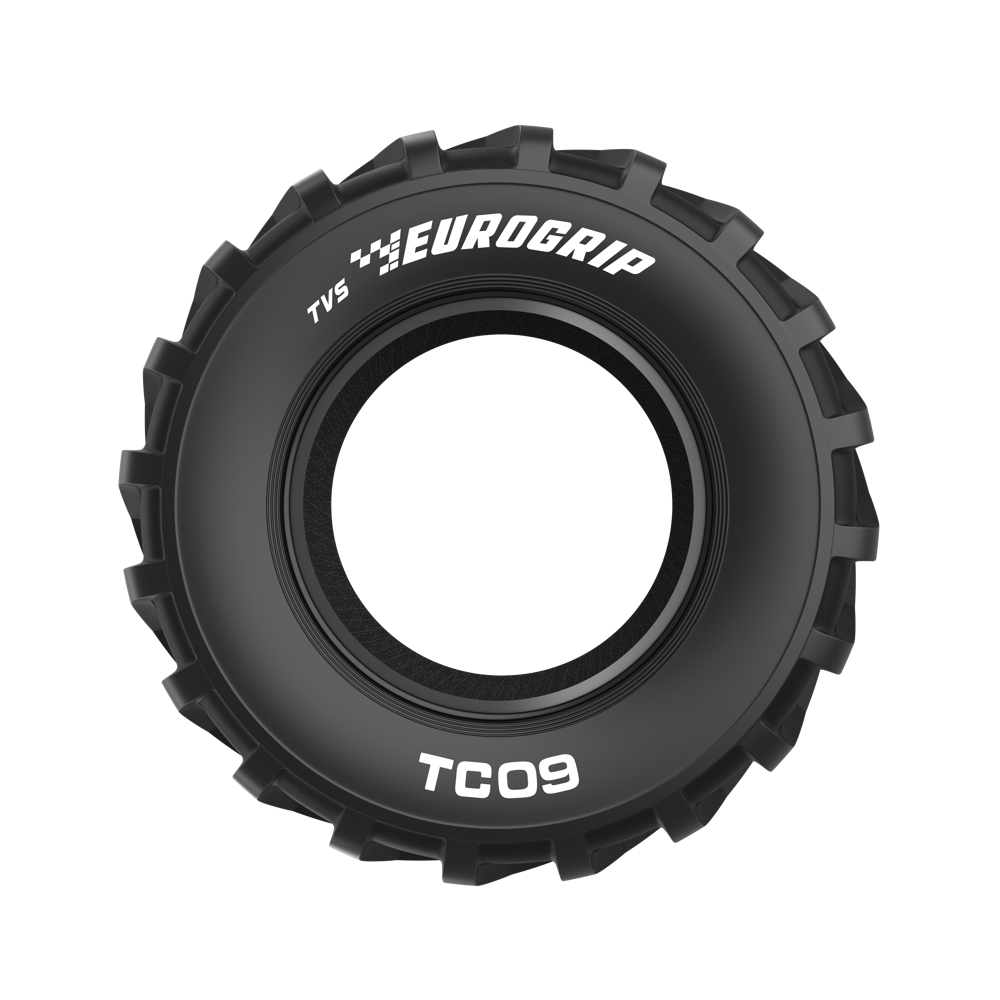

TC 09
The TC 09 is a large volume implement flotation tyre ideal for moving heavy loads. The tyre is suitable for agricultural implements and machinery and can be used for free rolling and drive wheel use. It is also suited for towed implements such as seed drills, trailers, wagons etc, and driven machines such as site dumpers and compact wheel loaders.
I-3
A6/A8
Bias
Suitable for
Trailer
Wagon
Technical Data
| TYRE SIZE | REC. RIM (inch) | ALT. RIM (inch) | UNLOADED DIMENSIONS (mm) | TYPE | PLY RATING | LI & SS | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| SW | OD | SLR | RC | |||||||
| 500/45-20 | 16.00DC | - | 485 | 945 | 449 | 2924 | TL | - | 160A8 | 164A6 | |
| 550/55-22.5 | 16.00DC | - | 545 | 1195 | 519 | 3438 | TL | 16 | 166A8 | 169A6 | |
| 600/40-22.5 | 20.00DC | - | 600 | 1120 | 484 | 3197 | TL | - | 169A8 | 173A6 | |
IMPERIAL
METRIC
Technical Table 01
| TYRE SIZE | RIM SIZE | REC. RIM | ALT. RIM | UNLOADED DIMENSIONS (mm) | PLY RATING | LOAD INDEX SPEED SYMBOL | ||||
| SW | OD | SLR | RC | |||||||
| 15.0/70-18 | 18 | W13 |
W17 W19 |
400 | 980 | 440 | 2886 | 14 | 128 A8 |
 |
| 16 | 132 A9 |
|
||||||||
Technical Data
| Tyre Size | Rec. RIM (inch) |
Alt. RIM (inch) |
Unloaded dimensions (mm) | Type | Ply Rating | Load Index & Speed Symbol | Fabric | Load table | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Section Width | Overall Diameter | Static Load Radius | Rolling Circumference | ||||||||
