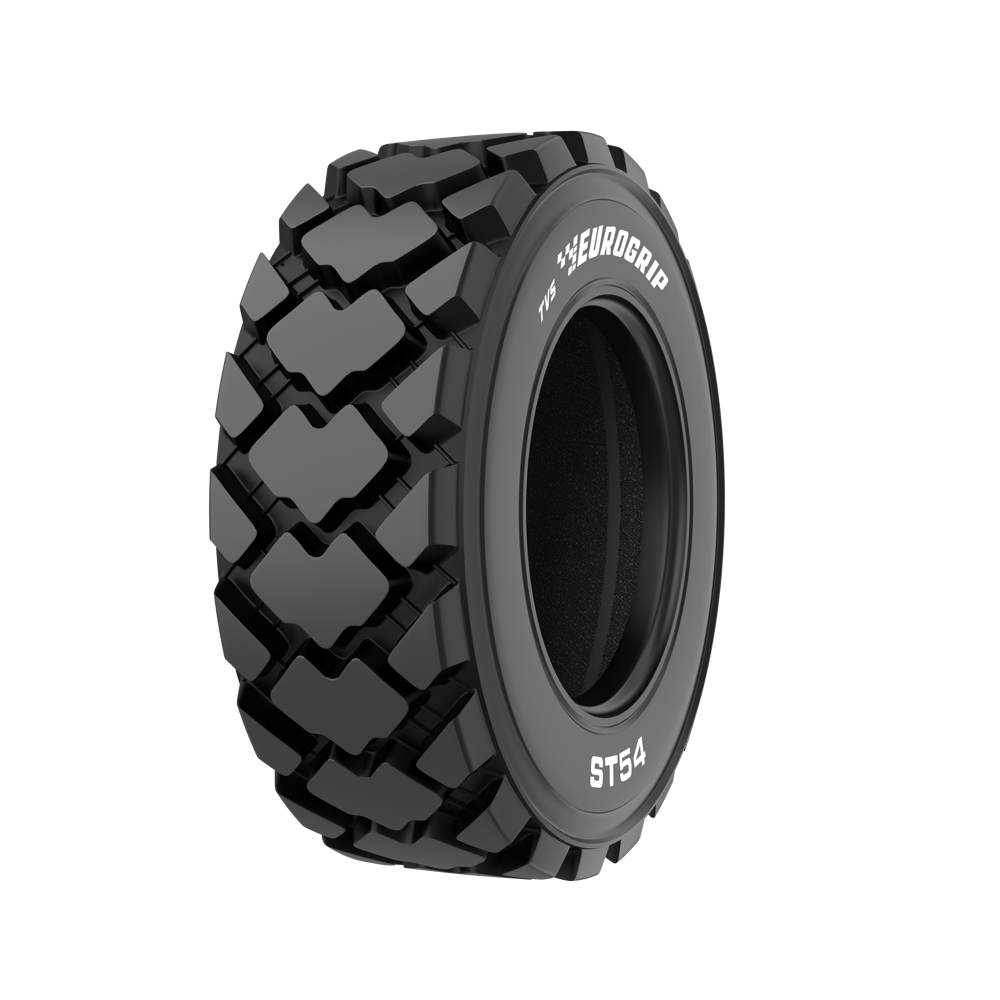

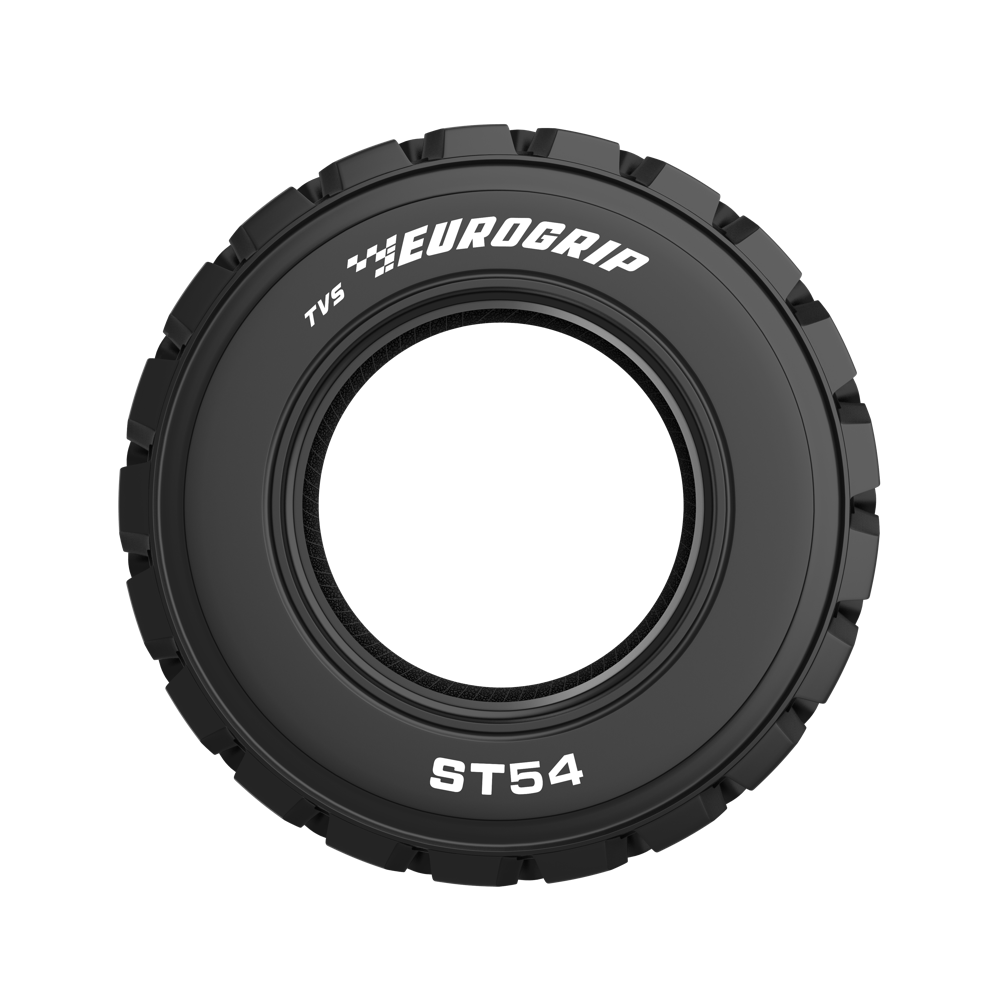

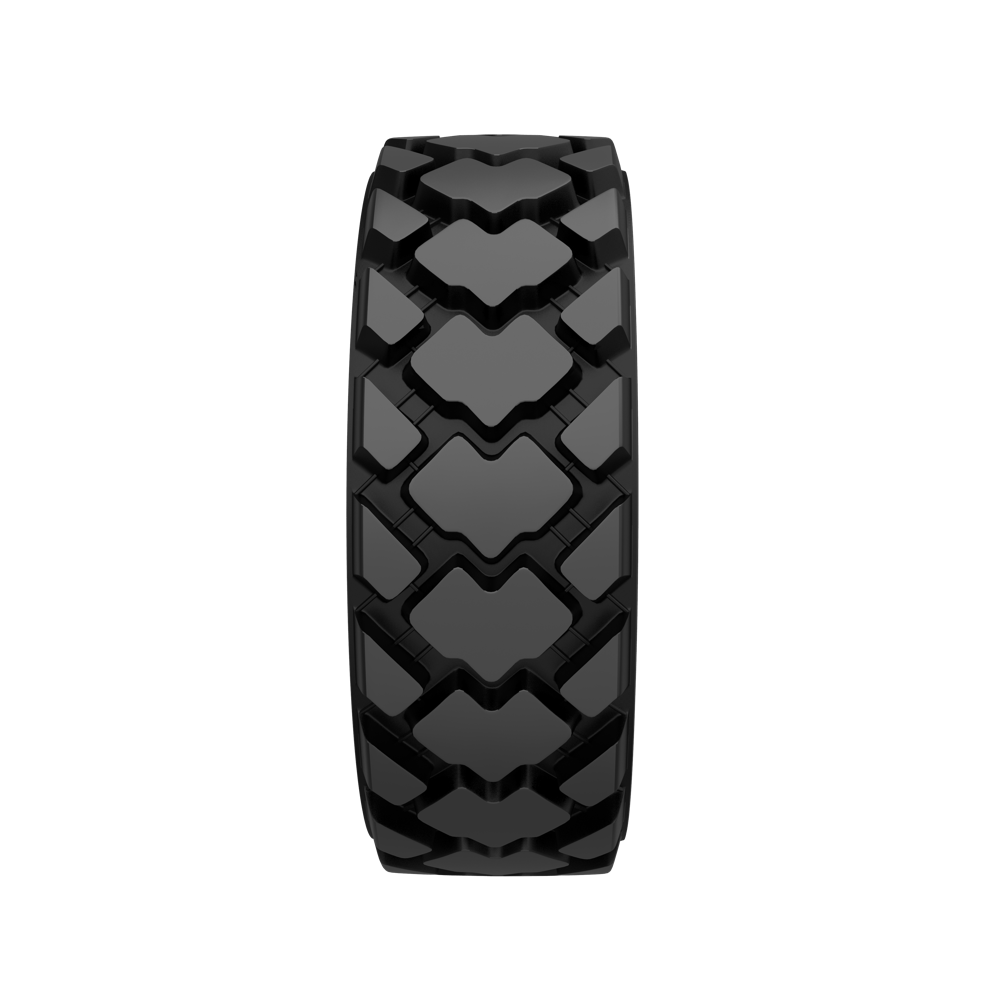

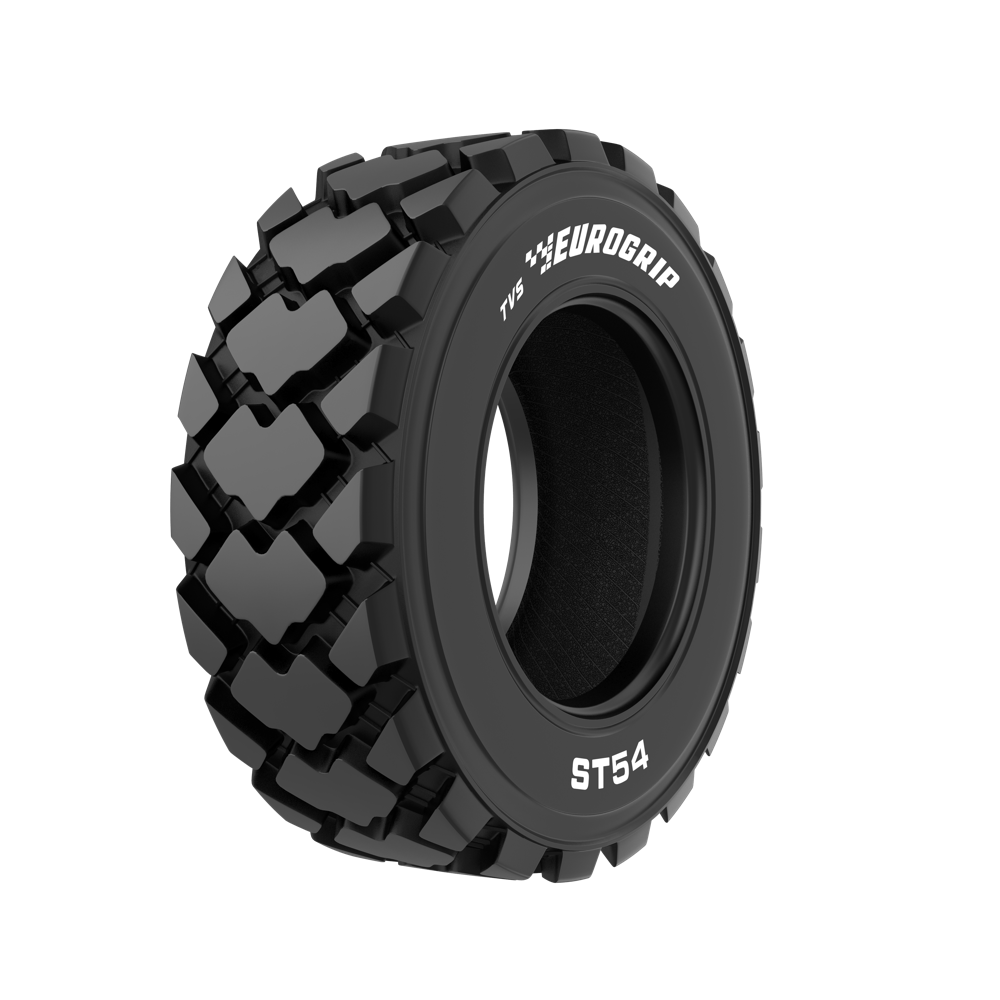

The TVS Eurogrip ST 54 Jumbo L-5 is a modern tyre designed for severe duty application. It is primarily designed for Skid Steer Loaders used in very tough operations. Built with severe duty compound to resist abrasion, chunking, and tearing, this tyre is ideal for machines used for asphalt reclamation, quarries, mines etc. The ideally spaced block type tread design promotes self-cleaning. High lug height and rubber-to-void ratio, the usable amount of rubber that come in contact with the surface is high. This provides much longer hours of service when compared to a typical R-4 Skid Steer tyre.
The ST 54 Jumbo L-5 can also be used in other construction machines engaged in severe duty operations.
L-5
A2
Bias
Suitable for

Skidsteer Loader

Backhoe Loader
Technical Data
ST 54 Jumbo
...
TYRE SIZE | REC. RIM (inch) | ALT. RIM (inch) | UNLOADED DIMENSIONS (mm) | TYPE | PLY RATING | LI & SS | ||||
---|---|---|---|---|---|---|---|---|---|---|
SW | OD | SLR | RC | |||||||
10-16.5 | 8.25 | - | 273 | 780 | 347 | 2248 | TL | 10 | 135A2 | |
10-16.5 | 8.25 | - | 273 | 780 | 347 | 2248 | TL | 12 | 138A2 | |
12-16.5 | 9.75 | - | 312 | 831 | 381 | 2435 | TL | 12 | 145A2 | |
12-16.5 | 9.75 | - | 312 | 831 | 381 | 2435 | TL | 14 | 147A2 |
IMPERIAL
METRIC
Technical Table 01
TYRE SIZE | RIM SIZE | REC. RIM | ALT. RIM | UNLOADED DIMENSIONS (mm) | PLY RATING | LOAD INDEX SPEED SYMBOL | ||||
SW | OD | SLR | RC | |||||||
15.0/70-18 | 18 | W13 |
W17 W19 |
400 | 980 | 440 | 2886 | 14 | 128 A8 |
![]() |
16 | 132 A9 |
![]() |
Technical Data
Intl.
US
Tyre Size | Rec. RIM (inch) |
Alt. RIM (inch) |
Unloaded dimensions (mm) | Type | Ply Rating | Load Index & Speed Symbol | Fabric | Load table | |||
---|---|---|---|---|---|---|---|---|---|---|---|
Section Width | Overall Diameter | Static Load Radius | Rolling Circumference |
