Implement-Lug

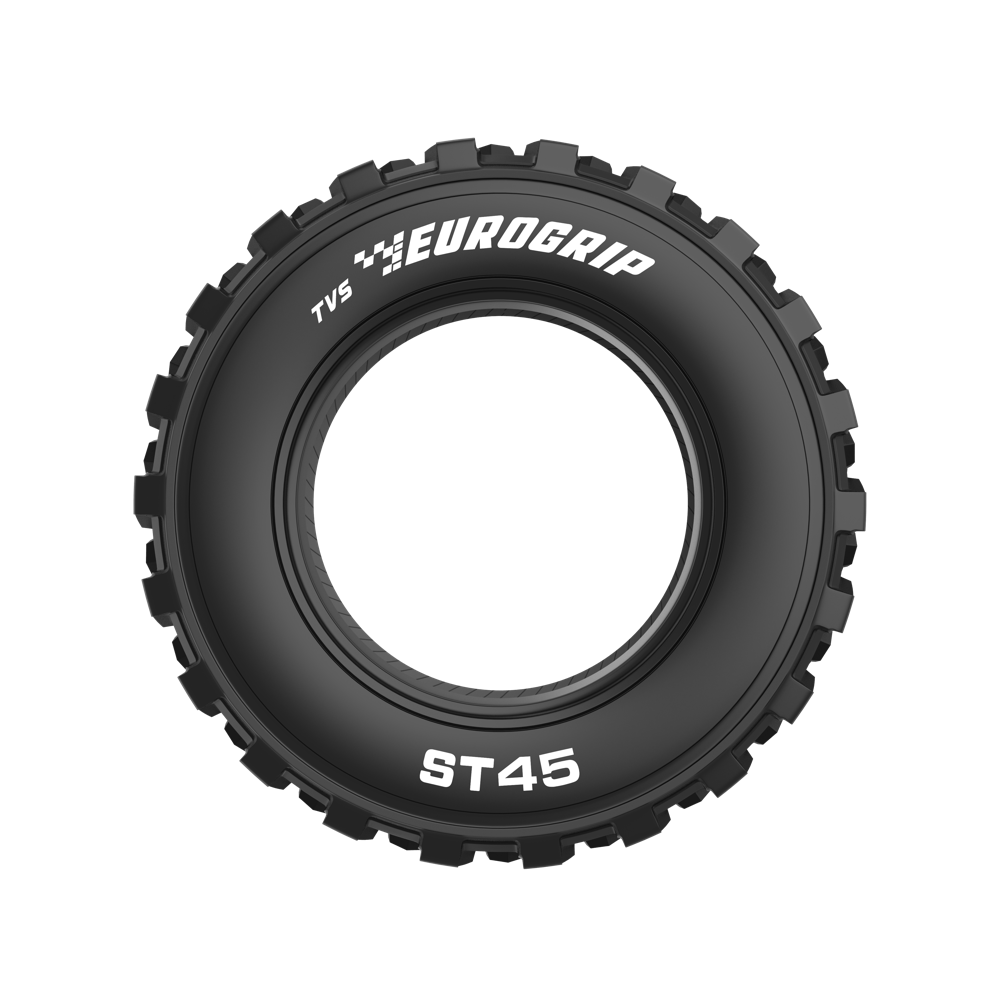

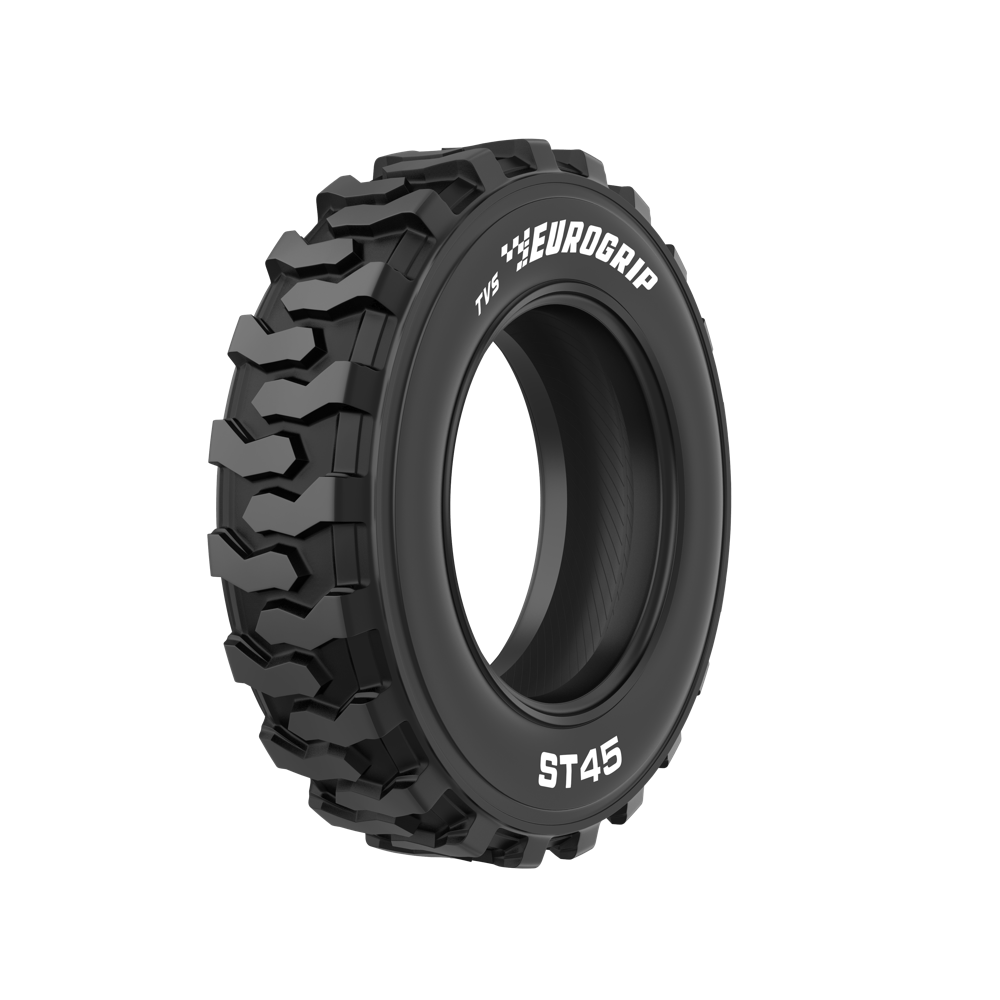

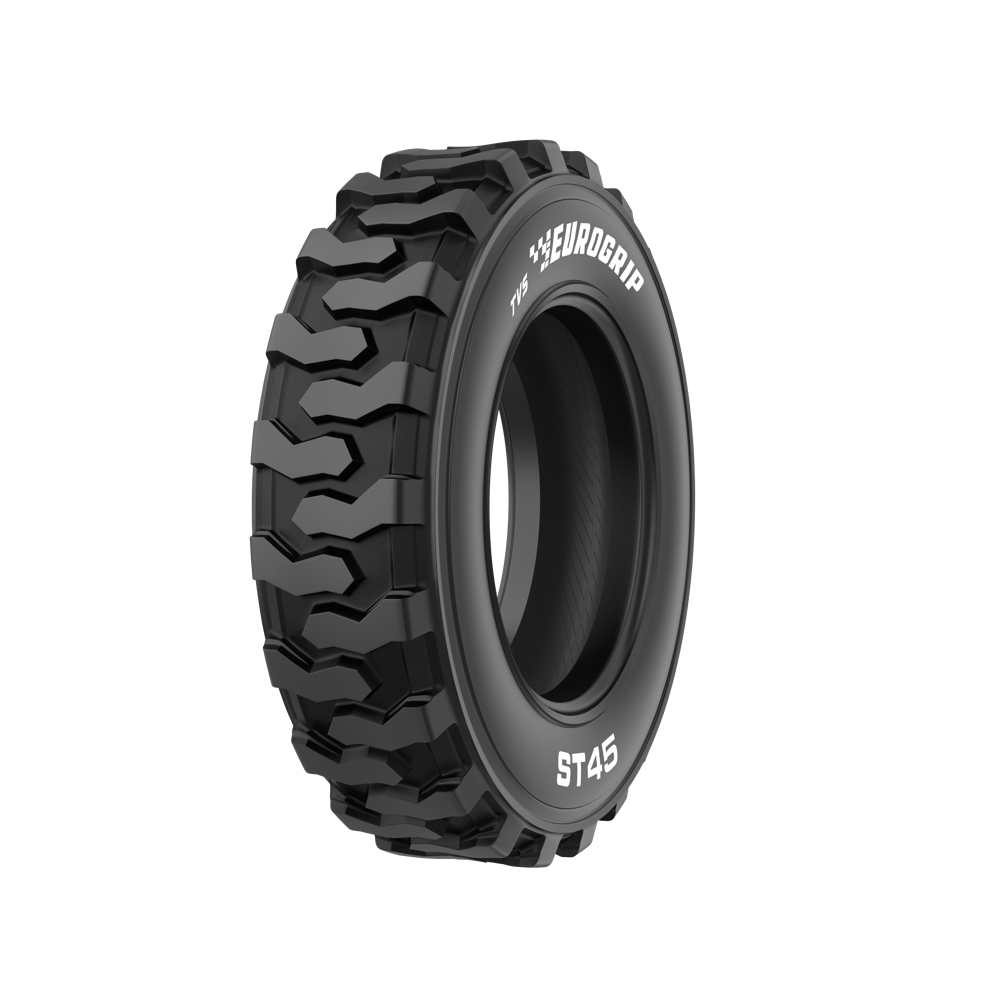

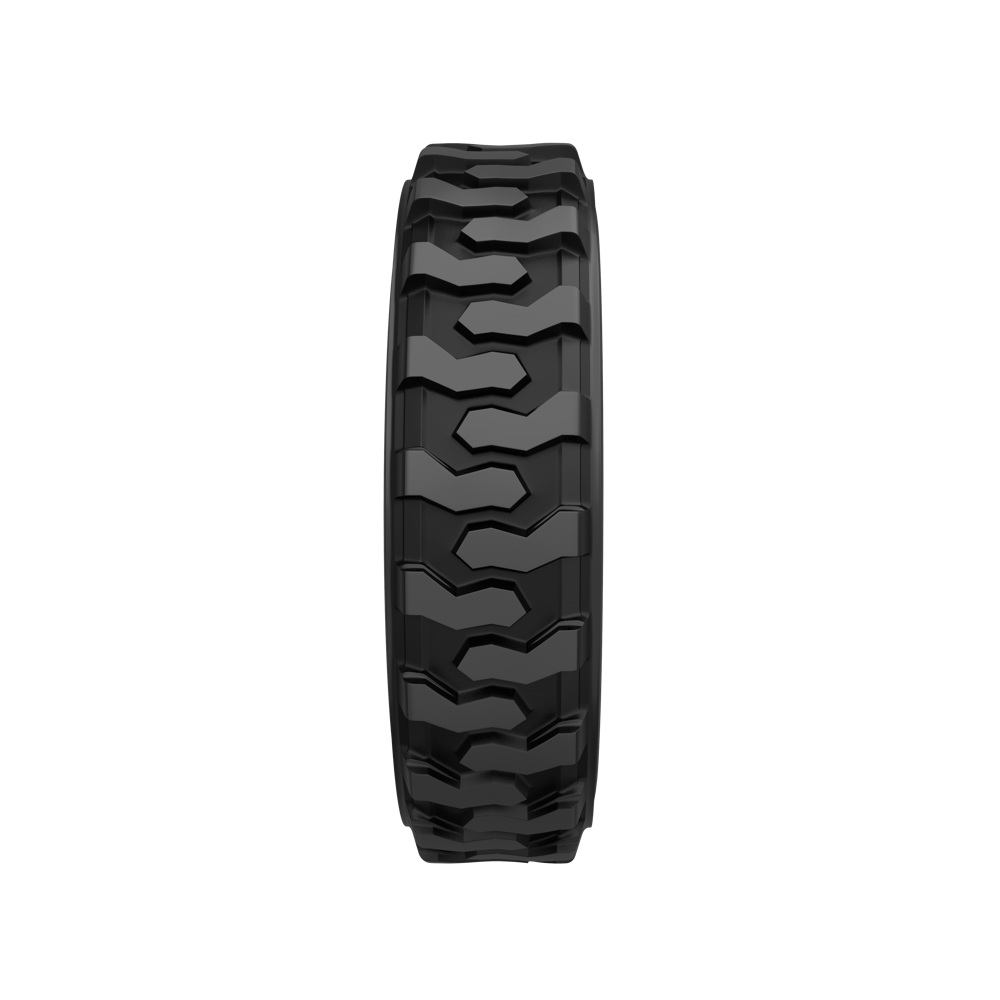

ST 45 PLUS IMP
ST 45 PLUS (IMP) is a range of robust implement tyres engineered from Industrial tread designs. These tyres, with wide and evenly spaced lugs, provide longer life and can handle tougher terrain better when compared to standard agricultural implement tyres. It is suitable for towed implements such as seeders, planters, ploughs etc
R-4
A5
Bias
Suitable for
Planter
Seeder
Technical Data
| TYRE SIZE | REC. RIM (inch) | ALT. RIM (inch) | UNLOADED DIMENSIONS (mm) | TYPE | PLY RATING | LI & SS | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| SW | OD | SLR | RC | |||||||
| 10-16.5 | 8.75 | - | 275 | 770 | 353 | 2271 | TL | 8 | 116A8 | |
| 10-16.5 | 8.75 | - | 275 | 770 | 353 | 2271 | TL | 10 | 120A8 | |
| 12-16.5 | 9.25 | - | 315 | 840 | 382 | 2478 | TL | 10 | 125A8 | |
| 12-16.5 | 9.25 | - | 315 | 840 | 382 | 2478 | TL | 12 | 130A8 | |
IMPERIAL
METRIC
Technical Table 01
| TYRE SIZE | RIM SIZE | REC. RIM | ALT. RIM | UNLOADED DIMENSIONS (mm) | PLY RATING | LOAD INDEX SPEED SYMBOL | ||||
| SW | OD | SLR | RC | |||||||
| 15.0/70-18 | 18 | W13 |
W17 W19 |
400 | 980 | 440 | 2886 | 14 | 128 A8 |
 |
| 16 | 132 A9 |
|
||||||||
Technical Data
| Tyre Size | Rec. RIM (inch) |
Alt. RIM (inch) |
Unloaded dimensions (mm) | Type | Ply Rating | Load Index & Speed Symbol | Fabric | Load table | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Section Width | Overall Diameter | Static Load Radius | Rolling Circumference | ||||||||
