Skidsteer Loader
ST 36

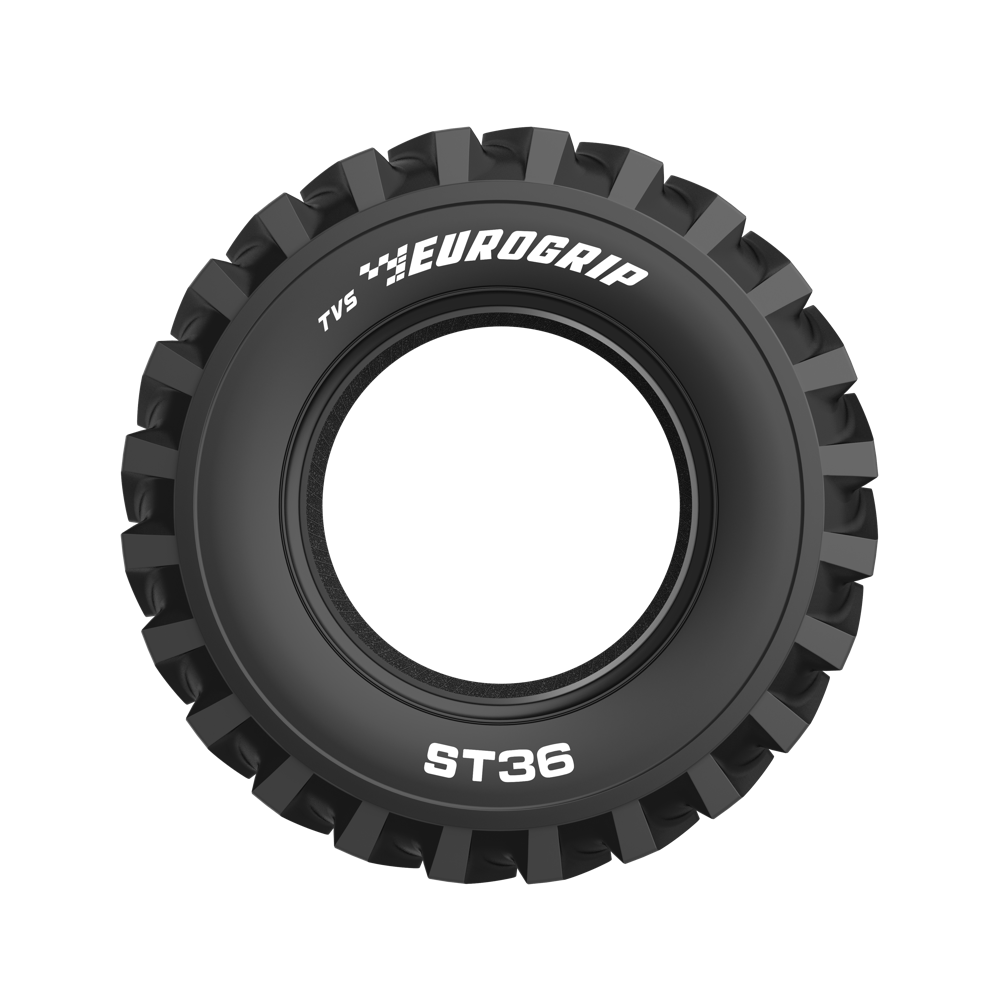

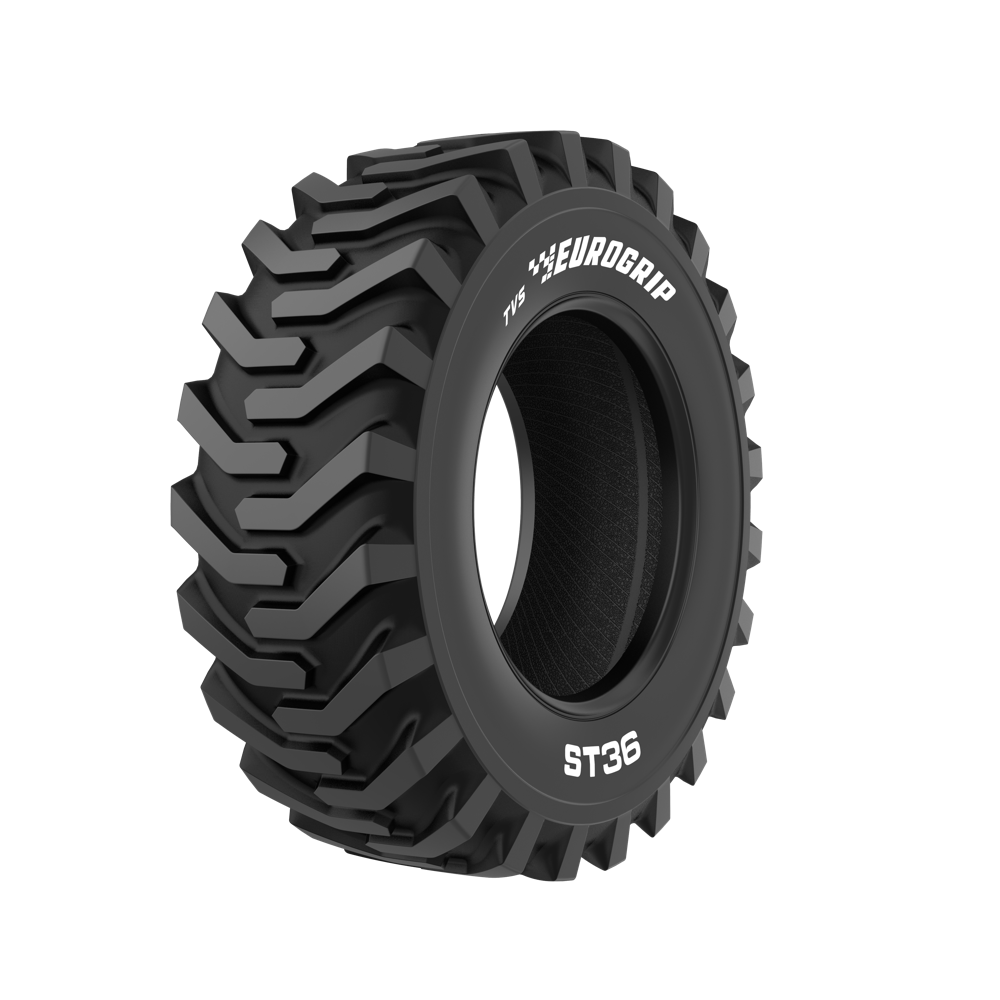

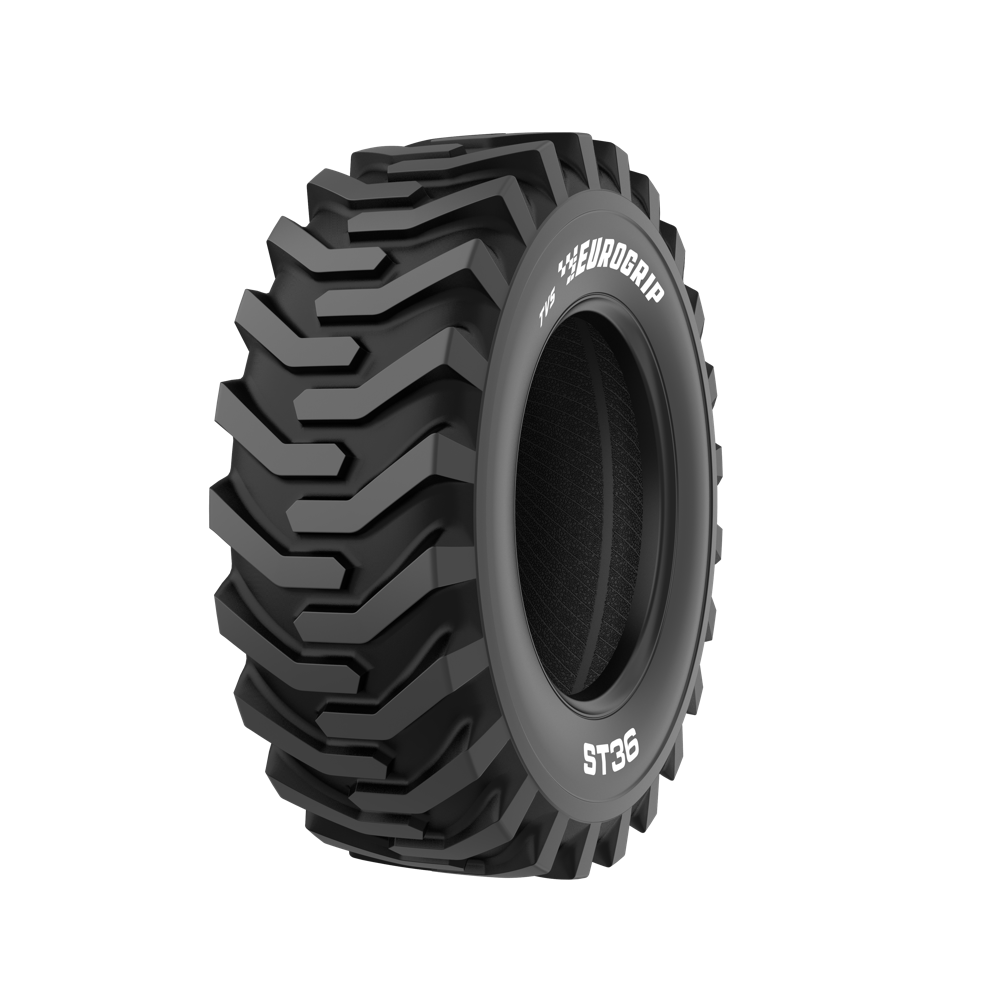

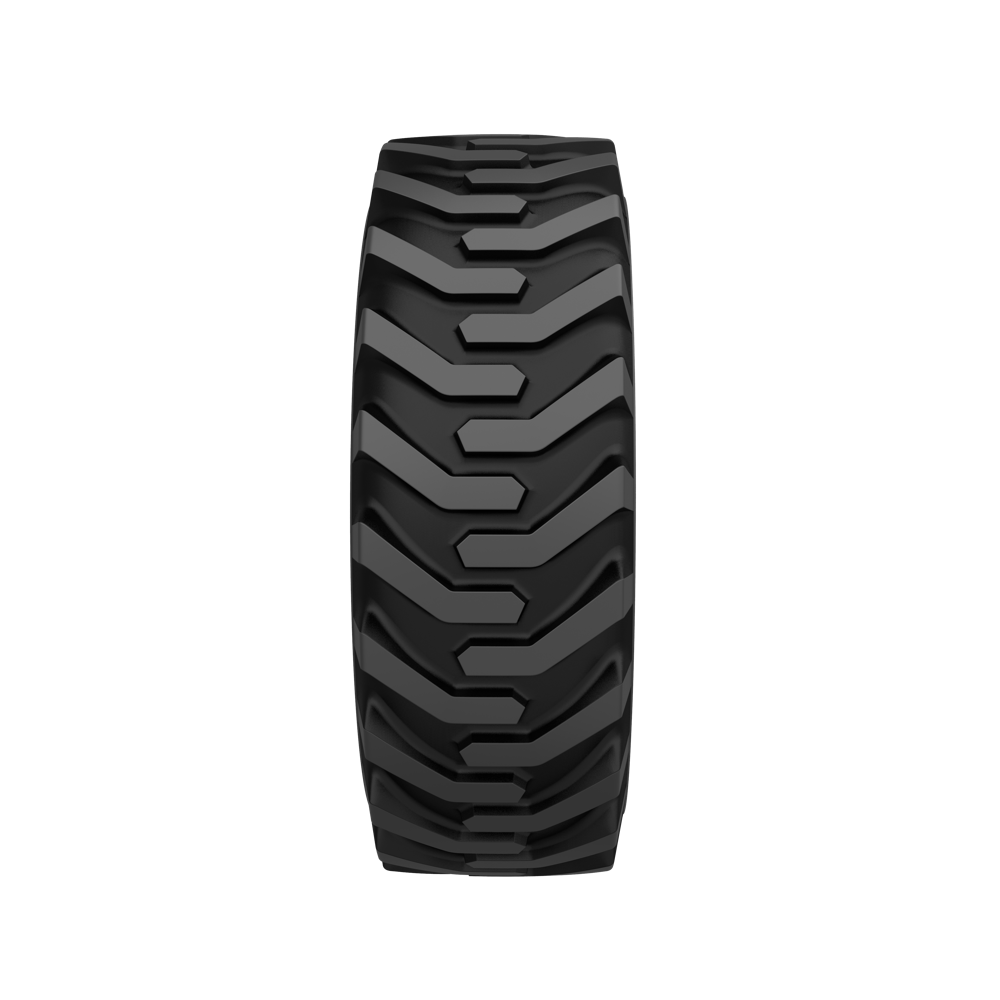

ST 36 R-4 is a general duty skid steer tyre is the ideal choice for machines employed in light operations or for those operated by fleet rentals. It is built with compound to resist chunking and tearing, providing good life.
R-4
A2/A8
Bias
Suitable for
Skidsteer Loader
Backhoe Loader
Compact Wheel Loader
Technical Data
| TYRE SIZE | REC. RIM (inch) | ALT. RIM (inch) | UNLOADED DIMENSIONS (mm) | TYPE | PLY RATING | LI & SS | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| SW | OD | SLR | RC | |||||||
| 10-16.5 | 8.25 | - | 261 | 765 | 350 | 2257 | TL | 8 | 129A2 | |
| 12-16.5 | 9.75 | - | 306 | 819 | 372 | 2416 | TL | 10 | 140A2 | |
IMPERIAL
METRIC
Technical Table 01
| TYRE SIZE | RIM SIZE | REC. RIM | ALT. RIM | UNLOADED DIMENSIONS (mm) | PLY RATING | LOAD INDEX SPEED SYMBOL | ||||
| SW | OD | SLR | RC | |||||||
| 15.0/70-18 | 18 | W13 |
W17 W19 |
400 | 980 | 440 | 2886 | 14 | 128 A8 |
 |
| 16 | 132 A9 |
|
||||||||
Technical Data
| Tyre Size | Rec. RIM (inch) |
Alt. RIM (inch) |
Unloaded dimensions (mm) | Type | Ply Rating | Load Index & Speed Symbol | Fabric | Load table | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Section Width | Overall Diameter | Static Load Radius | Rolling Circumference | ||||||||
