Skidsteer Loader
ST 18

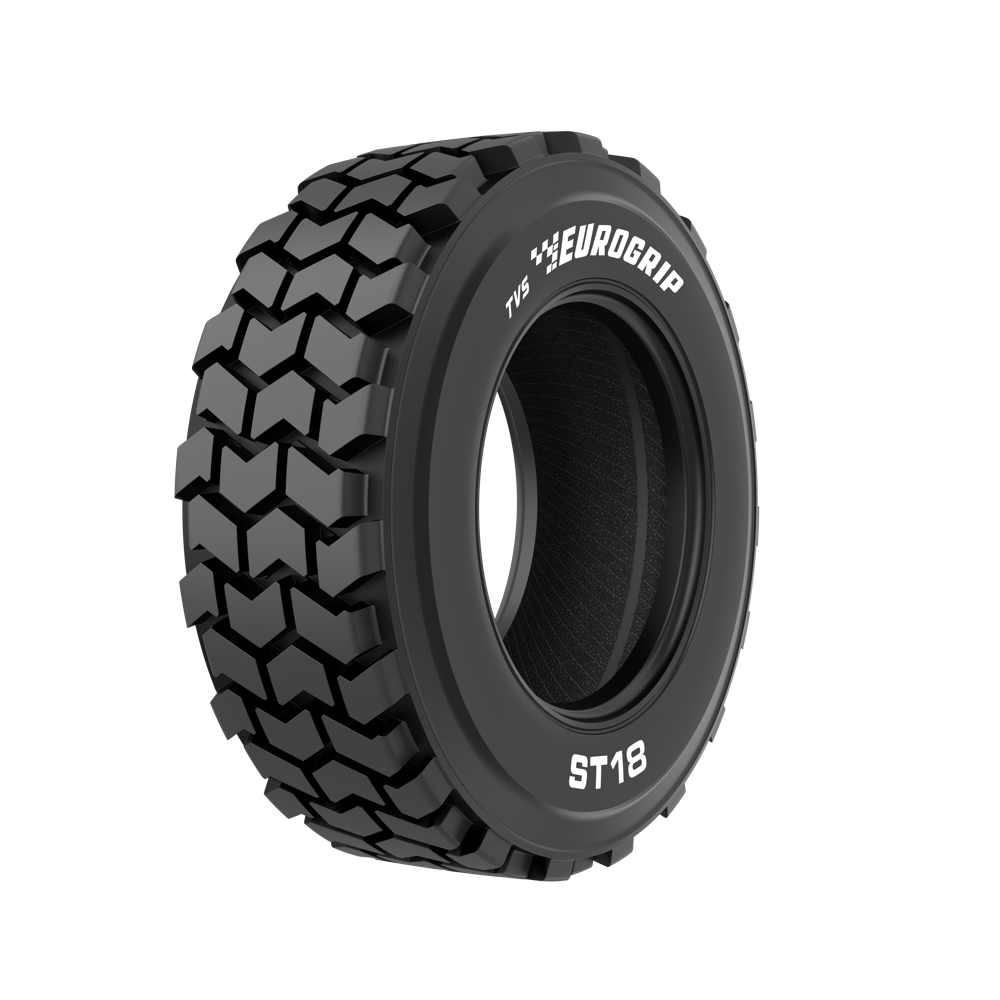

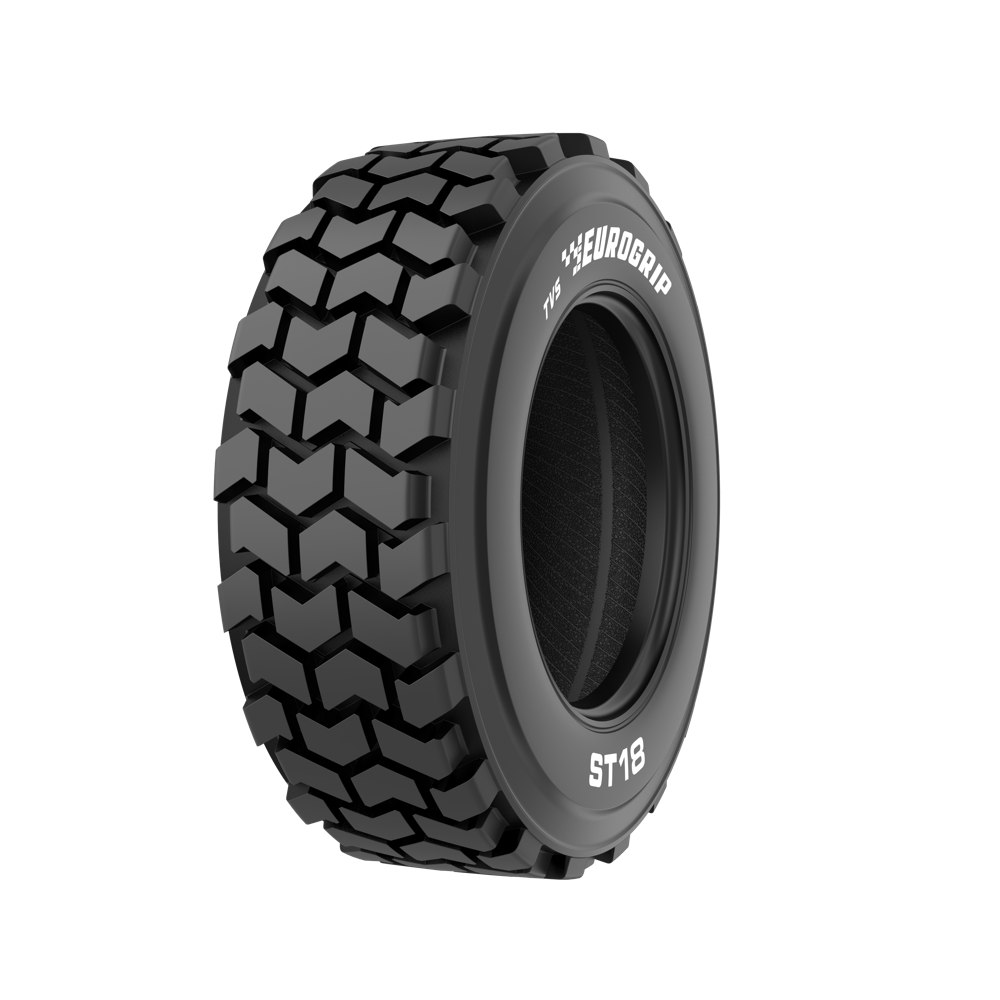

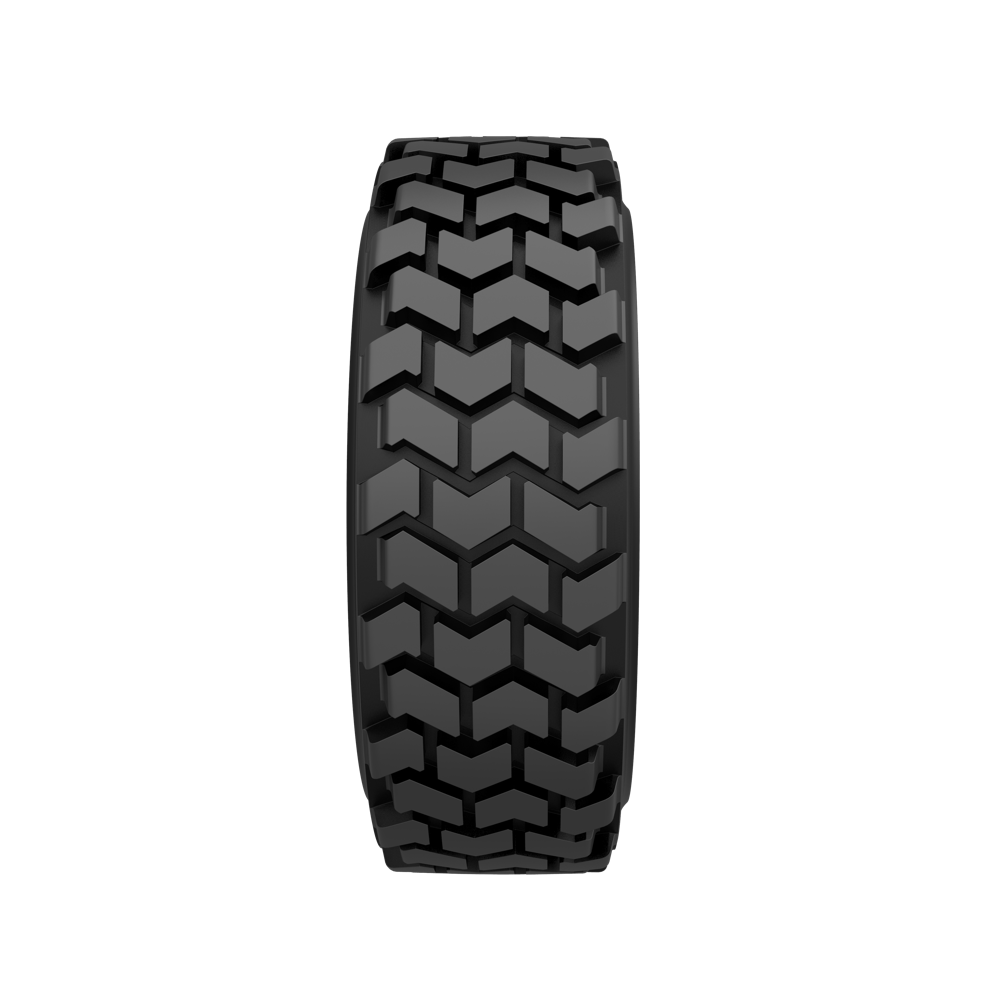

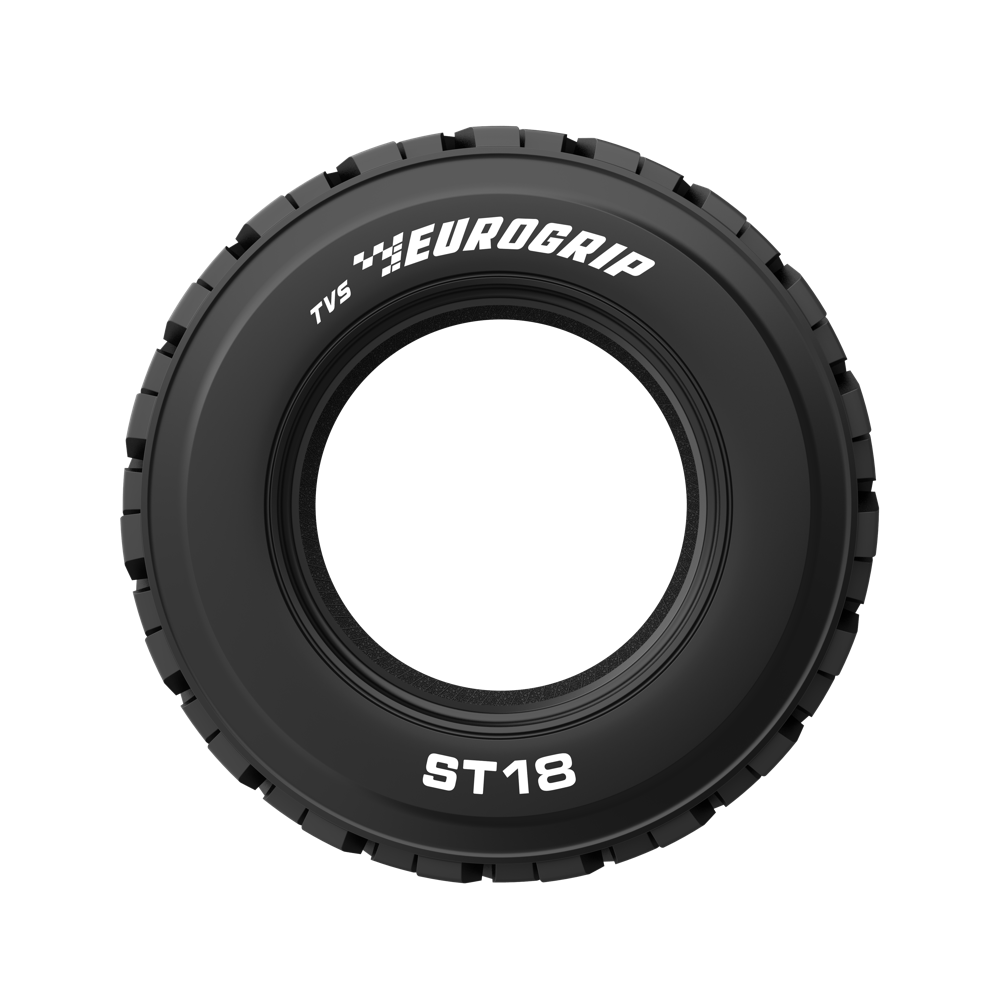

ST 18 L-4 skid steer tyre is a speciality application tyre that can be used on mixed surfaces like, sand, snow, and hard surfaces. The versatile block type tread pattern has large footprint with high lug to void ratio, which leads to even tread wear and offers additional puncture protection. This tyre is extremely durable.
L-4
A2/A8
Bias
Suitable for
Skidsteer Loader
Backhoe Loader
Compact Wheel Loader
Technical Data
| TYRE SIZE | REC. RIM (inch) | ALT. RIM (inch) | UNLOADED DIMENSIONS (mm) | TYPE | PLY RATING | LI & SS | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| SW | OD | SLR | RC | |||||||
| 10-16.5 | 8.25 | - | 275 | 785 | 355 | 2316 | TL | 10 | 134A2 | |
| 12-16.5 | 9.75 | - | 310 | 830 | 374 | 2439 | TL | 10 | 140A2 | |
| 12-16.5 | 9.75 | - | 310 | 830 | 374 | 2439 | TL | 12 | 145A2 | |
IMPERIAL
METRIC
Technical Table 01
| TYRE SIZE | RIM SIZE | REC. RIM | ALT. RIM | UNLOADED DIMENSIONS (mm) | PLY RATING | LOAD INDEX SPEED SYMBOL | ||||
| SW | OD | SLR | RC | |||||||
| 15.0/70-18 | 18 | W13 |
W17 W19 |
400 | 980 | 440 | 2886 | 14 | 128 A8 |
 |
| 16 | 132 A9 |
|
||||||||
Technical Data
| Tyre Size | Rec. RIM (inch) |
Alt. RIM (inch) |
Unloaded dimensions (mm) | Type | Ply Rating | Load Index & Speed Symbol | Fabric | Load table | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Section Width | Overall Diameter | Static Load Radius | Rolling Circumference | ||||||||
