Paver

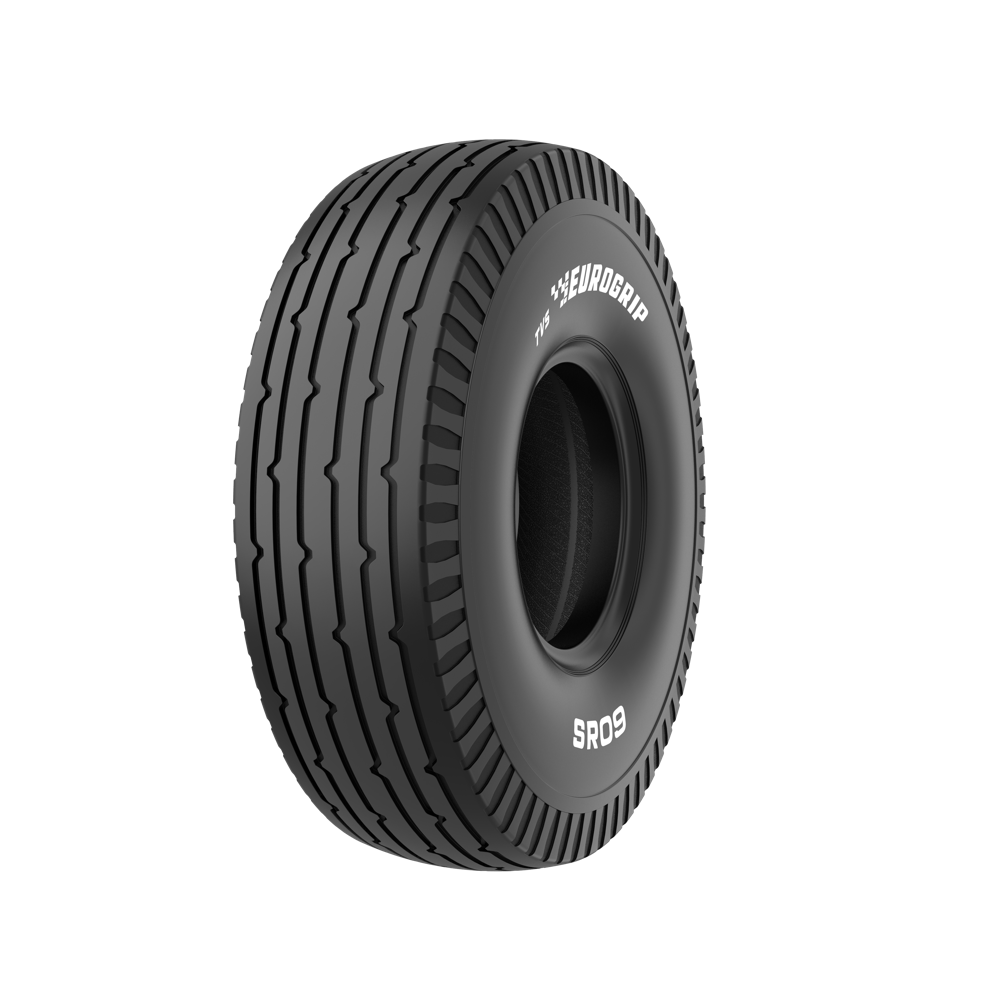

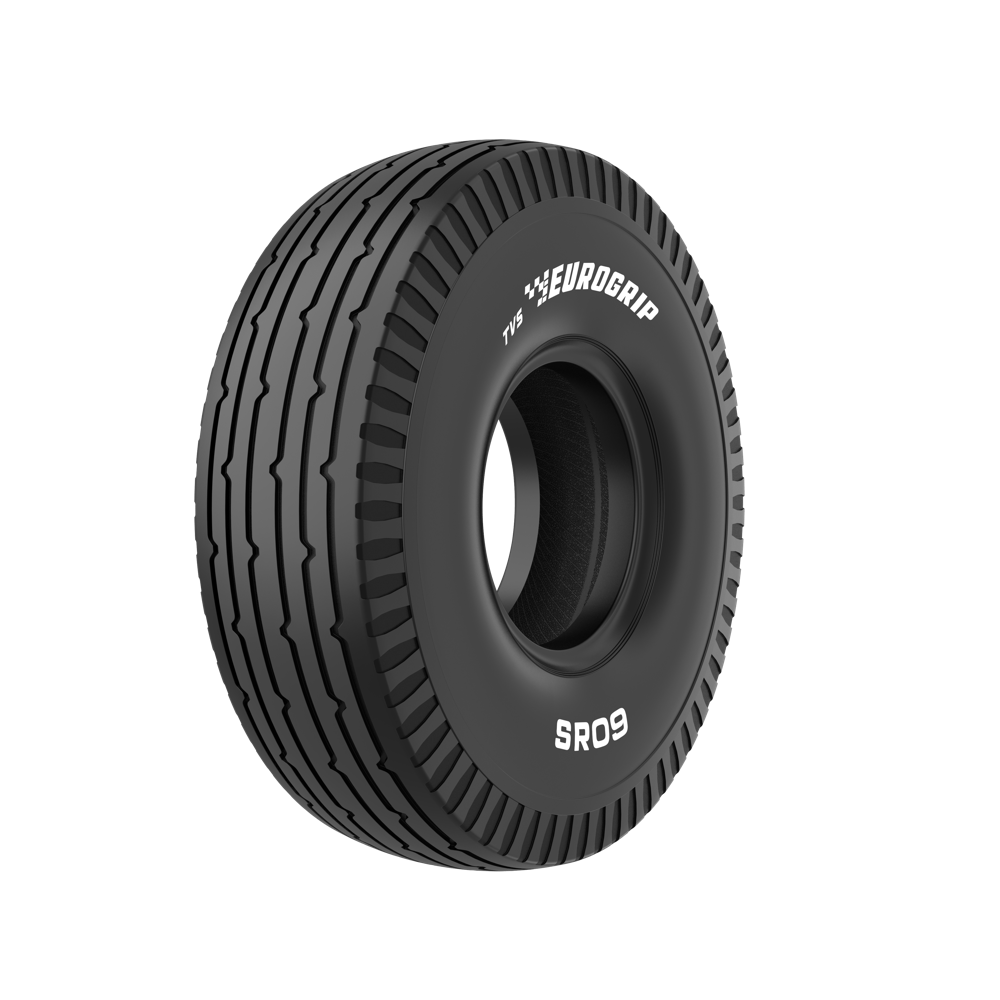

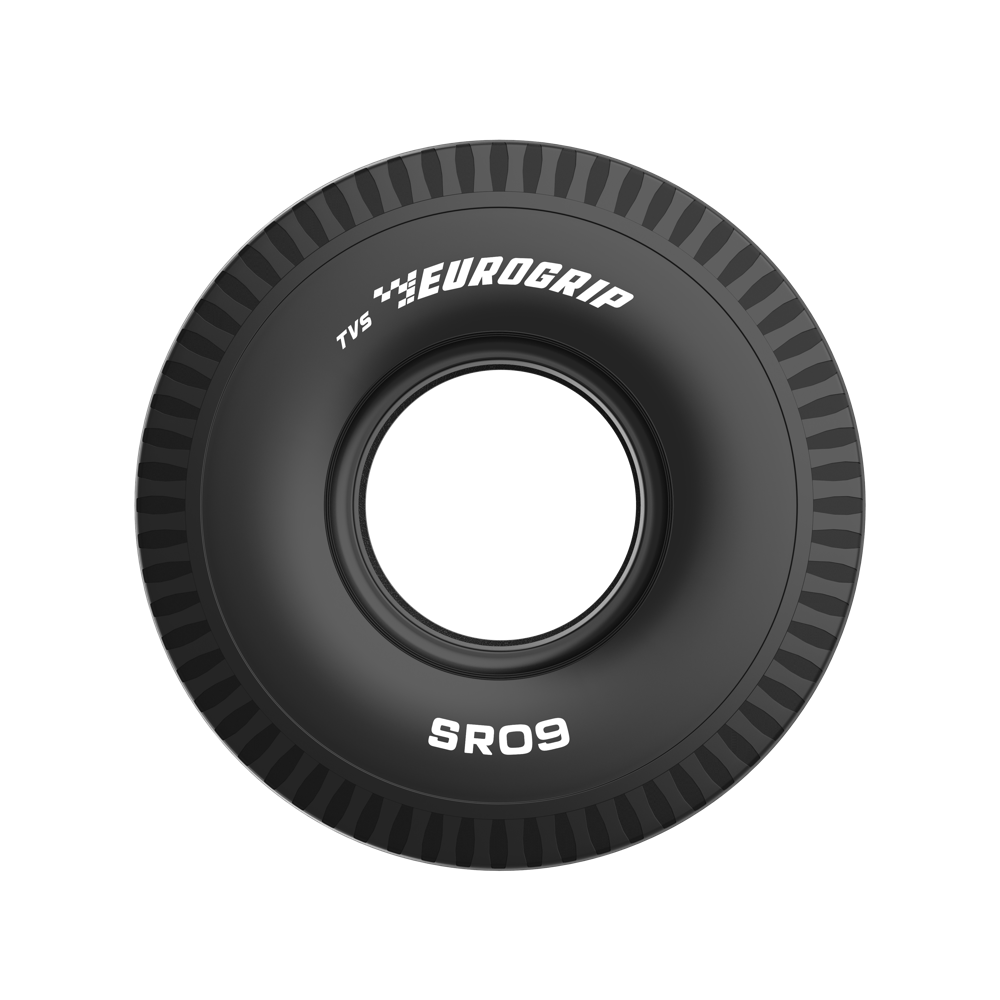

SR 09

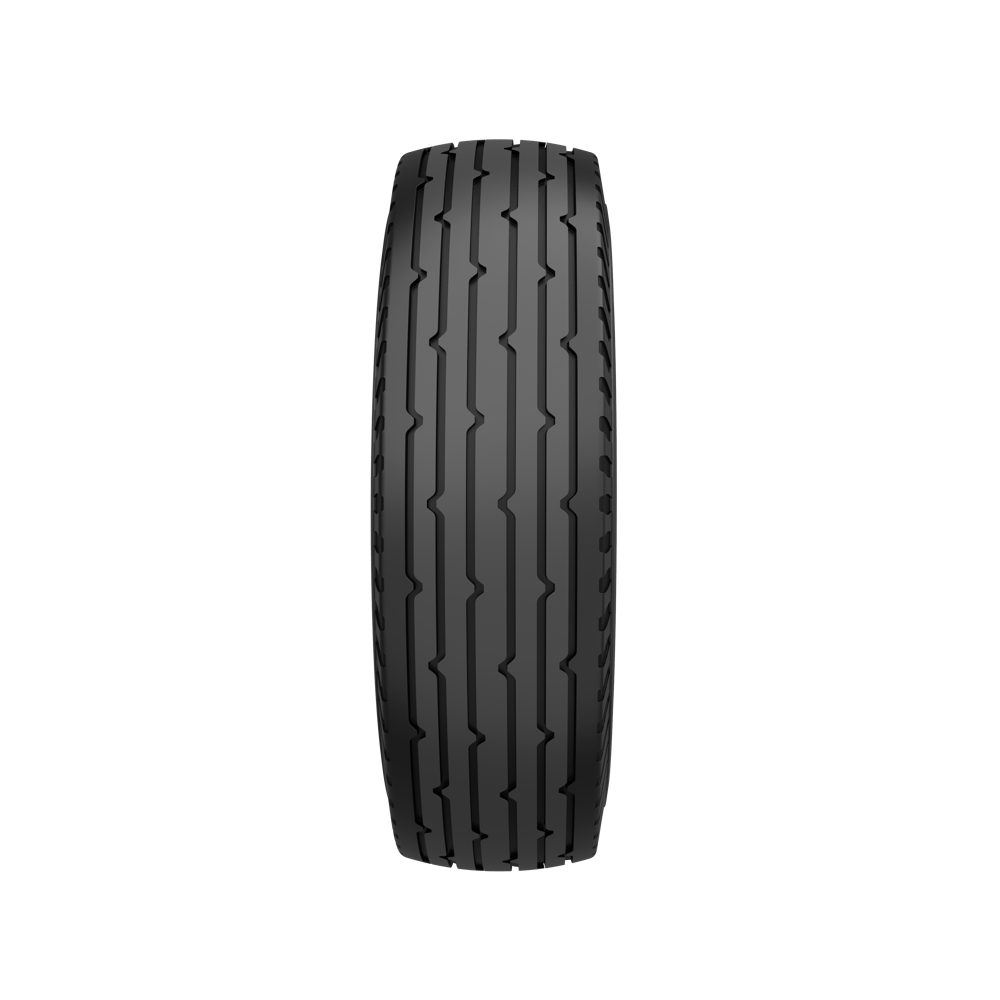

The SR 09 is an E-7 tyre designed for use in asphalt pavers. It’s built with heat and oil resistant compound, ideal for working in high temperature conditions of laying asphalt. The large surface area of the tyre and the wide rib pattern provide good flotation, stability, and precise steering.
E-7
A2/A8
Bias
Suitable for
Paver
Technical Data
| TYRE SIZE | REC. RIM (inch) | ALT. RIM (inch) | UNLOADED DIMENSIONS (mm) | TYPE | PLY RATING | LI & SS | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| SW | OD | SLR | RC | |||||||
| 21.00-25 | 15 | - | 607 | 1681 | 772 | 4972 | TL | 16 | ||
| 21.00-25 | 15 | - | 607 | 1681 | 772 | 4972 | TL | 28 | ||
IMPERIAL
METRIC
Technical Table 01
| TYRE SIZE | RIM SIZE | REC. RIM | ALT. RIM | UNLOADED DIMENSIONS (mm) | PLY RATING | LOAD INDEX SPEED SYMBOL | ||||
| SW | OD | SLR | RC | |||||||
| 15.0/70-18 | 18 | W13 |
W17 W19 |
400 | 980 | 440 | 2886 | 14 | 128 A8 |
 |
| 16 | 132 A9 |
|
||||||||
Technical Data
| Tyre Size | Rec. RIM (inch) |
Alt. RIM (inch) |
Unloaded dimensions (mm) | Type | Ply Rating | Load Index & Speed Symbol | Fabric | Load table | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Section Width | Overall Diameter | Static Load Radius | Rolling Circumference | ||||||||
