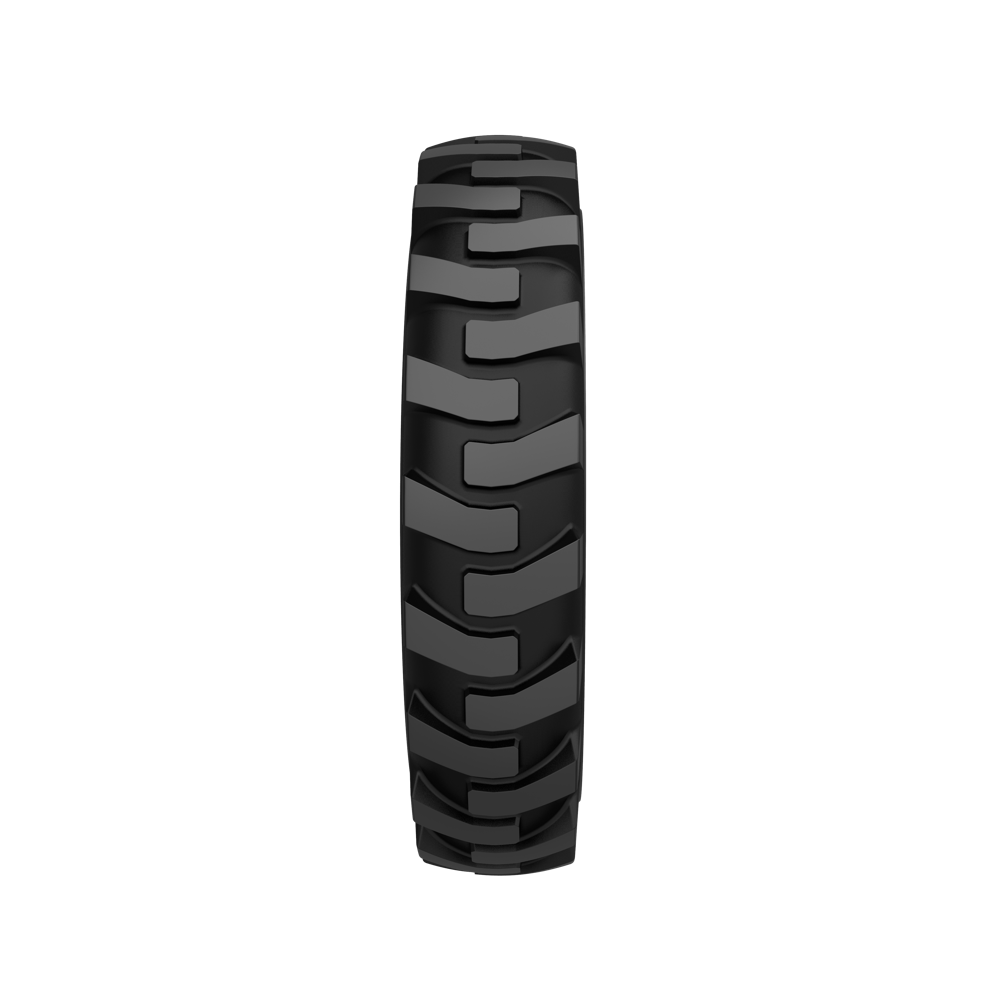

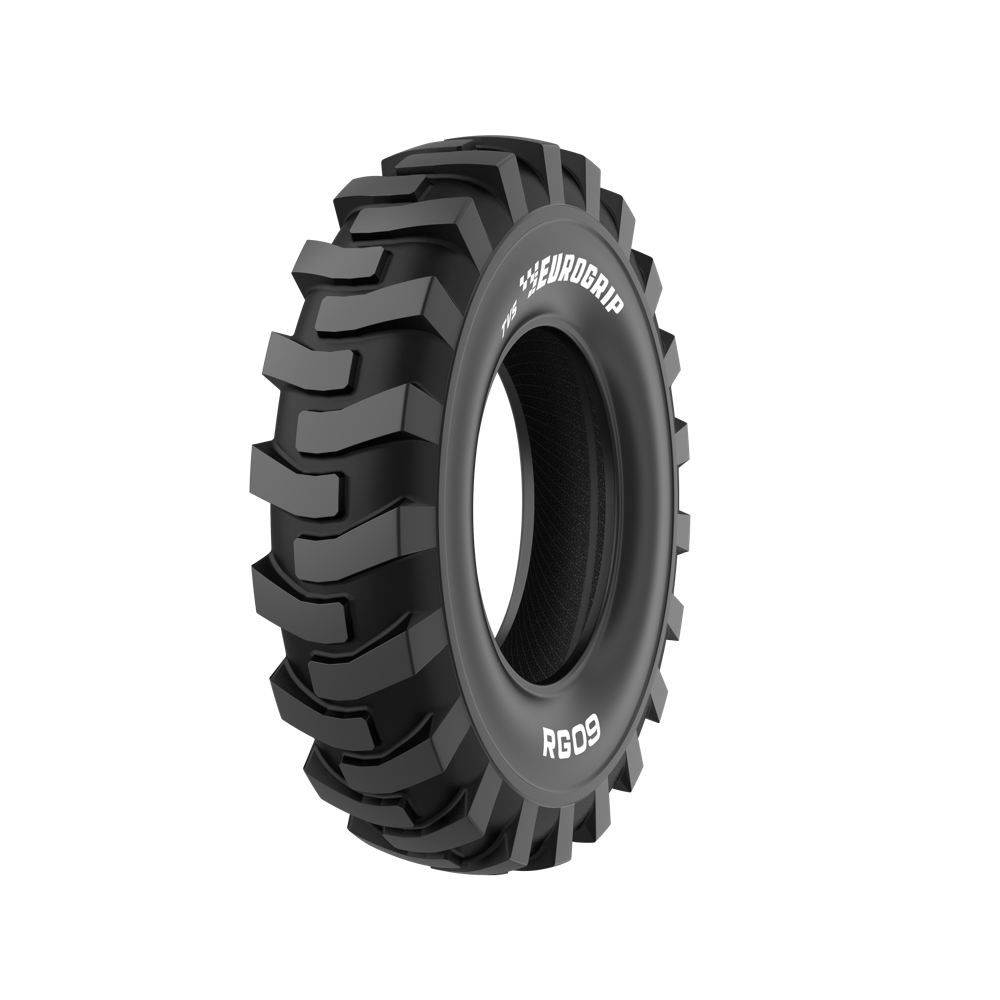

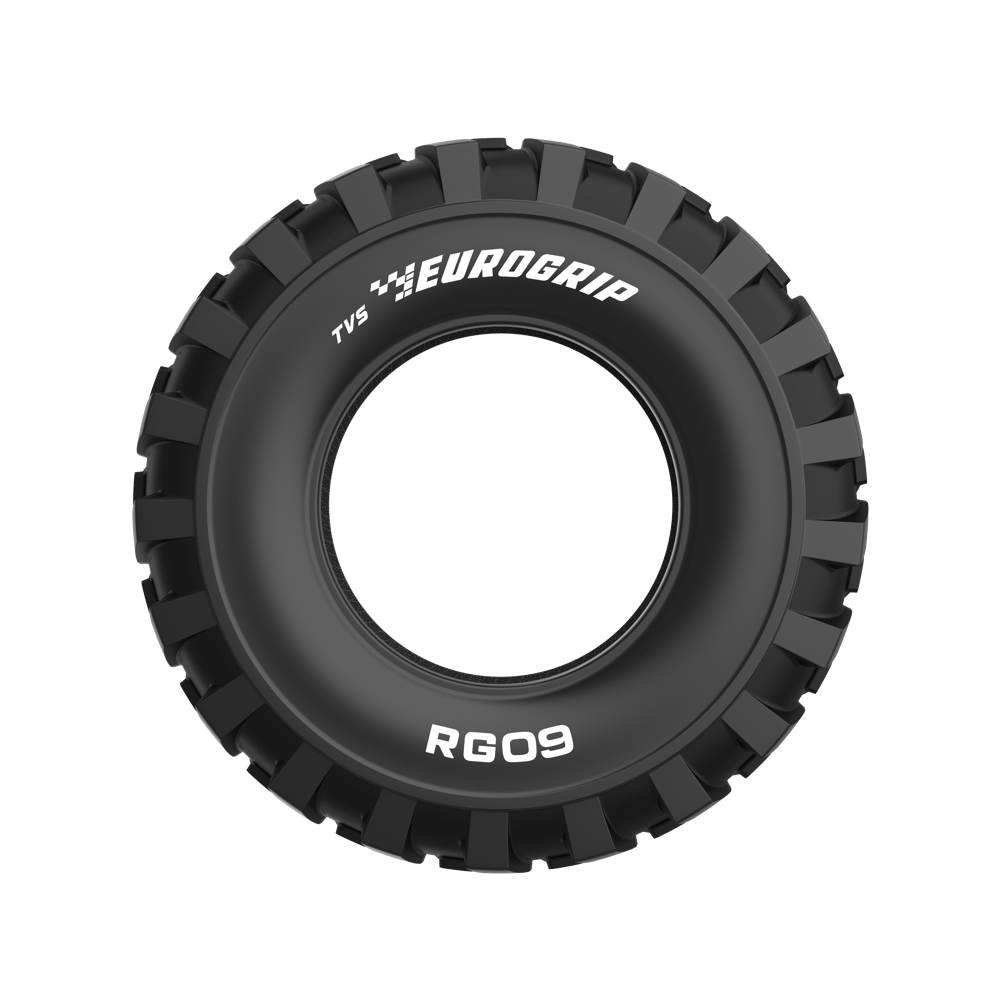

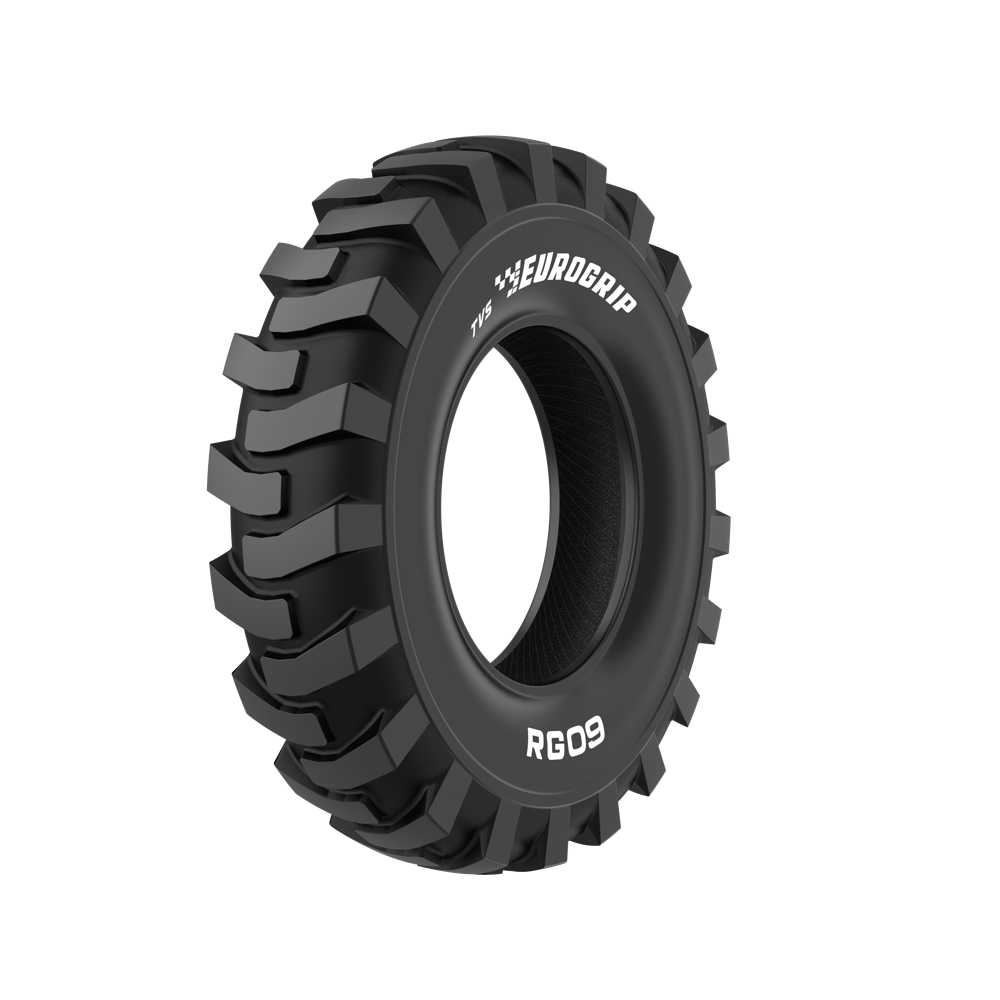

The RG 09 M L-2/G-2 tyre is designed for use in Motor Graders in severe duty applicaitons built with improved compound and construction. Its tough carcass and special tread compound with weather and ozone resistant properties. These tyres are designed to withstand cuts, snags, and bruises under the most severe operating conditions. An open spaced tread pattern with self-cleaning property provides traction capability and is ideally suited for graders.
The tyre provides consistent traction on soft soil and has superior self-cleaning properties.
L-2/G-2
A8
Bias
Suitable for

Motor Grader

Telescopic Handler
Technical Data
RG 09 M
...
TYRE SIZE | REC. RIM (inch) | ALT. RIM (inch) | UNLOADED DIMENSIONS (mm) | TYPE | PLY RATING | LI & SS | ||||
---|---|---|---|---|---|---|---|---|---|---|
SW | OD | SLR | RC | |||||||
13.00-24 | 8.00/1.4 | 8.00TGSDC | 353 | 1285 | 585 | 3795 | TL | 16 | 149A8 | |
14.00-24 | 8.00/1.4 | 8.00TGSDC | 392 | 1345 | 612 | 3972 | TL | 16 | 153A8 |
IMPERIAL
METRIC
Technical Table 01
TYRE SIZE | RIM SIZE | REC. RIM | ALT. RIM | UNLOADED DIMENSIONS (mm) | PLY RATING | LOAD INDEX SPEED SYMBOL | ||||
SW | OD | SLR | RC | |||||||
15.0/70-18 | 18 | W13 |
W17 W19 |
400 | 980 | 440 | 2886 | 14 | 128 A8 |
![]() |
16 | 132 A9 |
![]() |
Technical Data
Intl.
US
Tyre Size | Rec. RIM (inch) |
Alt. RIM (inch) |
Unloaded dimensions (mm) | Type | Ply Rating | Load Index & Speed Symbol | Fabric | Load table | |||
---|---|---|---|---|---|---|---|---|---|---|---|
Section Width | Overall Diameter | Static Load Radius | Rolling Circumference |
