MPT
MT 90

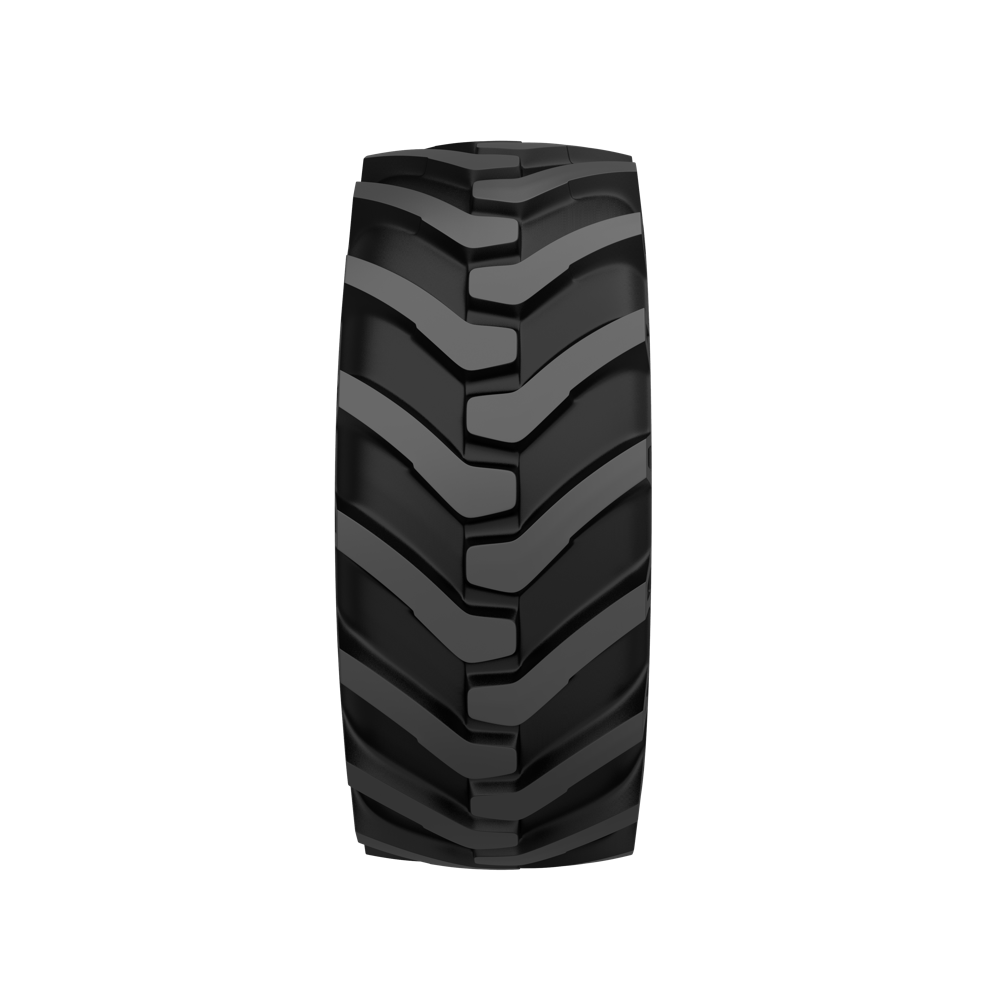

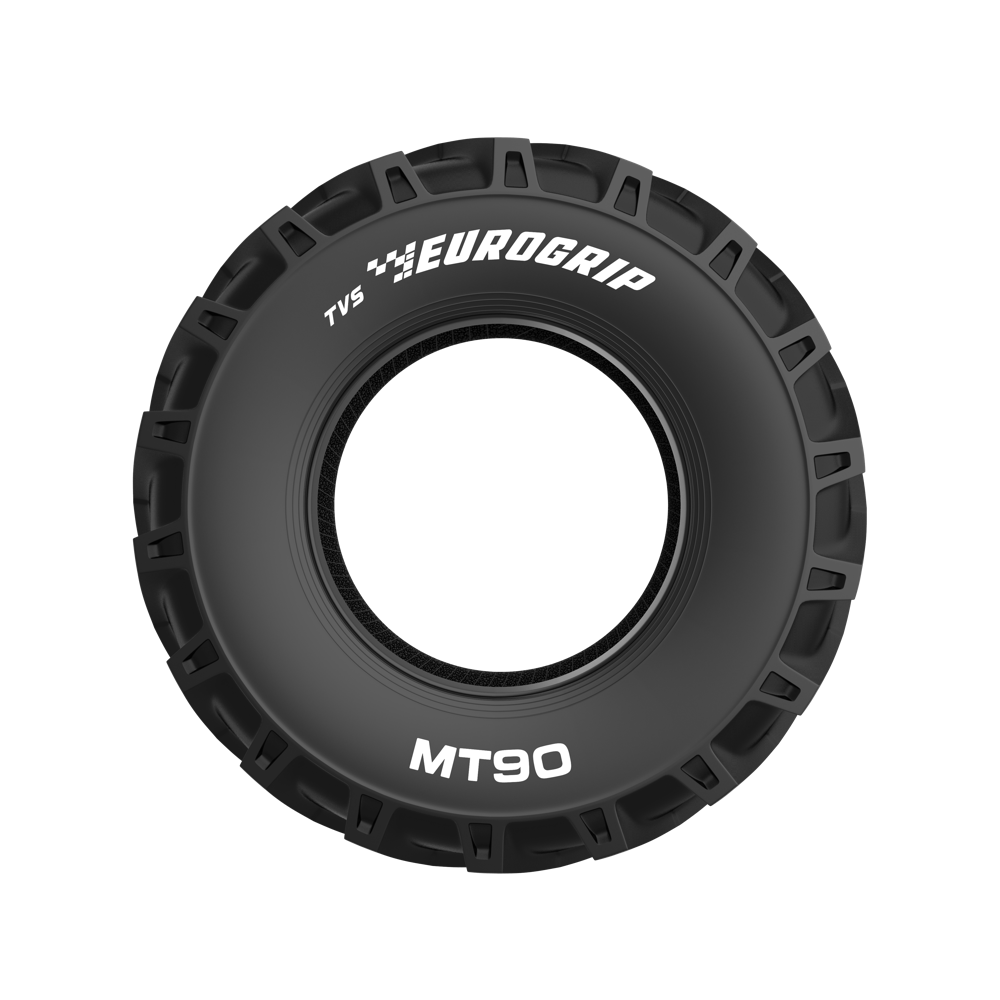

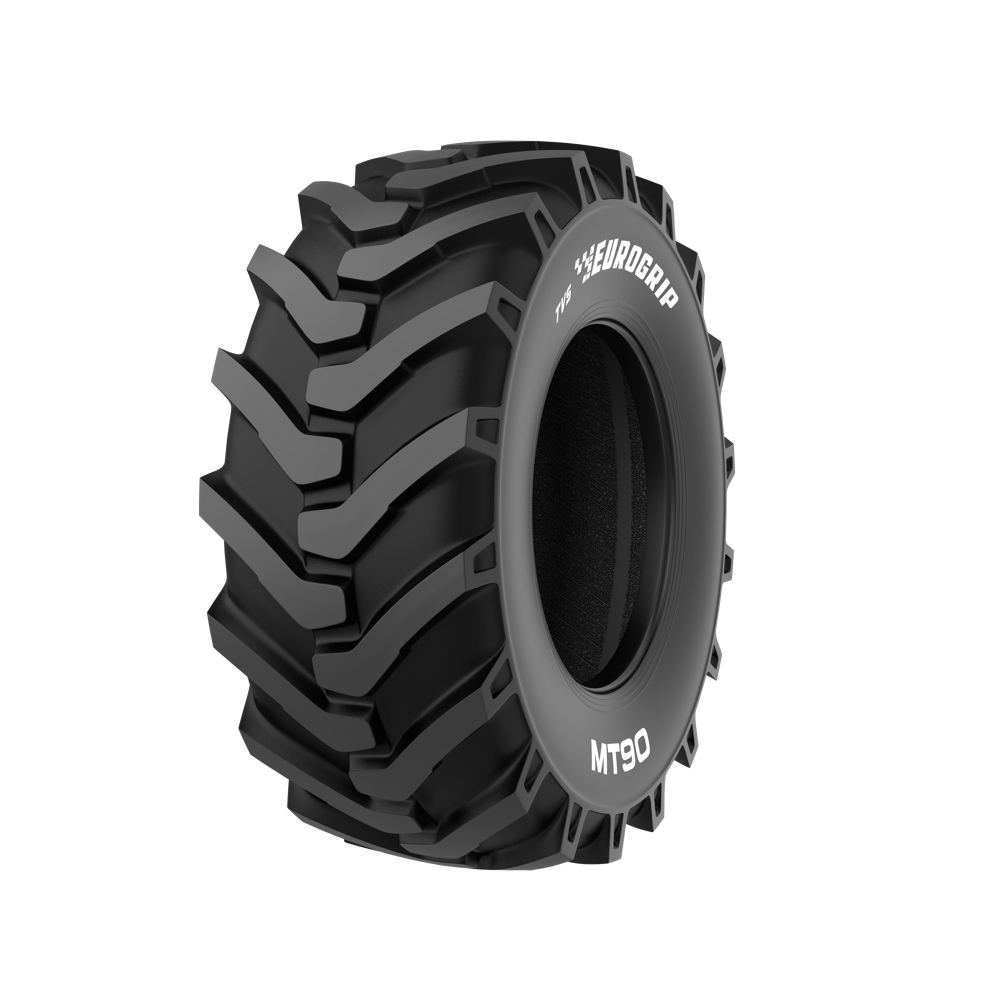

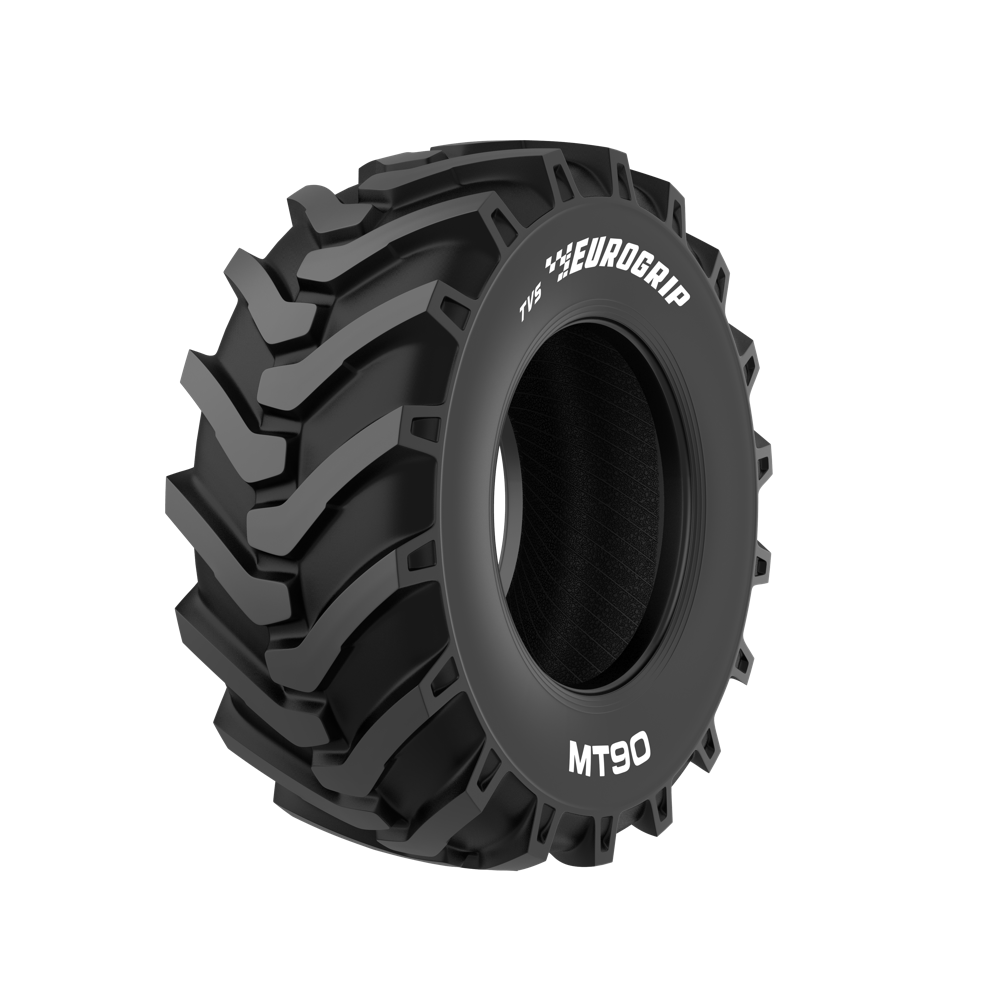

The MT 90 MPT tyre is designed for use on various machines such as telehandlers, excavators, rough terrain forklifts etc. Its lugs are designed to provide excellent traction in varied terrain. Rated for F speed, the tyre can be used in machines capable of doing 80 kmph.
MPT
F
Bias
Suitable for
Multi Purpose Truck
Rough Terrain Forklift
Telescopic Handler
Compact Wheel Loader
Technical Data
| TYRE SIZE | REC. RIM (inch) | ALT. RIM (inch) | UNLOADED DIMENSIONS (mm) | TYPE | PLY RATING | LI & SS | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| SW | OD | SLR | RC | |||||||
| 18-22.5 | 14 | - | 477 | 1180 | 528 | 3519 | TL | 16 | 163F | |
| 18-22.5 | 14 | - | 477 | 1180 | 528 | 3519 | TL | 18 | 166F | |
| 18-22.5 | 14 | - | 477 | 1180 | 528 | 3519 | TL | 20 | 168F | |
IMPERIAL
METRIC
Technical Table 01
| TYRE SIZE | RIM SIZE | REC. RIM | ALT. RIM | UNLOADED DIMENSIONS (mm) | PLY RATING | LOAD INDEX SPEED SYMBOL | ||||
| SW | OD | SLR | RC | |||||||
| 15.0/70-18 | 18 | W13 |
W17 W19 |
400 | 980 | 440 | 2886 | 14 | 128 A8 |
 |
| 16 | 132 A9 |
|
||||||||
Technical Data
| Tyre Size | Rec. RIM (inch) |
Alt. RIM (inch) |
Unloaded dimensions (mm) | Type | Ply Rating | Load Index & Speed Symbol | Fabric | Load table | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Section Width | Overall Diameter | Static Load Radius | Rolling Circumference | ||||||||
