MPT

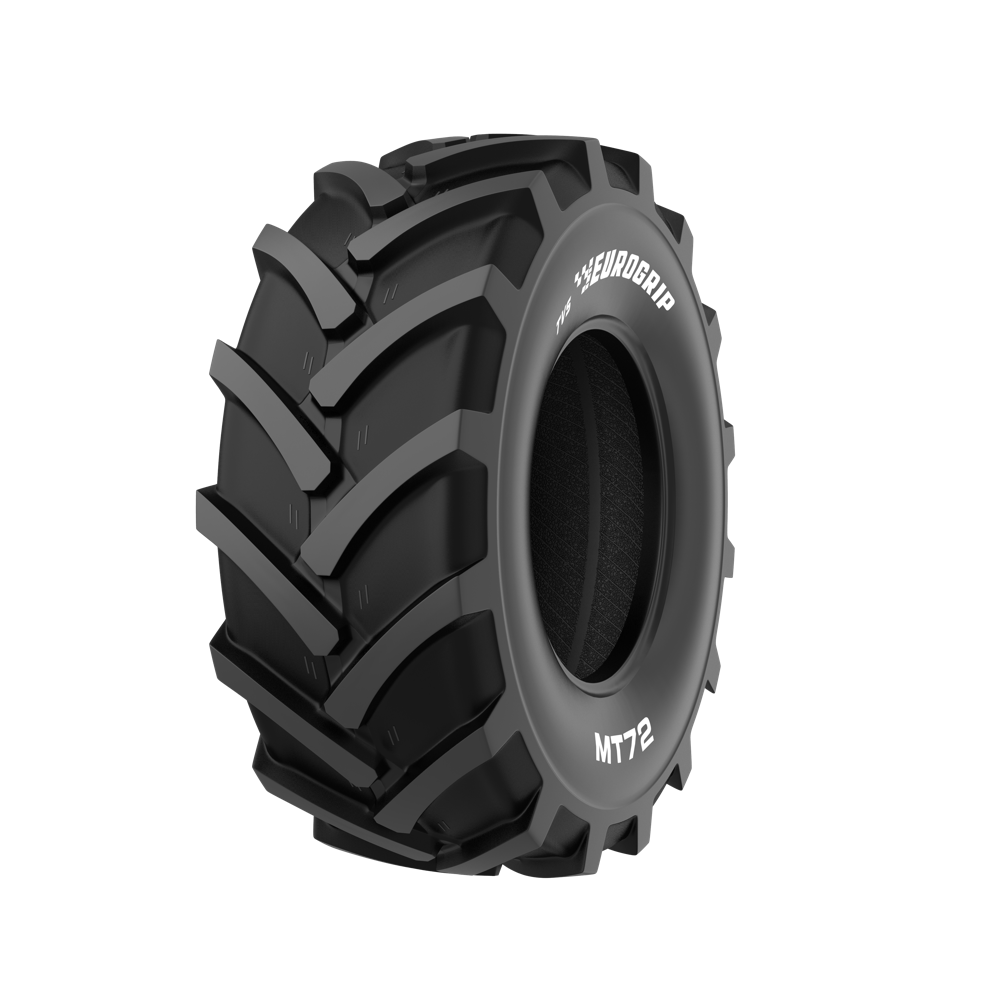

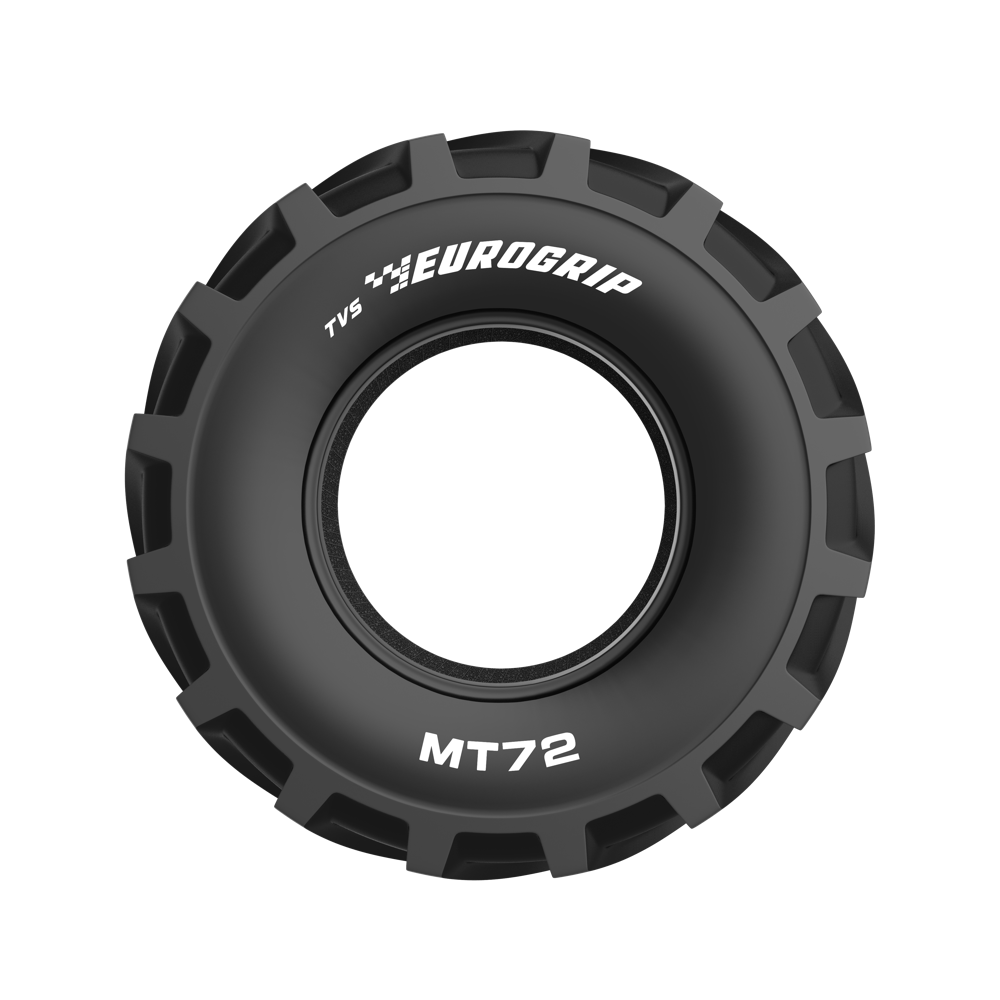

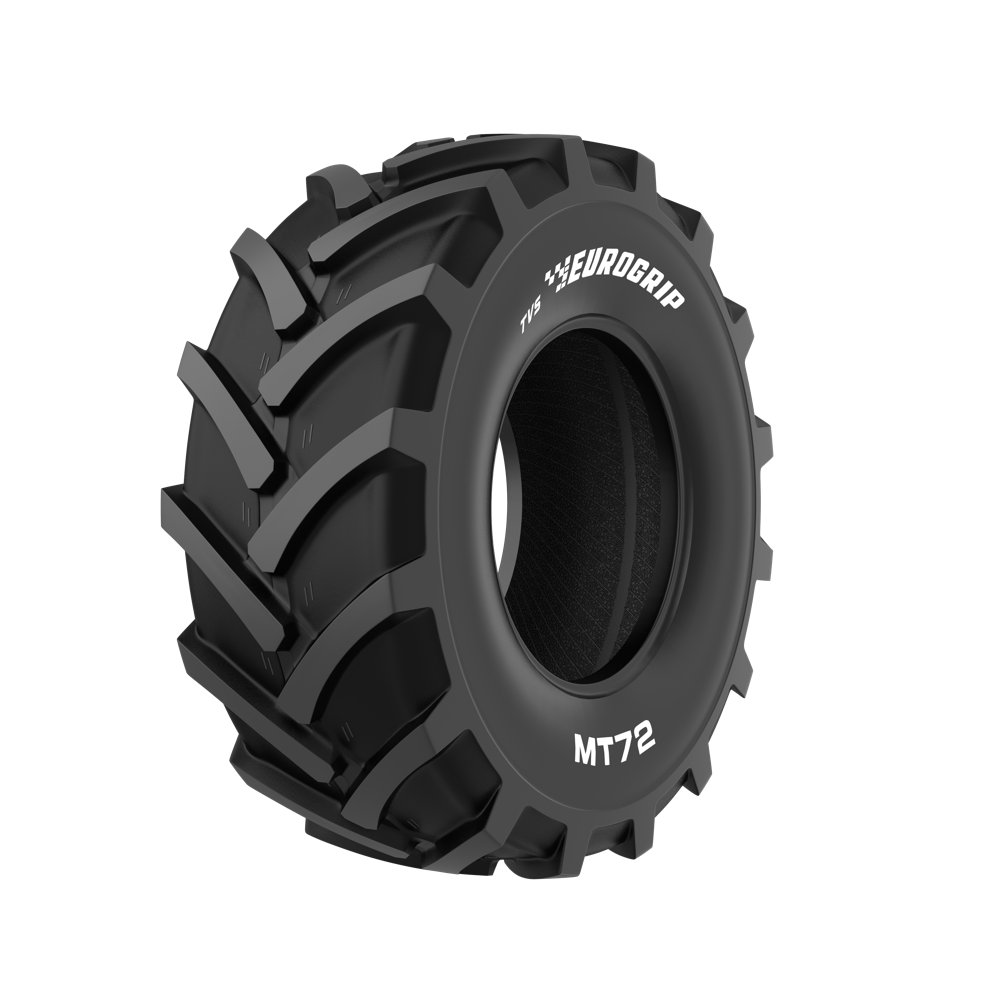

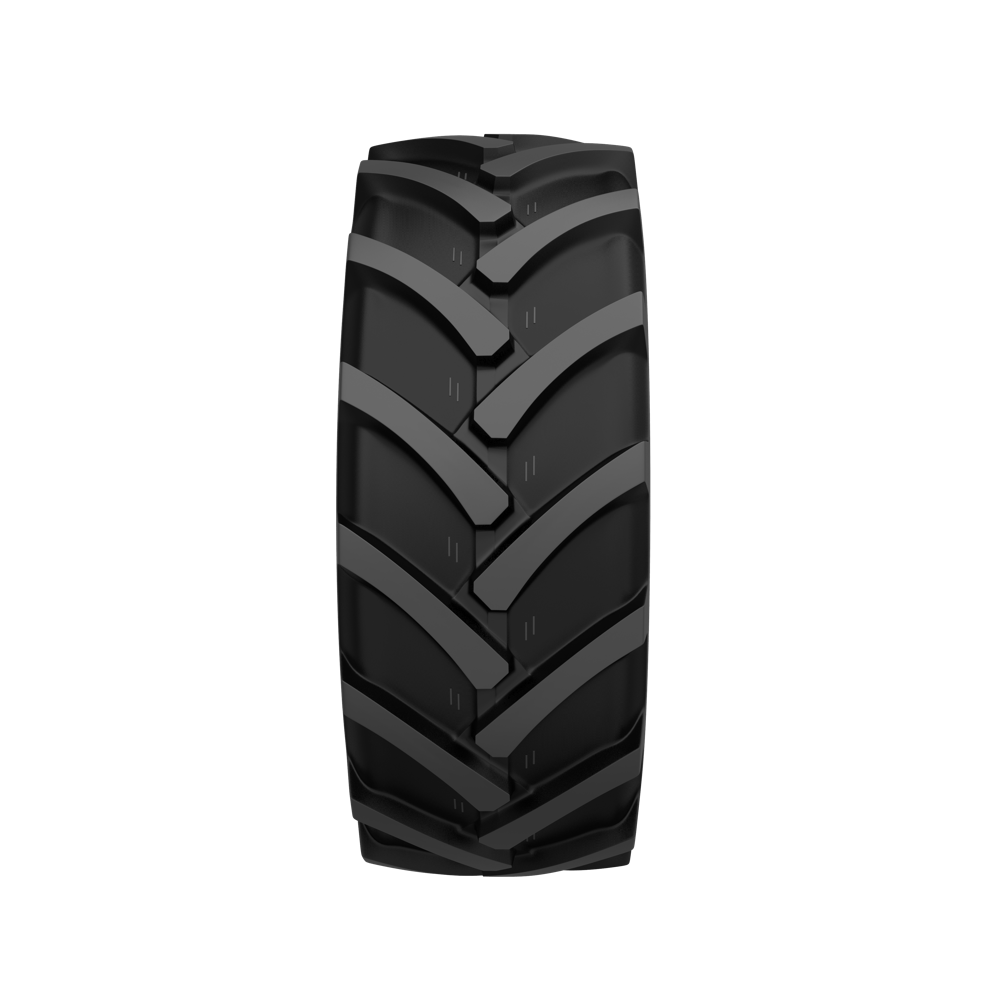

MT 72
MT 72 MPT tyre is designed for use in Multipurpose all terrain trucks and speciality machines used in agriculture. Its ideally spaced lugs provide superior traction and self-cleaning in wet surface conditions.
MPT
G
Bias
Suitable for
Compact Wheel Loader
Telescopic Handler
Technical Data
| TYRE SIZE | REC. RIM (inch) | ALT. RIM (inch) | UNLOADED DIMENSIONS (mm) | TYPE | PLY RATING | LI & SS | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| SW | OD | SLR | RC | |||||||
| 405/70-20 | 13 | - | 407 | 1080 | 475 | 3280 | TL | 14 | 145G | |
| 405/70-24 | 13 | - | 420 | 1200 | 552 | 3575 | TL | 14 | 148G | |
IMPERIAL
METRIC
Technical Table 01
| TYRE SIZE | RIM SIZE | REC. RIM | ALT. RIM | UNLOADED DIMENSIONS (mm) | PLY RATING | LOAD INDEX SPEED SYMBOL | ||||
| SW | OD | SLR | RC | |||||||
| 15.0/70-18 | 18 | W13 |
W17 W19 |
400 | 980 | 440 | 2886 | 14 | 128 A8 |
 |
| 16 | 132 A9 |
|
||||||||
Technical Data
| Tyre Size | Rec. RIM (inch) |
Alt. RIM (inch) |
Unloaded dimensions (mm) | Type | Ply Rating | Load Index & Speed Symbol | Fabric | Load table | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Section Width | Overall Diameter | Static Load Radius | Rolling Circumference | ||||||||
