MPT

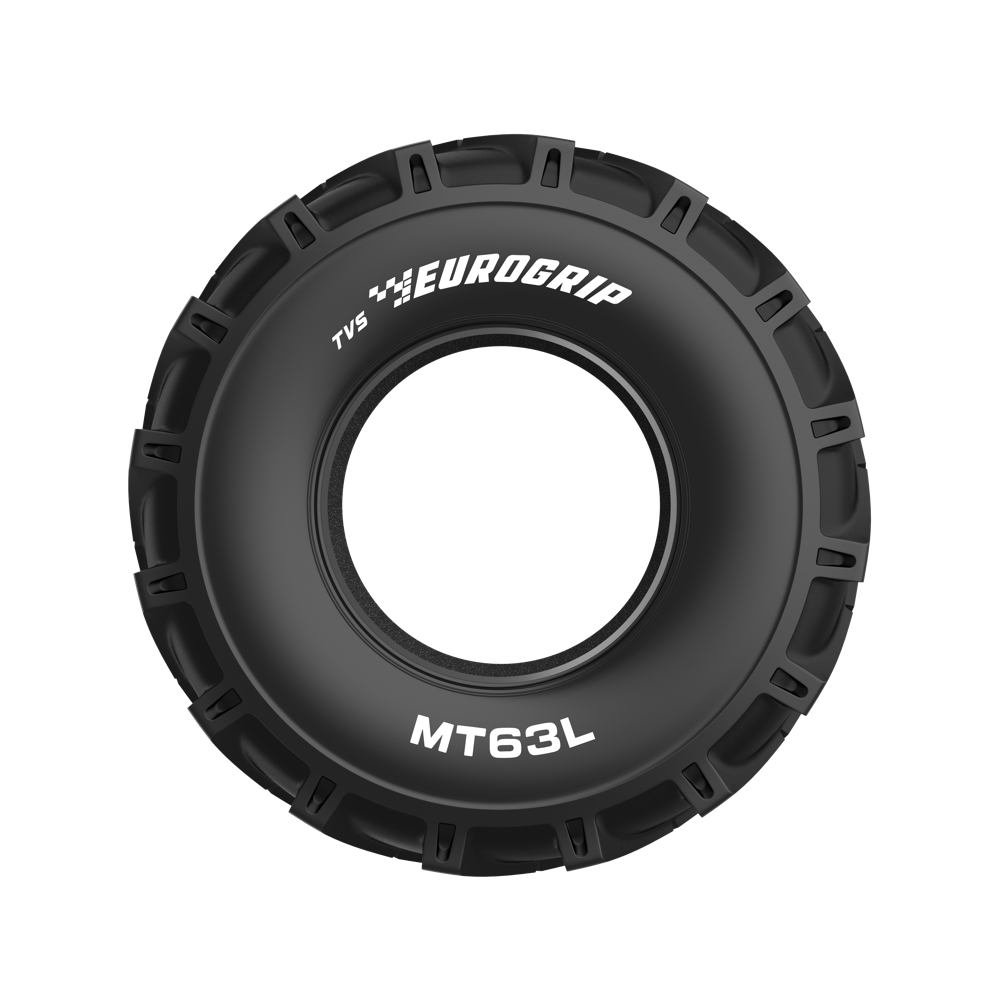

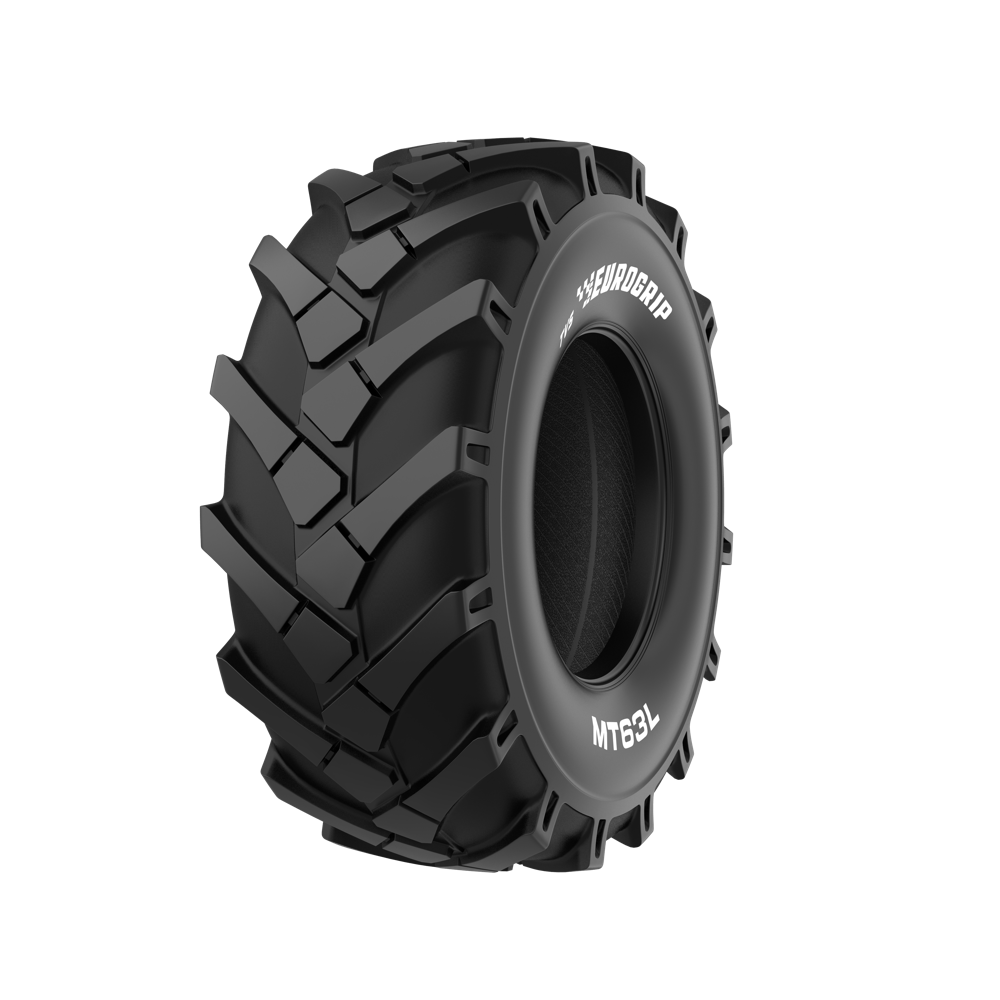

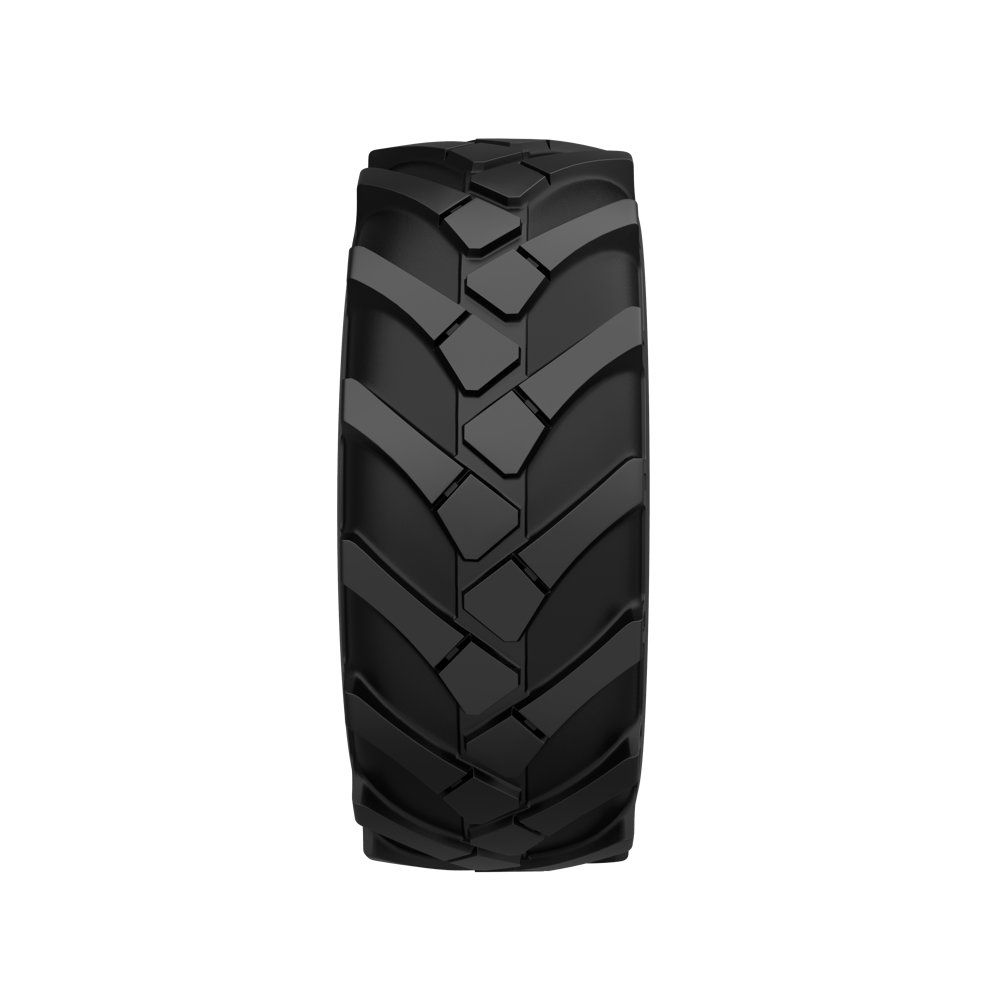

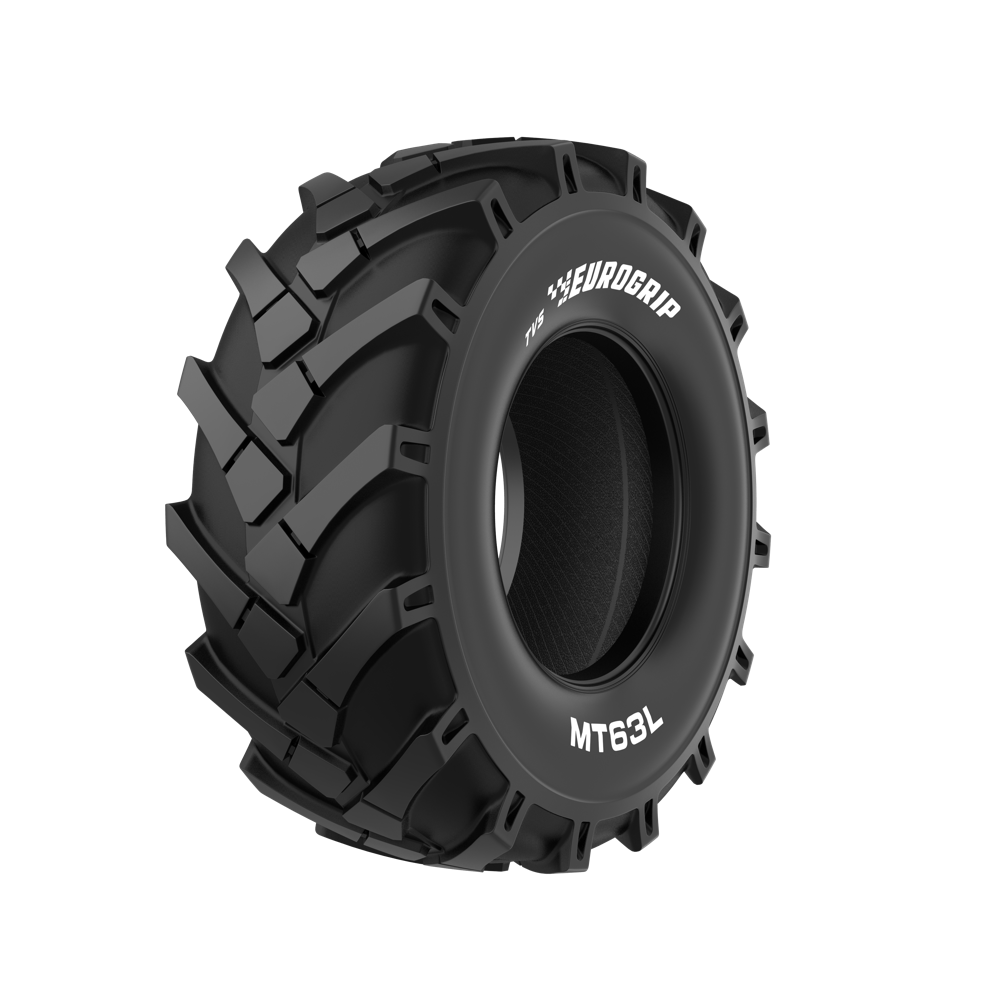

MT 63L
The MT 63L MPT tyres are an agro-industrial tread design used for machines and implements used for mixed applications. The lug and block tread design makes it suitable for use on hard improved surfaces and un-even and soft underfoot conditions. Engineered to be capable of speeds up to 80 kph, this tyre is also suited for All Terrain Multi-Purpose Trucks and speciality used in agriculture and construction applications.
MPT
G
Bias
Suitable for
Compact Wheel Loader
Telescopic Handler
Site Dumper
Self Loading Concrete Mixer
Multi Purpose Truck
Technical Data
| TYRE SIZE | REC. RIM (inch) | ALT. RIM (inch) | UNLOADED DIMENSIONS (mm) | TYPE | PLY RATING | LI & SS | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| SW | OD | SLR | RC | |||||||
| 18-19.5 | 14 | - | 465 | 1100 | 475 | 3275 | TL | 16 | 160F | |
| 18-19.5 | 14 | - | 465 | 1100 | 475 | 3275 | TL | 18 | 163F | |
IMPERIAL
METRIC
Technical Table 01
| TYRE SIZE | RIM SIZE | REC. RIM | ALT. RIM | UNLOADED DIMENSIONS (mm) | PLY RATING | LOAD INDEX SPEED SYMBOL | ||||
| SW | OD | SLR | RC | |||||||
| 15.0/70-18 | 18 | W13 |
W17 W19 |
400 | 980 | 440 | 2886 | 14 | 128 A8 |
 |
| 16 | 132 A9 |
|
||||||||
Technical Data
| Tyre Size | Rec. RIM (inch) |
Alt. RIM (inch) |
Unloaded dimensions (mm) | Type | Ply Rating | Load Index & Speed Symbol | Fabric | Load table | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Section Width | Overall Diameter | Static Load Radius | Rolling Circumference | ||||||||
