Wheeled Excavator
MT 54

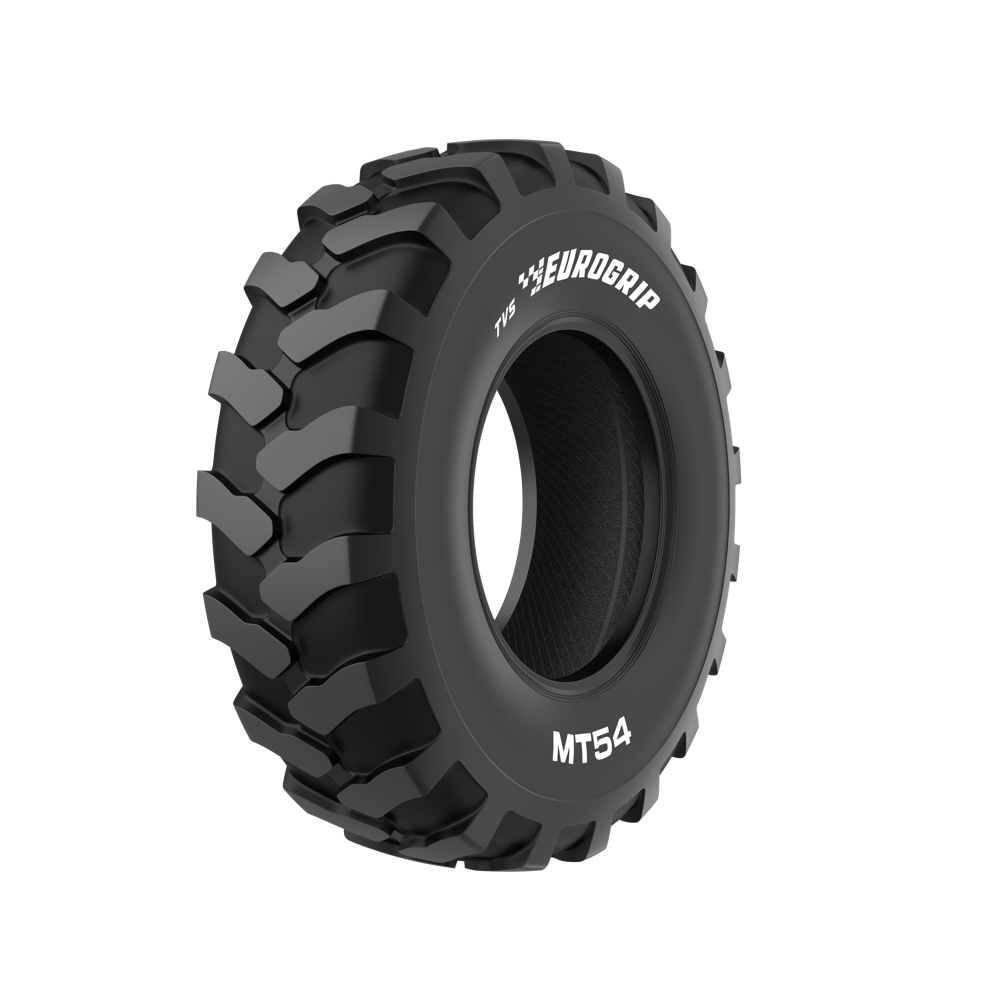

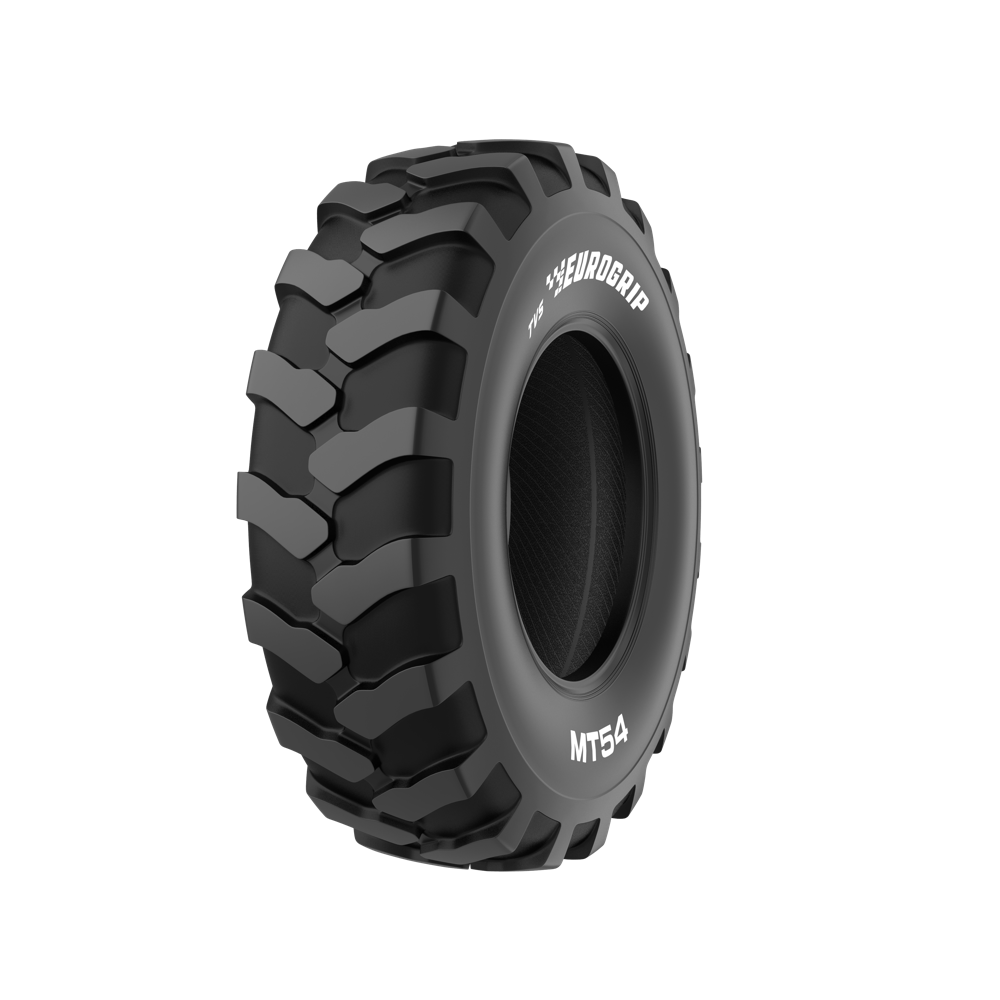

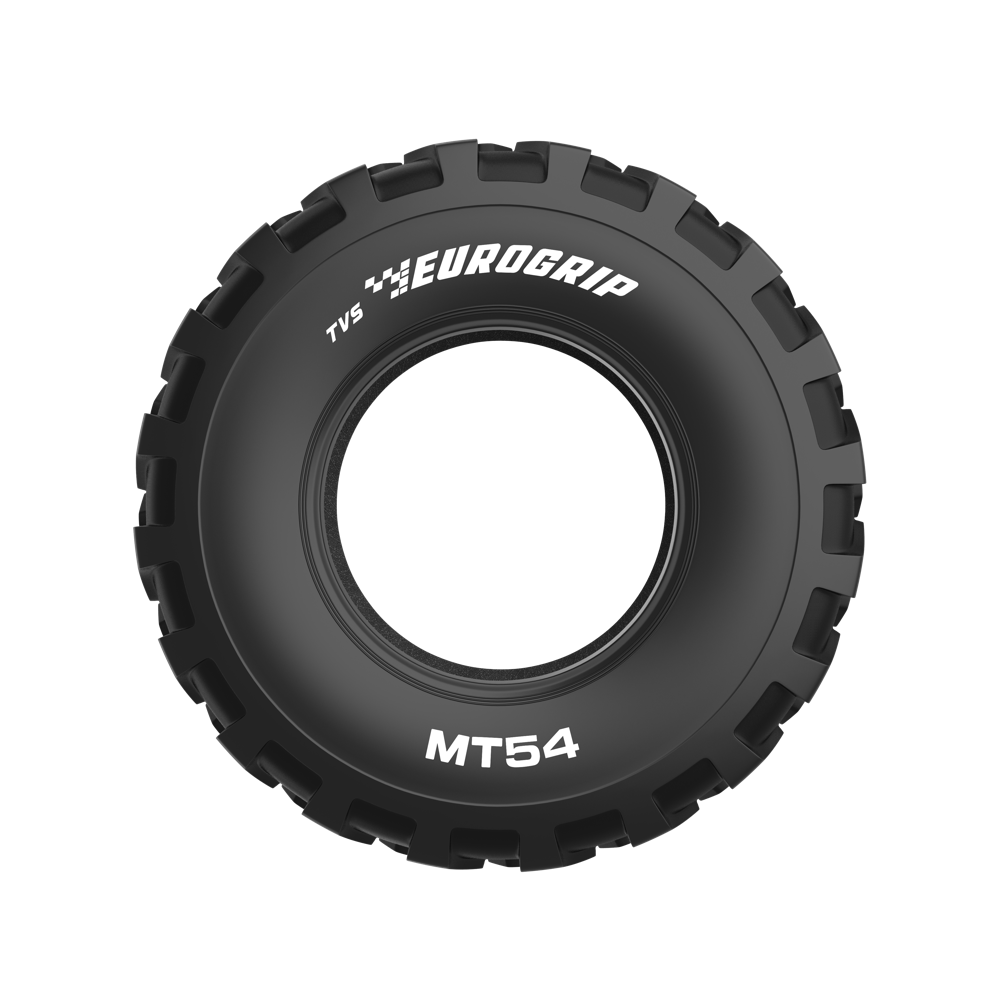

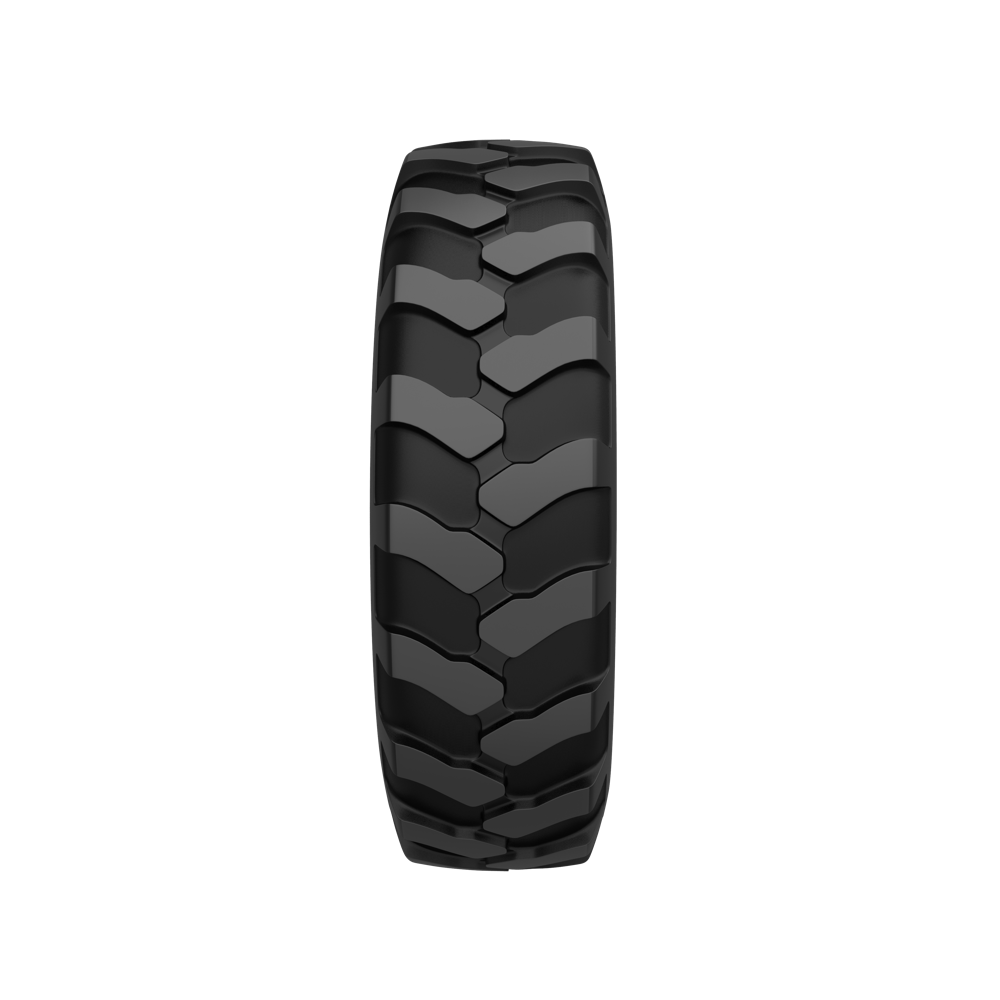

The MT 54 is MPT tyre designed for machines used in severe duty applications. The wide and well space lugs provide excellent traction off-road and smooth operations on the road. It is available in sizes to suit, excavators, compact wheel loaders, mini dumpers, telehandlers etc.
ML
F/G
Bias
Suitable for
Excavator
Compact Wheel Loader
Telescopic Handler
Site Dumper
Self Loading Concrete Mixer
Technical Data
| TYRE SIZE | REC. RIM (inch) | ALT. RIM (inch) | UNLOADED DIMENSIONS (mm) | TYPE | PLY RATING | LI & SS | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| SW | OD | SLR | RC | |||||||
| 12.5-18 | 11 | - | 330 | 995 | 452 | 2955 | TL | 10 | 128G | |
| 12.5-18 | 11 | - | 330 | 995 | 452 | 2955 | TL | 12 | 131G | |
| 12.5-18 | 11 | - | 330 | 995 | 452 | 2955 | TL | 14 | 134G | |
| 8.25-20 | 6.5 | - | 230 | 960 | 462 | 2940 | TT | 14 | 133F | |
| 9.00-20 | 7 | - | 251 | 1012 | 481 | 3070 | TT | 14 | 140F | |
| 10.00-20 | 7.5 | - | 280 | 1050 | 498 | 3180 | TT | 16 | 146F | |
| 10.00-20 | 7.5 | - | 280 | 1050 | 498 | 3180 | TT | 18 | 149F | |
| 10.5-20 | 9 | - | 275 | 970 | 456 | 2896 | TL | 10 | 128G | |
| 11.00-20 | 8 | - | 305 | 1100 | 513 | 3332 | TT | 16 | 149F | |
| 12.5-20 | 11 | - | 330 | 1055 | 482 | 3145 | TL | 12 | 132G | |
| 14.5-20 | 11 | - | 355 | 1110 | 495 | 3262 | TL | 12 | 136G | |
| 14.5-20 | 11 | - | 355 | 1110 | 495 | 3262 | TL | 14 | 139G | |
| 405/70-20 | 13 | - | 405 | 1090 | 480 | 3295 | TL | 14 | 145G | |
| 405/70-20 | 13 | - | 405 | 1090 | 480 | 3295 | TL | 16 | 148G | |
| 405/70-24 | 13 | - | 415 | 1200 | 575 | 3600 | TL | 14 | 148G | |
IMPERIAL
METRIC
Technical Table 01
| TYRE SIZE | RIM SIZE | REC. RIM | ALT. RIM | UNLOADED DIMENSIONS (mm) | PLY RATING | LOAD INDEX SPEED SYMBOL | ||||
| SW | OD | SLR | RC | |||||||
| 15.0/70-18 | 18 | W13 |
W17 W19 |
400 | 980 | 440 | 2886 | 14 | 128 A8 |
 |
| 16 | 132 A9 |
|
||||||||
Technical Data
| Tyre Size | Rec. RIM (inch) |
Alt. RIM (inch) |
Unloaded dimensions (mm) | Type | Ply Rating | Load Index & Speed Symbol | Fabric | Load table | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Section Width | Overall Diameter | Static Load Radius | Rolling Circumference | ||||||||
