Compact Wheel Loader
MT 45 HD

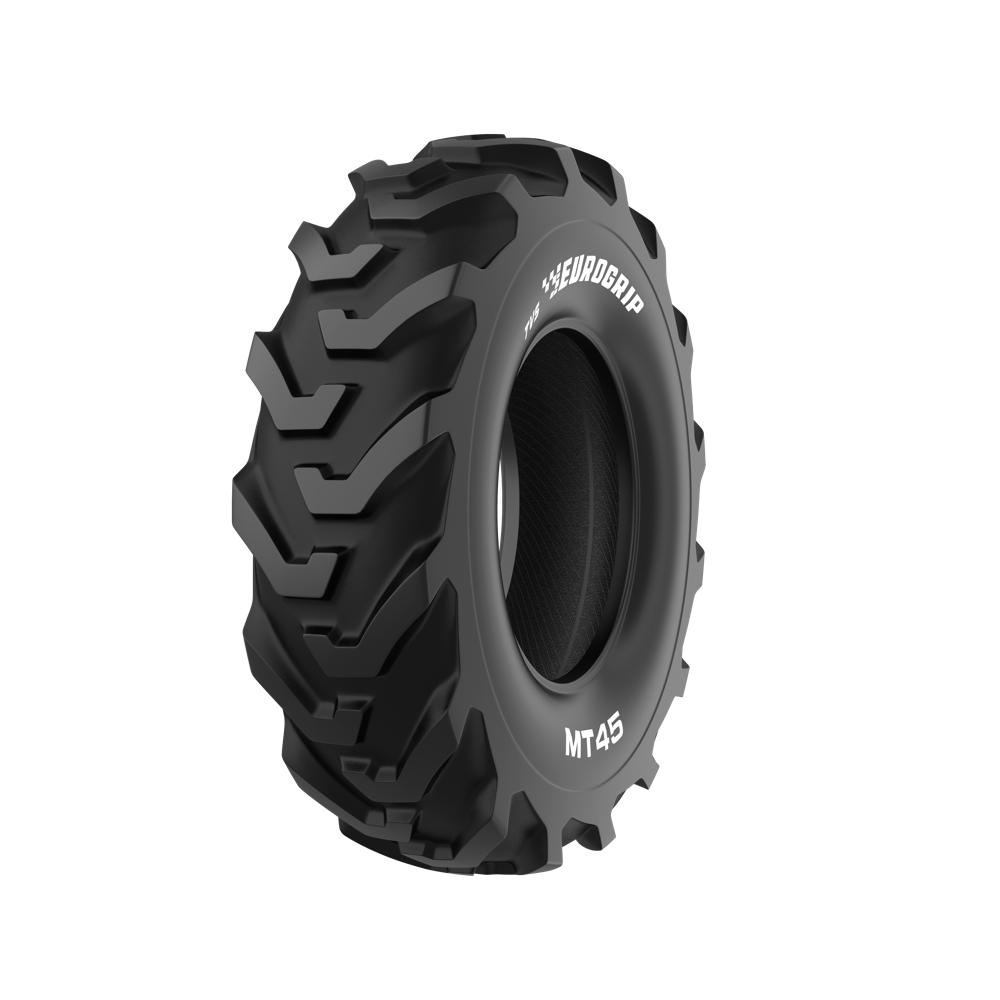

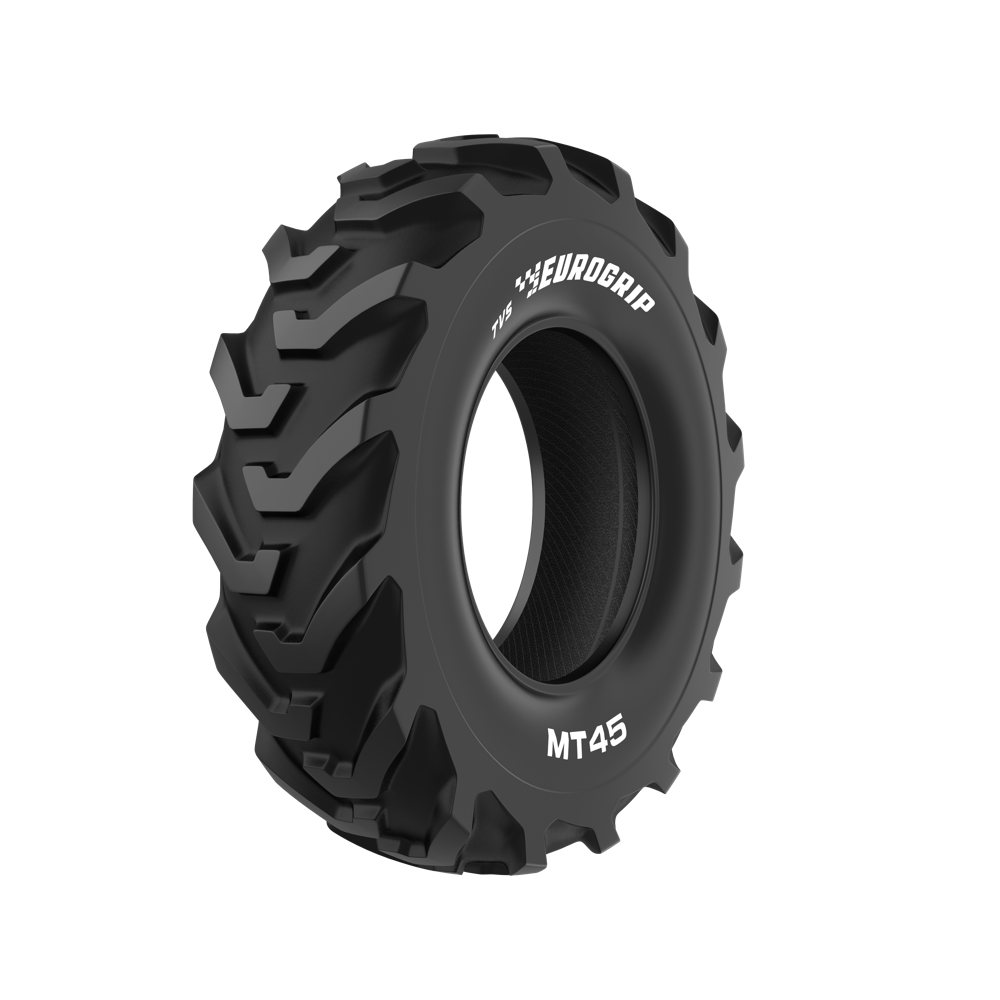

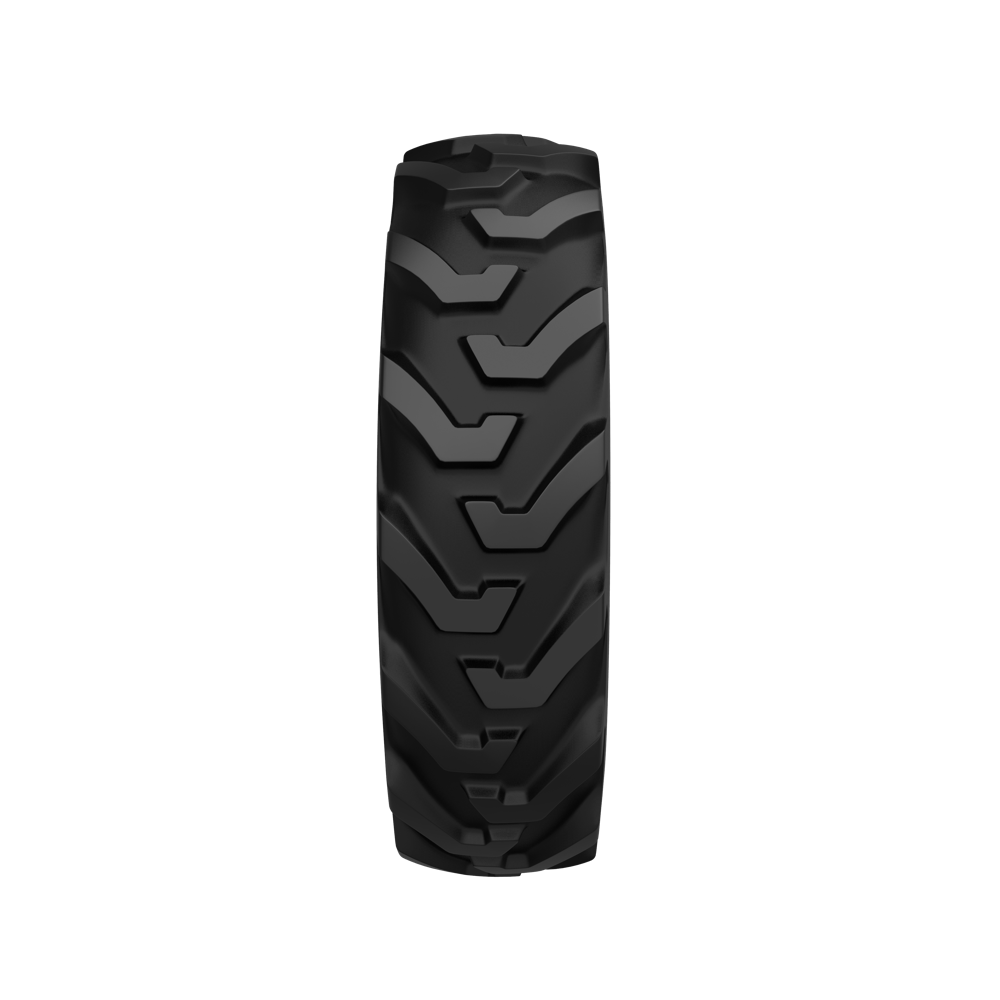

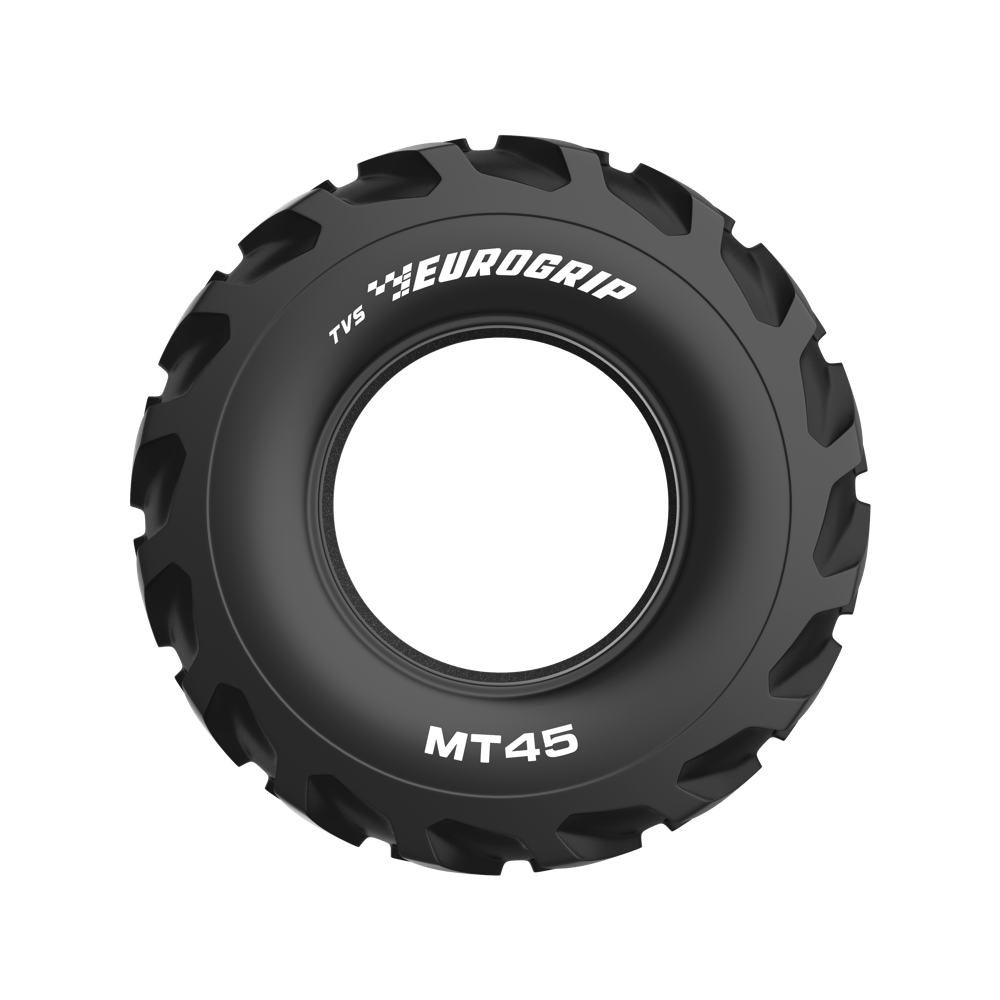

MT 45 HD R-4 tyre is a tyre designed for heavy duty use as drive wheel application in machines used for construction and agro-industrial applications. Its unique tread design enables excellent traction. Also, the overlapping lugs provide good continuity thus providing good directional stability and good steering on varied terrains. This tyre can be used in backhoe loaders, industrial tractors, compact wheel loaders, mini dumpers and such machines.
R-4
A8
Bias
Suitable for
Compact Wheel Loader
Telescopic Handler
Backhoe Loader
Technical Data
| TYRE SIZE | REC. RIM (inch) | ALT. RIM (inch) | UNLOADED DIMENSIONS (mm) | TYPE | PLY RATING | LI & SS | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| SW | OD | SLR | RC | |||||||
| 12.5/80-18 | W9 | - | 315 | 985 | 439 | 2901 | TL | 14 | 145A8 | 132A8 | |
| 12.5/80-18 | W9 | - | 315 | 985 | 439 | 2901 | TL | 16 | 148A8 | 135A8 | |
IMPERIAL
METRIC
Technical Table 01
| TYRE SIZE | RIM SIZE | REC. RIM | ALT. RIM | UNLOADED DIMENSIONS (mm) | PLY RATING | LOAD INDEX SPEED SYMBOL | ||||
| SW | OD | SLR | RC | |||||||
| 15.0/70-18 | 18 | W13 |
W17 W19 |
400 | 980 | 440 | 2886 | 14 | 128 A8 |
 |
| 16 | 132 A9 |
|
||||||||
Technical Data
| Tyre Size | Rec. RIM (inch) |
Alt. RIM (inch) |
Unloaded dimensions (mm) | Type | Ply Rating | Load Index & Speed Symbol | Fabric | Load table | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Section Width | Overall Diameter | Static Load Radius | Rolling Circumference | ||||||||
