Implement-Z Rib
LT 01

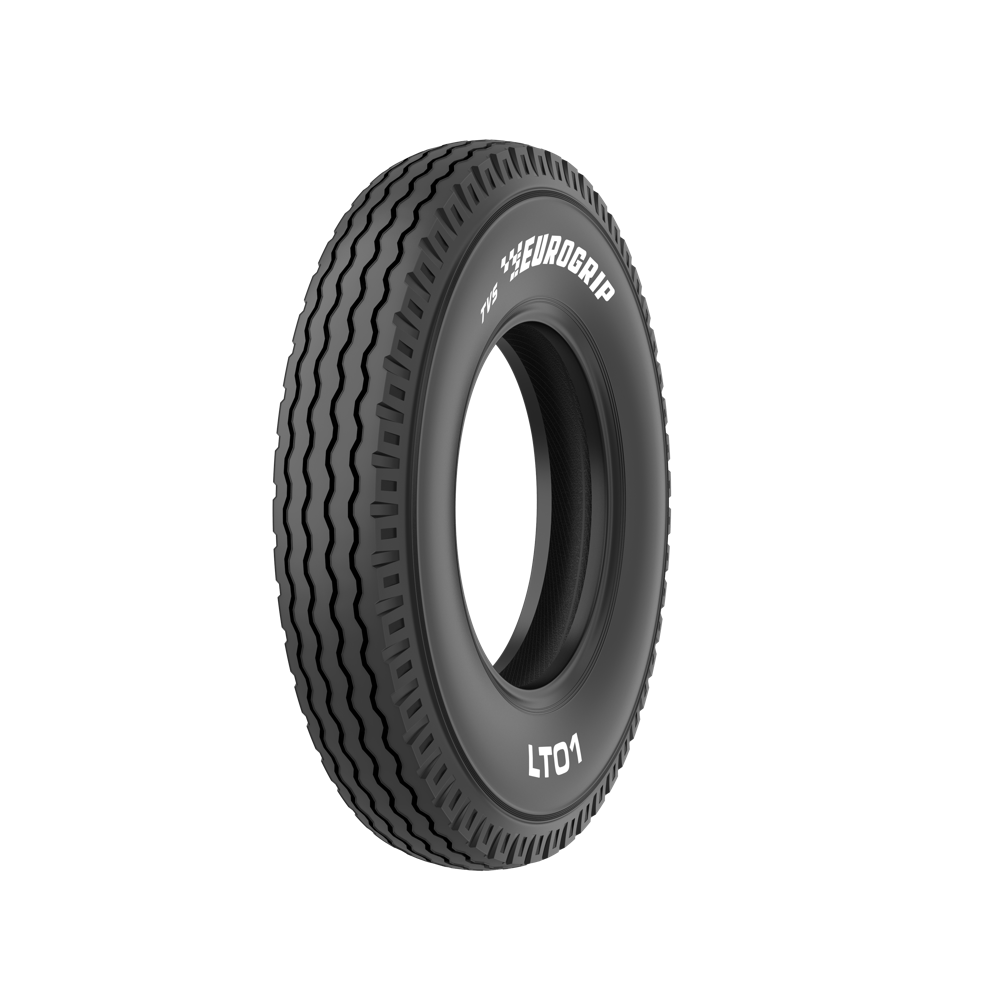

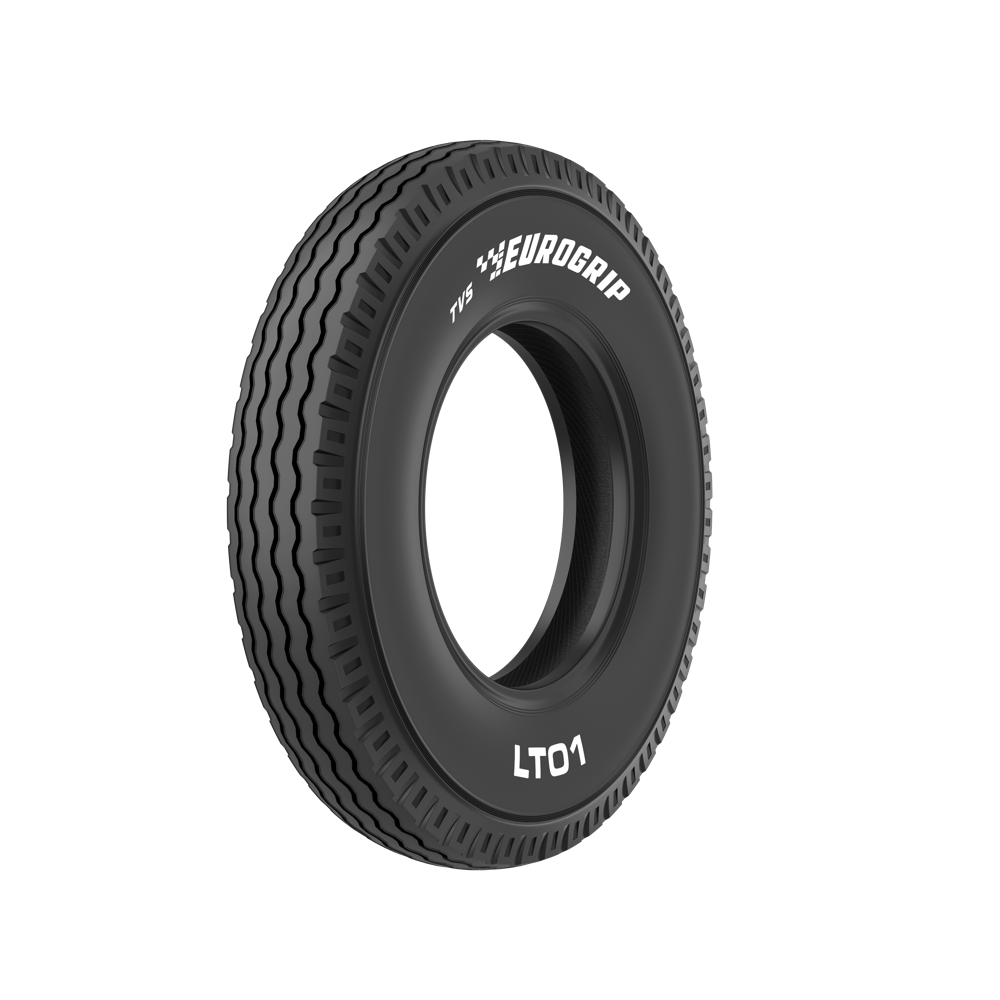

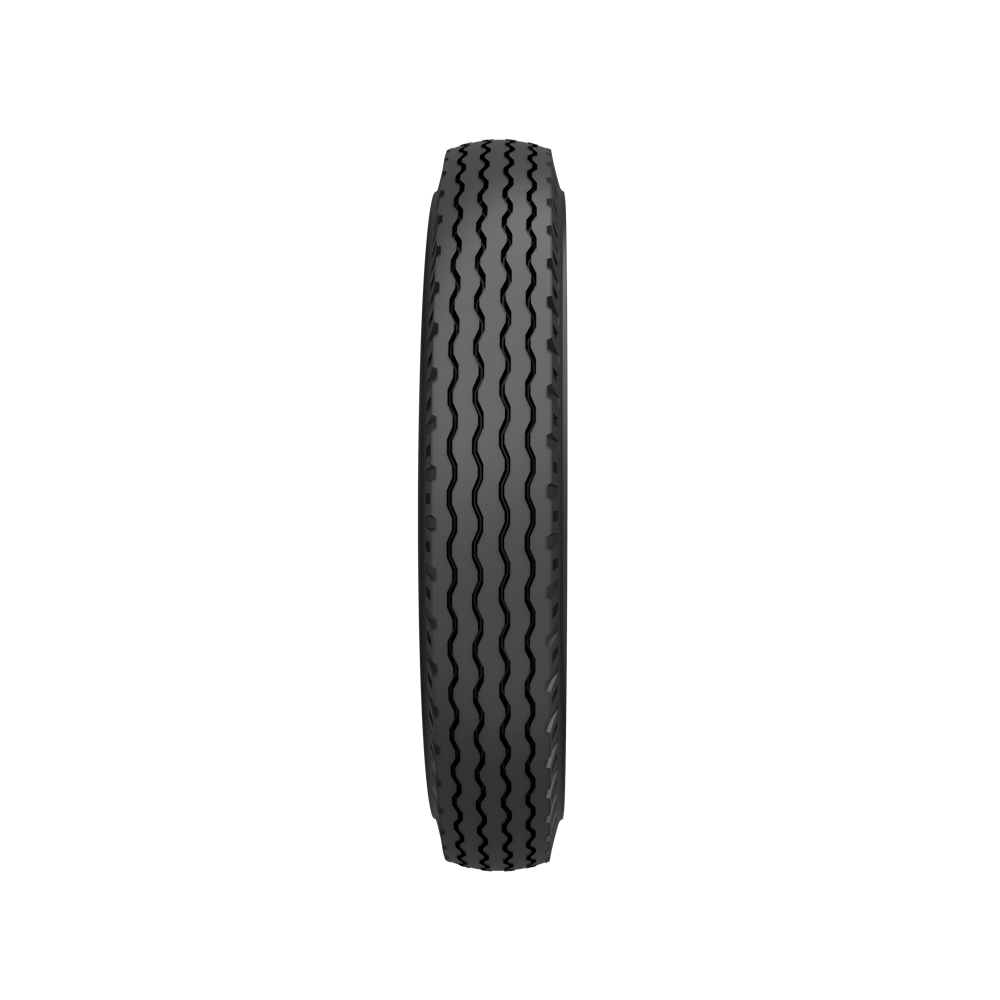

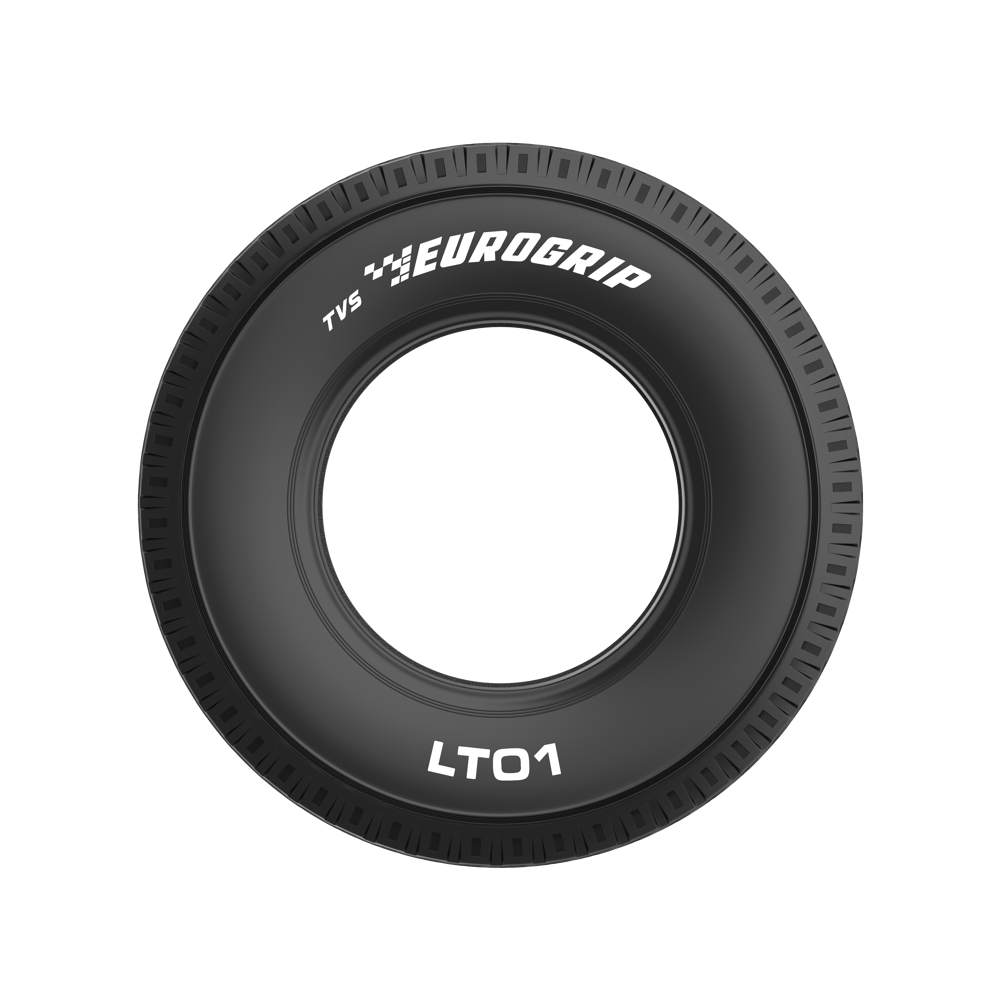

LT 01 5 rib tyre is capable of handling high speeds carrying heavy loads. Its unique fan-like shoulder design offers enhanced crown durability. It is also ideal for agricultural trailers.
LT
J
Bias
Suitable for
Trailer
Wagon
Technical Data
| TYRE SIZE | REC. RIM (inch) | ALT. RIM (inch) | UNLOADED DIMENSIONS (mm) | TYPE | PLY RATING | LI & SS | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| SW | OD | SLR | RC | |||||||
| 7.50-16 | 6 | - | 215 | 820 | 387 | 0 | TT | 12 | 120J/116J | |
| 7.50-16 | 6 | - | 215 | 820 | 387 | 0 | TT | 14 | 122J/118J | |
| 7.50-16 | 6 | - | 215 | 820 | 387 | 0 | TT | 16 | 124J | 120J | |
IMPERIAL
METRIC
Technical Table 01
| TYRE SIZE | RIM SIZE | REC. RIM | ALT. RIM | UNLOADED DIMENSIONS (mm) | PLY RATING | LOAD INDEX SPEED SYMBOL | ||||
| SW | OD | SLR | RC | |||||||
| 15.0/70-18 | 18 | W13 |
W17 W19 |
400 | 980 | 440 | 2886 | 14 | 128 A8 |
 |
| 16 | 132 A9 |
|
||||||||
Technical Data
| Tyre Size | Rec. RIM (inch) |
Alt. RIM (inch) |
Unloaded dimensions (mm) | Type | Ply Rating | Load Index & Speed Symbol | Fabric | Load table | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Section Width | Overall Diameter | Static Load Radius | Rolling Circumference | ||||||||
