Lawn & Garden

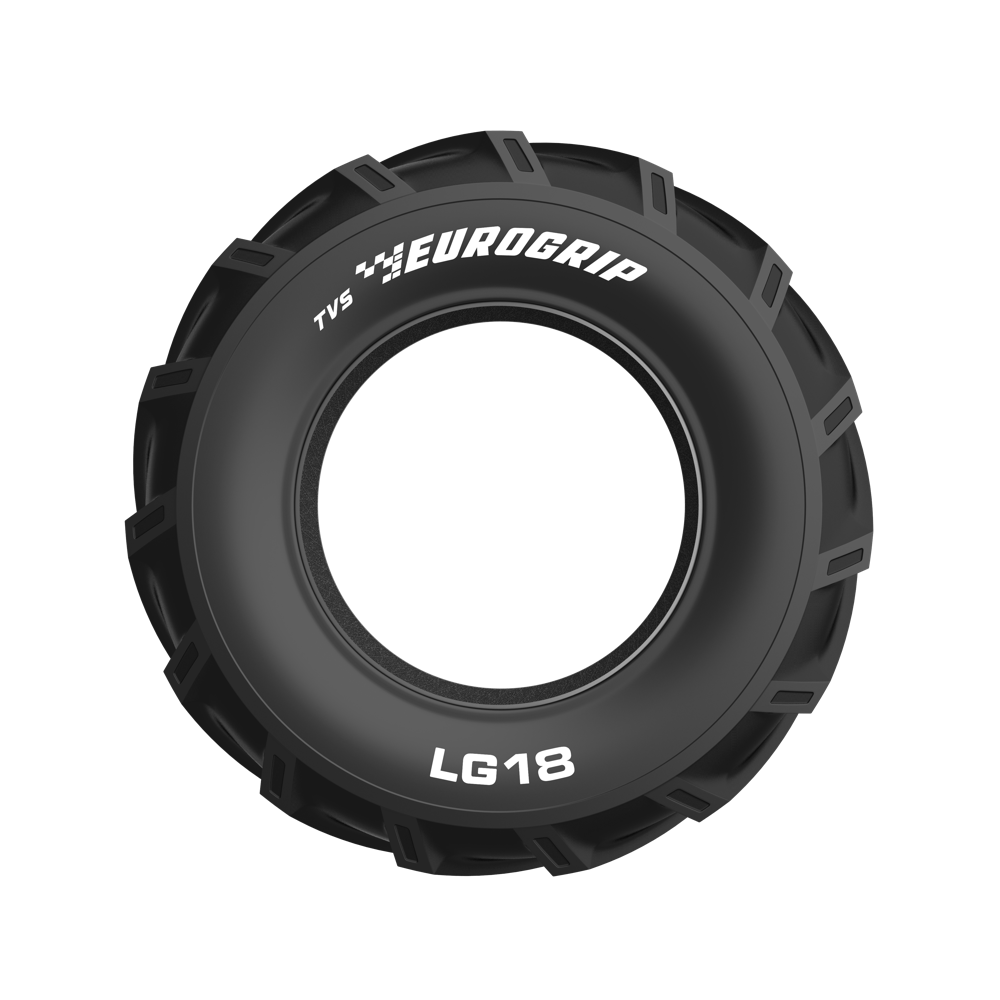

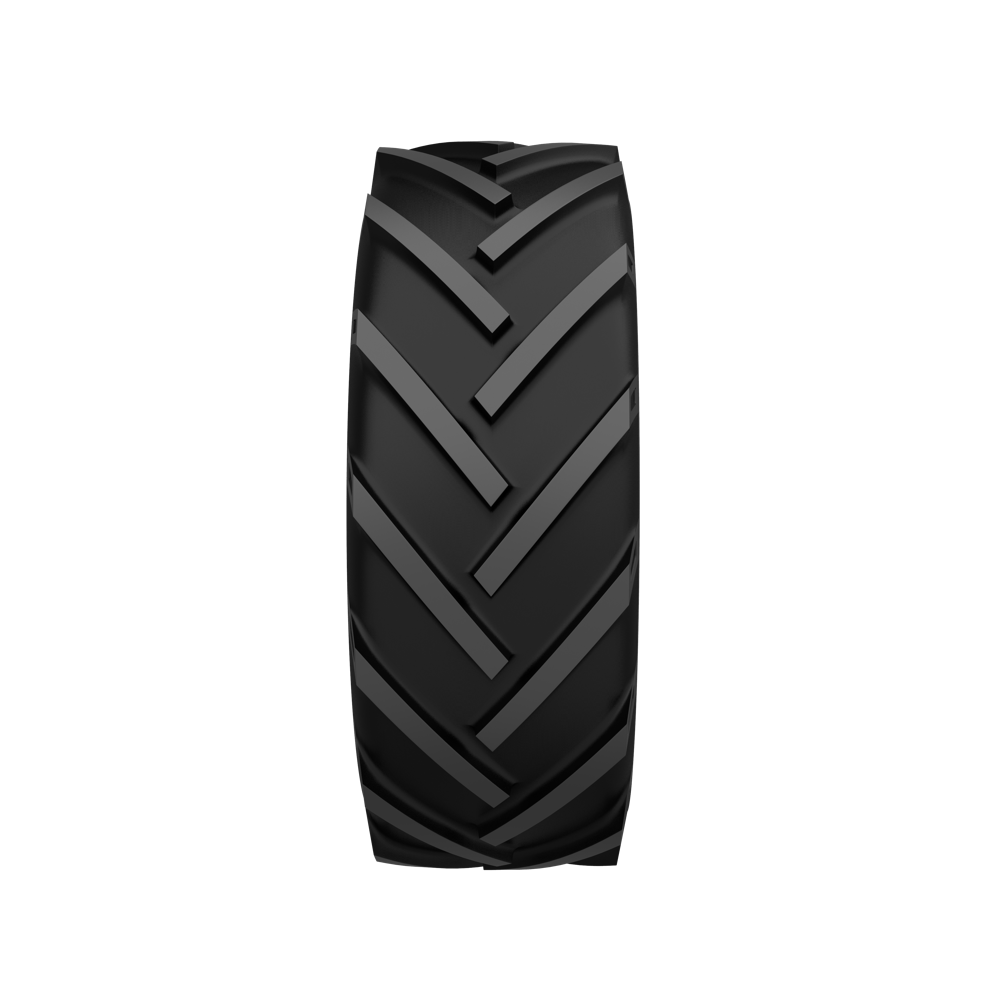

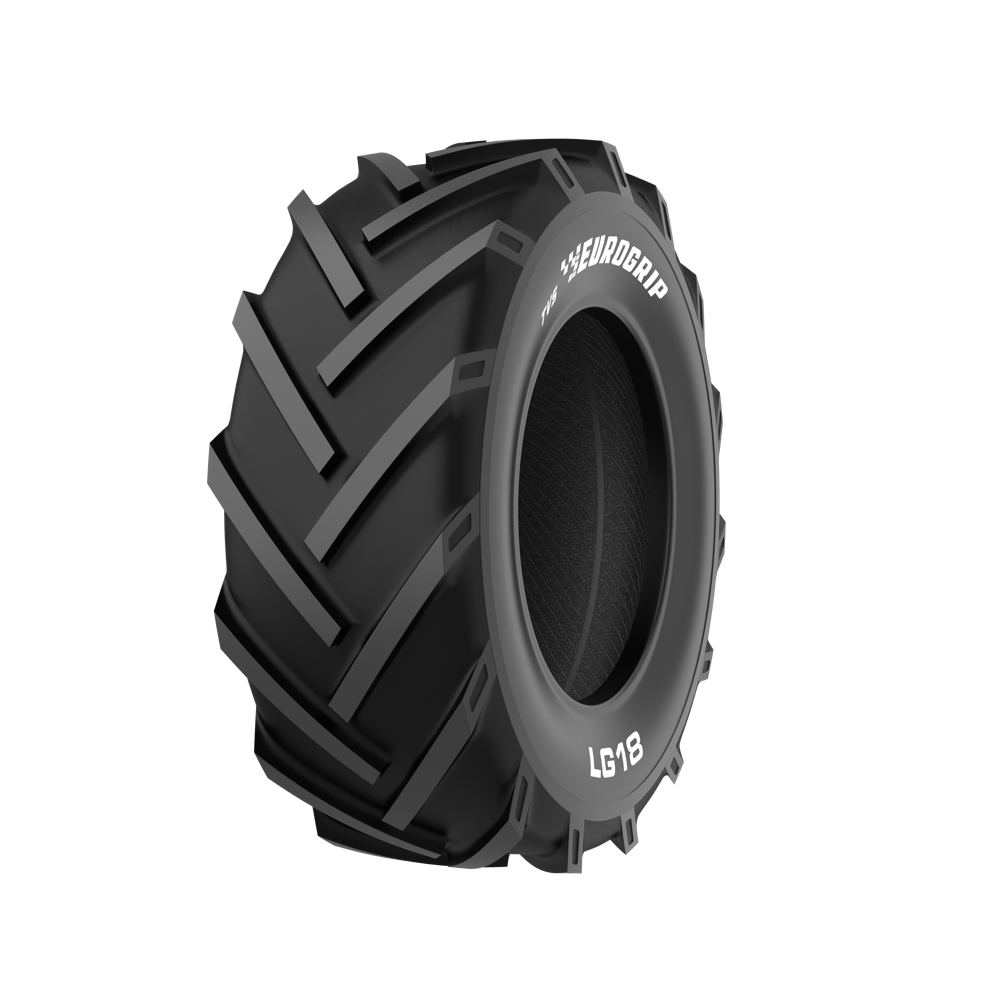

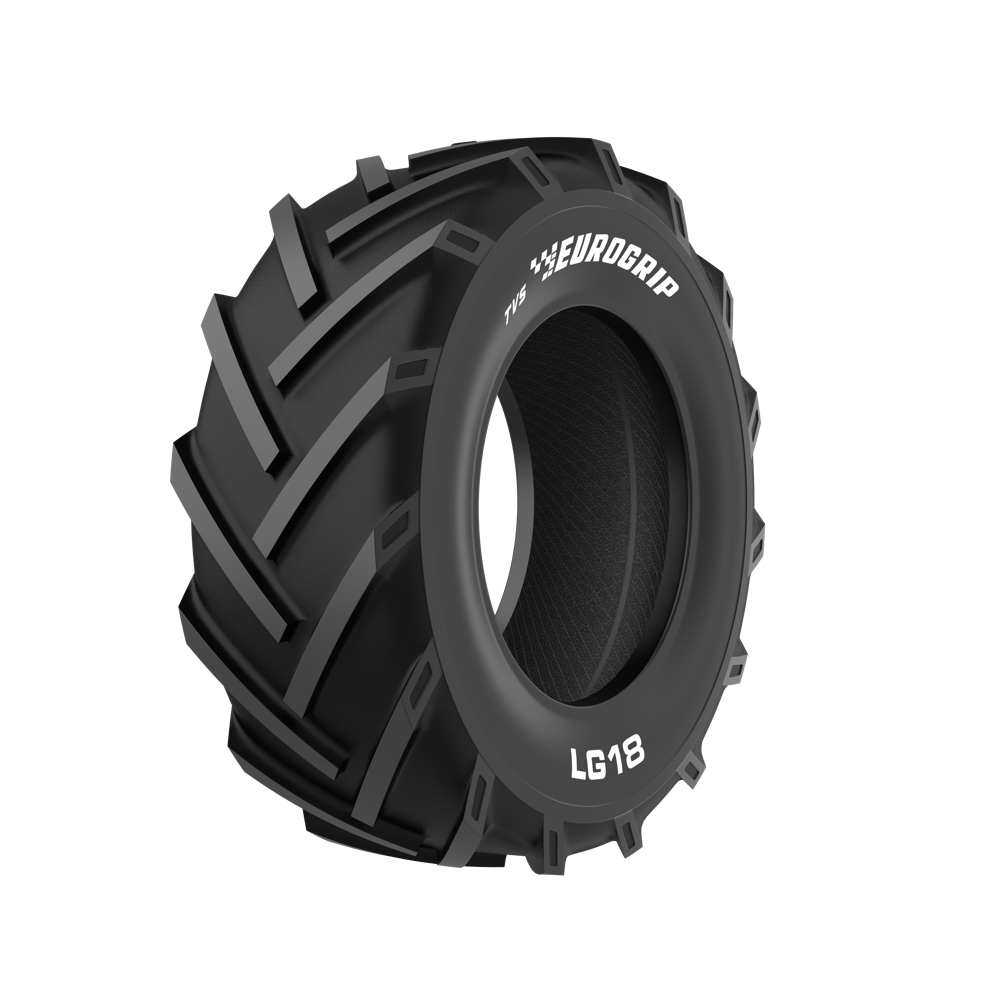

LG 18
The LG 18 with its large contact area and ideally spaced lugs make it an ideal tyre for use in driven machines such as trenchers, orchard harvesters and speciality machinery. It is suitable for lawn & garden, soil tillage and public space and maintenance. It also provides good traction in muddy conditions.
HF-2
A3
Bias
Suitable for
Turf Tractor
Trencher
Technical Data
| TYRE SIZE | REC. RIM (inch) | ALT. RIM (inch) | UNLOADED DIMENSIONS (mm) | TYPE | PLY RATING | LI & SS | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| SW | OD | SLR | RC | |||||||
| 23x10.50-12 | 8.50 I | - | 256 | 571 | 256 | 1656 | TL | 6 | ||
| 23x10.50-12 | 8.50 I | - | 256 | 571 | 256 | 1656 | TL | 8 | ||
| 23x8.50-12 | 7.00 I | - | 218 | 586 | 262 | 1694 | TL | 6 | ||
| 23x8.50-12 | 7.00 I | - | 218 | 586 | 262 | 1694 | TL | 8 | ||
| 23x8.50-12 | 7.00 I | - | 218 | 586 | 262 | 1694 | TL | 10 | ||
| 26x12.00-12 | 10.50 I | - | 305 | 668 | 285 | 1882 | TL | 4 | ||
| 26x12.00-12 | 10.50 I | - | 305 | 668 | 285 | 1882 | TL | 8 | ||
| 26x12.00-12 | 10.50 I | - | 305 | 668 | 285 | 1882 | TL | 12 | ||
IMPERIAL
METRIC
Technical Table 01
| TYRE SIZE | RIM SIZE | REC. RIM | ALT. RIM | UNLOADED DIMENSIONS (mm) | PLY RATING | LOAD INDEX SPEED SYMBOL | ||||
| SW | OD | SLR | RC | |||||||
| 15.0/70-18 | 18 | W13 |
W17 W19 |
400 | 980 | 440 | 2886 | 14 | 128 A8 |
 |
| 16 | 132 A9 |
|
||||||||
Technical Data
| Tyre Size | Rec. RIM (inch) |
Alt. RIM (inch) |
Unloaded dimensions (mm) | Type | Ply Rating | Load Index & Speed Symbol | Fabric | Load table | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Section Width | Overall Diameter | Static Load Radius | Rolling Circumference | ||||||||
