Lawn & Garden

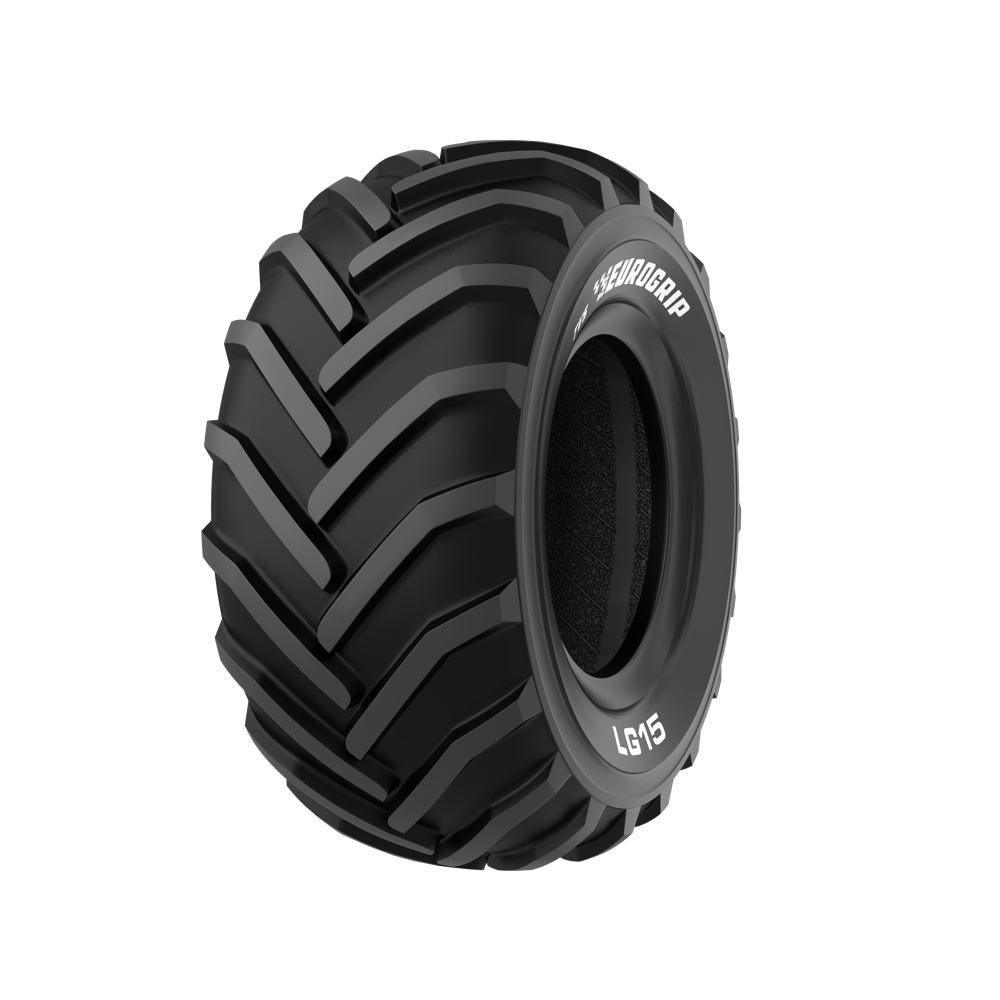

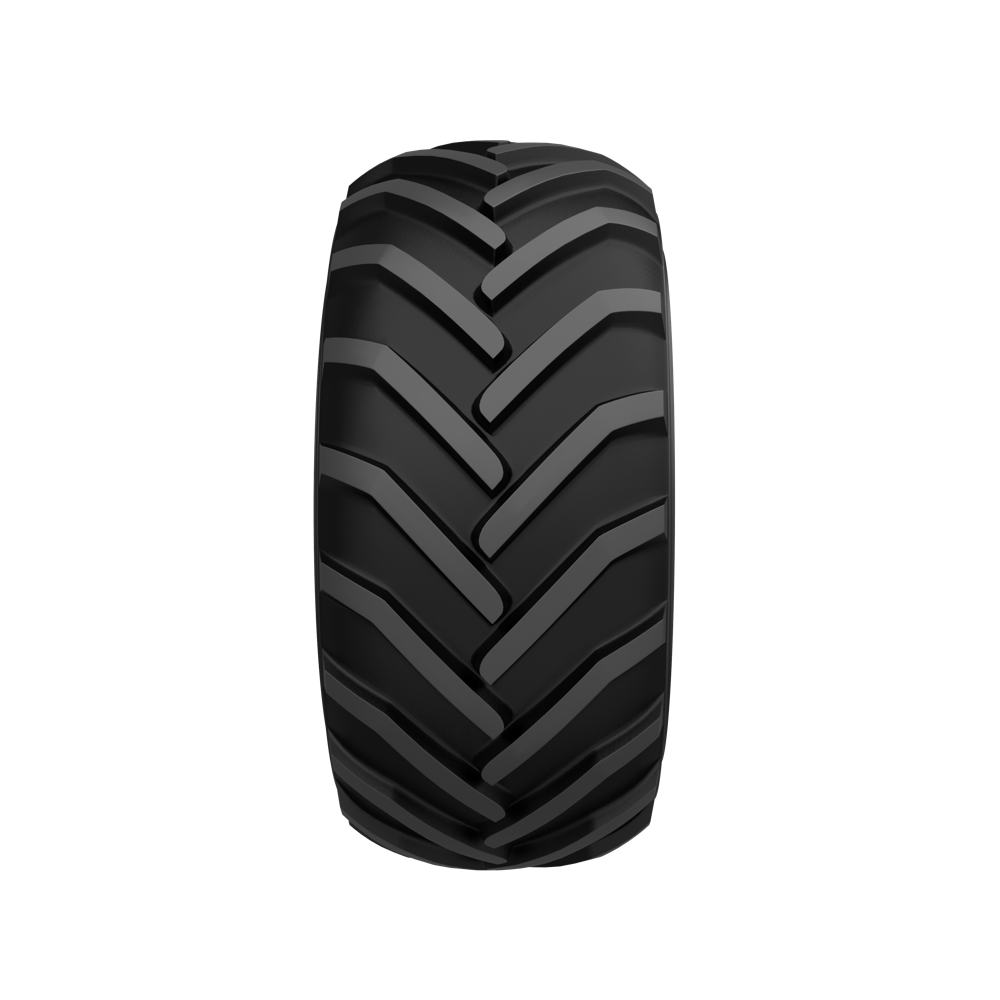

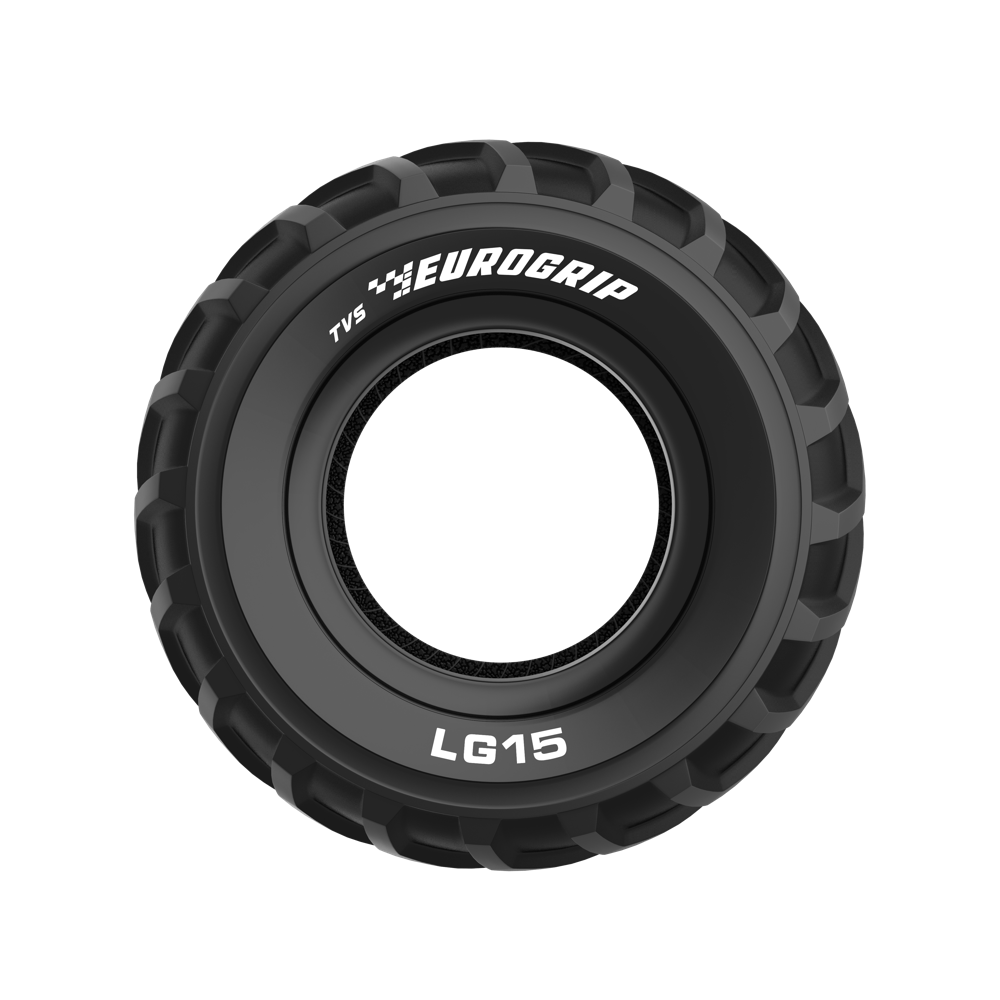

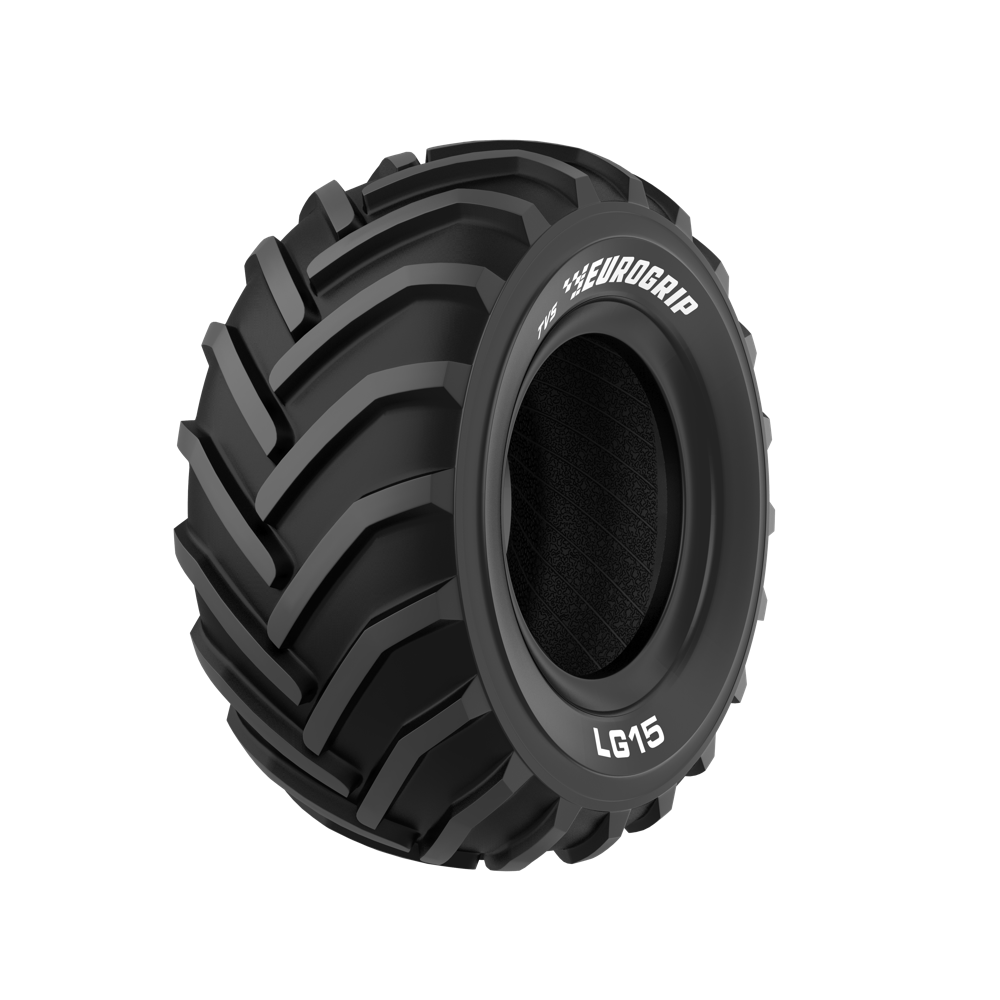

LG 15
The LG 15 is designed for use on wet surfaces where traction, self-cleaning and stability are important. With a large contact area, the tyre provides excellent flotation characteristics, traction and good stability.
HF-2
A3
Bias
Suitable for
Compact Tractor
Turf Tractor
Orchard Tractor
Technical Data
| TYRE SIZE | REC. RIM (inch) | ALT. RIM (inch) | UNLOADED DIMENSIONS (mm) | TYPE | PLY RATING | LI & SS | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| SW | OD | SLR | RC | |||||||
| 26x12.00-12 | 10.50 I | - | 310 | 670 | 280 | 1847 | TL | 4 | ||
| 26x12.00-12 | 10.50 I | - | 310 | 670 | 280 | 1847 | TL | 8 | ||
| 26x12.00-12 | 10.50 I | - | 310 | 670 | 280 | 1847 | TL | 10 | ||
| 26x12.00-12 | 10.50 I | - | 310 | 670 | 280 | 1847 | TL | 12 | ||
IMPERIAL
METRIC
Technical Table 01
| TYRE SIZE | RIM SIZE | REC. RIM | ALT. RIM | UNLOADED DIMENSIONS (mm) | PLY RATING | LOAD INDEX SPEED SYMBOL | ||||
| SW | OD | SLR | RC | |||||||
| 15.0/70-18 | 18 | W13 |
W17 W19 |
400 | 980 | 440 | 2886 | 14 | 128 A8 |
 |
| 16 | 132 A9 |
|
||||||||
Technical Data
| Tyre Size | Rec. RIM (inch) |
Alt. RIM (inch) |
Unloaded dimensions (mm) | Type | Ply Rating | Load Index & Speed Symbol | Fabric | Load table | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Section Width | Overall Diameter | Static Load Radius | Rolling Circumference | ||||||||
