LG 09

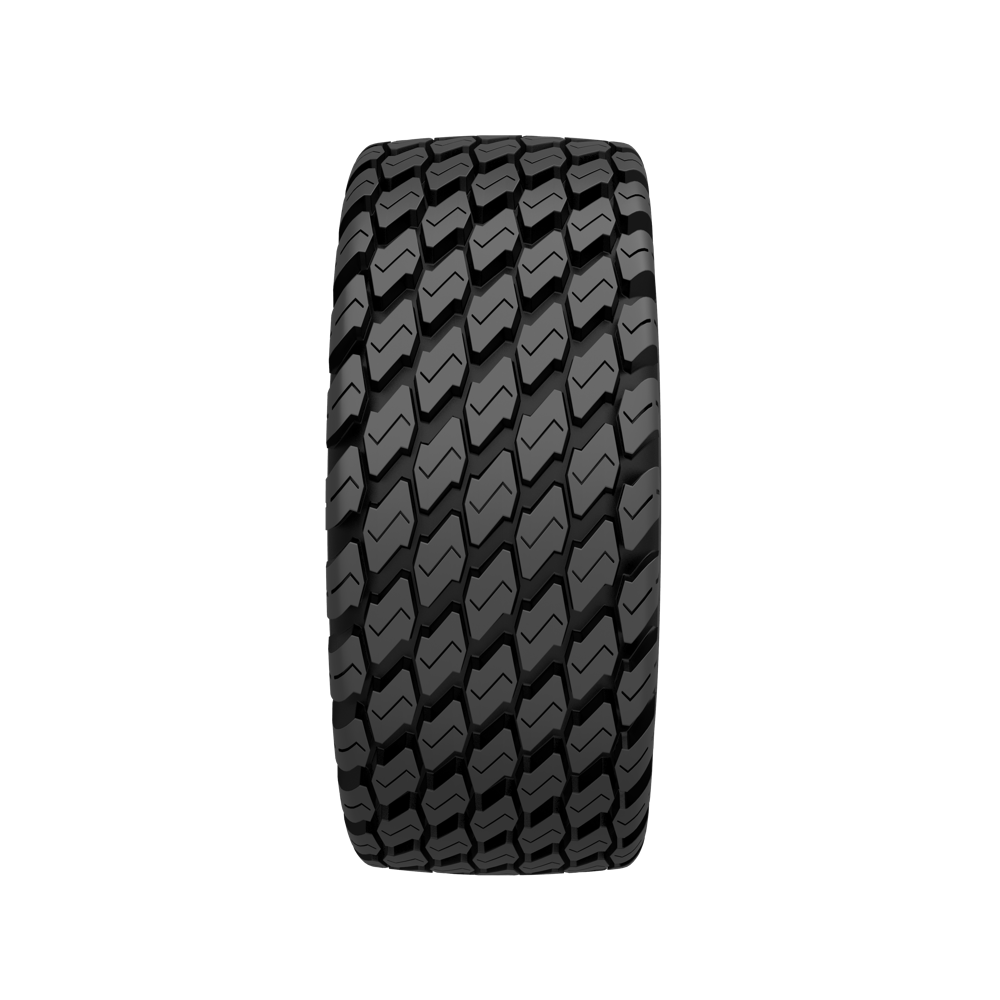

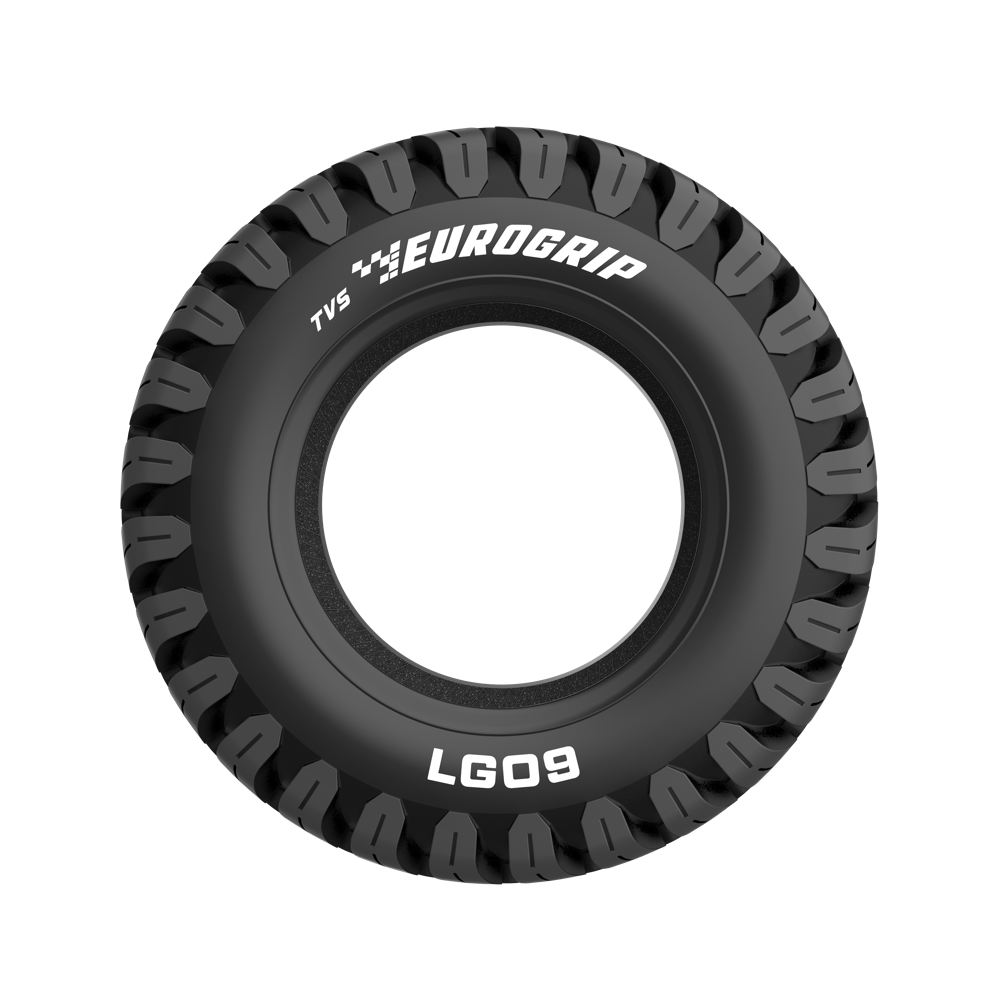

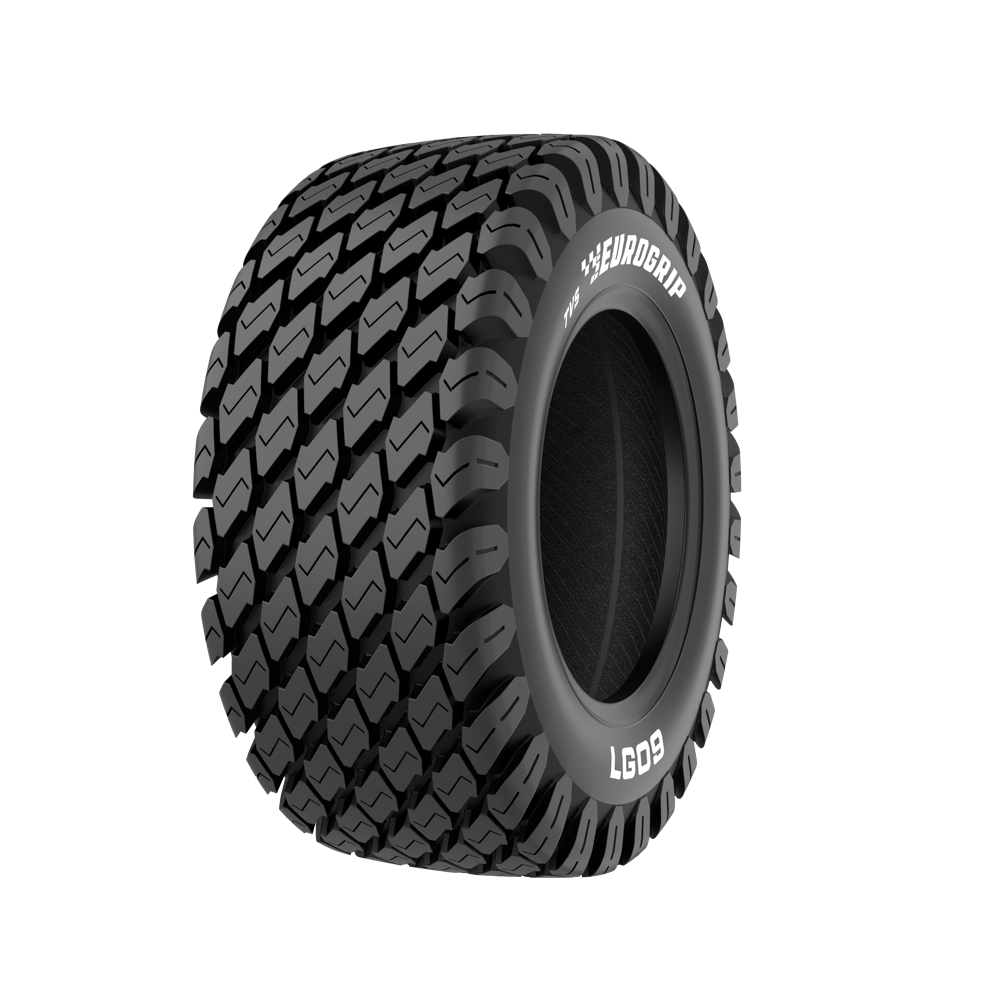

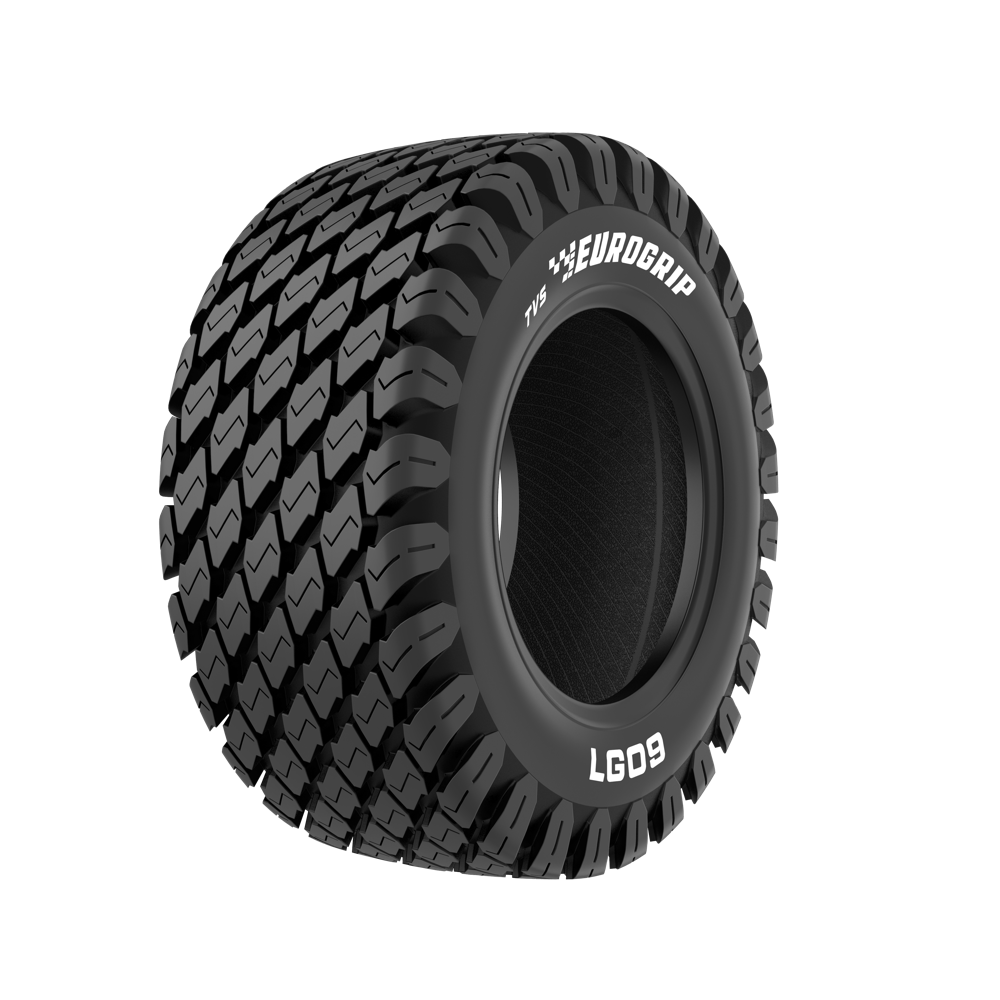

LG 09 is a tyre designed for mowers and compact lawn & garden tractors. Its shallow R-3 block type treads are ideal for use on turf, grasslands and sensitive surfaces. Its large footprint in addition to high flotation properties make it ideal for general turf applications.
R-3
A3
Bias
Suitable for
Turf Tractor
Ride on Mower
Zero Turn Mower
Technical Data
| TYRE SIZE | REC. RIM (inch) | ALT. RIM (inch) | UNLOADED DIMENSIONS (mm) | TYPE | PLY RATING | LI & SS | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| SW | OD | SLR | RC | |||||||
| 23x10.50-12 | 8.50 I | - | 260 | 570 | 258 | 1668 | TL | 6 | ||
| 23x10.50-12 | 8.50 I | - | 260 | 570 | 258 | 1668 | TL | 8 | ||
| 23x8.50-12 | 7.00 I | - | 215 | 574 | 258 | 1665 | TL | 6 | ||
| 23x8.50-12 | 7.00 I | - | 215 | 574 | 258 | 1665 | TL | 8 | ||
| 23x8.50-12 | 7.00 I | - | 215 | 574 | 258 | 1665 | TL | 12 | ||
| 26x12.00-12 | 10.50 I | - | 310 | 658 | 291 | 1908 | TL | 4 | ||
| 26x12.00-12 | 10.50 I | - | 310 | 658 | 291 | 1908 | TL | 8 | ||
| 26x12.00-12 | 10.50 I | - | 310 | 658 | 291 | 1908 | TL | 12 | ||
IMPERIAL
METRIC
Technical Table 01
| TYRE SIZE | RIM SIZE | REC. RIM | ALT. RIM | UNLOADED DIMENSIONS (mm) | PLY RATING | LOAD INDEX SPEED SYMBOL | ||||
| SW | OD | SLR | RC | |||||||
| 15.0/70-18 | 18 | W13 |
W17 W19 |
400 | 980 | 440 | 2886 | 14 | 128 A8 |
 |
| 16 | 132 A9 |
|
||||||||
