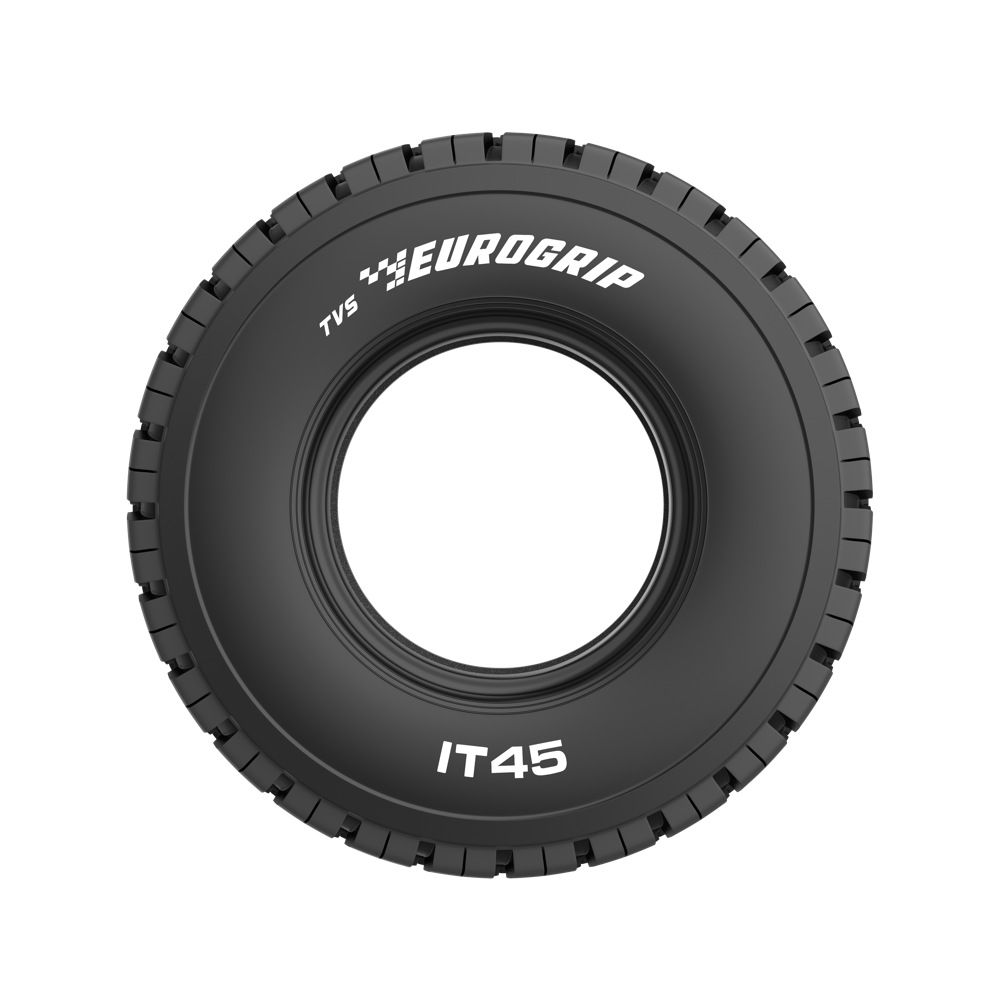

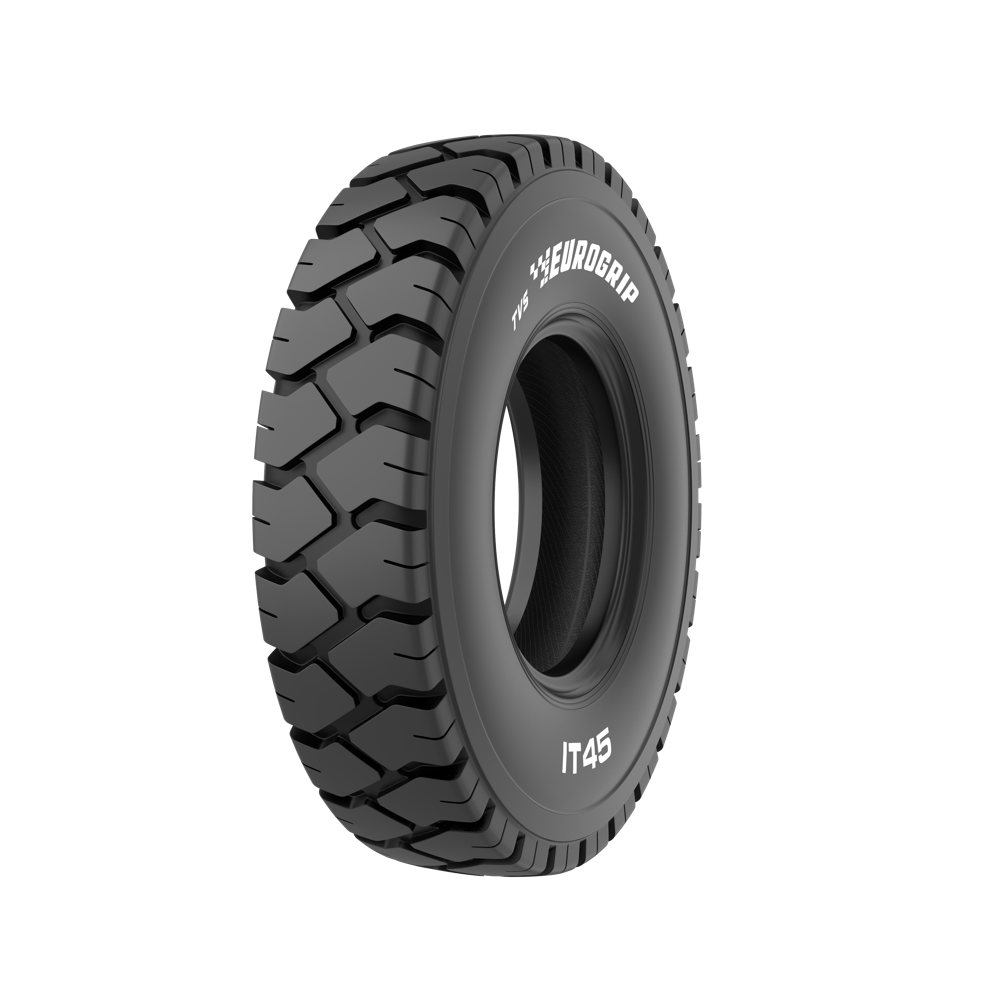

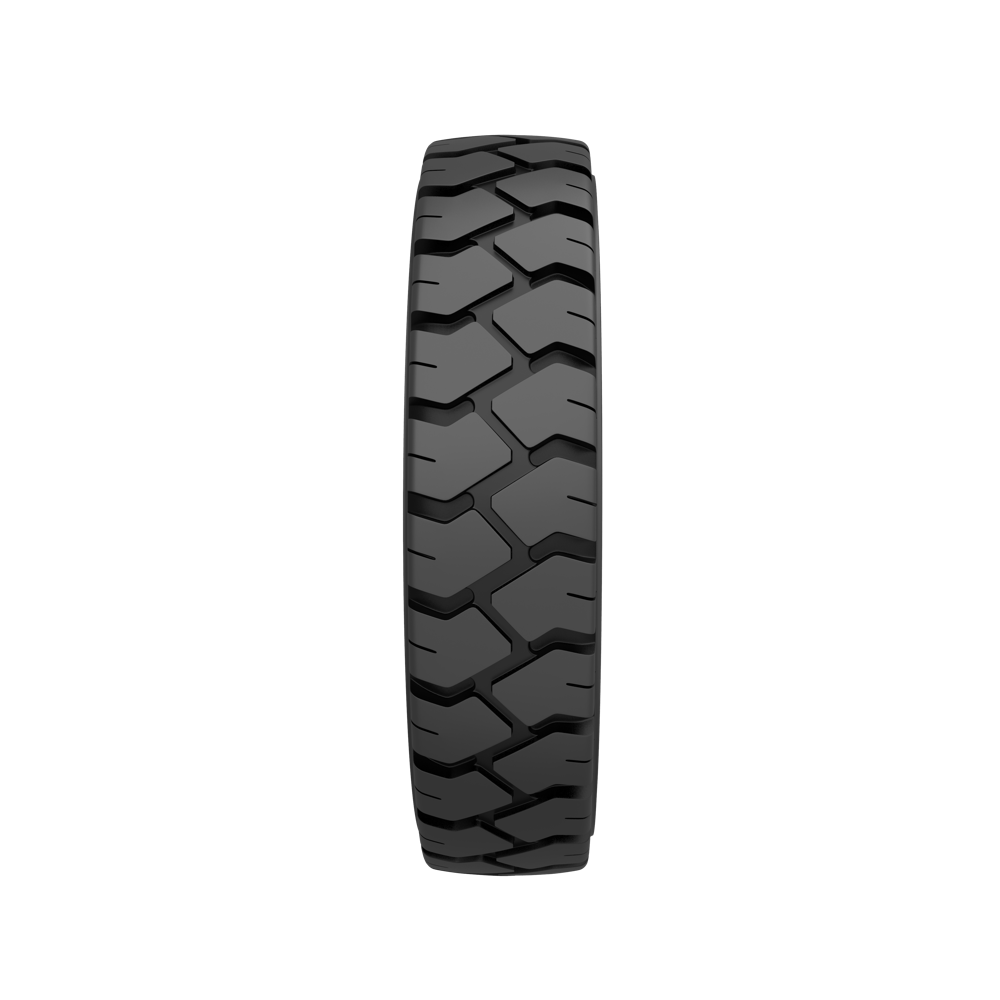

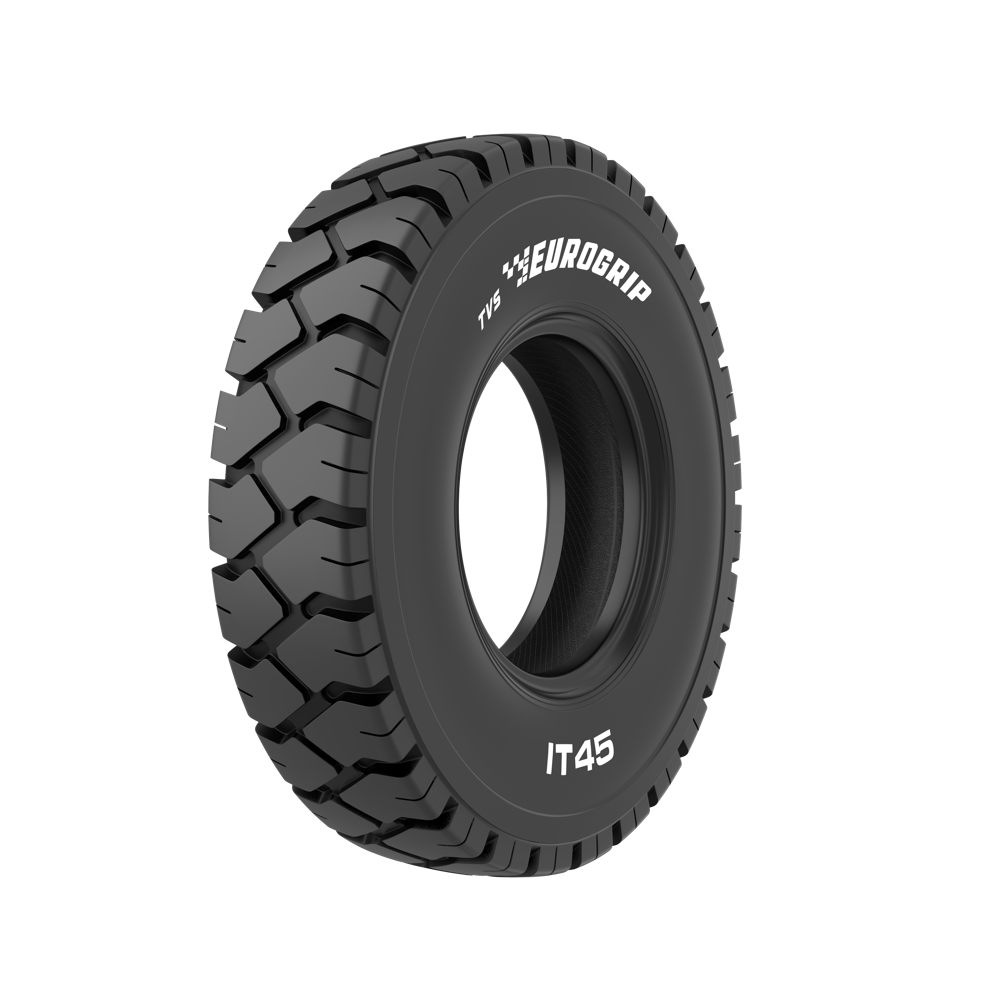

IT 45

IT 45 is a general duty IND-1 tyre designed for forklift trucks that work in single or two shift operations. It’s ideal for rental fleets and applications that are not round the clock. The tyre is built with standard industrial compound.
 IND-1
 A2
 Bias

Suitable for

Forklift

Know more about this product

Enquire
Enquire now
Enquire now
Technical Data

IMPERIAL

METRIC

Technical Table 01

TYRE SIZE RIM SIZE REC. RIM ALT. RIM UNLOADED DIMENSIONS (mm) PLY RATING LOAD INDEX SPEED SYMBOL
SW OD SLR RC
15.0/70-18 18 W13 W17
W19 		400 980 440 2886 14 128 A8
16 132 A9
Technical Data
MM IN
Tyre Size TRA CODE Tube Valve Flap REC. RIM Width (inch) ALT. RIM Width (inch) Unloaded Inflated
Dimensions ±2%		 PR LI & SS
SW (inch) OD (inch)
5.00-8 IND-1 5.00-8 T 45 56 5.00-8 3.00D 3.25I 5.3 18.5 8 106A5 +
Load capacity
Forklift Truck upto 15mph Other vehicles Side loaders static Inf. pr
(PSI)
Load wheel (lbs) Steer wheel (lbs) 6 mph (lbs) 15 mph (lbs) 0 mph
2725 2095 2725 2095 3165 120
5.00-8 IND-1 5.00-8 T 45 56 5.00-8 3.00D 3.25I 5.3 18.5 10 111A5 +
Load capacity
Forklift Truck upto 15mph Other vehicles Side loaders static Inf. pr
(PSI)
Load wheel (lbs) Steer wheel (lbs) 6 mph (lbs) 15 mph (lbs) 0 mph
3120 2405 3120 2405 3625 145
5.00-8 IND-1 5.00-8 T 45 56 5.00-8 3.00D 3.25I 5.3 18.5 12 112A5 +
Load capacity
Forklift Truck upto 15mph Other vehicles Side loaders static Inf. pr
(PSI)
Load wheel (lbs) Steer wheel (lbs) 6 mph (lbs) 15 mph (lbs) 0 mph
4290 3295 4290 3295 4975 152
18x7-8 IND-1 18x7-8 T 45 56 18x7-8 4.33R 5.00F 6.3 17.7 16 125A5 +
Load capacity
Forklift Truck upto 15mph Other vehicles Side loaders static Inf. pr
(PSI)
Load wheel (lbs) Steer wheel (lbs) 6 mph (lbs) 15 mph (lbs) 0 mph
4730 3640 4730 3640 5490 145
6.00-9 IND-1 6.00-9 T 45 56 21x9/6.00-9 4.00E - 6.1 21.1 10 118A5 +
Load capacity
Forklift Truck upto 15mph Other vehicles Side loaders static Inf. pr
(PSI)
Load wheel (lbs) Steer wheel (lbs) 6 mph (lbs) 15 mph (lbs) 0 mph
3780 2910 3780 2910 4400 123
6.00-9 IND-1 6.00-9 T 45 56 21x9/6.00-9 4.00E - 6.1 21.1 12 121A5 +
Load capacity
Forklift Truck upto 15mph Other vehicles Side loaders static Inf. pr
(PSI)
Load wheel (lbs) Steer wheel (lbs) 6 mph (lbs) 15 mph (lbs) 0 mph
4155 3195 4155 3195 4830 145
6.00-9 IND-1 6.00-9 T 45 56 21x9/6.00-9 4.00E - 6.1 21.1 14 HD 122A5 +
Load capacity
Forklift Truck upto 15mph Other vehicles Side loaders static Inf. pr
(PSI)
Load wheel (lbs) Steer wheel (lbs) 6 mph (lbs) 15 mph (lbs) 0 mph
4290 3295 4290 3295 4975 152
6.50-10 IND-1 6.50-10 T 45 56 6.50/7.50-10 5.00F 5.50F 7.3 23.6 10 122A5 +
Load capacity
Forklift Truck upto 15mph Other vehicles Side loaders static Inf. pr
(PSI)
Load wheel (lbs) Steer wheel (lbs) 6 mph (lbs) 15 mph (lbs) 0 mph
4300 3310 4300 3310 4995 112
6.50-10 IND-1 6.50-10 T 45 56 6.50/7.50-10 5.00F 5.50F 7.3 23.6 14 128A5 +
Load capacity
Forklift Truck upto 15mph Other vehicles Side loaders static Inf. pr
(PSI)
Load wheel (lbs) Steer wheel (lbs) 6 mph (lbs) 15 mph (lbs) 0 mph
5160 3970 5160 3970 6000 145
23x9-10 IND-1 23x9-10 T 45 56 23x9-10 6.50F - 9.1 23.0 20 142A5 +
Load capacity
Forklift Truck upto 15mph Other vehicles Side loaders static Inf. pr
(PSI)
Load wheel (lbs) Steer wheel (lbs) 6 mph (lbs) 15 mph (lbs) 0 mph
7595 5845 7595 5845 8820 145
7.00-12 IND-1 7.00-12 TR75A 7.00/8.25-12 5.00S - 7.7 27.0 12 133A5 +
Load capacity
Forklift Truck upto 15mph Other vehicles Side loaders static Inf. pr
(PSI)
Load wheel (lbs) Steer wheel (lbs) 6 mph (lbs) 15 mph (lbs) 0 mph
5910 4540 5910 4540 6860 123
7.00-12 IND-1 7.00-12 TR75A 7.00/8.25-12 5.00S - 7.7 27.0 14 134A5 +
Load capacity
Forklift Truck upto 15mph Other vehicles Side loaders static Inf. pr
(PSI)
Load wheel (lbs) Steer wheel (lbs) 6 mph (lbs) 15 mph (lbs) 0 mph
6075 4675 6075 4675 7055 131
7.50-15 IND-1 7.50-15 TR75A 28x9/ 6.50/ 7.00/ 7.50/ 8.25-15 6 6.5 8.3 30.5 16 146A5 +
Load capacity
Forklift Truck upto 15mph Other vehicles Side loaders static Inf. pr
(PSI)
Load wheel (lbs) Steer wheel (lbs) 6 mph (lbs) 15 mph (lbs) 0 mph
8600 6615 8600 6615 9990 145
8.15-15 (28x9-15) IND-1 8.15-15 TR75A 28x9/ 6.50/ 7.00/ 7.50/ 8.25-15 7 7.00BD 8.5 28.0 12 142A5 +
Load capacity
Forklift Truck upto 15mph Other vehicles Side loaders static Inf. pr
(PSI)
Load wheel (lbs) Steer wheel (lbs) 6 mph (lbs) 15 mph (lbs) 0 mph
7595 5845 7595 5845 8820 120
8.15-15 (28x9-15) IND-1 8.15-15 TR75A 28x9/ 6.50/ 7.00/ 7.50/ 8.25-15 7 7.00BD 8.5 28.0 14 146A5 +
Load capacity
Forklift Truck upto 15mph Other vehicles Side loaders static Inf. pr
(PSI)
Load wheel (lbs) Steer wheel (lbs) 6 mph (lbs) 15 mph (lbs) 0 mph
8600 6615 8600 6615 9990 145
8.15-15 (28x9-15) IND-1 8.15-15 TR75A 28x9/ 6.50/ 7.00/ 7.50/ 8.25-15 7 7.00BD 8.5 28.0 16 147A5 +
Load capacity
Forklift Truck upto 15mph Other vehicles Side loaders static Inf. pr
(PSI)
Load wheel (lbs) Steer wheel (lbs) 6 mph (lbs) 15 mph (lbs) 0 mph
8855 6851 8855 6851 10285 152
8.25-15 IND-1 8.25-15 TR75A 28x9/ 6.50/ 7.00/ 7.50/ 8.25-15 6.5 6.00/7 9.8 32.7 14 149A5 +
Load capacity
Forklift Truck upto 15mph Other vehicles Side loaders static Inf. pr
(PSI)
Load wheel (lbs) Steer wheel (lbs) 6 mph (lbs) 15 mph (lbs) 0 mph
9315 7165 9315 7165 10825 116
8.25-15 IND-1 8.25-15 TR75A 28x9/ 6.50/ 7.00/ 7.50/ 8.25-15 6.5 6.00/7 9.8 32.7 16 152A5 +
Load capacity
Forklift Truck upto 15mph Other vehicles Side loaders static Inf. pr
(PSI)
Load wheel (lbs) Steer wheel (lbs) 6 mph (lbs) 15 mph (lbs) 0 mph
10175 7830 10175 7830 11820 134
8.25-15 IND-1 8.25-15 TR75A 28x9/ 6.50/ 7.00/ 7.50/ 8.25-15 6.5 6.00/7 9.8 32.7 18 153A5 +
Load capacity
Forklift Truck upto 15mph Other vehicles Side loaders static Inf. pr
(PSI)
Load wheel (lbs) Steer wheel (lbs) 6 mph (lbs) 15 mph (lbs) 0 mph
10465 8050 10465 8050 12150 145
250-15 IND-1 250-15 TR75A 250/300-15 7.5 - 9.6 29.5 16 150A5 +
Load capacity
Forklift Truck upto 15mph Other vehicles Side loaders static Inf. pr
(PSI)
Load wheel (lbs) Steer wheel (lbs) 6 mph (lbs) 15 mph (lbs) 0 mph
9605 7385 9605 7385 11155 120
250-15 IND-1 250-15 TR75A 250/300-15 7.5 - 9.6 29.5 20 155A5 +
Load capacity
Forklift Truck upto 15mph Other vehicles Side loaders static Inf. pr
(PSI)
Load wheel (lbs) Steer wheel (lbs) 6 mph (lbs) 15 mph (lbs) 0 mph
11115 8545 11115 8545 12900 145
300-15 IND-1 300-15 TR75A 250/300-15 8 - 11.4 33.1 16 156A5 +
Load capacity
Forklift Truck upto 15mph Other vehicles Side loaders static Inf. pr
(PSI)
Load wheel (lbs) Steer wheel (lbs) 6 mph (lbs) 15 mph (lbs) 0 mph
11325 8710 11325 8710 13155 87
300-15 IND-1 300-15 TR75A 250/300-15 8 - 11.4 33.1 20 164A5 +
Load capacity
Forklift Truck upto 15mph Other vehicles Side loaders static Inf. pr
(PSI)
Load wheel (lbs) Steer wheel (lbs) 6 mph (lbs) 15 mph (lbs) 0 mph
14335 11025 14335 11025 16650 131
Tyre Size TRA CODE Tube Valve Flap REC. RIM Width (inch) ALT. RIM Width (inch) Unloaded Inflated
Dimensions ± 2%		 PR LI & SS
SW (mm) OD (mm)
5.00-8 IND-1 5.00-8 T 45 56 5.00-8 3.00D 3.25I 135 470 8 106A5 +
Load capacity
Forklift Truck upto 25km/h Other vehicles Side loaders static Inf. pr
(BAR)
Load wheel Steer wheel 10 Km/hr 25 km/hr 0 km/hr
1235 950 1235 950 1435 8.25
5.00-8 IND-1 5.00-8 T 45 56 5.00-8 3.00D 3.25I 135 470 10 111A5 +
Load capacity
Forklift Truck upto 25km/h Other vehicles Side loaders static Inf. pr
(BAR)
Load wheel Steer wheel 10 Km/hr 25 km/hr 0 km/hr
1415 1090 1415 1090 1645 10.00
5.00-8 IND-1 5.00-8 T 45 56 5.00-8 3.00D 3.25I 135 470 12 112A5 +
Load capacity
Forklift Truck upto 25km/h Other vehicles Side loaders static Inf. pr
(BAR)
Load wheel Steer wheel 10 Km/hr 25 km/hr 0 km/hr
1455 1120 1455 1120 1690 10.50
18x7-8 IND-1 18x7-8 T 45 56 18x7-8 4.33R 5.00F 160 450 16 125A5 +
Load capacity
Forklift Truck upto 25km/h Other vehicles Side loaders static Inf. pr
(BAR)
Load wheel Steer wheel 10 Km/hr 25 km/hr 0 km/hr
2145 1650 2145 1650 2490 10.00
6.00-9 IND-1 6.00-9 T 45 56 21x9/6.00-9 4.00E - 155 535 10 118A5 +
Load capacity
Forklift Truck upto 25km/h Other vehicles Side loaders static Inf. pr
(BAR)
Load wheel Steer wheel 10 Km/hr 25 km/hr 0 km/hr
1715 1320 1715 1320 1995 8.50
6.00-9 IND-1 6.00-9 T 45 56 21x9/6.00-9 4.00E - 155 535 12 121A5 +
Load capacity
Forklift Truck upto 25km/h Other vehicles Side loaders static Inf. pr
(BAR)
Load wheel Steer wheel 10 Km/hr 25 km/hr 0 km/hr
1885 1450 1885 1450 2190 10.00
6.00-9 IND-1 6.00-9 T 45 56 21x9/6.00-9 4.00E - 155 535 14 HD 122A5 +
Load capacity
Forklift Truck upto 25km/h Other vehicles Side loaders static Inf. pr
(BAR)
Load wheel Steer wheel 10 Km/hr 25 km/hr 0 km/hr
1945 1495 1945 1495 2255 10.50
6.50-10 IND-1 6.50-10 T 45 56 6.50/7.50-10 5.00F 5.50F 185 600 10 122A5 +
Load capacity
Forklift Truck upto 25km/h Other vehicles Side loaders static Inf. pr
(BAR)
Load wheel Steer wheel 10 Km/hr 25 km/hr 0 km/hr
1950 1500 1950 1500 2265 7.75
6.50-10 IND-1 6.50-10 T 45 56 6.50/7.50-10 5.00F 5.50F 185 600 14 128A5 +
Load capacity
Forklift Truck upto 25km/h Other vehicles Side loaders static Inf. pr
(BAR)
Load wheel Steer wheel 10 Km/hr 25 km/hr 0 km/hr
2340 1800 2340 1800 2720 10.00
23x9-10 IND-1 23x9-10 T 45 56 23x9-10 6.50F - 230 585 20 142A5 +
Load capacity
Forklift Truck upto 25km/h Other vehicles Side loaders static Inf. pr
(BAR)
Load wheel Steer wheel 10 Km/hr 25 km/hr 0 km/hr
3445 2650 3445 2650 4000 10.00
7.00-12 IND-1 7.00-12 TR75A 7.00/8.25-12 5.00S - 195 685 12 133A5 +
Load capacity
Forklift Truck upto 25km/h Other vehicles Side loaders static Inf. pr
(BAR)
Load wheel Steer wheel 10 Km/hr 25 km/hr 0 km/hr
2680 2060 2680 2060 3110 8.50
7.00-12 IND-1 7.00-12 TR75A 7.00/8.25-12 5.00S - 195 685 14 134A5 +
Load capacity
Forklift Truck upto 25km/h Other vehicles Side loaders static Inf. pr
(BAR)
Load wheel Steer wheel 10 Km/hr 25 km/hr 0 km/hr
2755 2120 2755 2120 3200 9.00
7.50-15 IND-1 7.50-15 TR75A 28x9/ 6.50/ 7.00/ 7.50/ 8.25-15 6 6.5 210 775 16 146A5 +
Load capacity
Forklift Truck upto 25km/h Other vehicles Side loaders static Inf. pr
(BAR)
Load wheel Steer wheel 10 Km/hr 25 km/hr 0 km/hr
3900 3000 3900 3000 4530 10.00
8.15-15 (28x9-15) IND-1 8.15-15 TR75A 28x9/ 6.50/ 7.00/ 7.50/ 8.25-15 7 7.00BD 215 710 12 142A5 +
Load capacity
Forklift Truck upto 25km/h Other vehicles Side loaders static Inf. pr
(BAR)
Load wheel Steer wheel 10 Km/hr 25 km/hr 0 km/hr
3445 2650 3445 2650 4000 8.35
8.15-15 (28x9-15) IND-1 8.15-15 TR75A 28x9/ 6.50/ 7.00/ 7.50/ 8.25-15 7 7.00BD 215 710 14 146A5 +
Load capacity
Forklift Truck upto 25km/h Other vehicles Side loaders static Inf. pr
(BAR)
Load wheel Steer wheel 10 Km/hr 25 km/hr 0 km/hr
3900 3000 3900 3000 4530 10.00
8.15-15 (28x9-15) IND-1 8.15-15 TR75A 28x9/ 6.50/ 7.00/ 7.50/ 8.25-15 7 7.00BD 215 710 16 147A5 +
Load capacity
Forklift Truck upto 25km/h Other vehicles Side loaders static Inf. pr
(BAR)
Load wheel Steer wheel 10 Km/hr 25 km/hr 0 km/hr
4015 3090 4015 3090 4665 10.50
8.25-15 IND-1 8.25-15 TR75A 28x9/ 6.50/ 7.00/ 7.50/ 8.25-15 6.5 6.00/7 250 830 14 149A5 +
Load capacity
Forklift Truck upto 25km/h Other vehicles Side loaders static Inf. pr
(BAR)
Load wheel Steer wheel 10 Km/hr 25 km/hr 0 km/hr
4225 3250 4225 3250 4910 8.00
8.25-15 IND-1 8.25-15 TR75A 28x9/ 6.50/ 7.00/ 7.50/ 8.25-15 6.5 6.00/7 250 830 16 152A5 +
Load capacity
Forklift Truck upto 25km/h Other vehicles Side loaders static Inf. pr
(BAR)
Load wheel Steer wheel 10 Km/hr 25 km/hr 0 km/hr
4615 3550 4615 3550 5360 9.25
8.25-15 IND-1 8.25-15 TR75A 28x9/ 6.50/ 7.00/ 7.50/ 8.25-15 6.5 6.00/7 250 830 18 153A5 +
Load capacity
Forklift Truck upto 25km/h Other vehicles Side loaders static Inf. pr
(BAR)
Load wheel Steer wheel 10 Km/hr 25 km/hr 0 km/hr
4745 3650 4745 3650 5510 10.00
250-15 IND-1 250-15 TR75A 250/300-15 7.5 - 245 750 16 150A5 +
Load capacity
Forklift Truck upto 25km/h Other vehicles Side loaders static Inf. pr
(BAR)
Load wheel Steer wheel 10 Km/hr 25 km/hr 0 km/hr
4355 3350 4355 3350 5060 8.25
250-15 IND-1 250-15 TR75A 250/300-15 7.5 - 245 750 20 155A5 +
Load capacity
Forklift Truck upto 25km/h Other vehicles Side loaders static Inf. pr
(BAR)
Load wheel Steer wheel 10 Km/hr 25 km/hr 0 km/hr
5040 3875 5040 3875 5850 10.00
300-15 IND-1 300-15 TR75A 250/300-15 8 - 290 840 16 156A5 +
Load capacity
Forklift Truck upto 25km/h Other vehicles Side loaders static Inf. pr
(BAR)
Load wheel Steer wheel 10 Km/hr 25 km/hr 0 km/hr
5135 3950 5135 3950 5965 6.00
300-15 IND-1 300-15 TR75A 250/300-15 8 - 290 840 20 164A5 +
Load capacity
Forklift Truck upto 25km/h Other vehicles Side loaders static Inf. pr
(BAR)
Load wheel Steer wheel 10 Km/hr 25 km/hr 0 km/hr
6500 5000 6500 5000 7550 9.00
Technical Data
Intl.
US
Tyre Size Rec. RIM
(inch)		 Alt. RIM
(inch)		 Unloaded dimensions (mm) Type Ply Rating Load Index & Speed Symbol Fabric Load table
Section Width Overall Diameter Static Load Radius Rolling Circumference

IT 45

https://preview.daddy3d.com/TVS/IT45_10216/index.html
