Skidsteer Loader

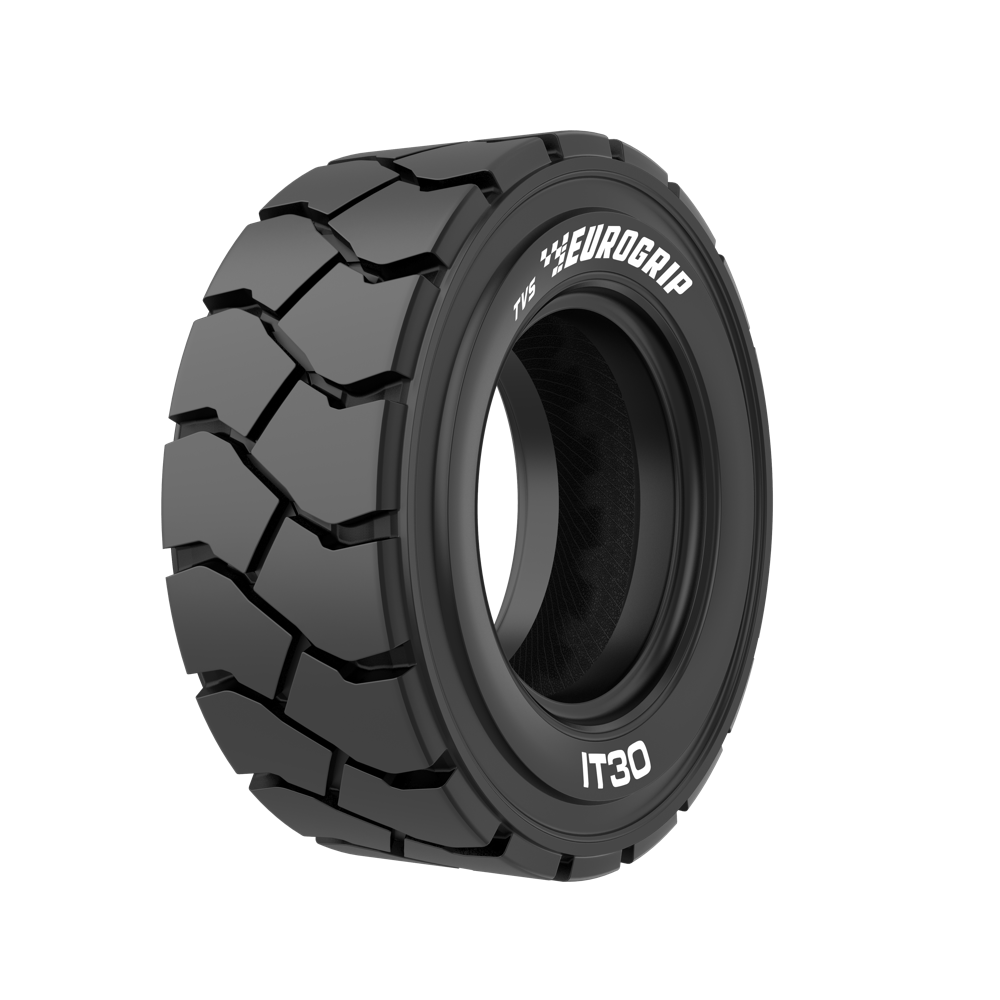

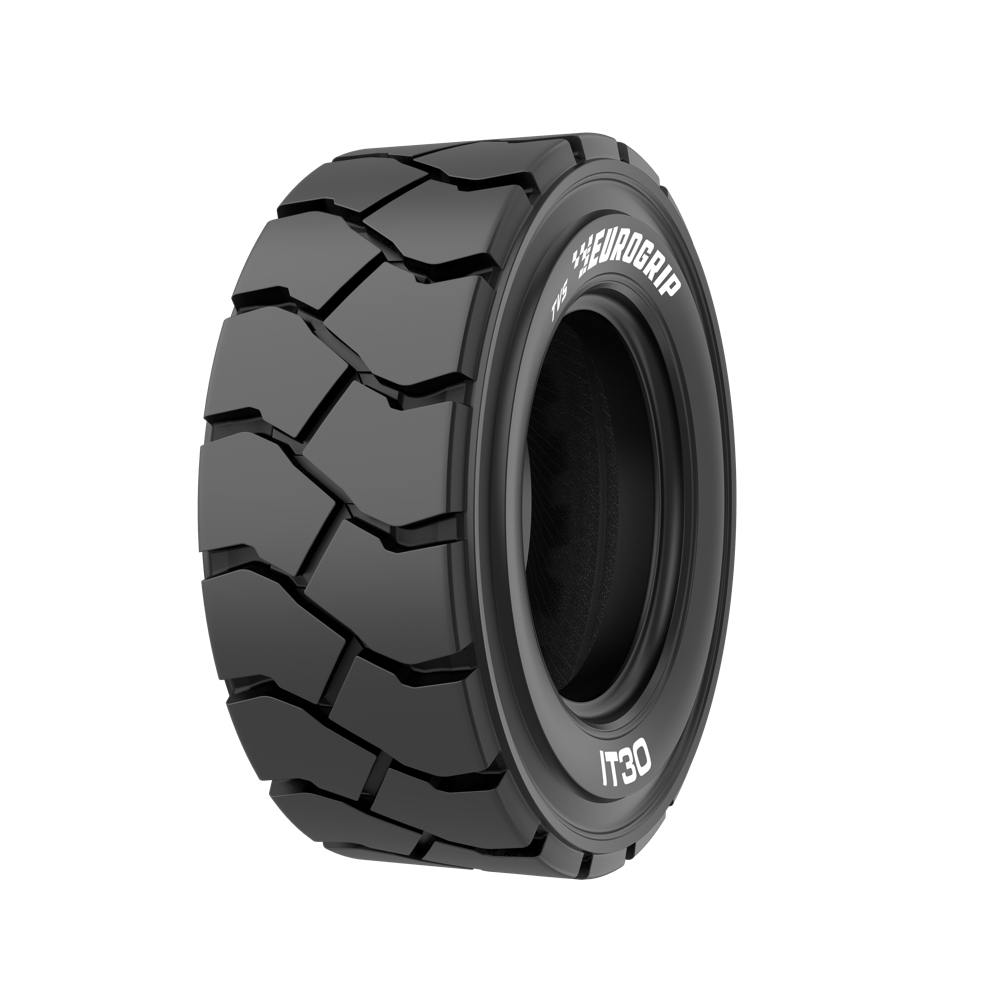

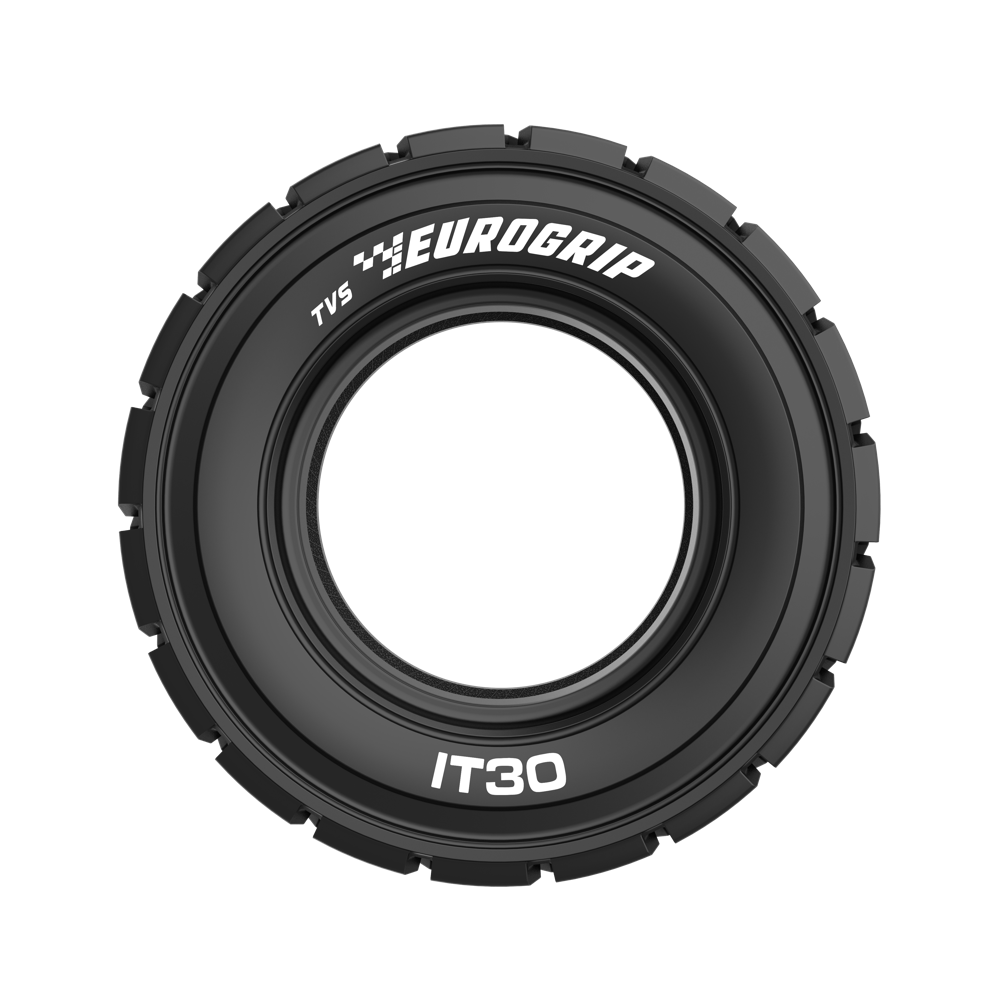

IT 30 SS

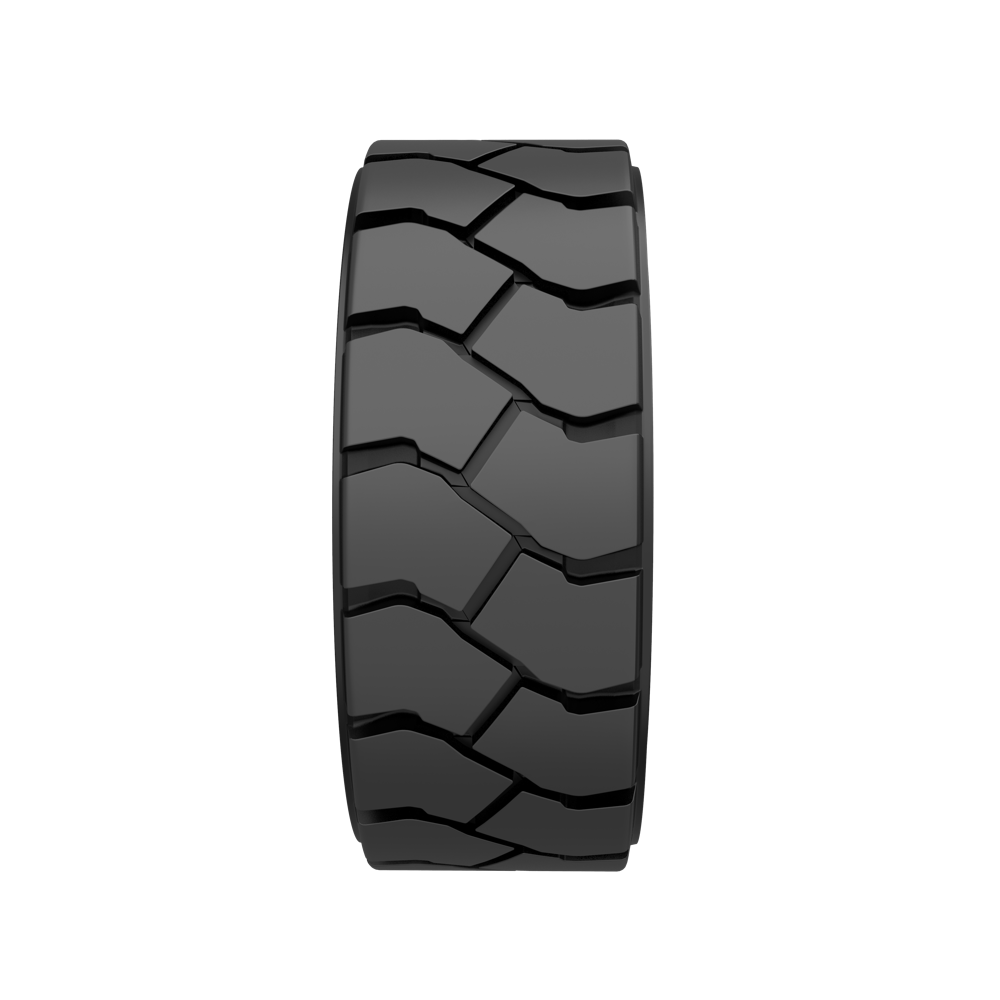

The IT 30 L-4 skid steer loader tyre is ideal for machines that are predominantly used on hard and improved surfaces such as concrete. Its wide lugs with lesser void area provide a large footprint for the tread. This minimises the effects of abrasion and general wear. It is ideal for machines used in material handling operations that require round the clock operations.
L-4
A2
Bias
Suitable for
Skidsteer Loader
Technical Data
| TYRE SIZE | REC. RIM (inch) | ALT. RIM (inch) | UNLOADED DIMENSIONS (mm) | TYPE | PLY RATING | LI & SS | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| SW | OD | SLR | RC | |||||||
| 10-16.5 | 8.25 | - | 280 | 790 | 361 | 2331 | TL | 10 | 134A2 | 126A3 | |
| 12-16.5 | 9.75 | - | 330 | 835 | 377 | 2463 | TL | 12 | 145A2 | 137A3 | |
| 12-16.5 | 9.75 | - | 330 | 835 | 377 | 2463 | TL | 14 | 147A2 | 139A3 | |
IMPERIAL
METRIC
Technical Table 01
| TYRE SIZE | RIM SIZE | REC. RIM | ALT. RIM | UNLOADED DIMENSIONS (mm) | PLY RATING | LOAD INDEX SPEED SYMBOL | ||||
| SW | OD | SLR | RC | |||||||
| 15.0/70-18 | 18 | W13 |
W17 W19 |
400 | 980 | 440 | 2886 | 14 | 128 A8 |
 |
| 16 | 132 A9 |
|
||||||||
Technical Data
| Tyre Size | Rec. RIM (inch) |
Alt. RIM (inch) |
Unloaded dimensions (mm) | Type | Ply Rating | Load Index & Speed Symbol | Fabric | Load table | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Section Width | Overall Diameter | Static Load Radius | Rolling Circumference | ||||||||
