Implement-Lug

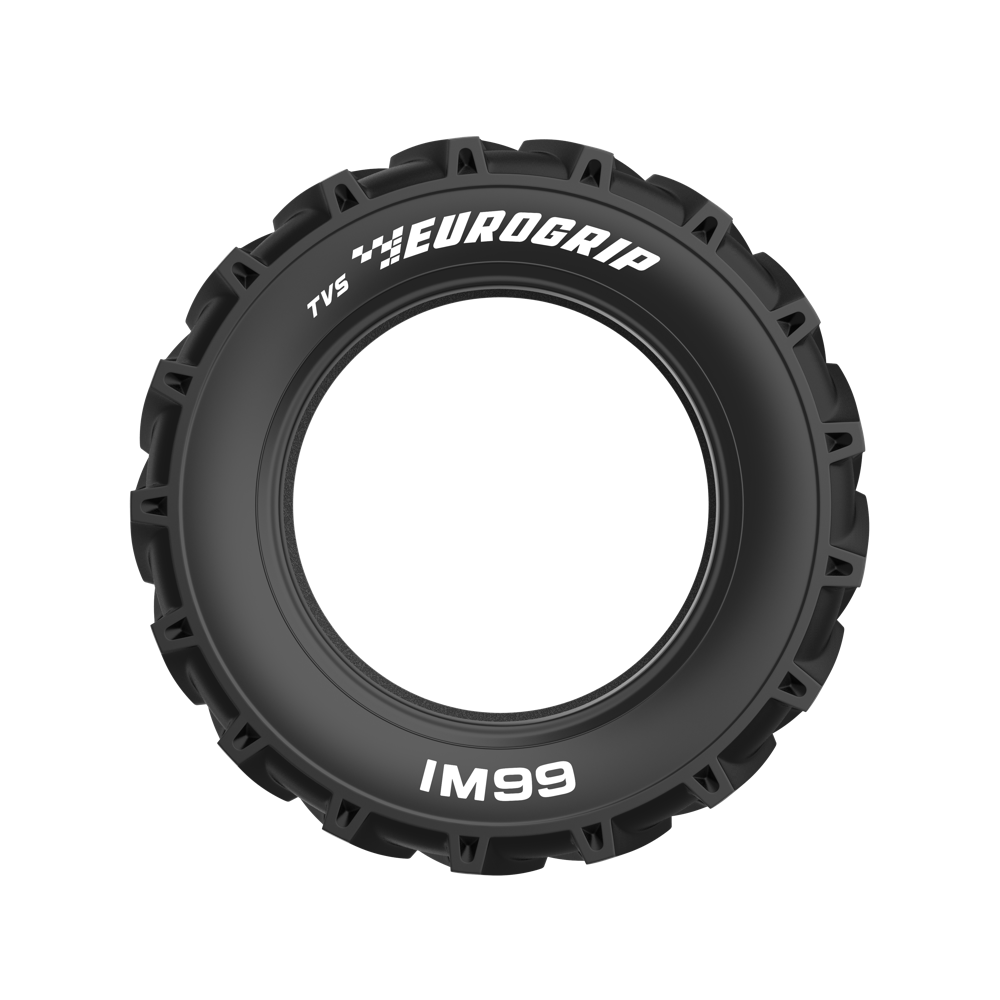

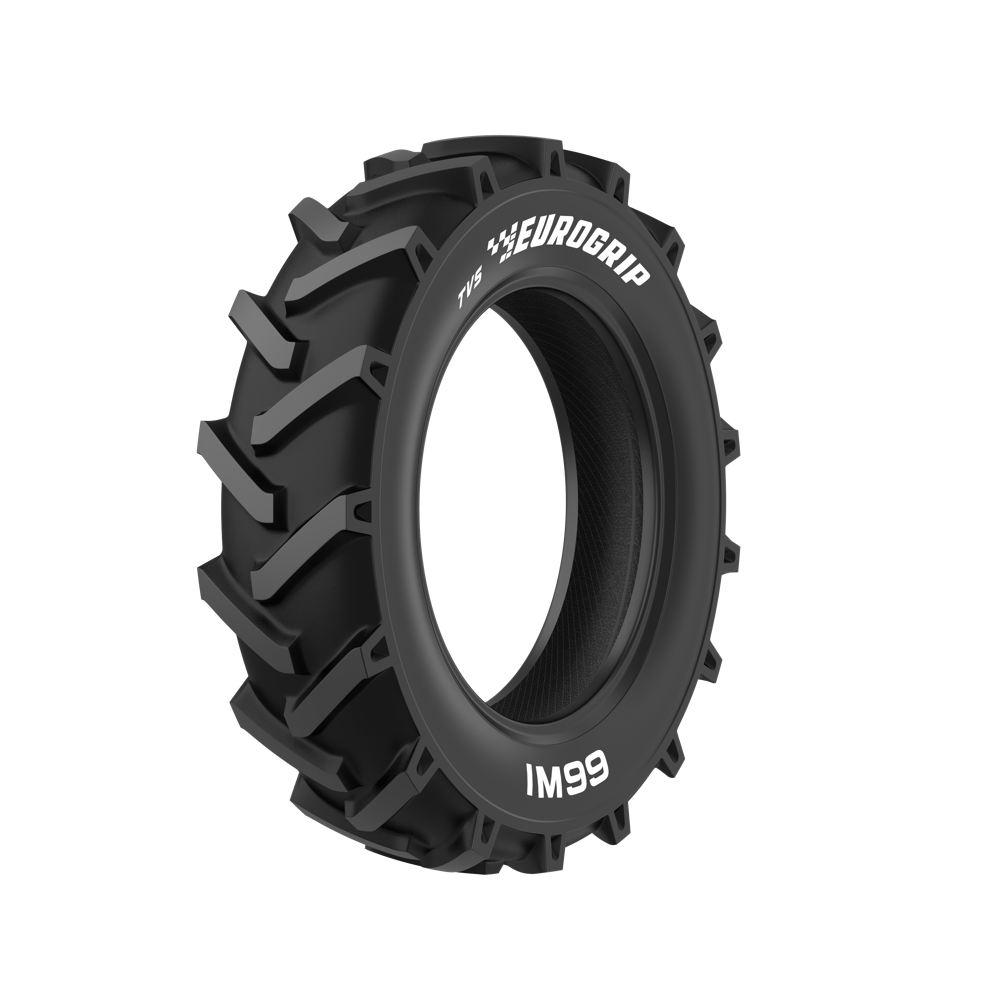

IM 99

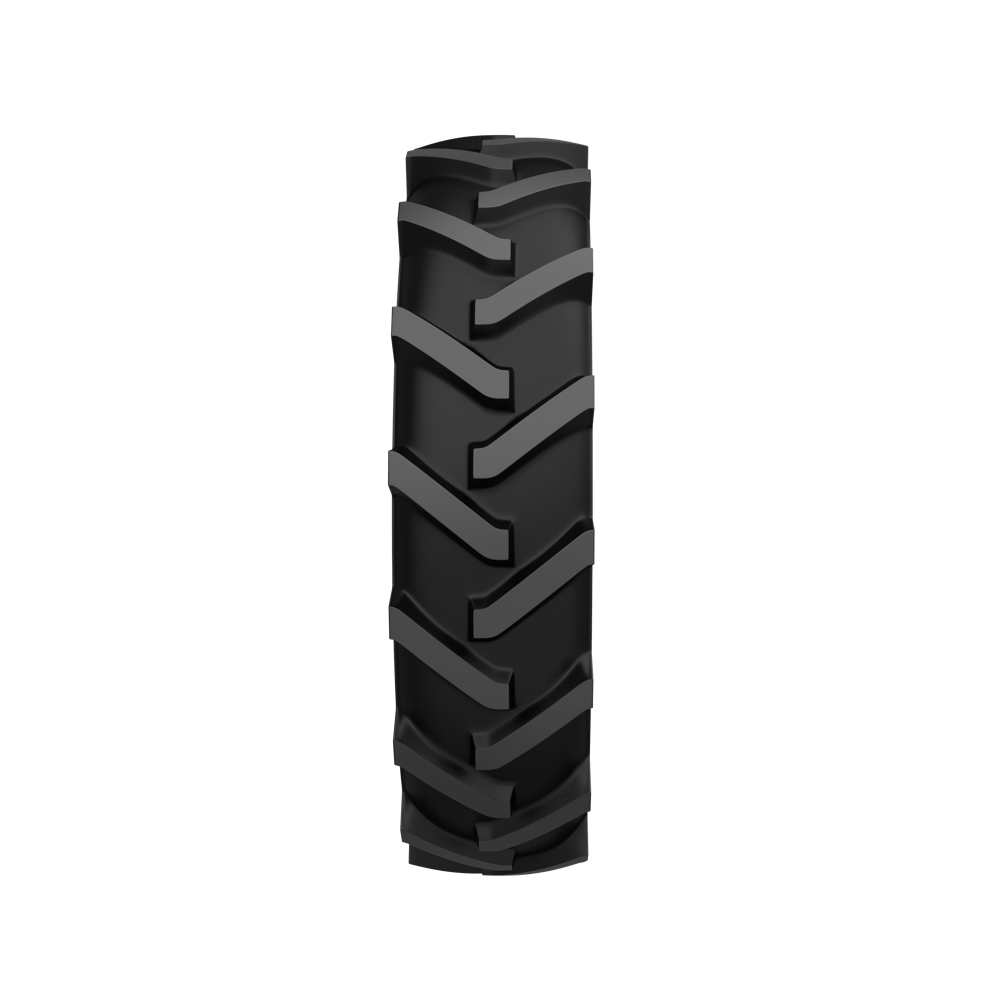

IM 99 is suitable for both drive wheel and free rolling applications in towed and powered agricultural implements. Its overlapping lug design provide excellent traction in demanding and wet surface conditions.
IMP
A8
Bias
Suitable for
Tractor 2WD
Tractor MFWD
Semi Mounted Plough
Technical Data
| TYRE SIZE | REC. RIM (inch) | ALT. RIM (inch) | UNLOADED DIMENSIONS (mm) | TYPE | PLY RATING | LI & SS | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| SW | OD | SLR | RC | |||||||
| 6.5/80-15 | 5 | - | 165 | 655 | 313 | 2010 | TT | 4 | 90A8 | 78A8 | |
| 6.5/80-15 | 5 | - | 165 | 655 | 313 | 2010 | TT | 6 | 98A8 | 86A8 | |
IMPERIAL
METRIC
Technical Table 01
| TYRE SIZE | RIM SIZE | REC. RIM | ALT. RIM | UNLOADED DIMENSIONS (mm) | PLY RATING | LOAD INDEX SPEED SYMBOL | ||||
| SW | OD | SLR | RC | |||||||
| 15.0/70-18 | 18 | W13 |
W17 W19 |
400 | 980 | 440 | 2886 | 14 | 128 A8 |
 |
| 16 | 132 A9 |
|
||||||||
Technical Data
| Tyre Size | Rec. RIM (inch) |
Alt. RIM (inch) |
Unloaded dimensions (mm) | Type | Ply Rating | Load Index & Speed Symbol | Fabric | Load table | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Section Width | Overall Diameter | Static Load Radius | Rolling Circumference | ||||||||
