Implement-Z Rib

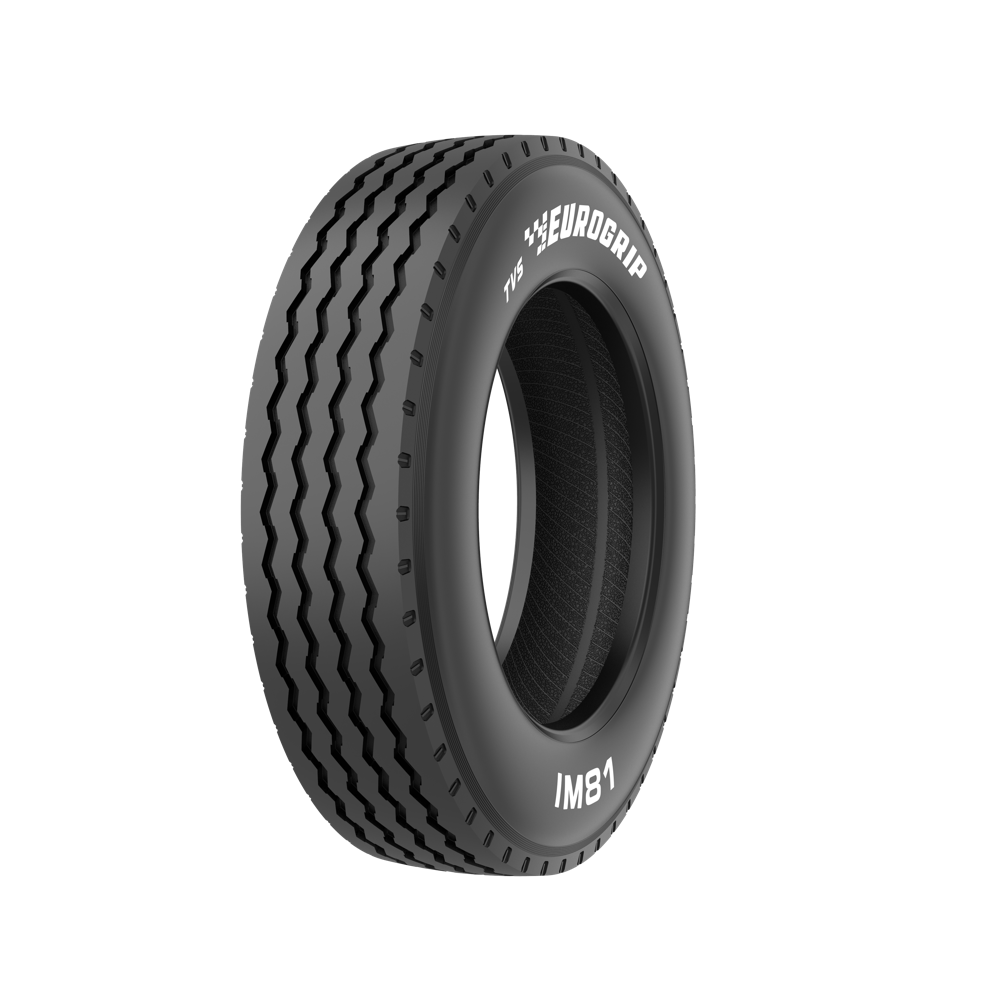

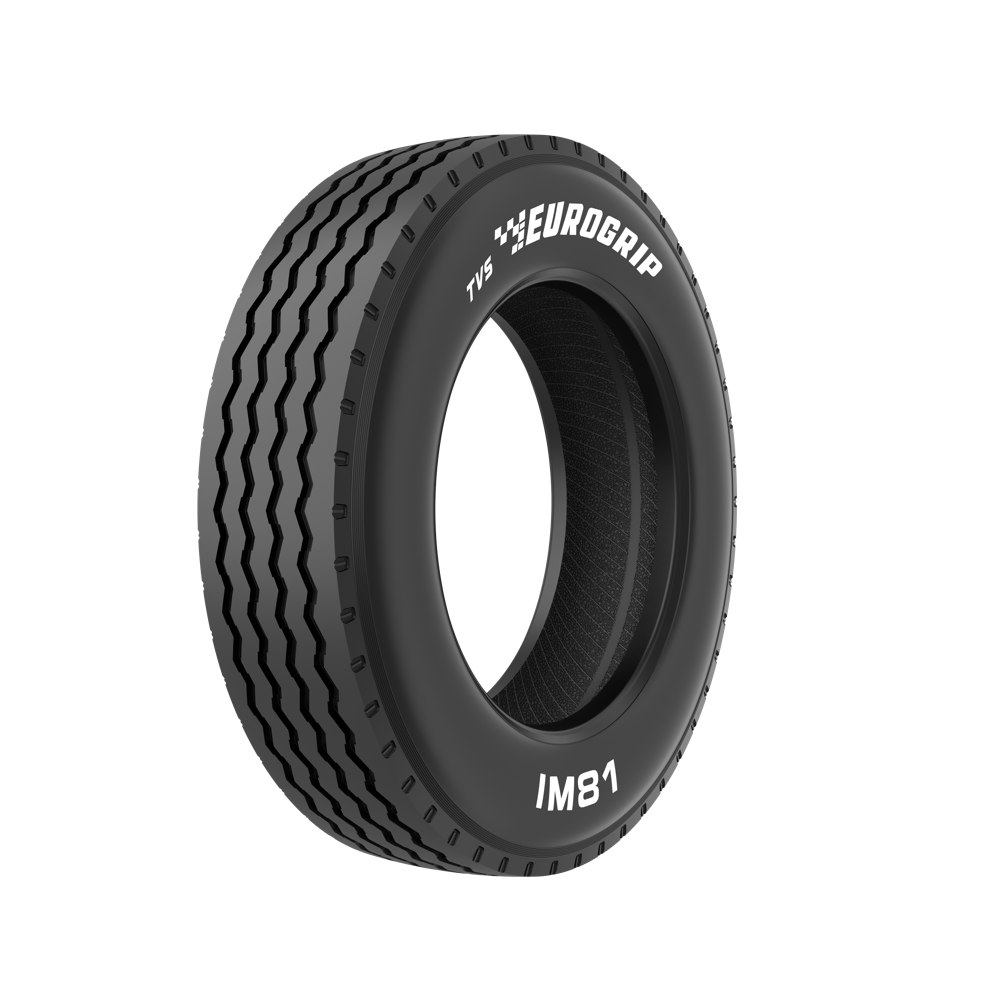

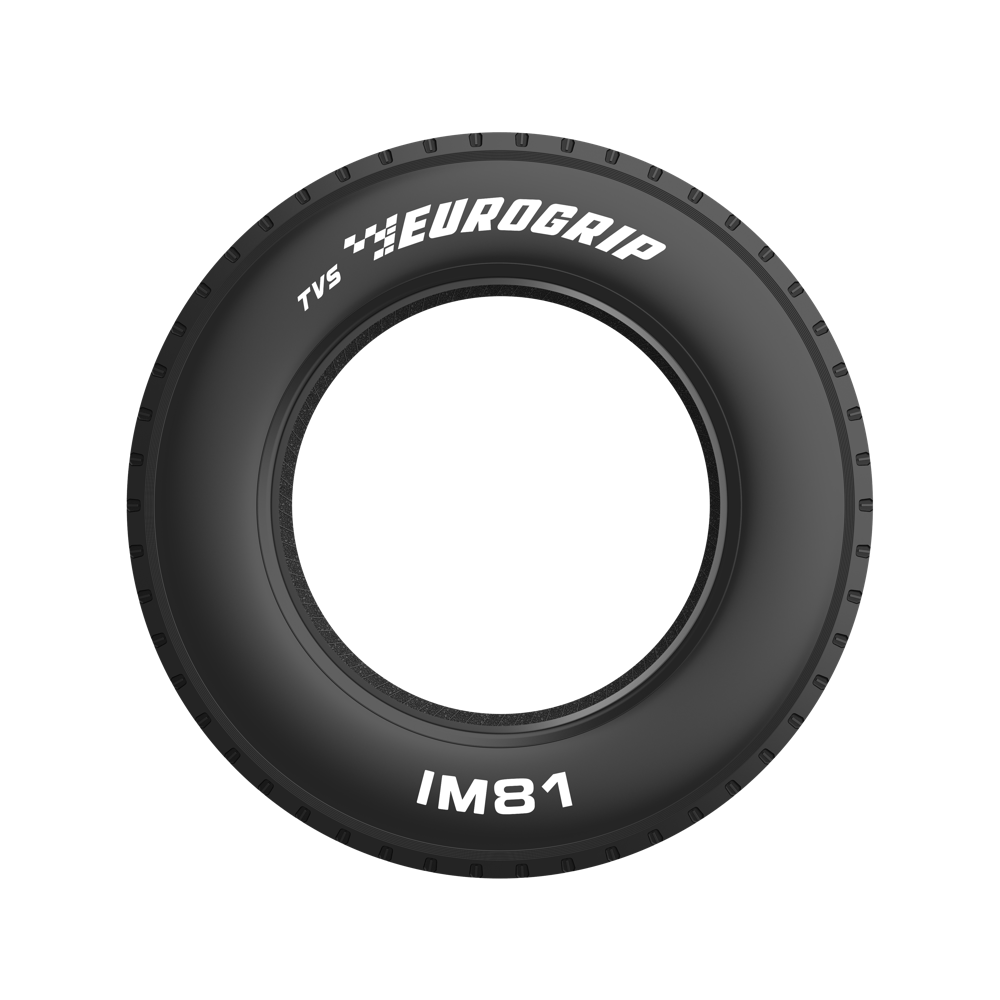

IM 81

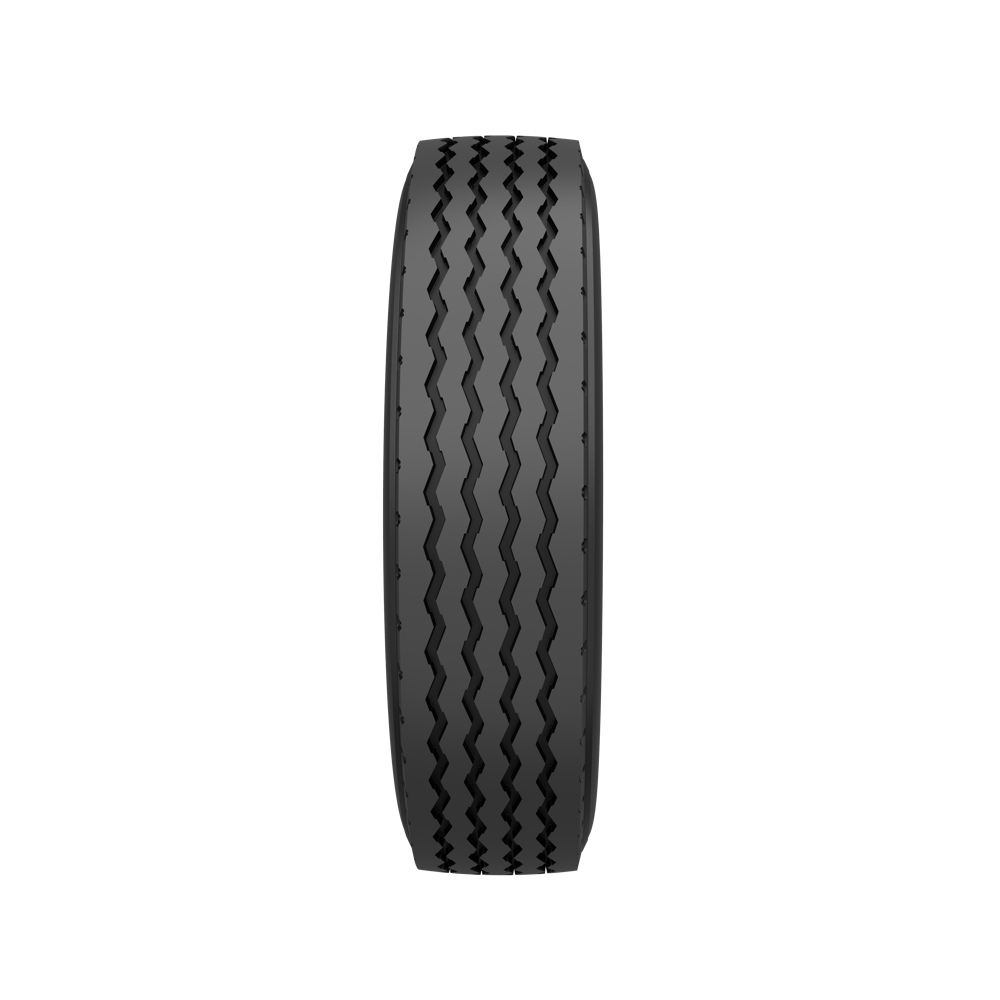

The IM 81 is a modern implement tyre designed for both on and off road uses, to be used predominantly in farming activities. The ribbed wide profile treads provide minimal compaction, higher load carrying capacity and lower rolling resistance.
IMP
A8
Bias
Suitable for
Trailer
Wagon
Technical Data
| TYRE SIZE | REC. RIM (inch) | ALT. RIM (inch) | UNLOADED DIMENSIONS (mm) | TYPE | PLY RATING | LI & SS | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| SW | OD | SLR | RC | |||||||
| 215/75-17.5 | 6 | - | 220 | 770 | 358 | 2295 | TL | 12 | ||
| 215/75-17.5 | 6 | - | 230 | 790 | 367 | 2355 | TL | 16 | ||
| 235/75-17.5 | 6.75 | - | 240 | 815 | 379 | 2429 | TL | 16 | ||
| 285/70-19.5 | 8.25 | - | 285 | 905 | 420 | 2695 | TL | 12 | ||
| 285/70-19.5 | 8.25 | 9.25 | 285 | 905 | 420 | 2695 | TL | 18 | ||
| 425/55-19.5 | 13 | - | 420 | 980 | 455 | 2921 | TL | 16 | ||
IMPERIAL
METRIC
Technical Table 01
| TYRE SIZE | RIM SIZE | REC. RIM | ALT. RIM | UNLOADED DIMENSIONS (mm) | PLY RATING | LOAD INDEX SPEED SYMBOL | ||||
| SW | OD | SLR | RC | |||||||
| 15.0/70-18 | 18 | W13 |
W17 W19 |
400 | 980 | 440 | 2886 | 14 | 128 A8 |
 |
| 16 | 132 A9 |
|
||||||||
Technical Data
| Tyre Size | Rec. RIM (inch) |
Alt. RIM (inch) |
Unloaded dimensions (mm) | Type | Ply Rating | Load Index & Speed Symbol | Fabric | Load table | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Section Width | Overall Diameter | Static Load Radius | Rolling Circumference | ||||||||
