Implement-Traction

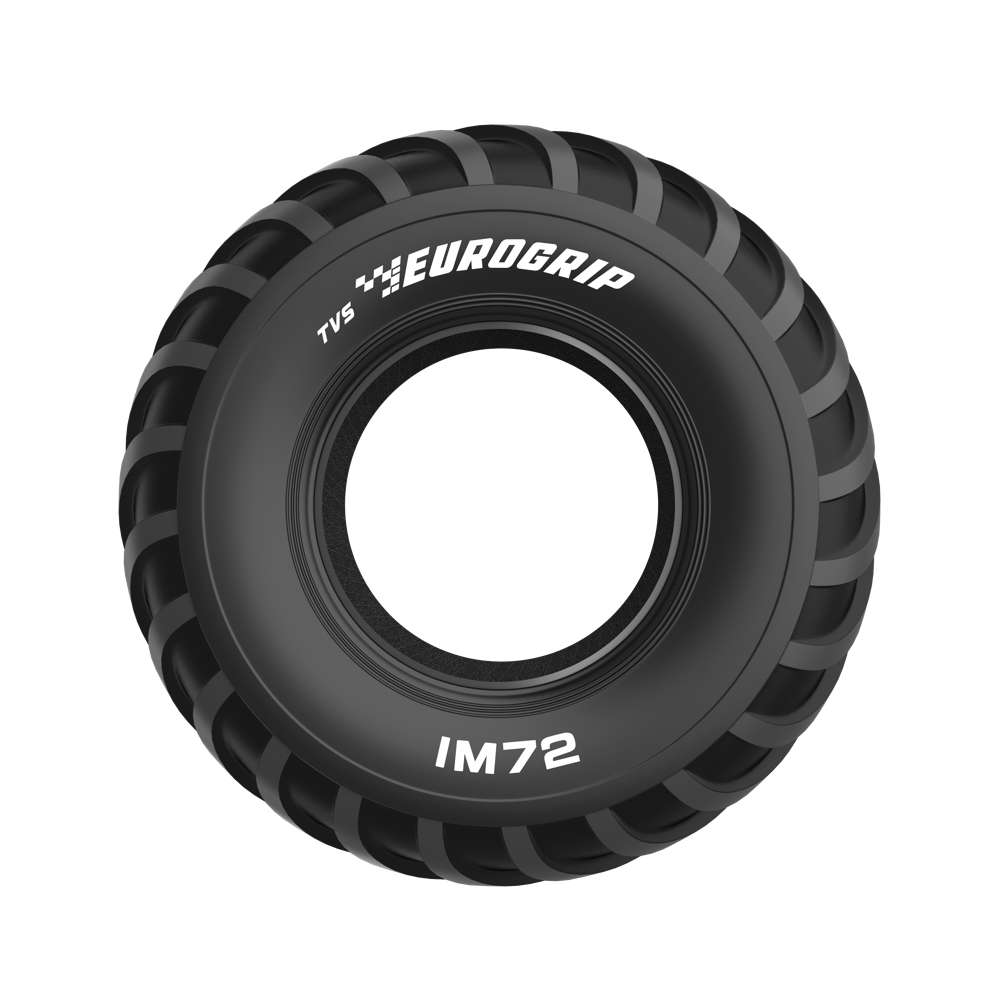

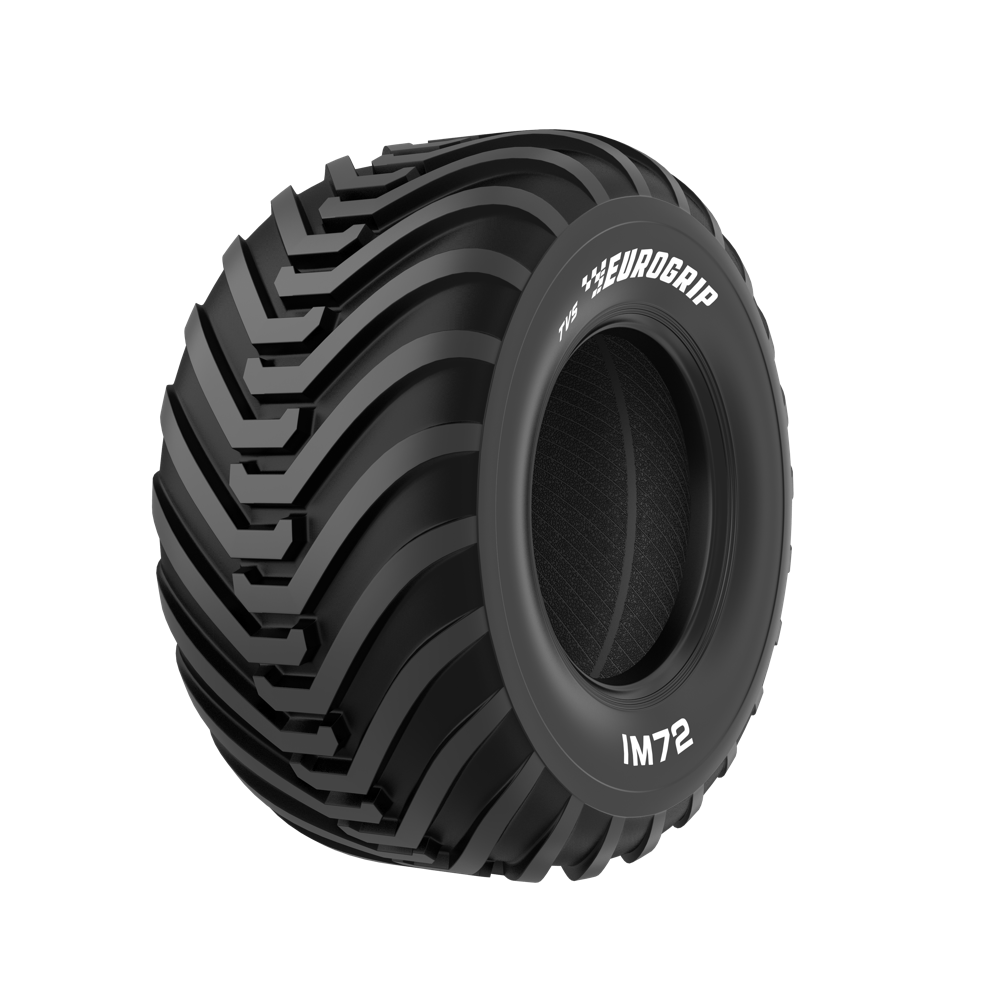

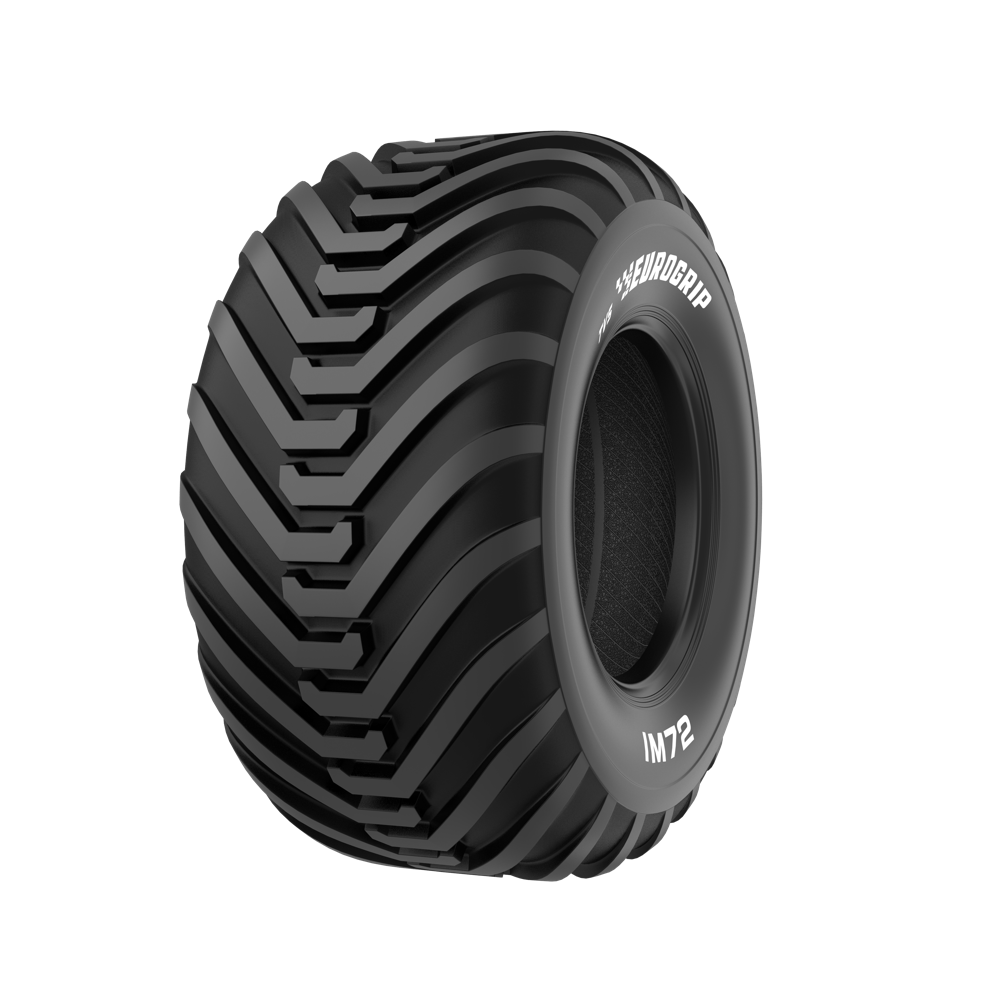

IM 72

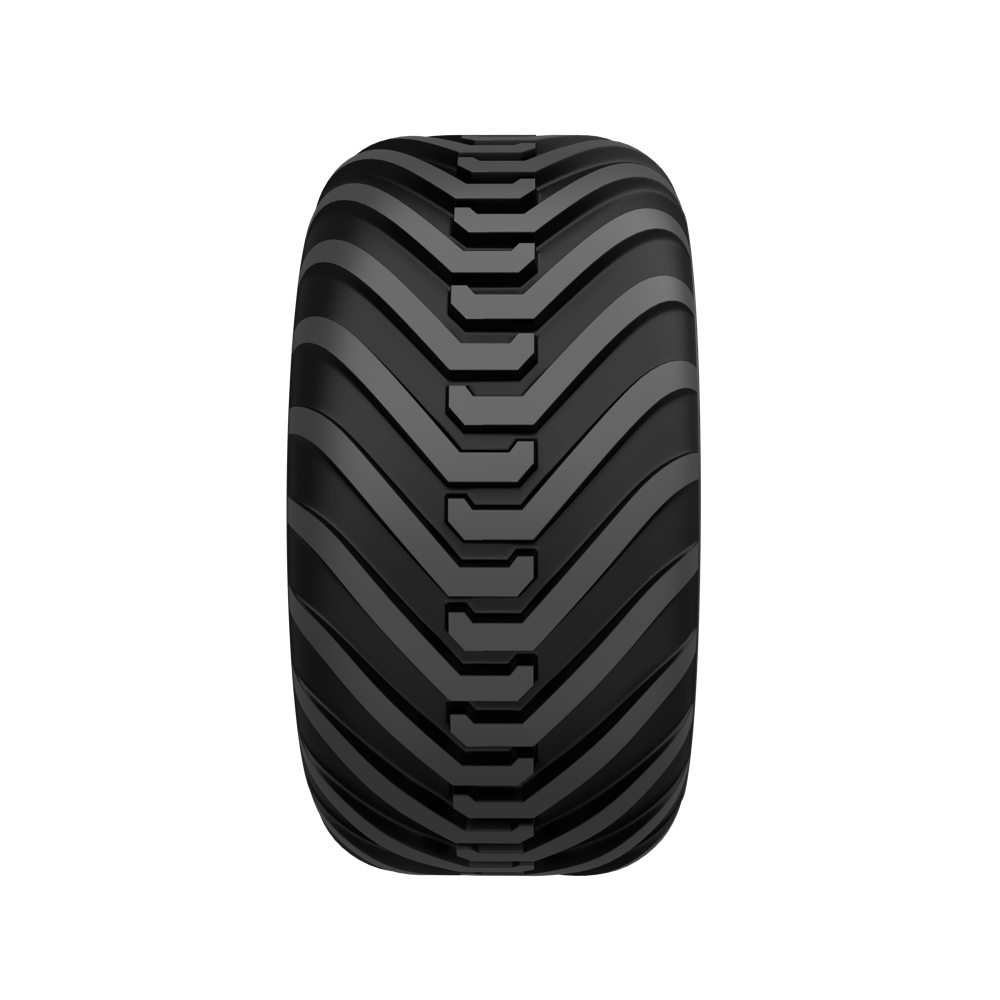

The IM 72 is a series of low profile implement tyre built with overlapping lug type treads. They enable the machine to be operated on both wet / soft and hard soil conditions. The IM 72 is designed to minimise soil compaction and provide good load carrying capacity. It is ideal for balers, small trailers, and other towed implements.
I-3
A8
Bias
Suitable for
Round Baler
Square Baler
Trailer
Planter
Seeder
Technical Data
| TYRE SIZE | REC. RIM (inch) | ALT. RIM (inch) | UNLOADED DIMENSIONS (mm) | TYPE | PLY RATING | LI & SS | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| SW | OD | SLR | RC | |||||||
| 400/60-15.5 | AG13 | - | 405 | 865 | 387 | 2608 | TL | 14 | 145A8 | 132A8 | |
| 400/60-15.5 | AG13 | - | 405 | 865 | 387 | 2608 | TL | 18 | 149A8 | 137A8 | |
| 400/60-15.5 | AG13 | - | 405 | 865 | 387 | 2608 | TL | 22 | 153A8 | 140A8 | |
| 500/50-17 | 16 | - | 478 | 925 | 418 | 2765 | TL | 14 | 149A8 | 136A8 | |
| 500/50-17 | 16 | - | 478 | 925 | 418 | 2765 | TL | 16 | 152A8 | 139A8 | |
| 500/50-17 | 16 | - | 478 | 925 | 418 | 2765 | TL | 18 | 154A8 | 141A8 | |
IMPERIAL
METRIC
Technical Table 01
| TYRE SIZE | RIM SIZE | REC. RIM | ALT. RIM | UNLOADED DIMENSIONS (mm) | PLY RATING | LOAD INDEX SPEED SYMBOL | ||||
| SW | OD | SLR | RC | |||||||
| 15.0/70-18 | 18 | W13 |
W17 W19 |
400 | 980 | 440 | 2886 | 14 | 128 A8 |
 |
| 16 | 132 A9 |
|
||||||||
Technical Data
| Tyre Size | Rec. RIM (inch) |
Alt. RIM (inch) |
Unloaded dimensions (mm) | Type | Ply Rating | Load Index & Speed Symbol | Fabric | Load table | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Section Width | Overall Diameter | Static Load Radius | Rolling Circumference | ||||||||
