Implement-Lug

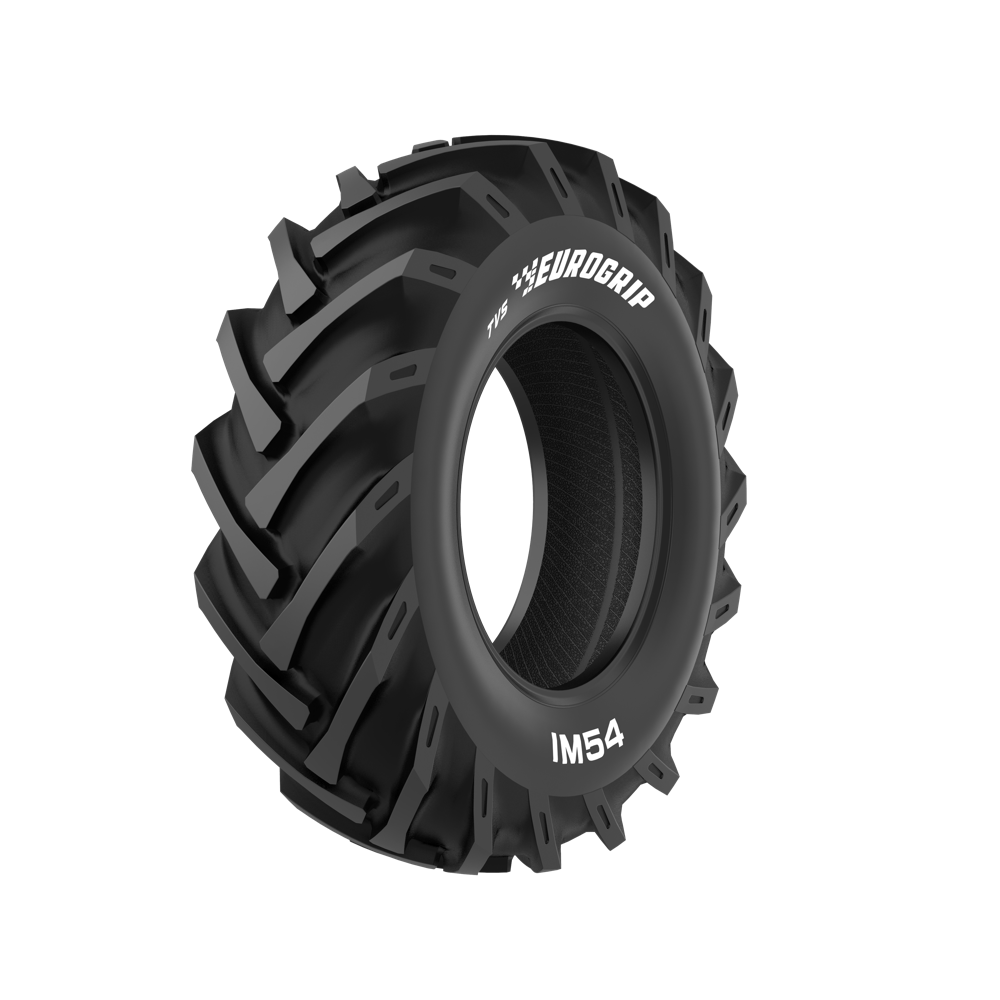

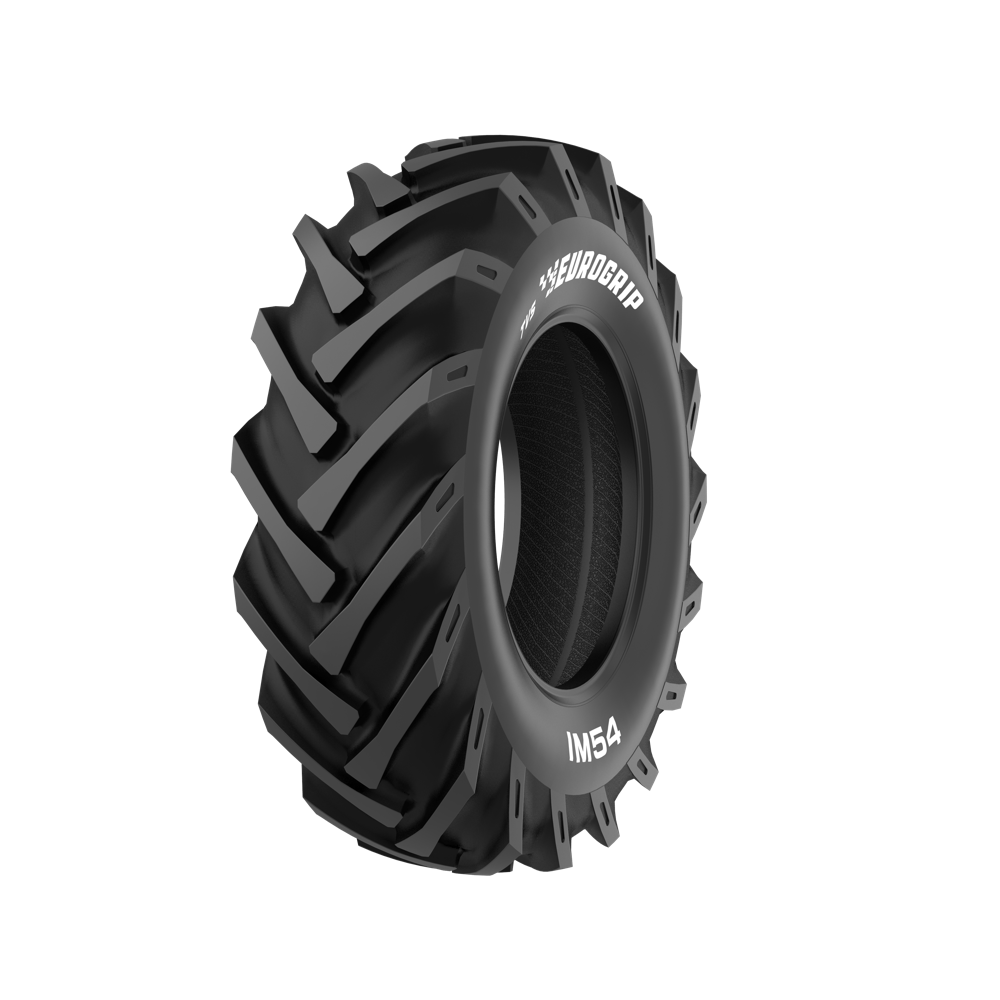

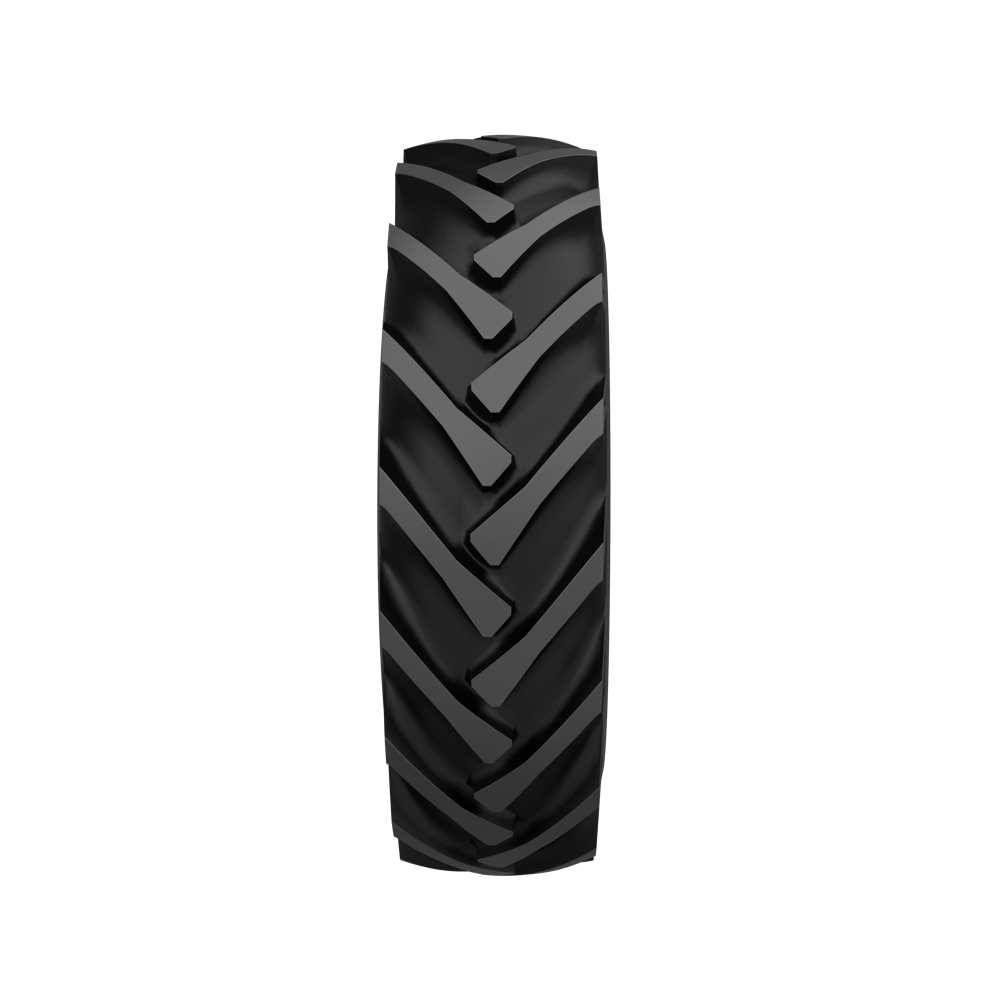

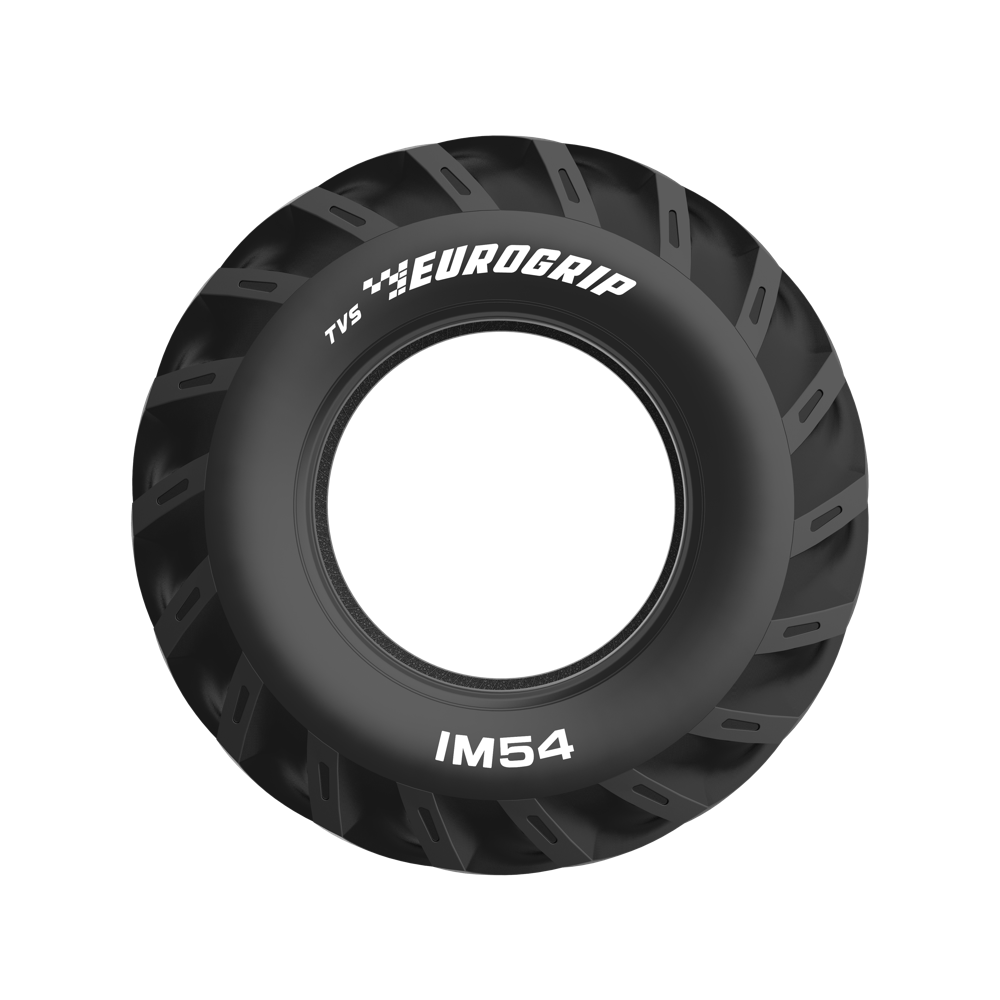

IM 54T
IM 54T is a range of tyres suited for use in agro-industrial machinery and agricultural implements. Suited ideally for low traction wet surfaces, the tractor like lugs provide the machines with better traction and superior self-cleaning.
R-1/G-1
A8
Bias
Suitable for
Trailer
Tractor MFWD
Tractor 4WD
Technical Data
| TYRE SIZE | REC. RIM (inch) | ALT. RIM (inch) | UNLOADED DIMENSIONS (mm) | TYPE | PLY RATING | LI & SS | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| SW | OD | SLR | RC | |||||||
| 7.50-16 | 5.50F | - | 200 | 775 | 378 | 2381 | TT | 8 | 112A8 | 99A8 | |
| 8.25-16 | 6.00F | - | 232 | 825 | 386 | 2451 | TL | 6 | 110A8 | 98A8 | |
| 8.25-16 | 6.00F | - | 232 | 825 | 386 | 2451 | TL | 8 | 116A8 | 103A8 | |
IMPERIAL
METRIC
Technical Table 01
| TYRE SIZE | RIM SIZE | REC. RIM | ALT. RIM | UNLOADED DIMENSIONS (mm) | PLY RATING | LOAD INDEX SPEED SYMBOL | ||||
| SW | OD | SLR | RC | |||||||
| 15.0/70-18 | 18 | W13 |
W17 W19 |
400 | 980 | 440 | 2886 | 14 | 128 A8 |
 |
| 16 | 132 A9 |
|
||||||||
Technical Data
| Tyre Size | Rec. RIM (inch) |
Alt. RIM (inch) |
Unloaded dimensions (mm) | Type | Ply Rating | Load Index & Speed Symbol | Fabric | Load table | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Section Width | Overall Diameter | Static Load Radius | Rolling Circumference | ||||||||
