Implement-Lug

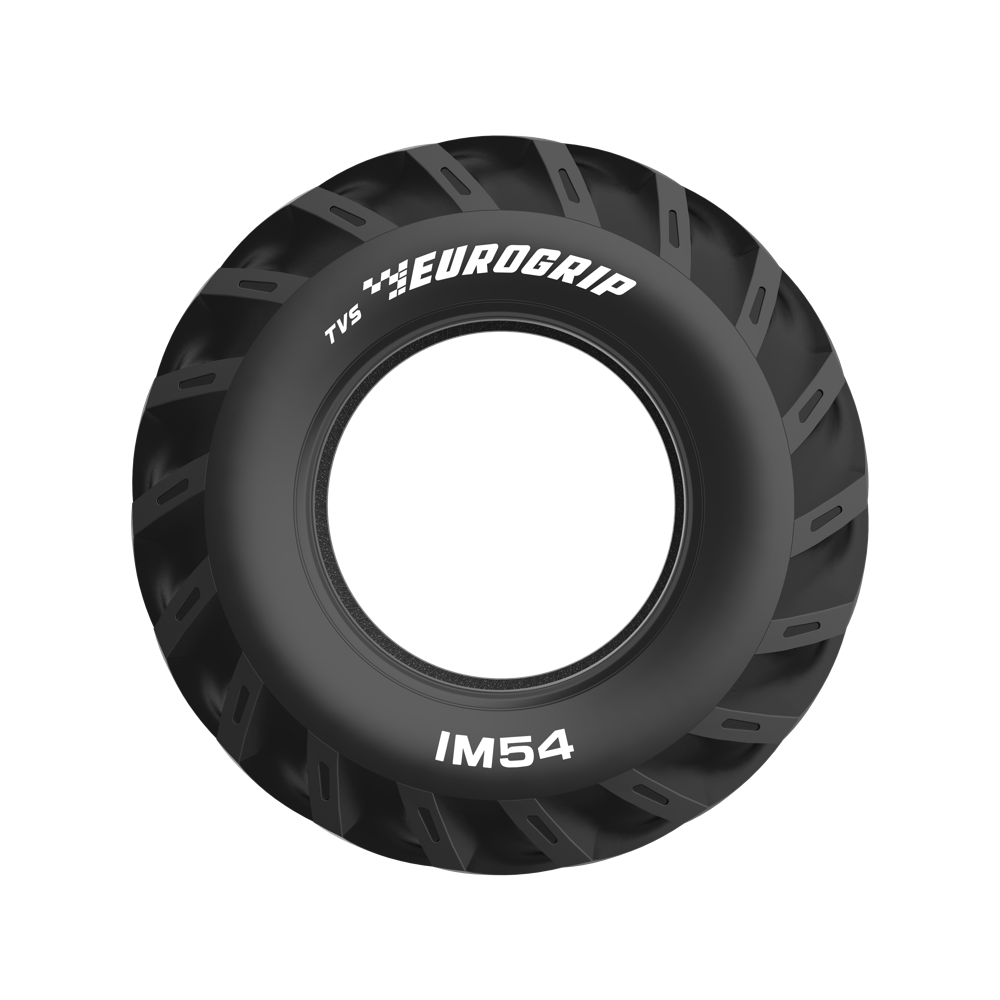

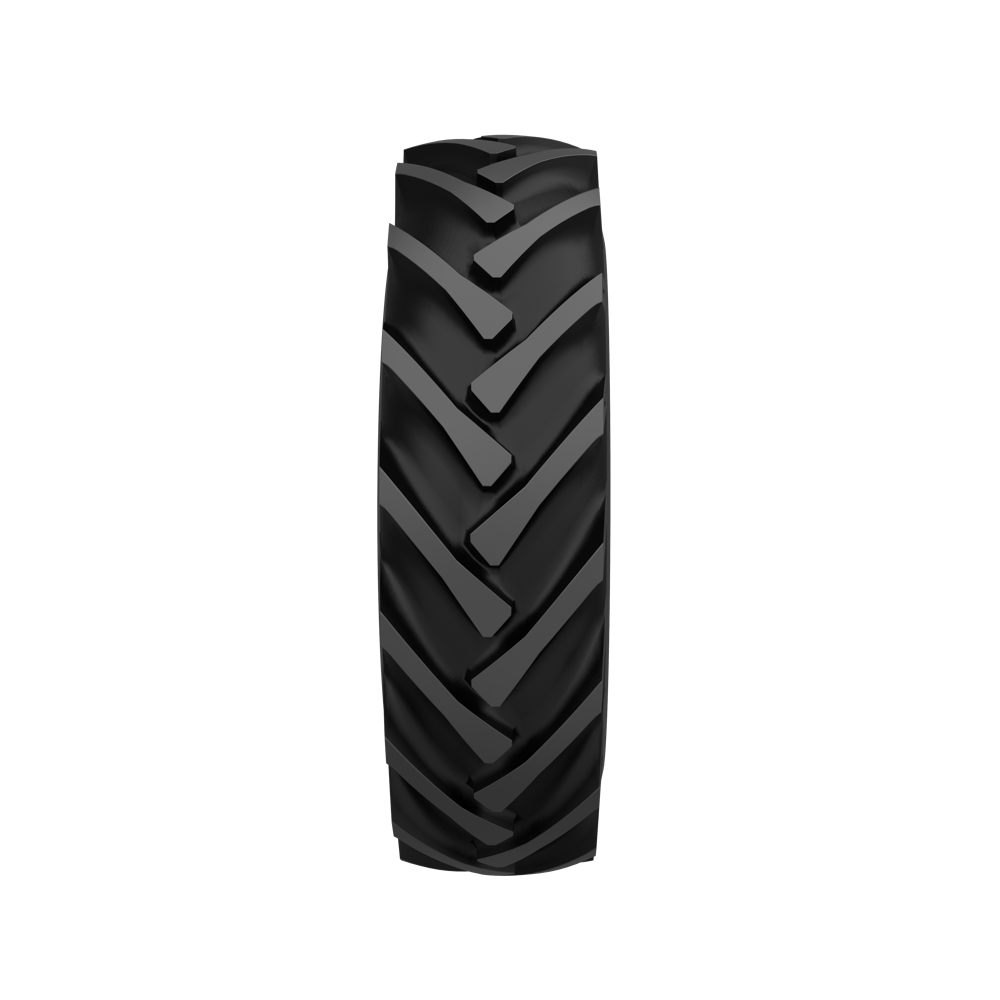

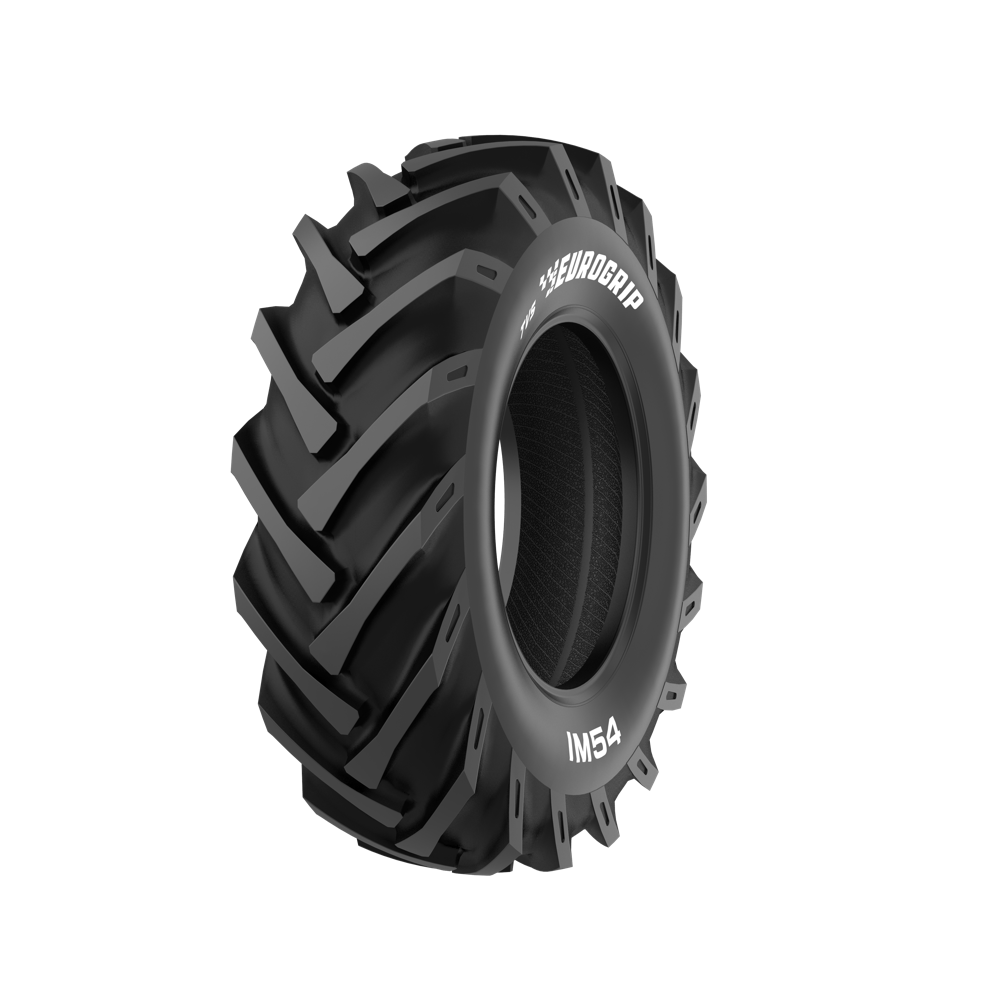

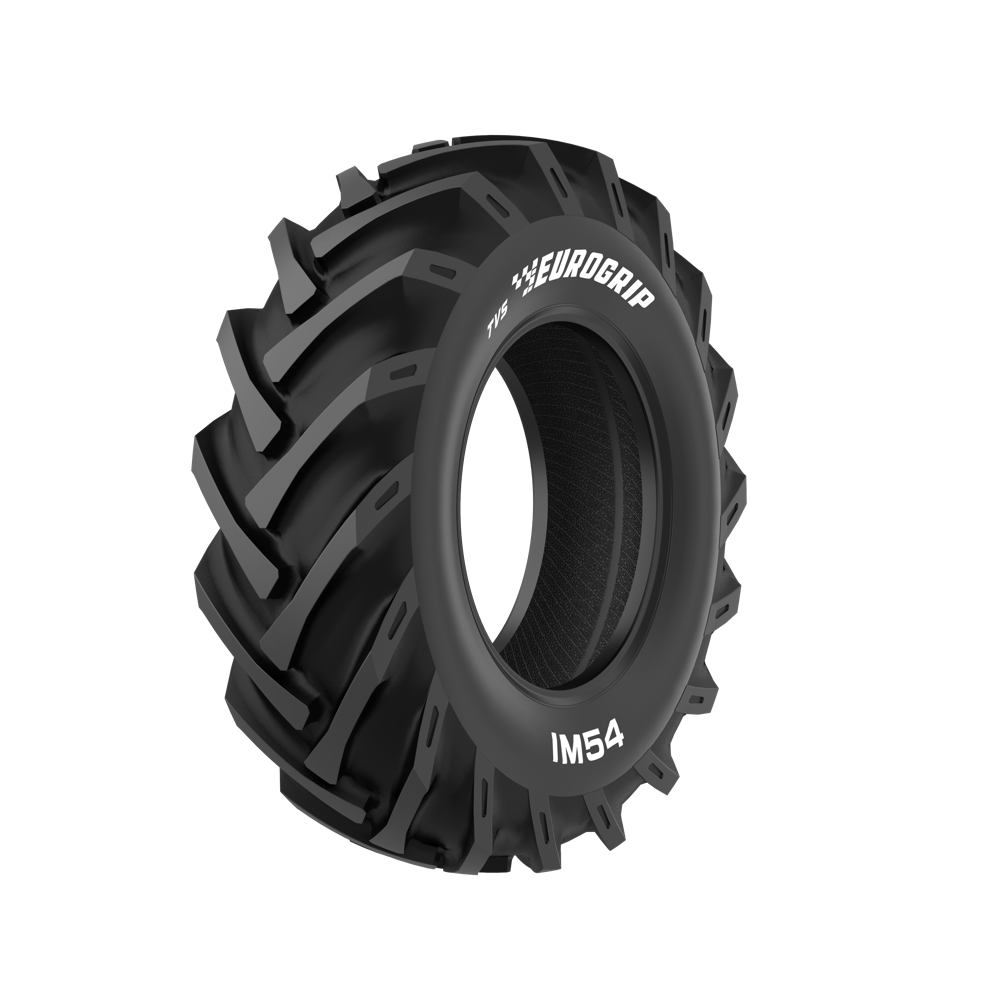

IM 54 HD
IM 54 HD is A tyre suited for use in heavy duty agro-industrial machinery and agricultural implements. Suited ideally for low traction wet surfaces, the tractor like lugs provide the machines with better traction and superior self-cleaning.
R-1
A8
Bias
Suitable for
Tractor MFWD
Tractor 4WD
Telescopic Handler
Technical Data
| TYRE SIZE | REC. RIM (inch) | ALT. RIM (inch) | UNLOADED DIMENSIONS (mm) | TYPE | PLY RATING | LI & SS | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| SW | OD | SLR | RC | |||||||
| 15.5/80-24 | W12 | - | 425 | 1255 | 565 | 3649 | TL | 14 | 160A8 | 148A8 | |
| 15.5/80-24 | W12 | - | 425 | 1255 | 565 | 3649 | TL | 16 | 163A8 | 151A8 | |
IMPERIAL
METRIC
Technical Table 01
| TYRE SIZE | RIM SIZE | REC. RIM | ALT. RIM | UNLOADED DIMENSIONS (mm) | PLY RATING | LOAD INDEX SPEED SYMBOL | ||||
| SW | OD | SLR | RC | |||||||
| 15.0/70-18 | 18 | W13 |
W17 W19 |
400 | 980 | 440 | 2886 | 14 | 128 A8 |
 |
| 16 | 132 A9 |
|
||||||||
Technical Data
| Tyre Size | Rec. RIM (inch) |
Alt. RIM (inch) |
Unloaded dimensions (mm) | Type | Ply Rating | Load Index & Speed Symbol | Fabric | Load table | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Section Width | Overall Diameter | Static Load Radius | Rolling Circumference | ||||||||
