Implement-Lug
IM 54

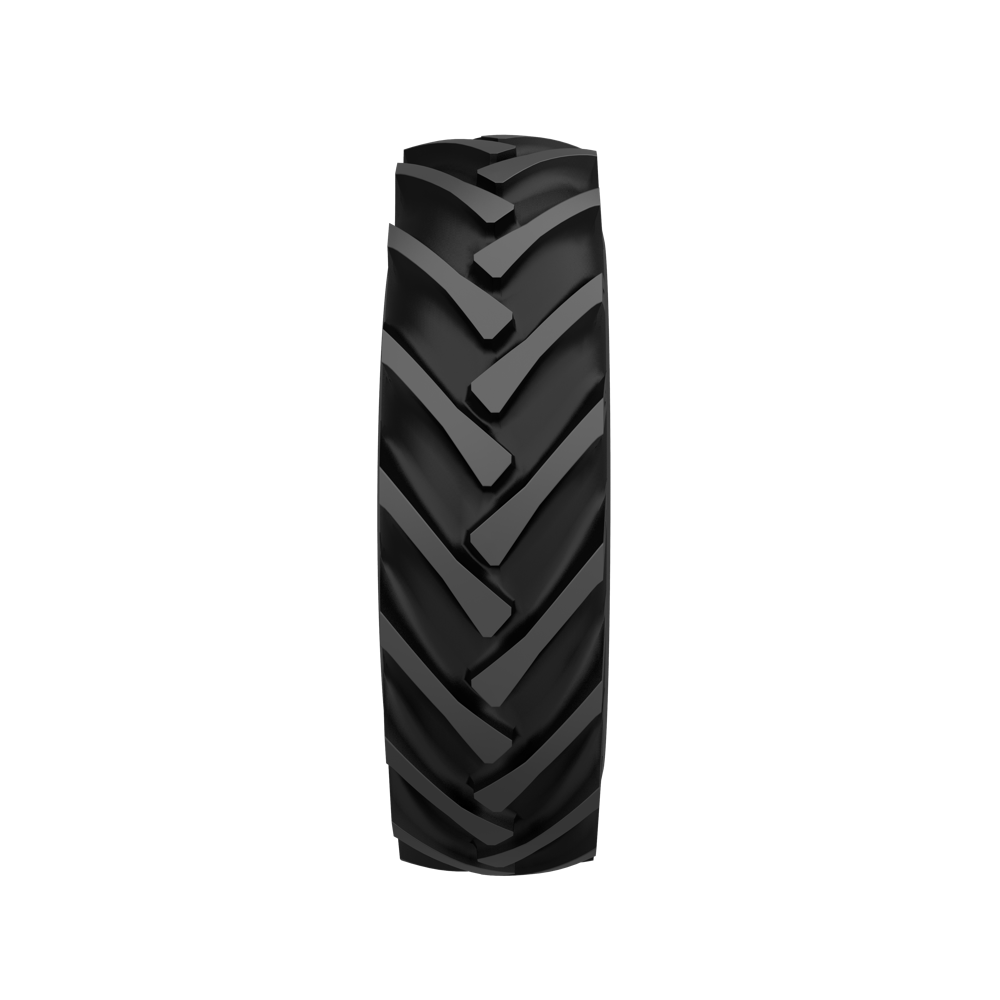

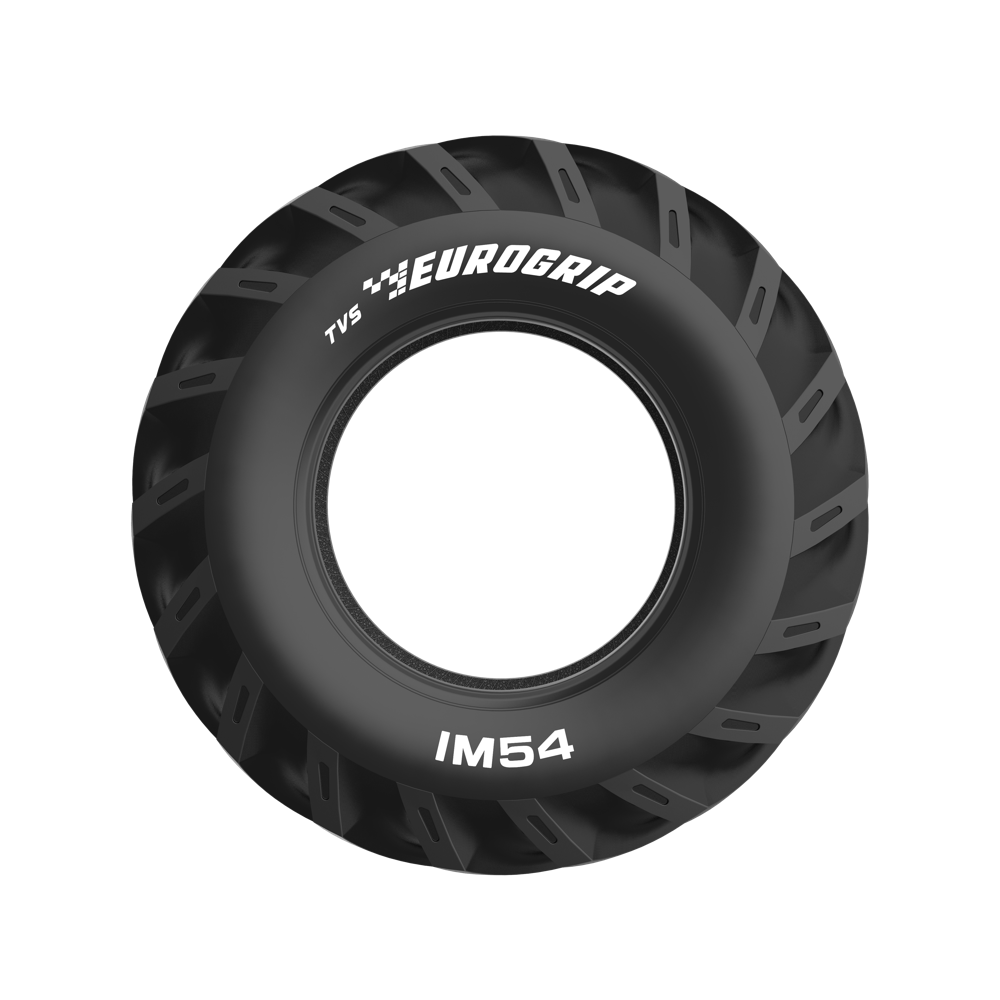

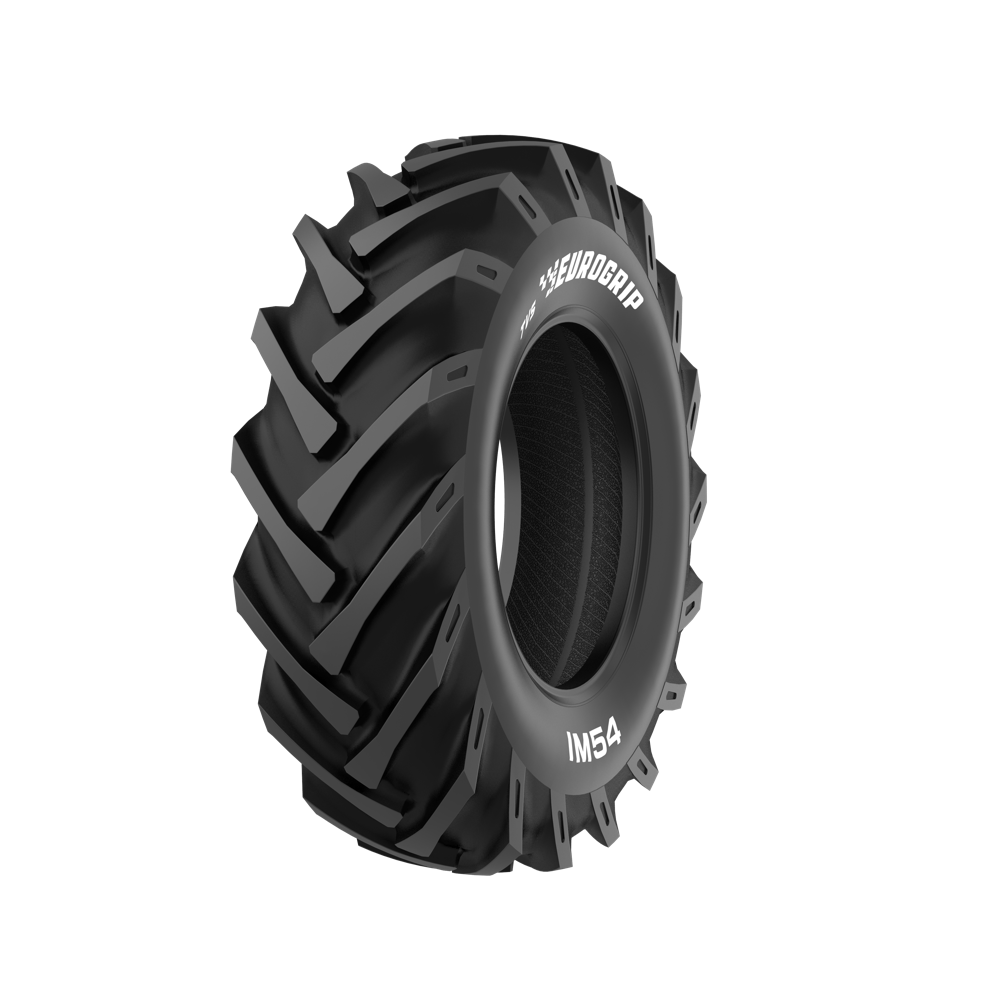

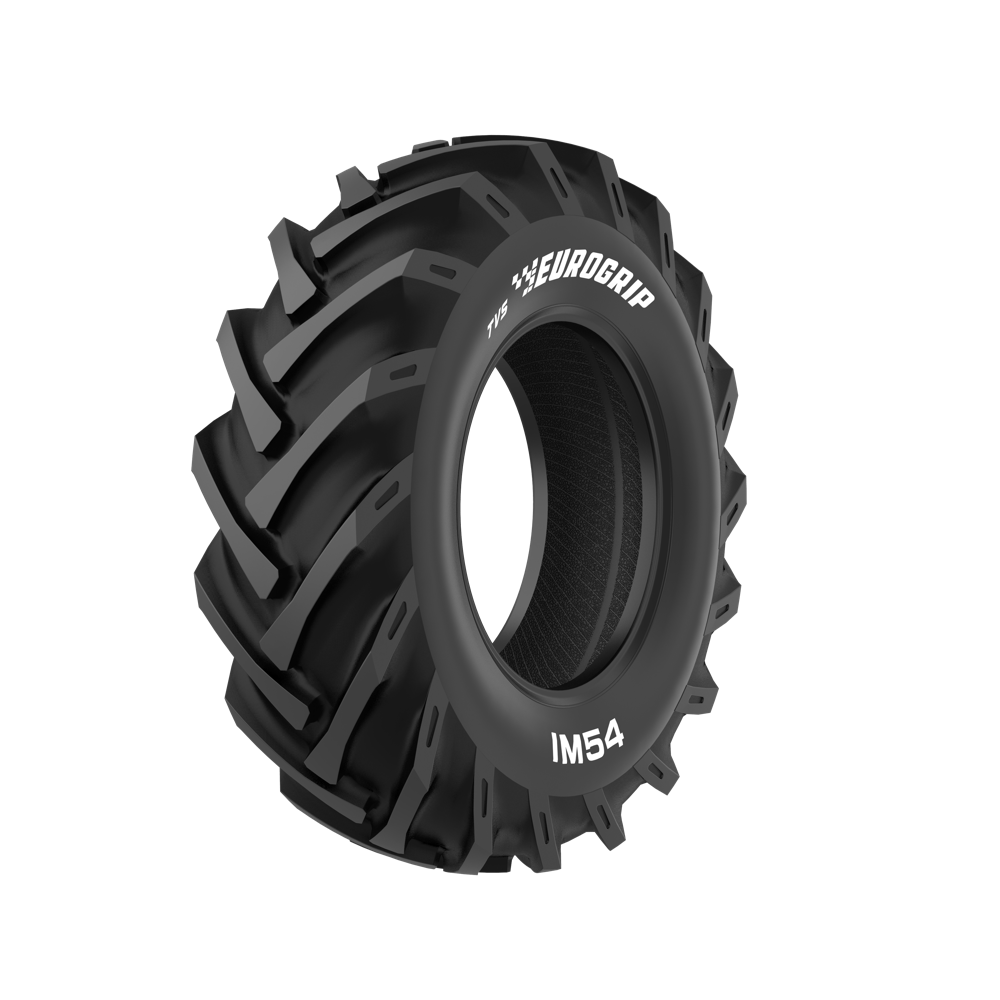

IM 54 is a range of tyres suited for use in agro-industrial machinery and agricultural implements. Suited ideally for low traction wet surfaces, the tractor like lugs provide the machines with better traction and superior self-cleaning.
R-1/G-1
A8
Bias
Suitable for
Trailer
Tractor MFWD
Tractor 4WD
Telescopic Handler
Technical Data
| TYRE SIZE | REC. RIM (inch) | ALT. RIM (inch) | UNLOADED DIMENSIONS (mm) | TYPE | PLY RATING | LI & SS | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| SW | OD | SLR | RC | |||||||
| 15.5/80-24 | W12 | - | 425 | 1255 | 565 | 3649 | TL | 12 | 157A8 | 145A8 | |
| 15.5/80-24 | W12 | - | 425 | 1255 | 565 | 3649 | TL | 14 | 160A8 | 148A8 | |
| 15.5/80-24 | W12 | - | 425 | 1255 | 565 | 3649 | TL | 16 | 163A8 | 151A8 | |
| 185/65-15 | 5.5 | - | 175 | 640 | 284 | 1895 | TL | 4 | 89A8 | 76A8 | |
| 5.0-10 | 4 | - | 135 | 510 | 233 | 1514 | TT | 2 | 61A8 | 48A8 | |
| 5.0-10 | 4 | - | 135 | 510 | 233 | 1514 | TT | 4 | 63A8 | 50A8 | |
| 6.5/80-12 | 5 | - | 165 | 595 | 274 | 1783 | TT | 4 | 84A8 | 72A8 | |
| 6.5/80-12 | 5 | - | 165 | 595 | 274 | 1783 | TT/TL | 6 | 93A8 | 80A8 | |
IMPERIAL
METRIC
Technical Table 01
| TYRE SIZE | RIM SIZE | REC. RIM | ALT. RIM | UNLOADED DIMENSIONS (mm) | PLY RATING | LOAD INDEX SPEED SYMBOL | ||||
| SW | OD | SLR | RC | |||||||
| 15.0/70-18 | 18 | W13 |
W17 W19 |
400 | 980 | 440 | 2886 | 14 | 128 A8 |
 |
| 16 | 132 A9 |
|
||||||||
