Implement-Lug
IM 45

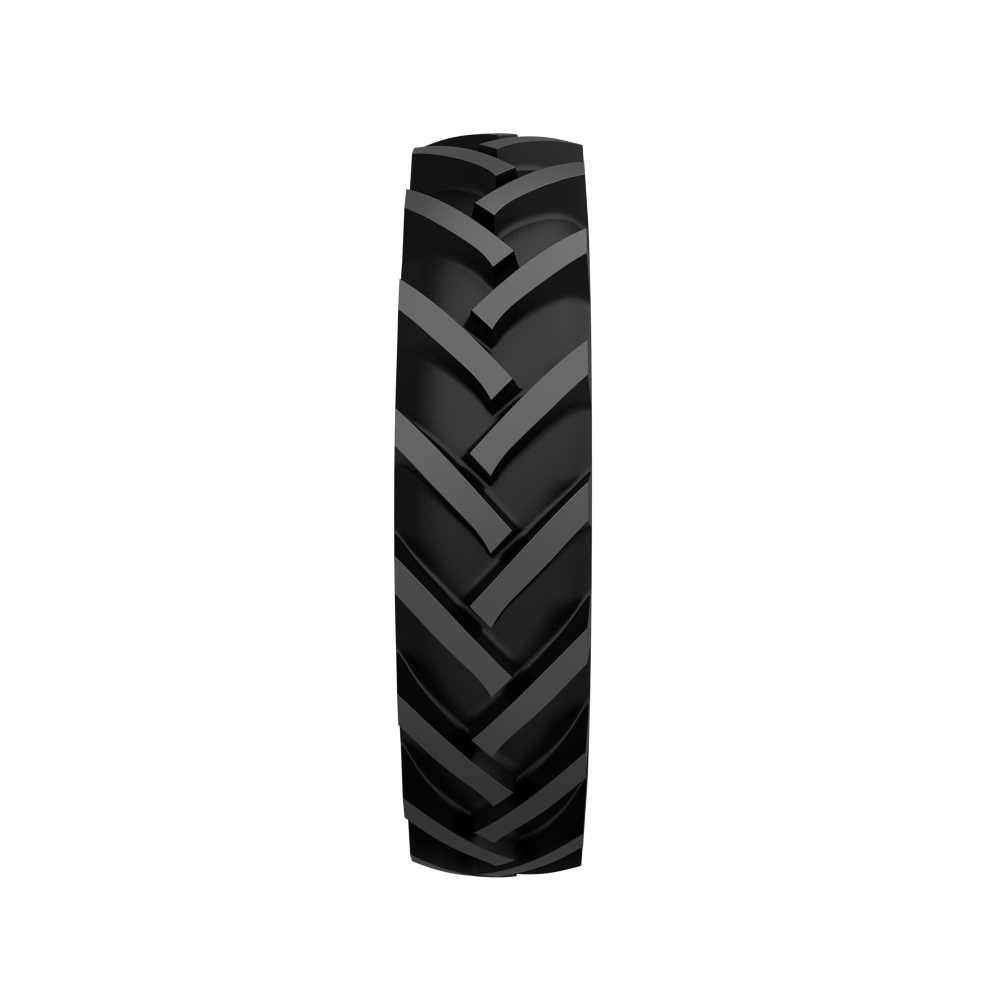

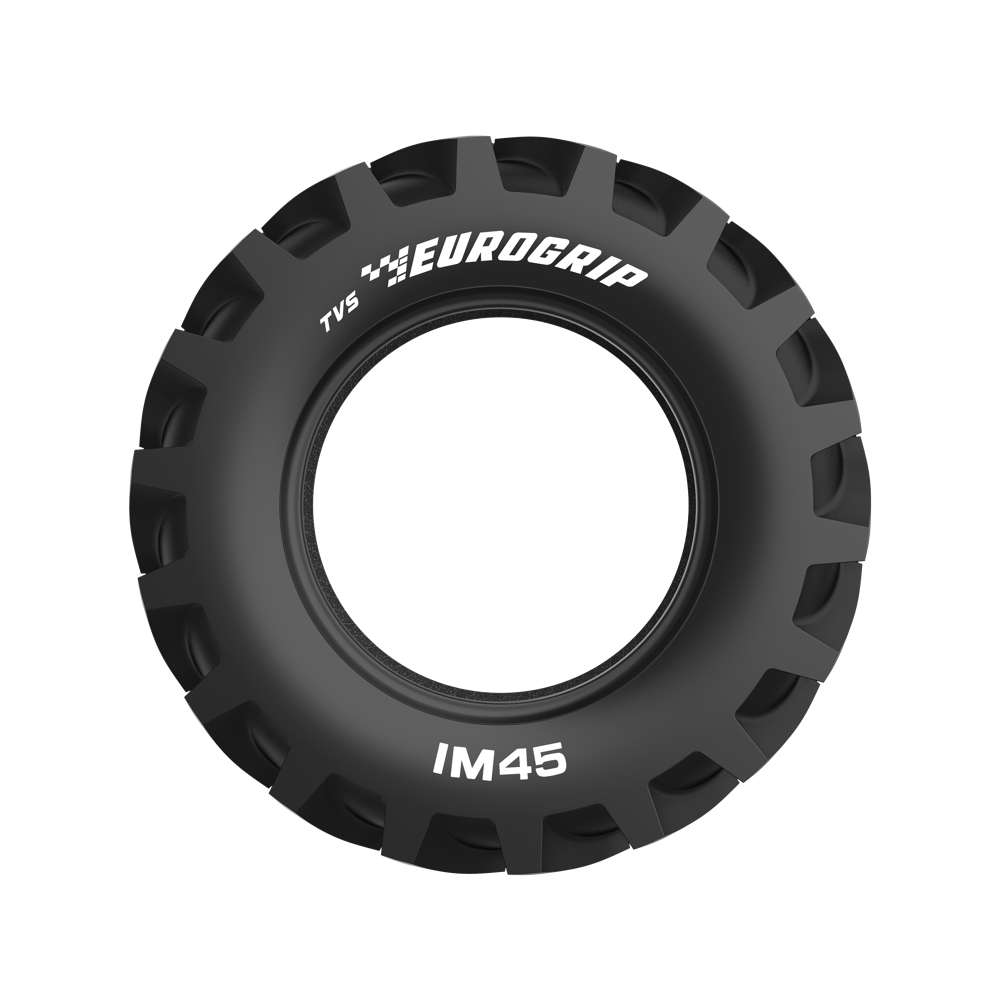

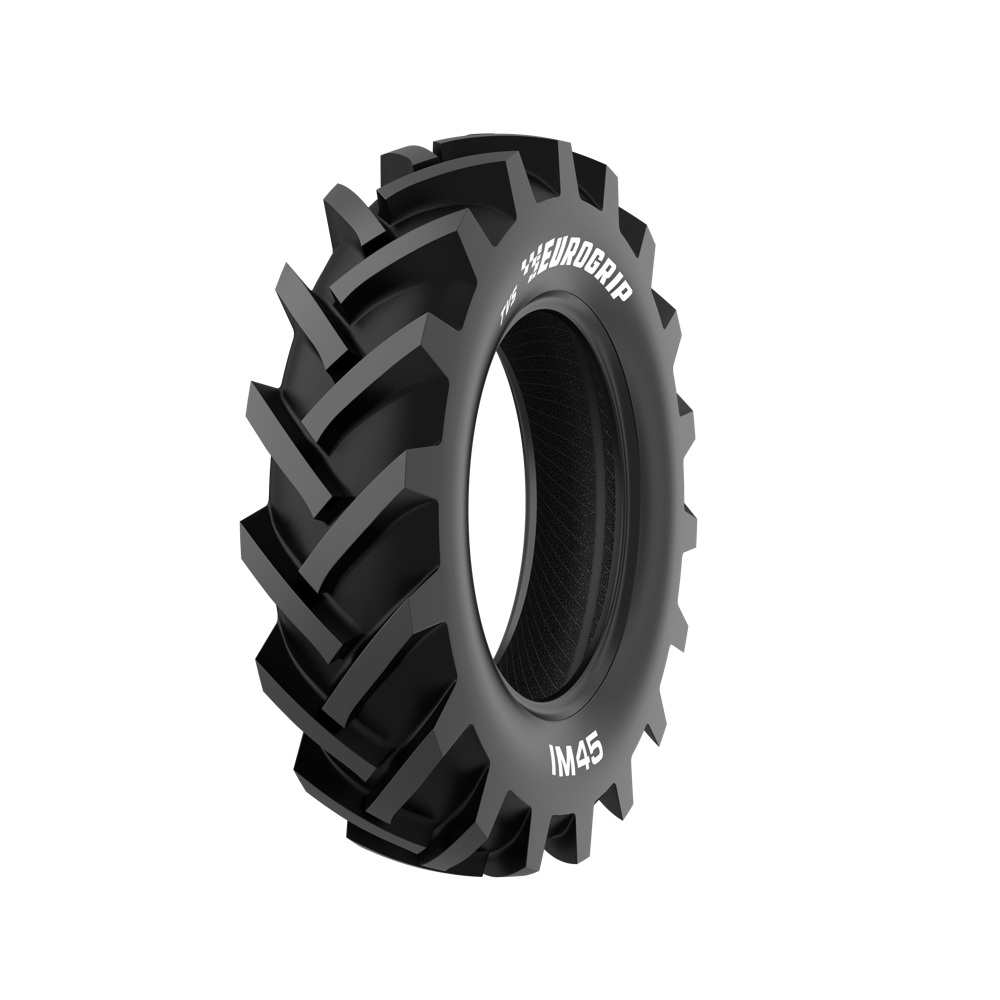

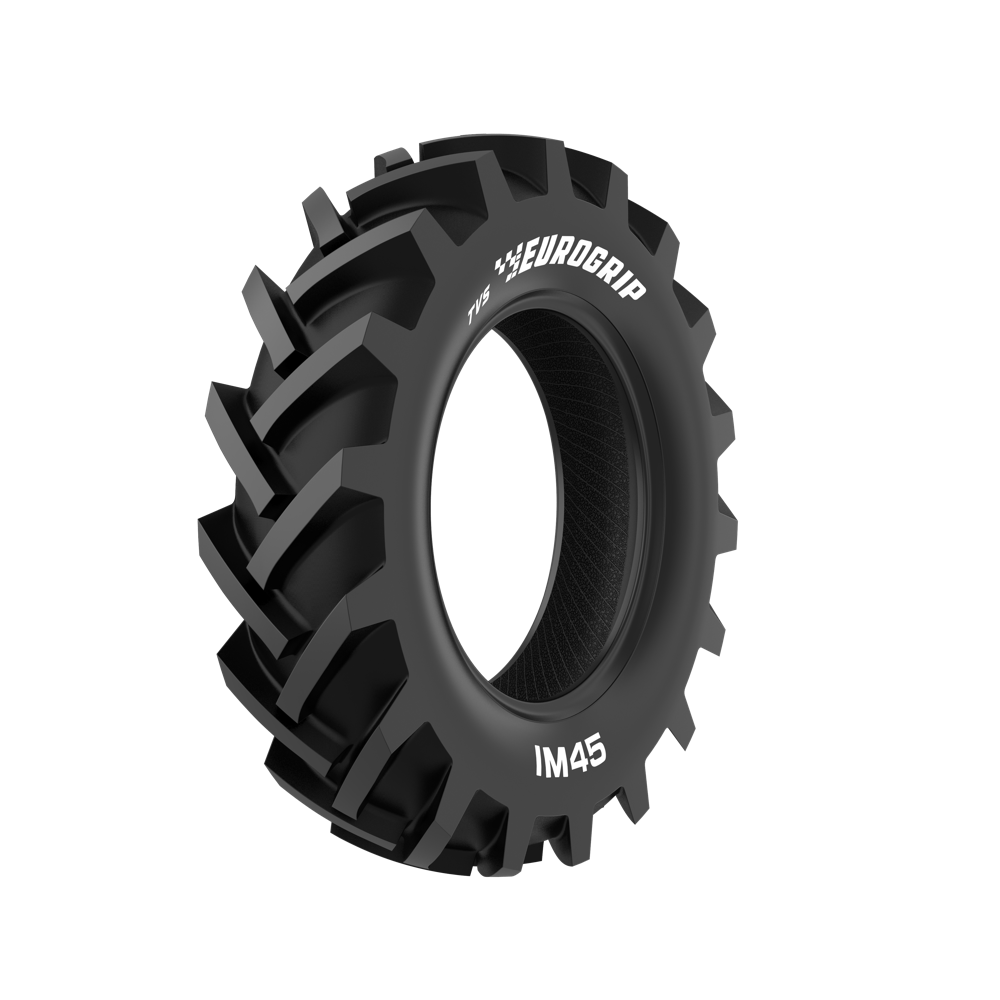

The IM 45 is an all-season tyre for mixed application in both towed and powered agricultural implements. Offered in a wide range of sizes to suit machines and application. Designed with robust and ideally spaced lugs, this tyre provides good traction and self-cleaning properties for varied uses.
R-1/G-1
A8
Bias
Suitable for
Trailer
Tractor MFWD
Tractor 4WD
Technical Data
| TYRE SIZE | REC. RIM (inch) | ALT. RIM (inch) | UNLOADED DIMENSIONS (mm) | TYPE | PLY RATING | LI & SS | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| SW | OD | SLR | RC | |||||||
| 4.00-8 | 3.00D | - | 106 | 420 | 193 | 1235 | TT | 2 | 43A8 | 31A8 | |
| 4.00-8 | 3.00D | - | 106 | 420 | 193 | 1235 | TT | 4 | 57A8 | 44A8 | |
| 4.00-10 | 3.00D | - | 108 | 470 | 217 | 1391 | TT | 2 | 49A8 | 37A8 | |
| 4.00-10 | 3.00D | - | 108 | 470 | 217 | 1391 | TT | 4 | 62A8 | 49A8 | |
| 4.00-12 | 3.00D | - | 115 | 530 | 244 | 1551 | TT | 2 | 54A8 | 42A8 | |
| 4.00-12 | 3.00D | - | 115 | 530 | 244 | 1551 | TT | 4 | 66A8 | 54A8 | |
| 5.00-12 | 3.50D | - | 140 | 590 | 260 | 1705 | TT | 2 | 61A8 | 48A8 | |
| 5.00-12 | 3.50D | - | 140 | 590 | 260 | 1705 | TT | 4 | 74A8 | 62A8 | |
| 7.00-12 | 4.25 | - | 202 | 700 | 321 | 2038 | TL | 6 | 95A8 | 83A8 | |
| 11.0/65-12 | 9 | - | 290 | 700 | 330 | 2097 | TT | 6 | 108A8 | 95A8 | |
| 11.0/65-12 | 9 | - | 290 | 700 | 330 | 2097 | TT/TL | 8 | 114A8 | 101A8 | |
| 5.00-15 | 3.50D | - | 135 | 655 | 300 | 1937 | TT | 4 | 79A8 | 67A8 | |
| 5.00-15 | 3.50D | - | 135 | 655 | 300 | 1937 | TT | 6 | 88A8 | 75A8 | |
| 8.0/75-15 | 7 | - | 210 | 700 | 332 | 2112 | TT/TL | 6 | 100A8 | |
| 11.5/80-15.3 | 9 | - | 290 | 875 | 411 | 2559 | TL | 8 | 126A8 | 114A8 | |
| 11.5/80-15.3 | 9 | - | 290 | 875 | 411 | 2559 | TL | 10 | 131A8 | 119A8 | |
| 11.5/80-15.3 | 9 | - | 290 | 875 | 411 | 2559 | TL | 14 | 139A8 | 126A8 | |
| 27x10-15.3 | 8 | - | 255 | 685 | 321 | 2038 | TT/TL | 8 | 107A8 | 95A8 | |
| 6.00-16 | 4.00E | - | 176 | 740 | 350 | 2189 | TT | 6 | 95A8 | 83A8 | |
| 6.00-16 | 4.00E | - | 176 | 740 | 350 | 2189 | TT | 8 | 103A8 | 91A8 | |
| 15.0/55-17 | 13 | - | 375 | 895 | 419 | 2658 | TL | 10 | 134A8 | 122A8 | |
| 15.0/55-17 | 13 | - | 375 | 895 | 419 | 2658 | TL | 14 | 141A8 | 129A8 | |
| 15.0/55-17 | 13 | - | 375 | 895 | 419 | 2658 | TL | 18 | 146A8 | 134A8 | |
| 420/55-17 | 13 | - | 423 | 891 | 402 | 2668 | TL | 16 | 145A8 | 133A8 | |
| 7.50-18 | 5.50F | - | 210 | 860 | 400 | 2540 | TT | 8 | 114A8 | 101A8 | |
| 10.5/80-18 | W9 | - | 270 | 890 | 400 | 2625 | TL | 10 | 131A8 | 119A8 | |
| 12.5/80-18 | W9 | - | 310 | 987 | 438 | 2892 | TL | 12 | 142A8 | 129A8 | |
| 12.5/80-18 | W9 | - | 310 | 987 | 438 | 2892 | TL | 16 | 148A8 | 135A8 | |
| 4.50-19 | 3.00D | - | 122 | 727 | 342 | 2171 | TT | 4 | 80A8 | 68A8 | |
| 7.50-20 | 5.50F | - | 215 | 910 | 427 | 2707 | TT | 8 | 116A8 | 103A8 | |
| 9.50-20 | W8 | - | 245 | 955 | 440 | 2821 | TT | 6 | 102A6 | |
IMPERIAL
METRIC
Technical Table 01
| TYRE SIZE | RIM SIZE | REC. RIM | ALT. RIM | UNLOADED DIMENSIONS (mm) | PLY RATING | LOAD INDEX SPEED SYMBOL | ||||
| SW | OD | SLR | RC | |||||||
| 15.0/70-18 | 18 | W13 |
W17 W19 |
400 | 980 | 440 | 2886 | 14 | 128 A8 |
 |
| 16 | 132 A9 |
|
||||||||
