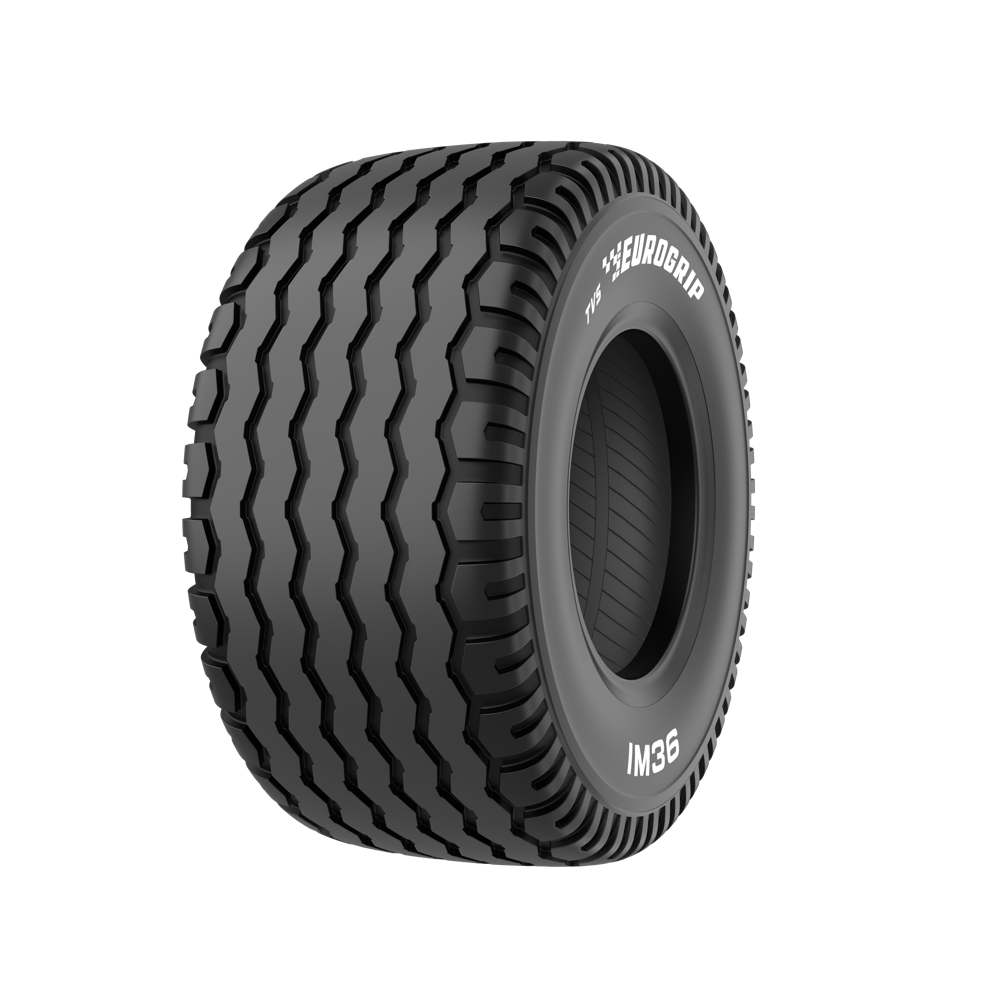

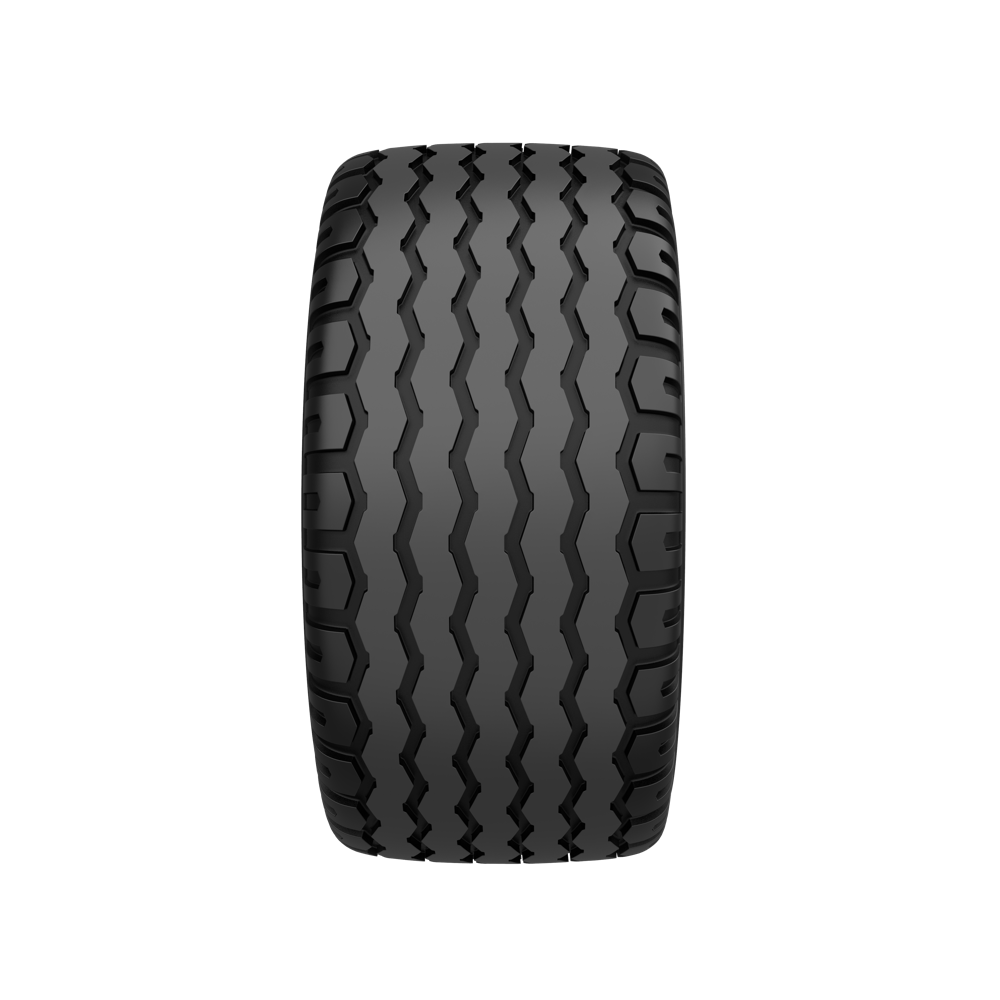

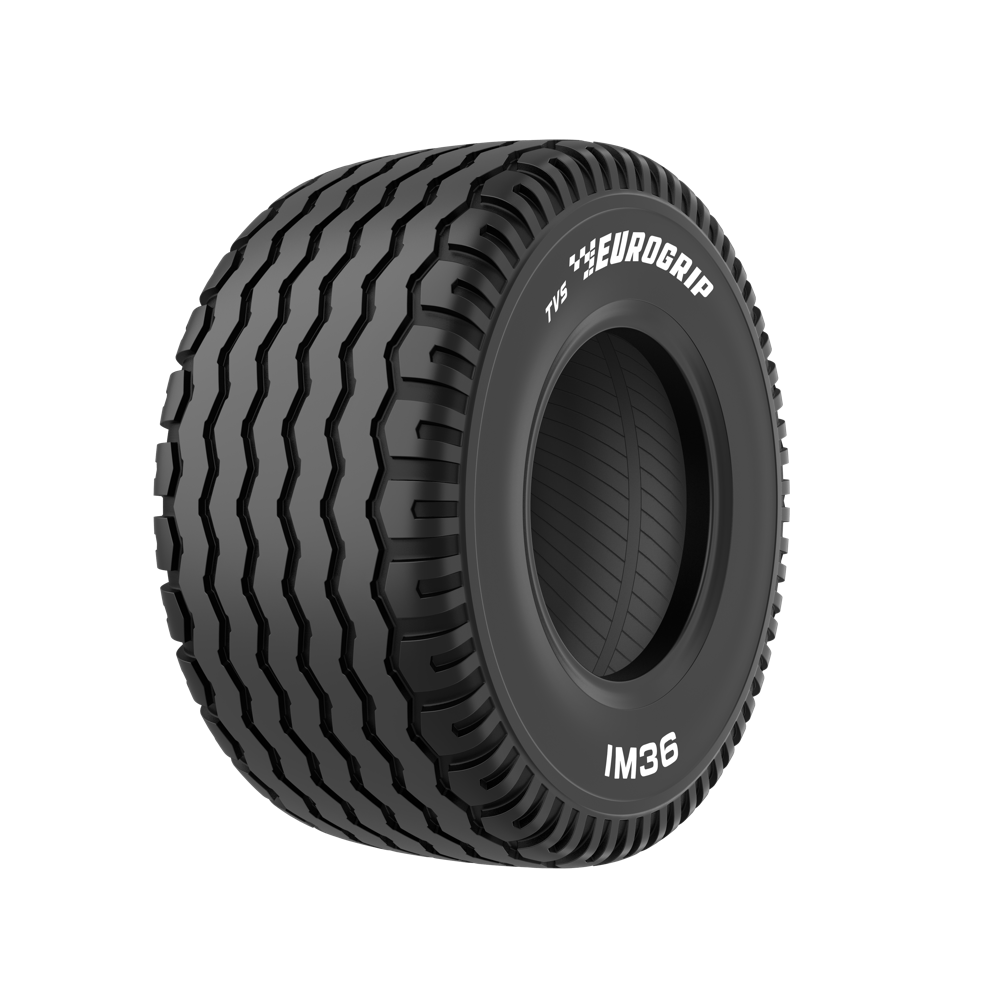

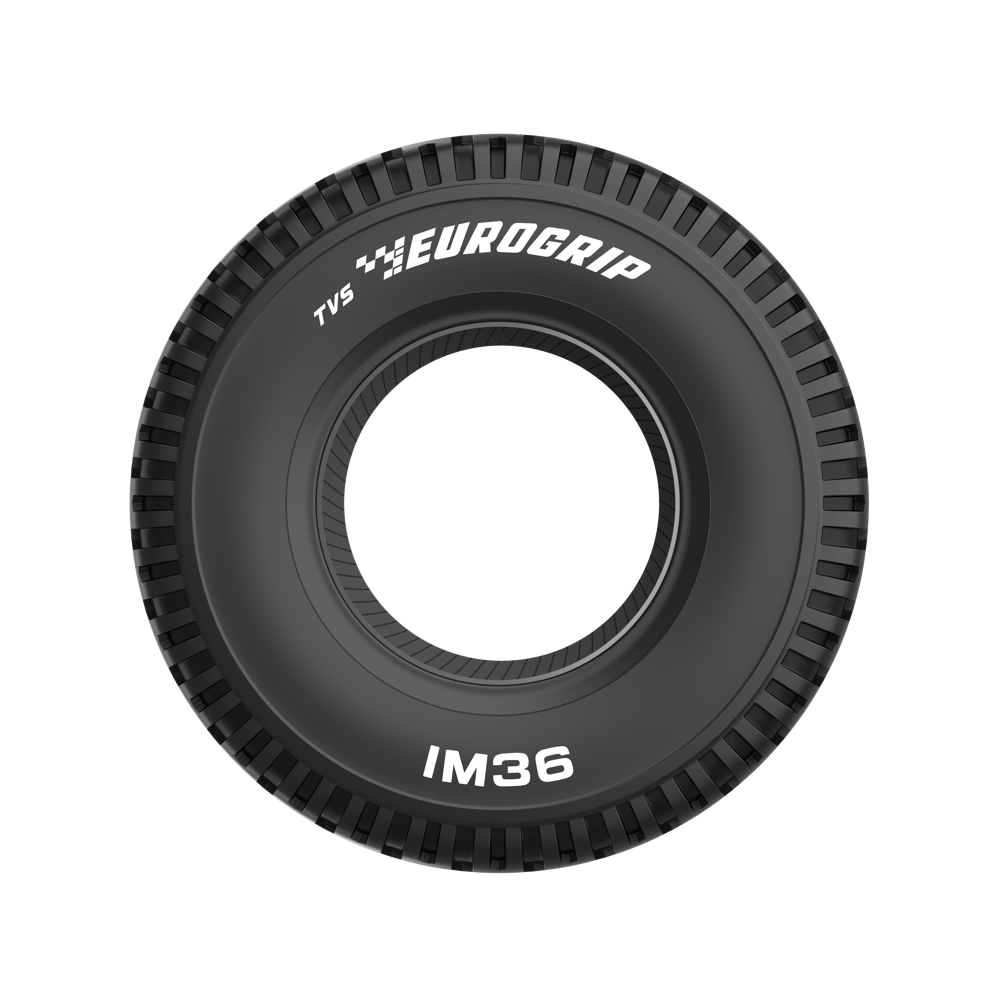

Implement-Z Rib
IM 36
IM 36 is available in a wide range of sizes to cater to many different agricultural implements and application. Its multi-rib design with robust shoulder provides good performance both in the field and on the road. Its design also minimises soil compaction, helping improve soil productivity.
IMP
A8
Bias
Suitable for
Trailer
Wagon
Round Baler
Planter
Seeder
Technical Data
| TYRE SIZE | REC. RIM (inch) | ALT. RIM (inch) | UNLOADED DIMENSIONS (mm) | TYPE | PLY RATING | LI & SS | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| SW | OD | SLR | RC | |||||||
| 13.0/55-16 | 11 | - | 342 | 775 | 347 | 2271 | TL | 12 | 130A8 | |
| 13.0/55-16 | 11 | - | 342 | 775 | 347 | 2271 | TT/TL | 14 | 133A8 | |
| 13.0/55-16 | 11 | - | 342 | 775 | 347 | 2271 | TL | 18 | 138A8 | |
| 13.0/65-18 | 11 | - | 328 | 905 | 405 | 2652 | TL | 16 | 144A8 | |
| 15.0/55-17 | 13 | - | 392 | 850 | 373 | 2461 | TL | 10 | 134A8 | |
| 15.0/55-17 | 13 | - | 392 | 850 | 373 | 2461 | TL | 14 | 141A8 | |
| 15.0/55-17 | 13 | - | 392 | 850 | 373 | 2461 | TL | 18 | 149A8 | |
| 15.0/70-18 | W13 | - | 400 | 980 | 440 | 2886 | TL | 14 | 148A8 | |
| 15.0/70-18 | W13 | - | 400 | 980 | 440 | 2886 | TL | 16 | 151A8 | |
| 16.0/70-20 | 13 | - | 422 | 1080 | 480 | 3155 | TL | 12 | 151A8 | |
| 16.0/70-20 | 13 | - | 422 | 1080 | 480 | 3155 | TL | 16 | 156A8 | |
| 19.0/45-17 | 16 | - | 475 | 855 | 390 | 2600 | TL | 10 | 138A8 | |
| 19.0/45-17 | 16 | - | 475 | 855 | 390 | 2600 | TL | 14 | 144A8 | |
| 19.0/45-17 | 16 | - | 475 | 855 | 390 | 2600 | TL | 18 | 148A8 | |
| 19.0/45-17 | 16 | - | 475 | 855 | 390 | 2600 | TL | 20 | 151A8 | |
| 400/60-15.5 | AG13.00 | - | 386 | 855 | 380 | 2564 | TL | 10 | 136A8 | |
| 400/60-15.5 | AG13.00 | - | 295 | 845 | 370 | 2476 | TL | 14 | 145A8 | |
| 400/60-15.5 | AG13.00 | - | 295 | 845 | 370 | 2476 | TL | 18 | 149A8 | |
| 400/60-15.5 | AG13.00 | - | 295 | 845 | 370 | 2476 | TL | 22 | 153A8 | |
| 500/50-17 | 16 | - | 500 | 931 | 425 | 2808 | TT/TL | 14 | 149A8 | |
| 500/50-17 | 16 | - | 500 | 931 | 425 | 2808 | TT/TL | 18 | 154A8 | |
IMPERIAL
METRIC
Technical Table 01
| TYRE SIZE | RIM SIZE | REC. RIM | ALT. RIM | UNLOADED DIMENSIONS (mm) | PLY RATING | LOAD INDEX SPEED SYMBOL | ||||
| SW | OD | SLR | RC | |||||||
| 15.0/70-18 | 18 | W13 |
W17 W19 |
400 | 980 | 440 | 2886 | 14 | 128 A8 |
 |
| 16 | 132 A9 |
|
||||||||
Technical Data
| Tyre Size | Rec. RIM (inch) |
Alt. RIM (inch) |
Unloaded dimensions (mm) | Type | Ply Rating | Load Index & Speed Symbol | Fabric | Load table | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Section Width | Overall Diameter | Static Load Radius | Rolling Circumference | ||||||||
