Implement-Z Rib

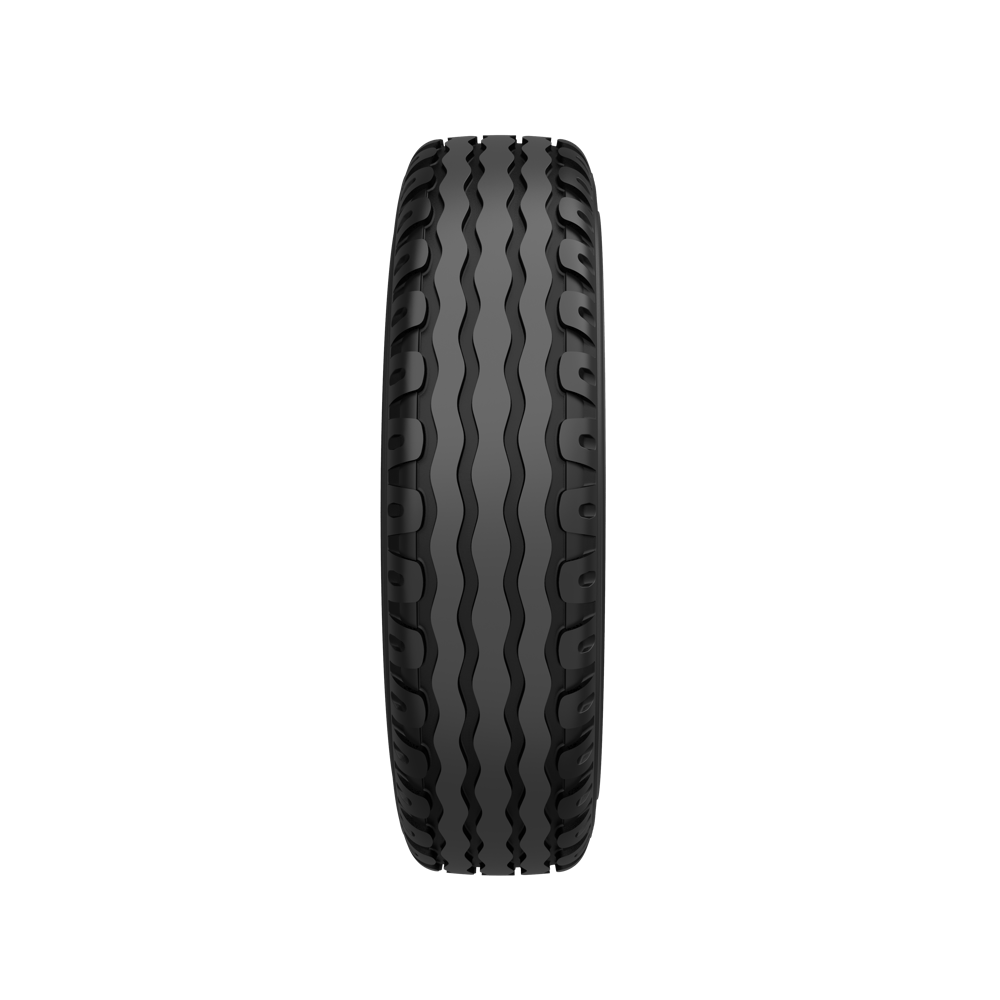

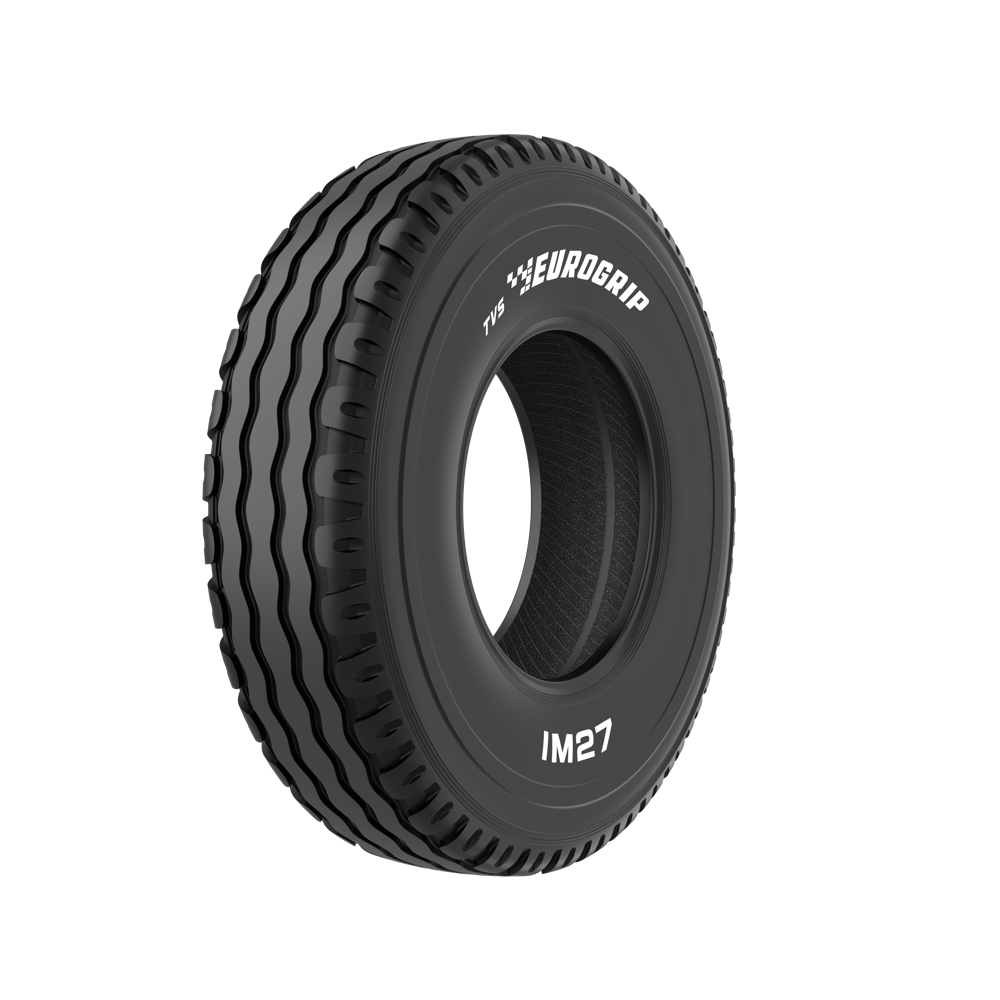

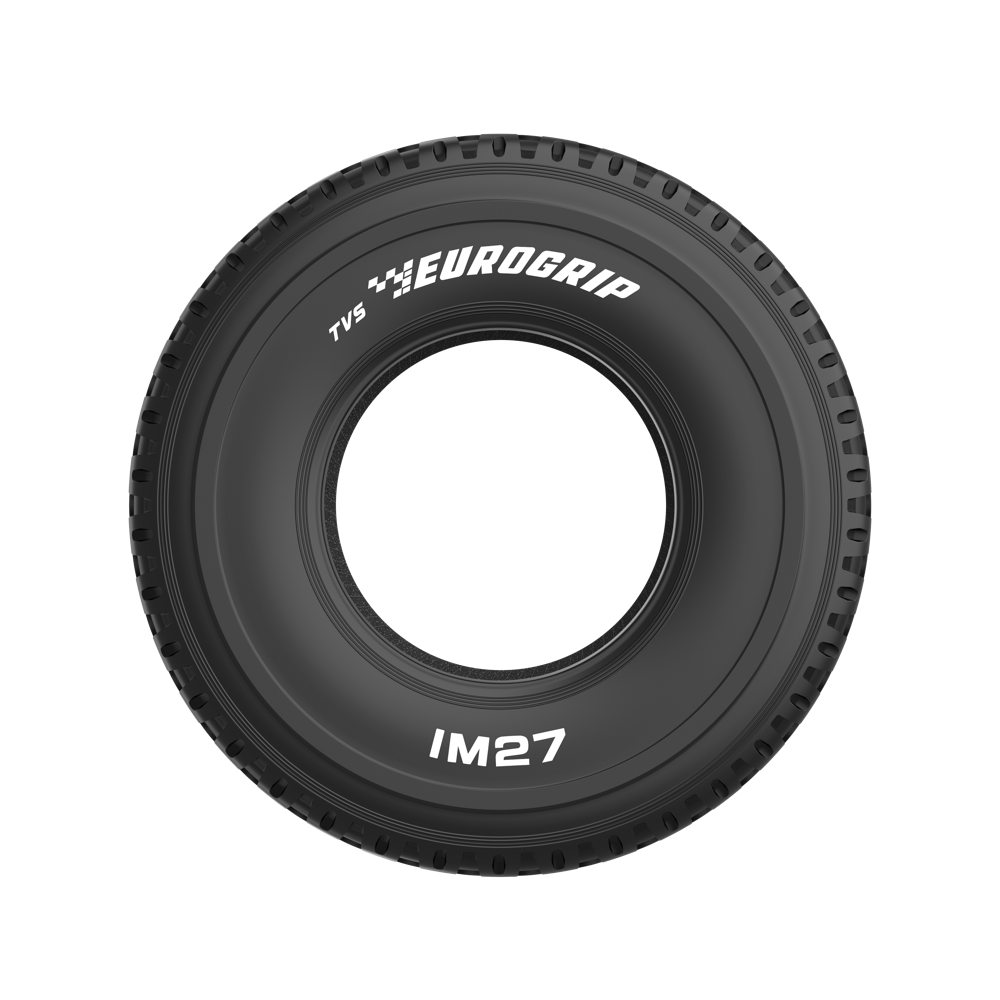

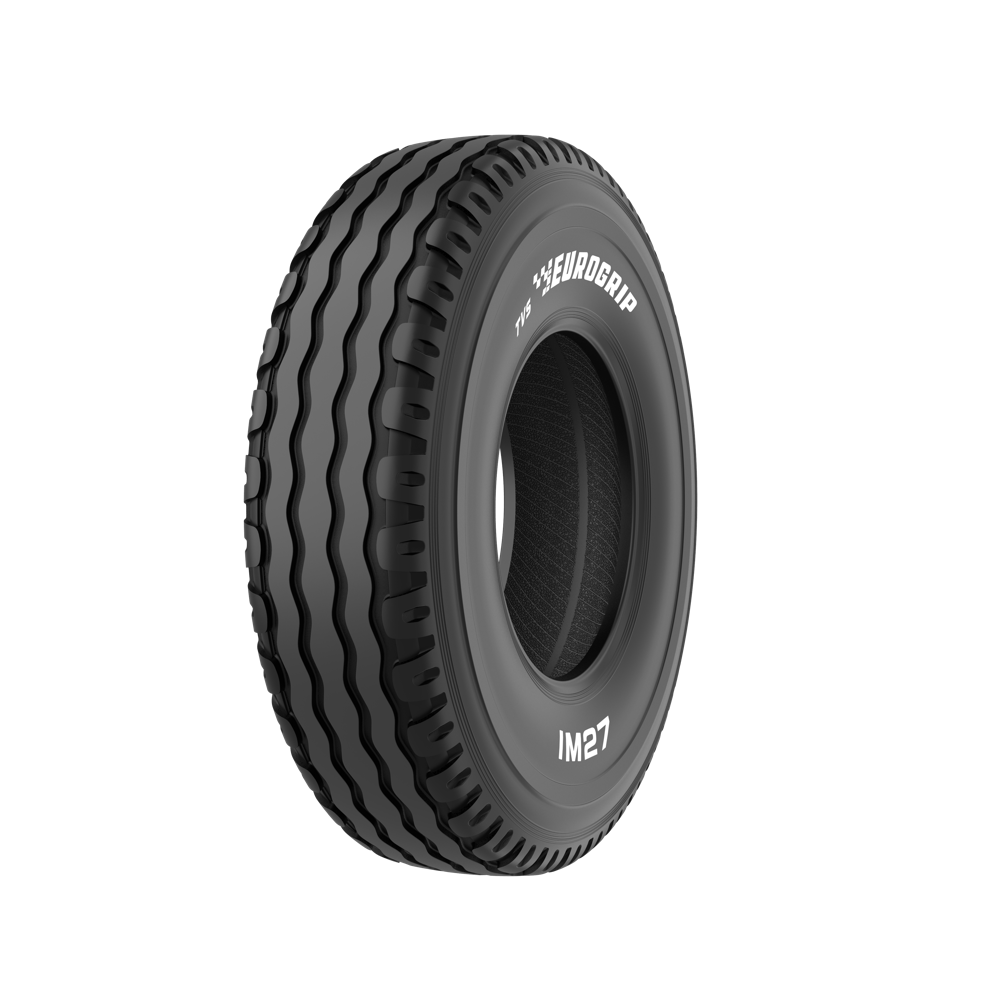

IM 27
The IM 27 tyre is designed for towed agricultural implements. Providing good lateral stability and minimal resistance, making the prime mover perform more efficiently. It is suitable for balers, seeders, trailers, ploughs and such.
IMP
A8
Bias
Suitable for
Trailer
Wagon
Round Baler
Square Baler
Technical Data
| TYRE SIZE | REC. RIM (inch) | ALT. RIM (inch) | UNLOADED DIMENSIONS (mm) | TYPE | PLY RATING | LI & SS | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| SW | OD | SLR | RC | |||||||
| 12.5/80-15.3 | 9 | - | 300 | 878 | 387 | 2593 | TT, TL | 14 | 142A8 | |
| 12.5/80-15.3 | 9 | - | 300 | 878 | 387 | 2593 | TT, TL | 16 | 144A8 | |
IMPERIAL
METRIC
Technical Table 01
| TYRE SIZE | RIM SIZE | REC. RIM | ALT. RIM | UNLOADED DIMENSIONS (mm) | PLY RATING | LOAD INDEX SPEED SYMBOL | ||||
| SW | OD | SLR | RC | |||||||
| 15.0/70-18 | 18 | W13 |
W17 W19 |
400 | 980 | 440 | 2886 | 14 | 128 A8 |
 |
| 16 | 132 A9 |
|
||||||||
Technical Data
| Tyre Size | Rec. RIM (inch) |
Alt. RIM (inch) |
Unloaded dimensions (mm) | Type | Ply Rating | Load Index & Speed Symbol | Fabric | Load table | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Section Width | Overall Diameter | Static Load Radius | Rolling Circumference | ||||||||
