Implement-Block

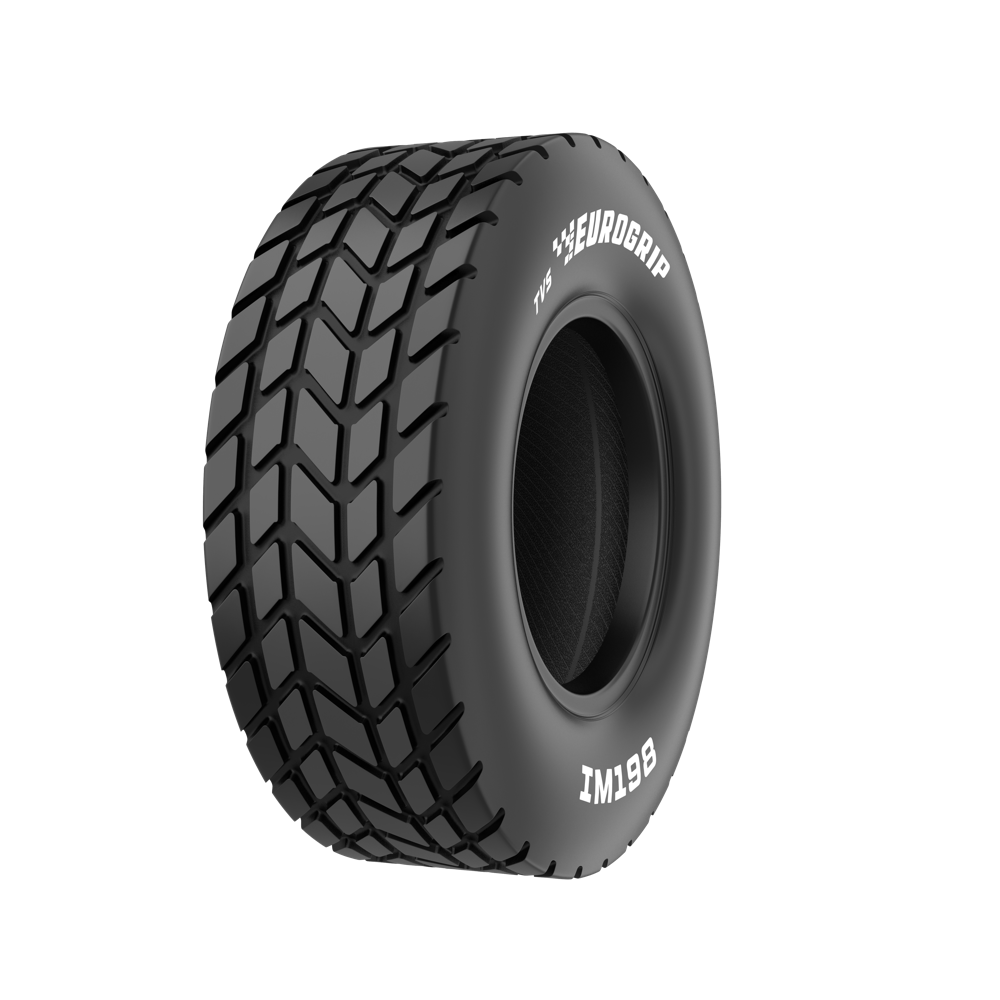

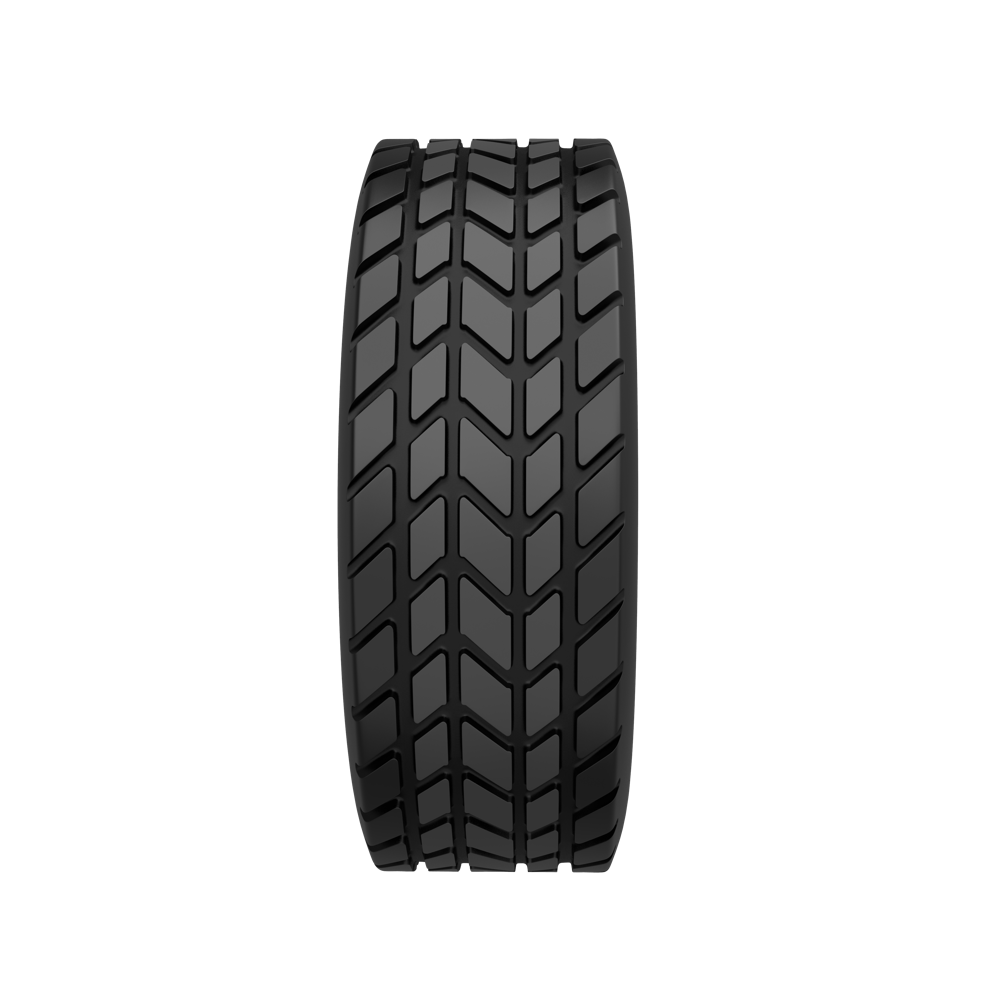

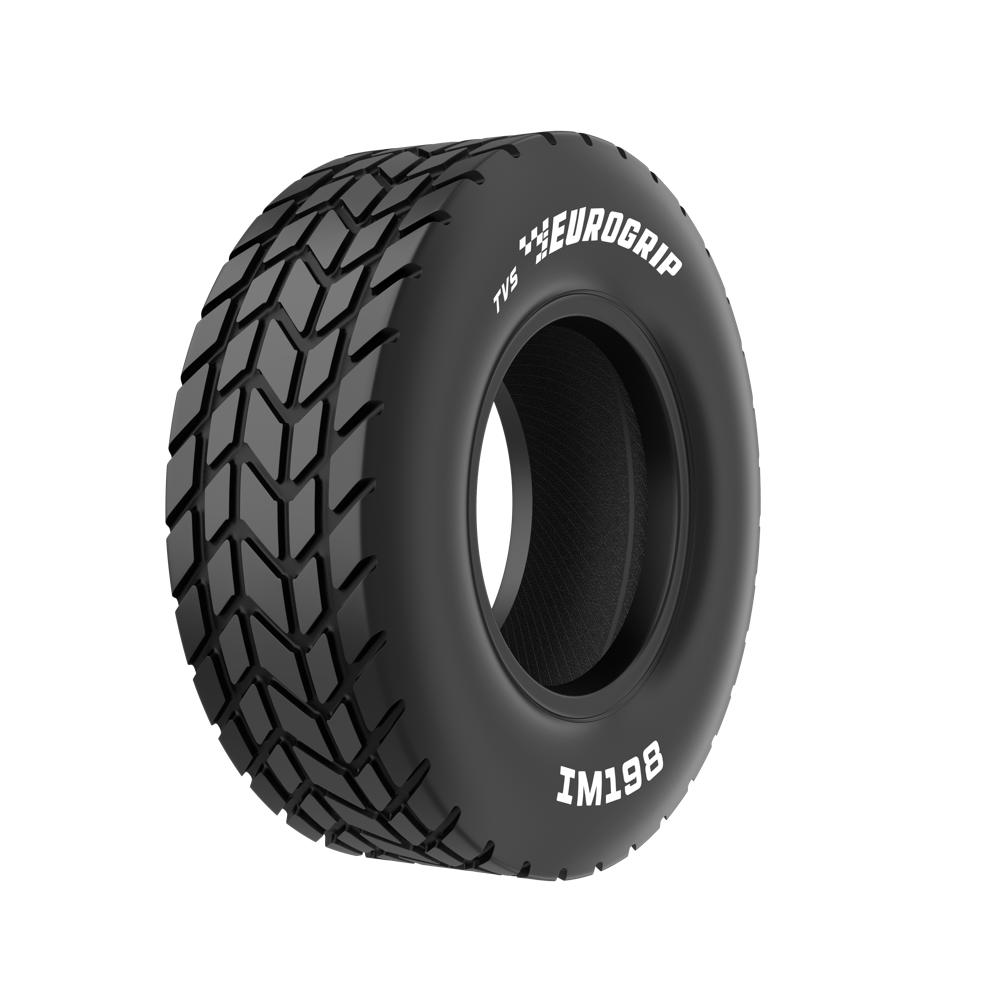

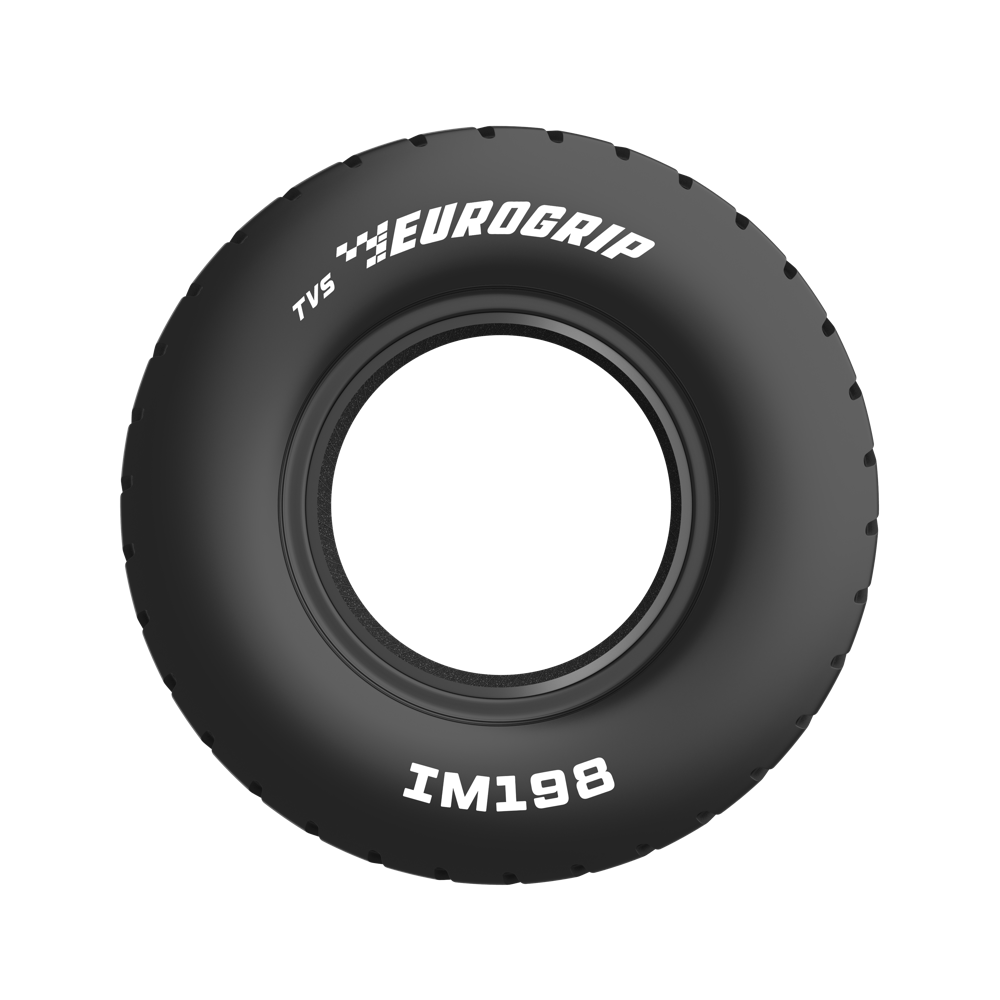

IM 198
The IM 198 is a high pressure implement tyre designed with robust block pattern tread and tough carcass to be used in mixer feeders. The tyre is designed to take heavy loads and perform well on a variety of surfaces such concrete, asphalt, field, fodder / silage yards, cattle sheds etc. It provides optimum traction on dry as well as wet and slippery surfaces
IMP
A8
Bias
Suitable for
Mixer Feeder Wagon
Self Propelled Mixer Feeder
Technical Data
| TYRE SIZE | REC. RIM (inch) | ALT. RIM (inch) | UNLOADED DIMENSIONS (mm) | TYPE | PLY RATING | LI & SS | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| SW | OD | SLR | RC | |||||||
| 305/60-14.5 | 10x14.5A | - | 315 | 730 | 330 | 2120 | TL | 20 | 150A8 | 154A8 | |
IMPERIAL
METRIC
Technical Table 01
| TYRE SIZE | RIM SIZE | REC. RIM | ALT. RIM | UNLOADED DIMENSIONS (mm) | PLY RATING | LOAD INDEX SPEED SYMBOL | ||||
| SW | OD | SLR | RC | |||||||
| 15.0/70-18 | 18 | W13 |
W17 W19 |
400 | 980 | 440 | 2886 | 14 | 128 A8 |
 |
| 16 | 132 A9 |
|
||||||||
Technical Data
| Tyre Size | Rec. RIM (inch) |
Alt. RIM (inch) |
Unloaded dimensions (mm) | Type | Ply Rating | Load Index & Speed Symbol | Fabric | Load table | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Section Width | Overall Diameter | Static Load Radius | Rolling Circumference | ||||||||
