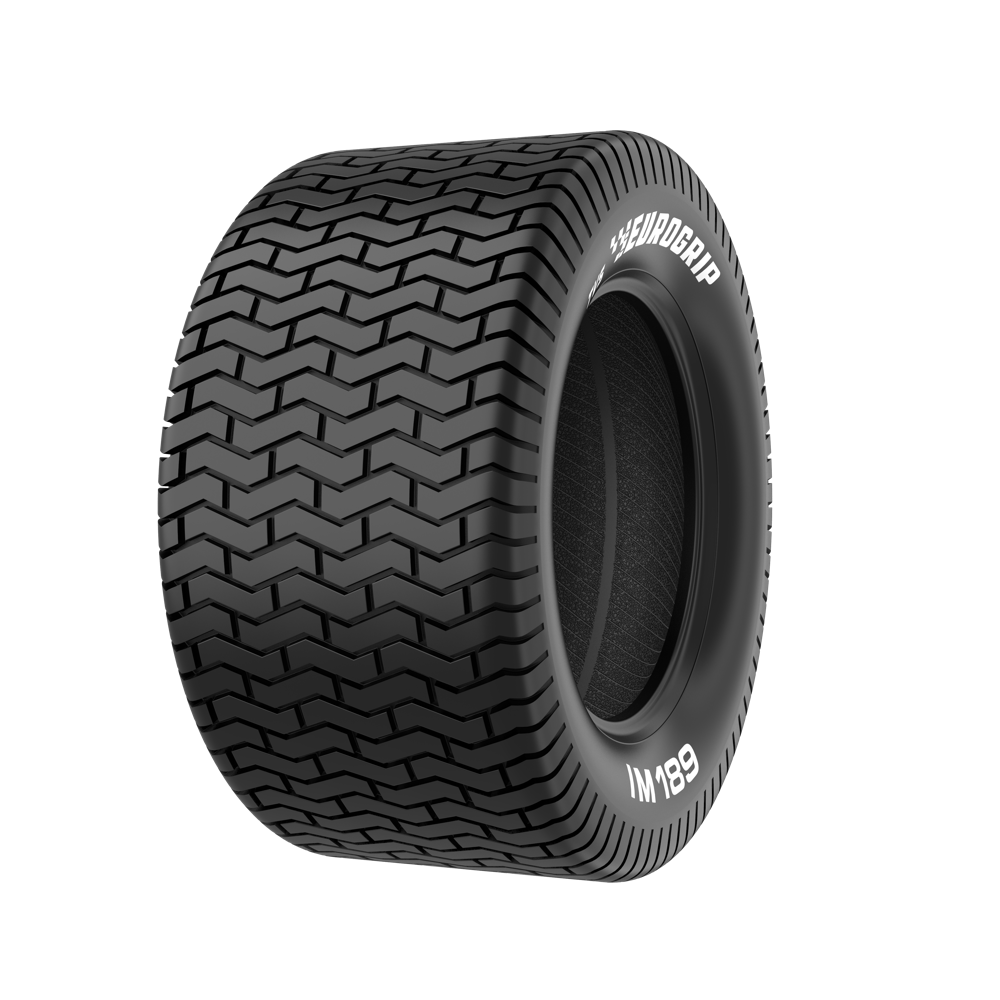

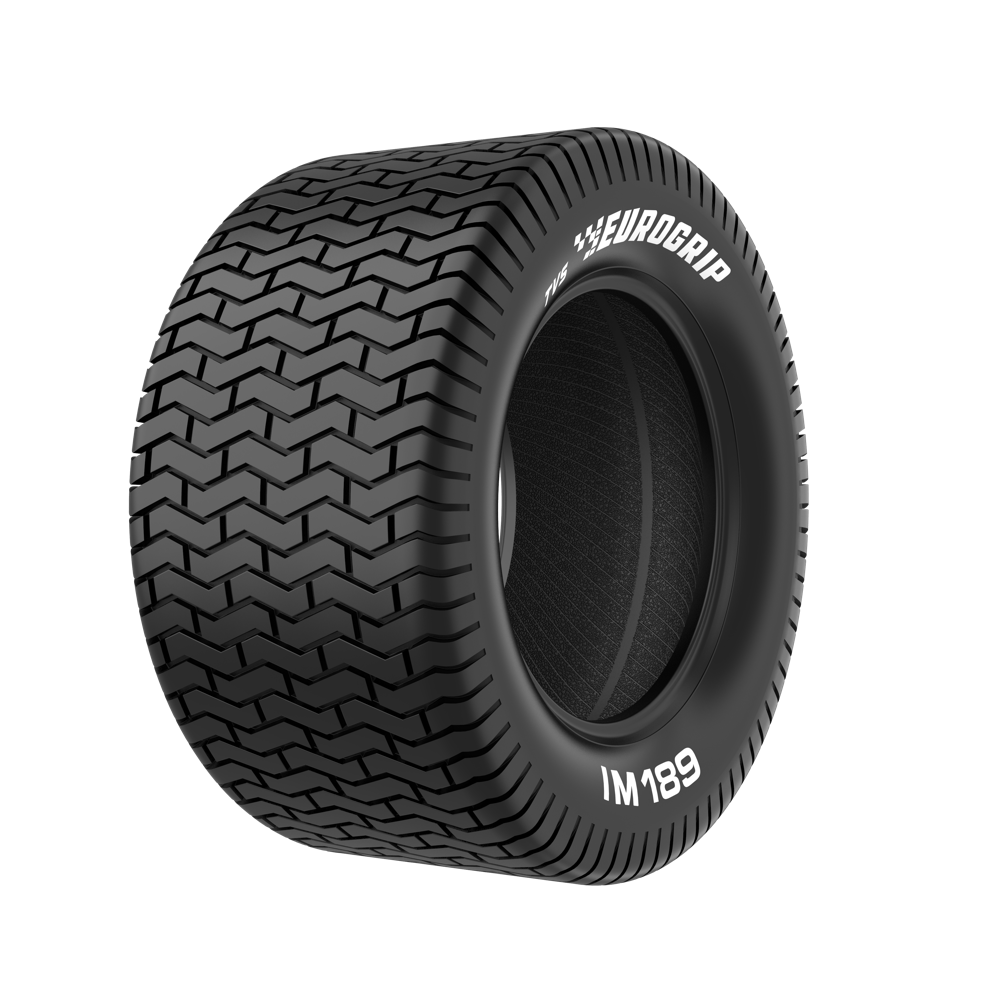

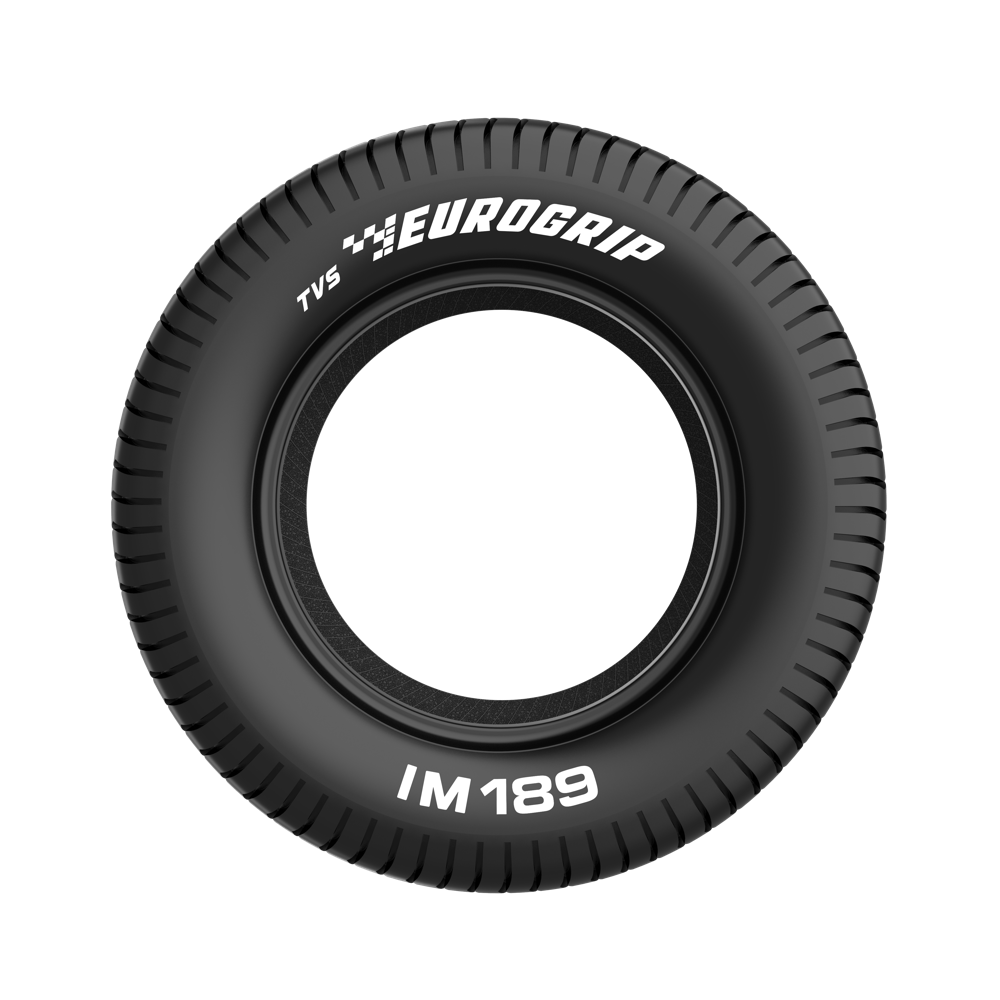

IM 189

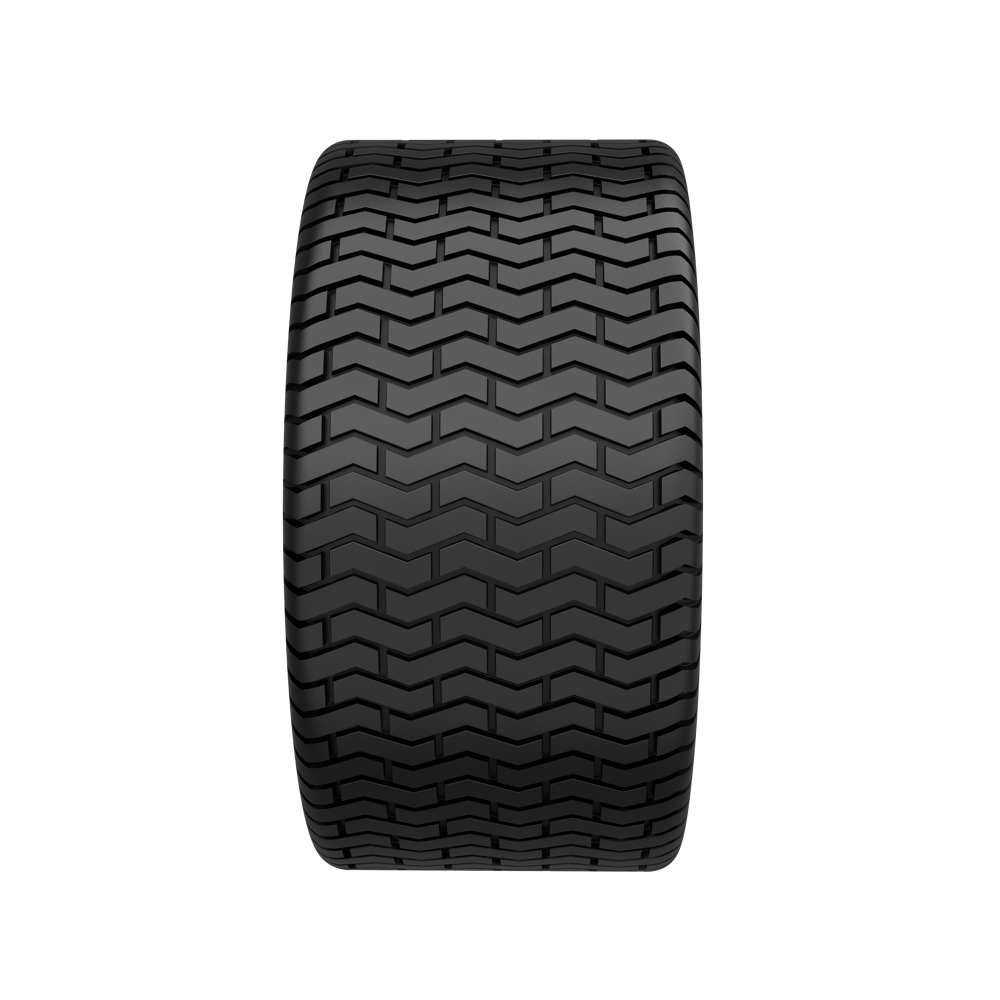

The IM 189 is engineered for use in turf / mowing equipment that require high flotation. Its ideal for use on gardens, golf courses, sports turfs, and the like. The wide block pattern tread provides very high contact area which provides better traction, reduces tread wear, and helps in better penetration resistance. The large footprint also translated into better ride and lower soil compaction.
R-3
A4
Bias
Suitable for
Ride on Mower
Zero Turn Mower
Technical Data
| TYRE SIZE | REC. RIM (inch) | ALT. RIM (inch) | UNLOADED DIMENSIONS (mm) | TYPE | PLY RATING | LI & SS | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| SW | OD | SLR | RC | |||||||
| 26.5x14.00-12 | 10.50I | - | 365 | 670 | 260 | 1930 | TL | 6 | 114A4 | 102A4 | |
IMPERIAL
METRIC
Technical Table 01
| TYRE SIZE | RIM SIZE | REC. RIM | ALT. RIM | UNLOADED DIMENSIONS (mm) | PLY RATING | LOAD INDEX SPEED SYMBOL | ||||
| SW | OD | SLR | RC | |||||||
| 15.0/70-18 | 18 | W13 |
W17 W19 |
400 | 980 | 440 | 2886 | 14 | 128 A8 |
 |
| 16 | 132 A9 |
|
||||||||
Technical Data
| Tyre Size | Rec. RIM (inch) |
Alt. RIM (inch) |
Unloaded dimensions (mm) | Type | Ply Rating | Load Index & Speed Symbol | Fabric | Load table | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Section Width | Overall Diameter | Static Load Radius | Rolling Circumference | ||||||||
