Implement-Lug

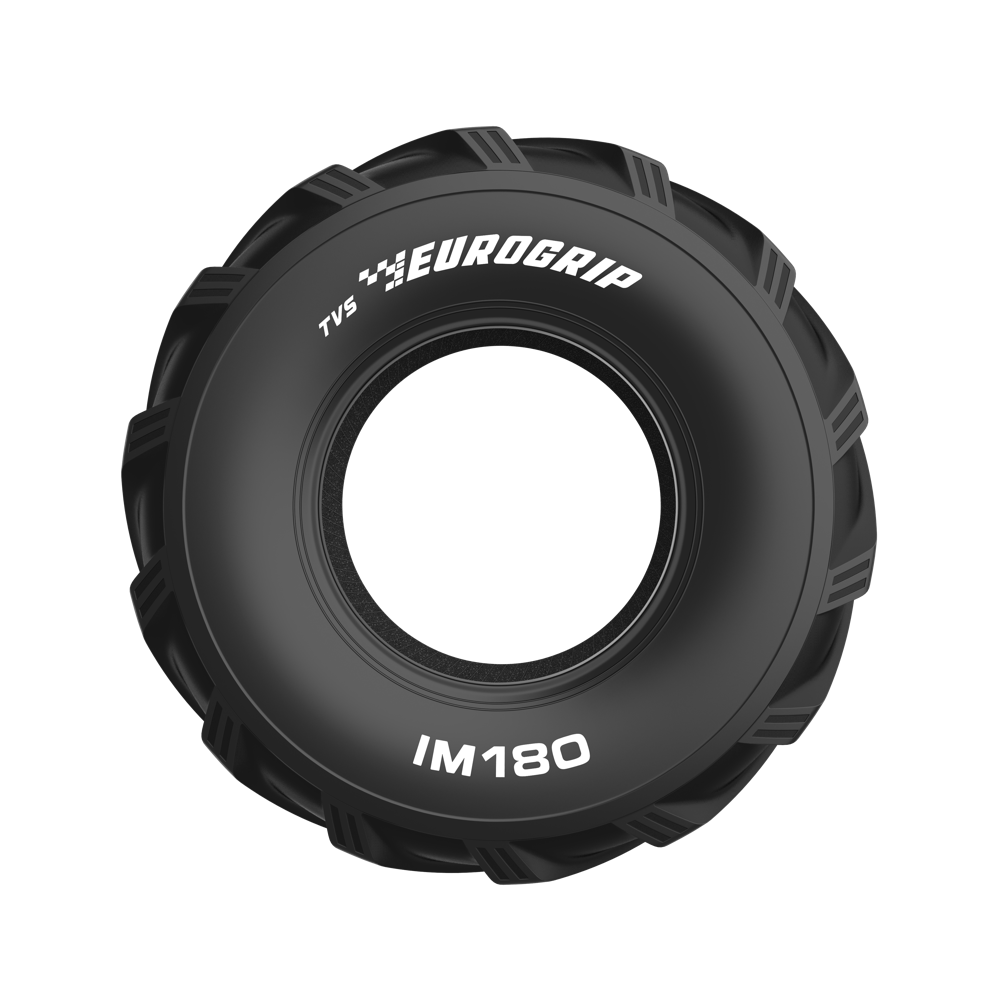

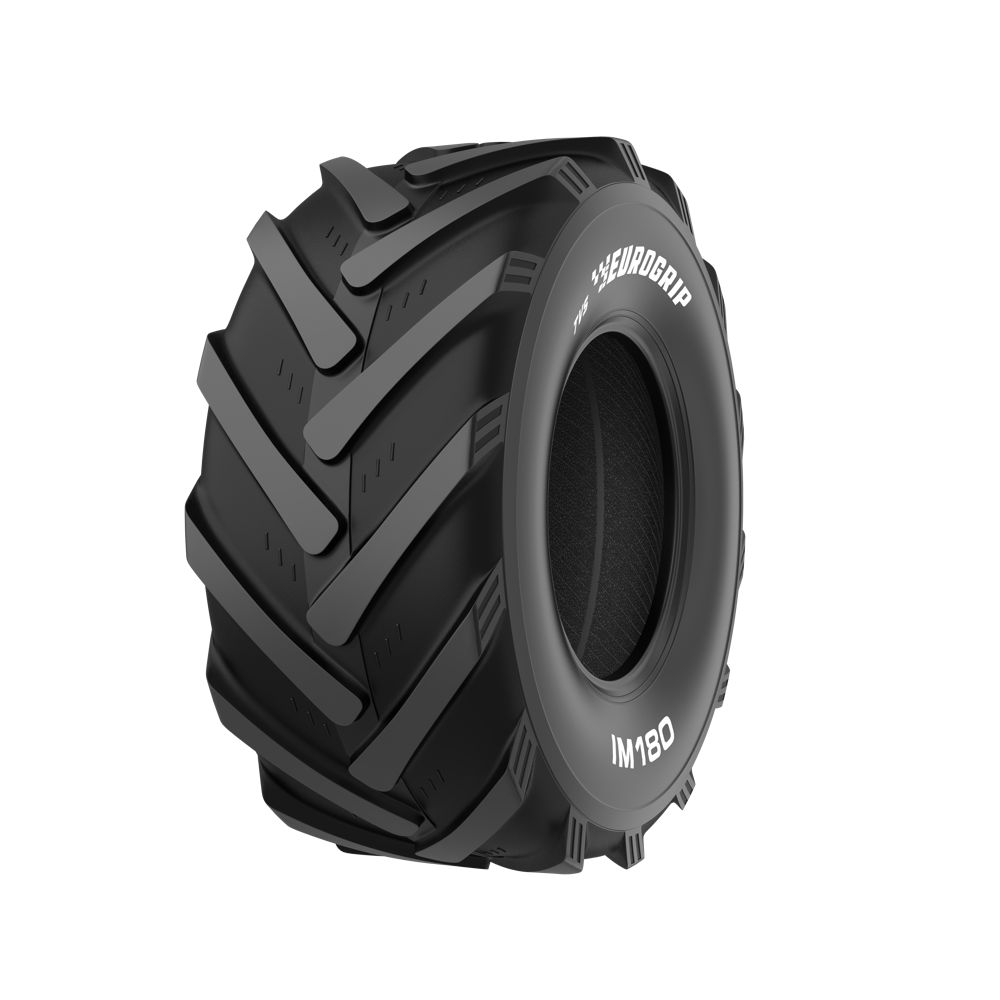

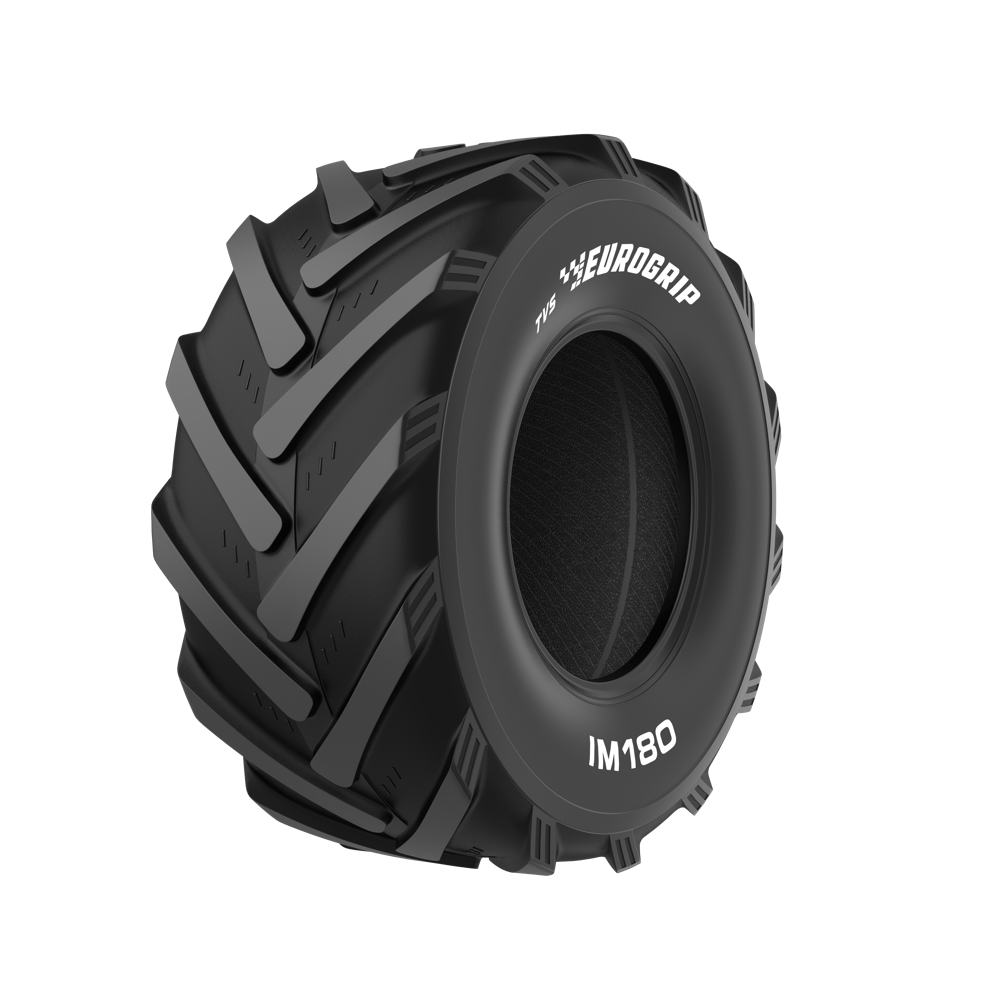

IM 180

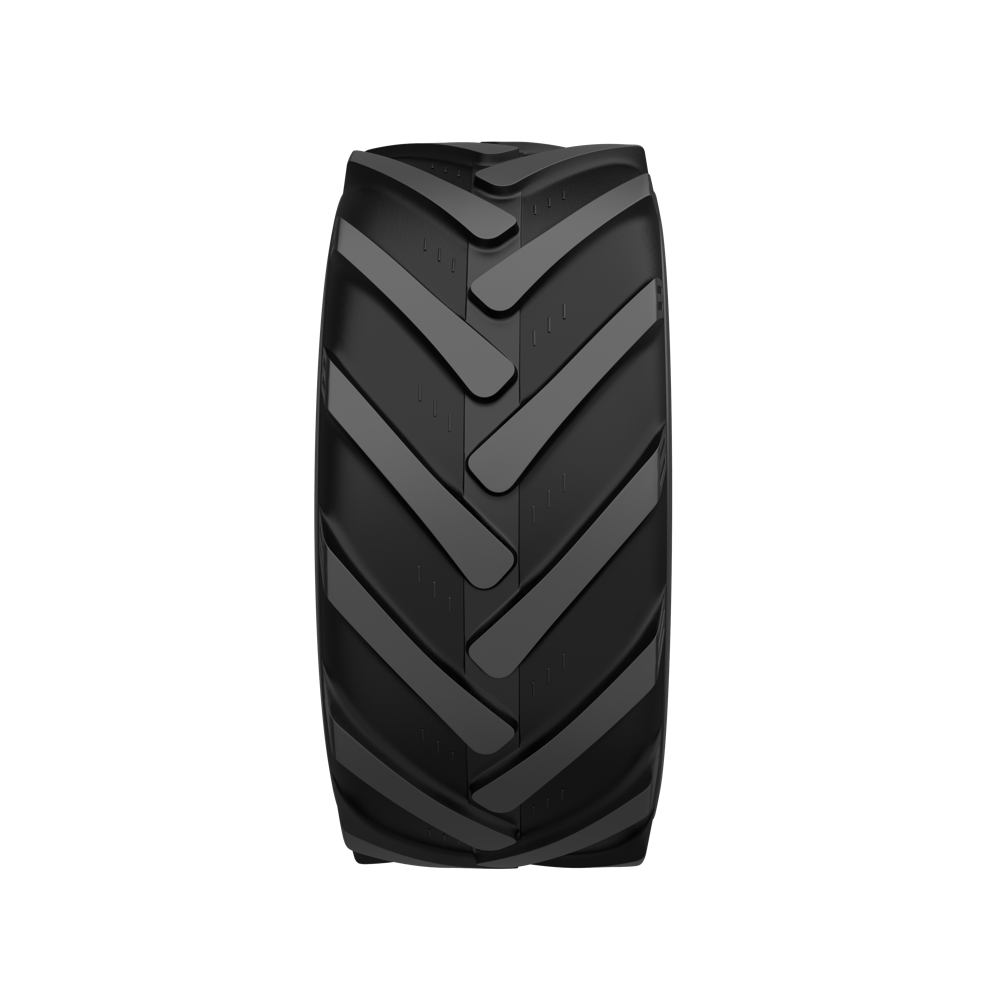

The IM 180 is designed for use on Site Dumpers, Compact Wheel Loaders, and other agro-industrial machineries. The strong carcass provides excellent stability and manoeuvrability for a fully loaded machine. The ideally spaced and angled lugs provide good traction and class leading self-cleaning.
IMP
A8
Bias
Suitable for
Trailer
Site Dumper
Compact Wheel Loader
Technical Data
| TYRE SIZE | REC. RIM (inch) | ALT. RIM (inch) | UNLOADED DIMENSIONS (mm) | TYPE | PLY RATING | LI & SS | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| SW | OD | SLR | RC | |||||||
| 26X12.00-12 | 10.50 I | - | 315 | 650 | 297 | 1932 | TL | 8 | 113A8 | 100A8 | |
| 26X12.00-12 | 10.50 I | - | 315 | 650 | 297 | 1932 | TL | - | 115A6 | 112A6 | |
IMPERIAL
METRIC
Technical Table 01
| TYRE SIZE | RIM SIZE | REC. RIM | ALT. RIM | UNLOADED DIMENSIONS (mm) | PLY RATING | LOAD INDEX SPEED SYMBOL | ||||
| SW | OD | SLR | RC | |||||||
| 15.0/70-18 | 18 | W13 |
W17 W19 |
400 | 980 | 440 | 2886 | 14 | 128 A8 |
 |
| 16 | 132 A9 |
|
||||||||
Technical Data
| Tyre Size | Rec. RIM (inch) |
Alt. RIM (inch) |
Unloaded dimensions (mm) | Type | Ply Rating | Load Index & Speed Symbol | Fabric | Load table | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Section Width | Overall Diameter | Static Load Radius | Rolling Circumference | ||||||||
