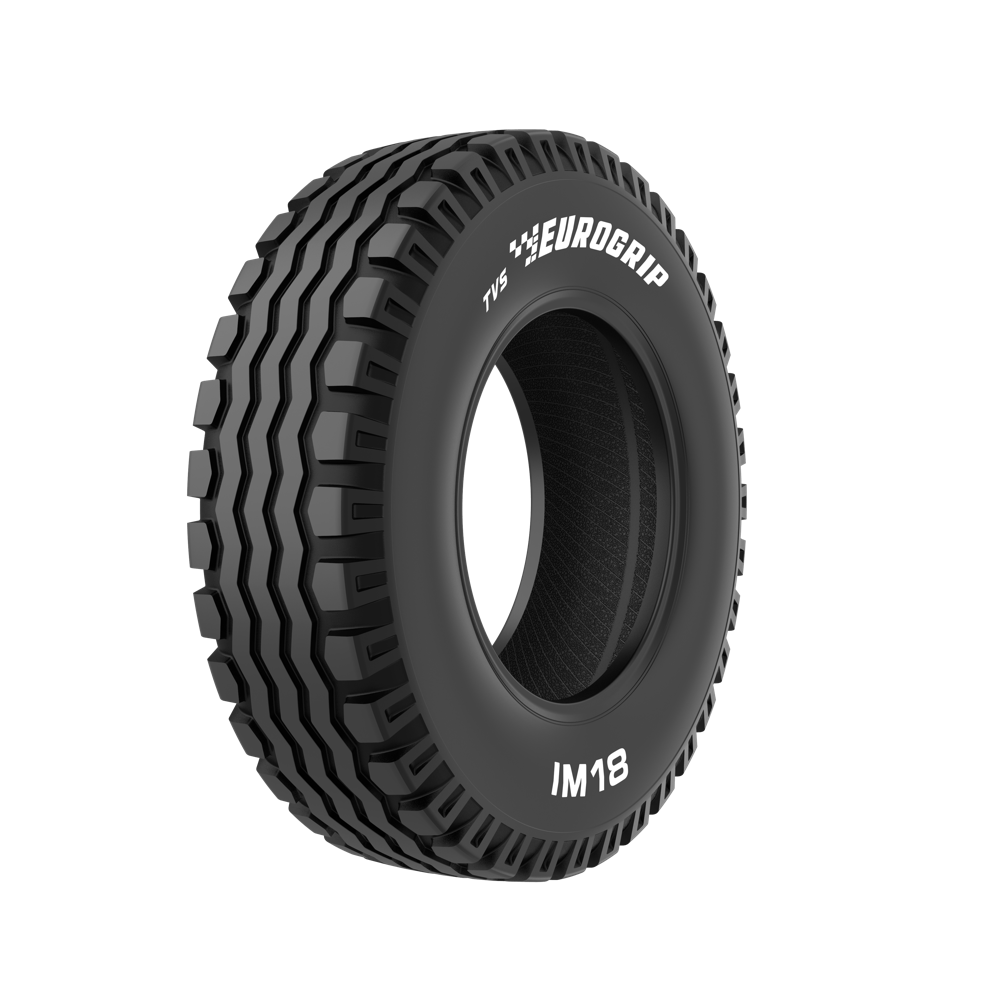

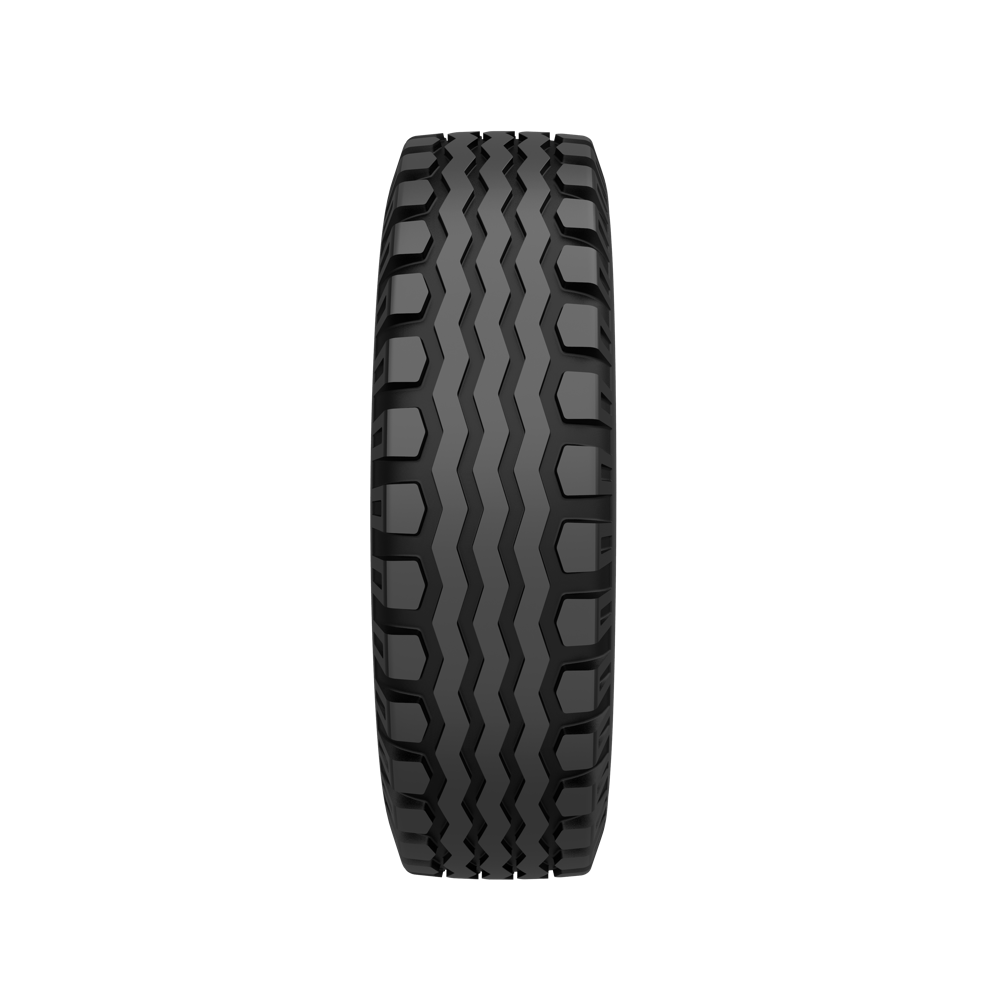

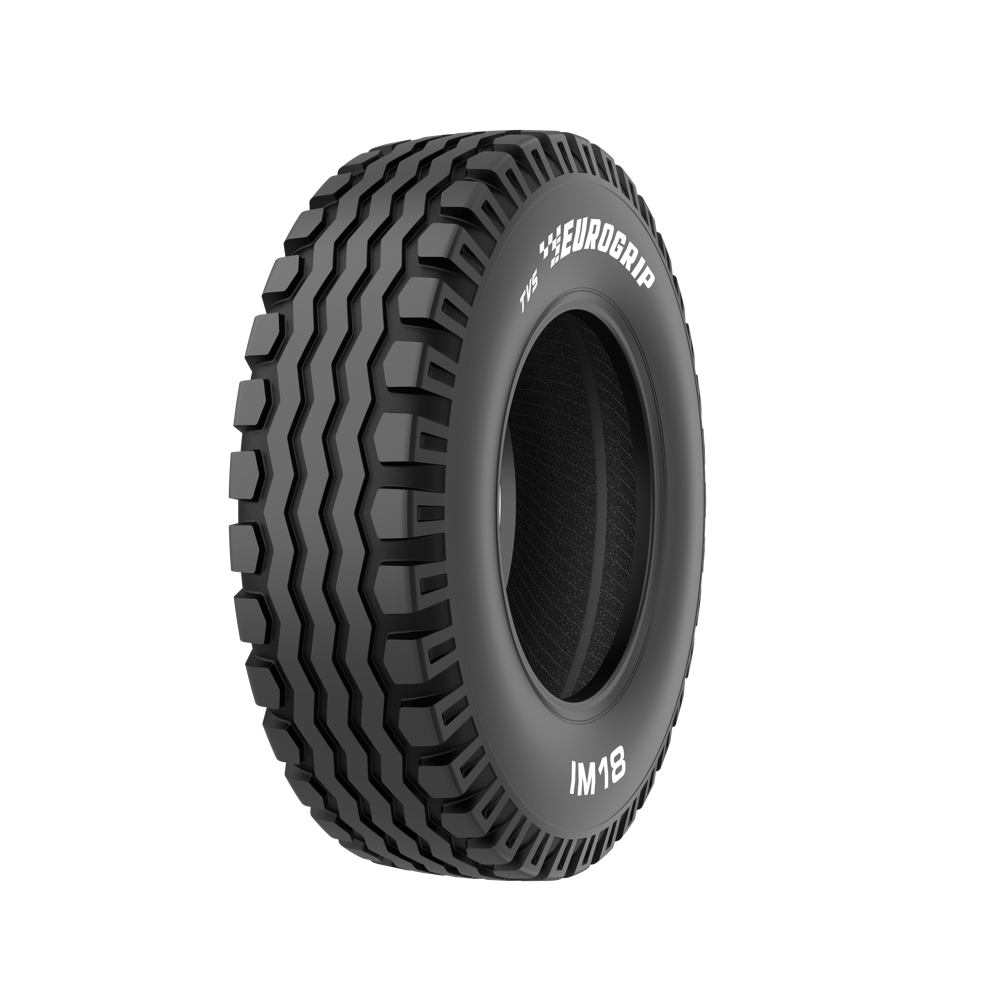

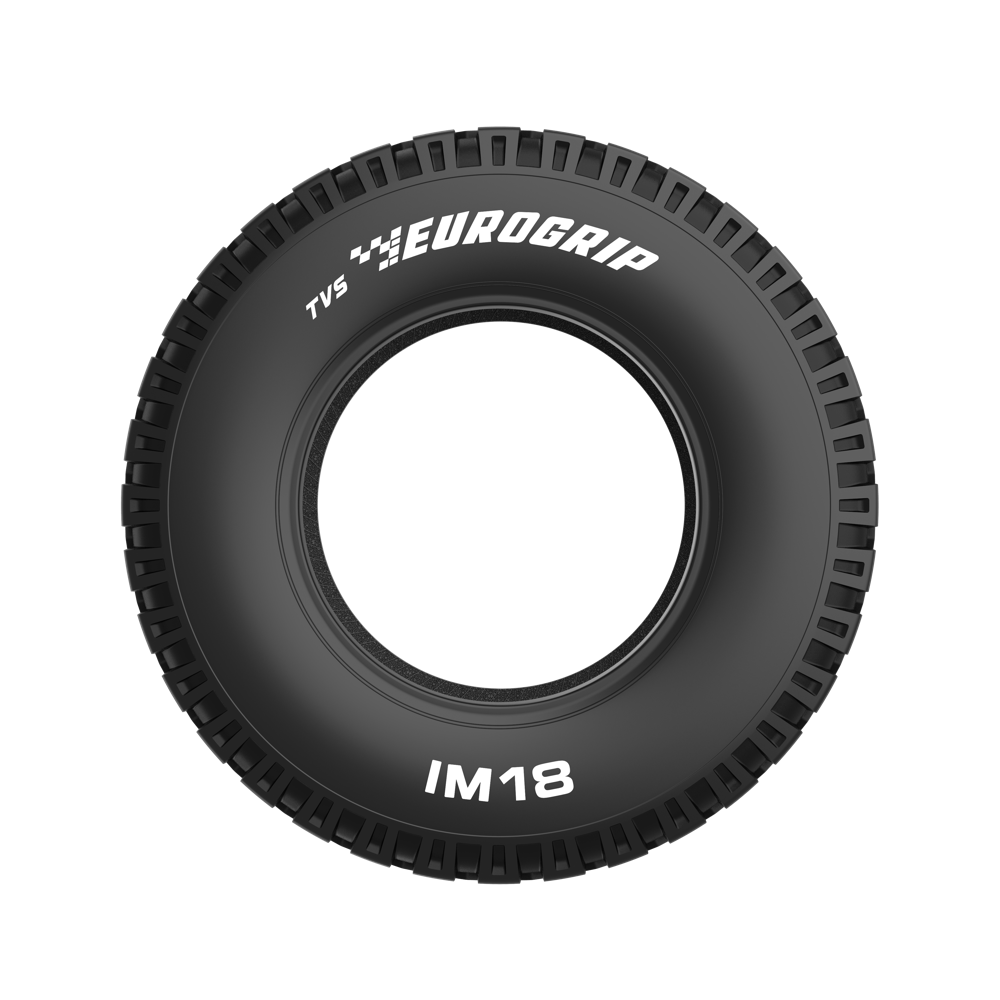

Implement-Z Rib
IM 18
An implement tyre with multi rib tread design ideal for farming services around the year. Built with special compounds the IM 18 tyre provides long life, excellent self-cleaning properties and stability needed for agricultural implements.
IMP
A8
Bias
Suitable for
Trailer
Wagon
Round Baler
Planter
Seeder
Technical Data
| TYRE SIZE | REC. RIM (inch) | ALT. RIM (inch) | UNLOADED DIMENSIONS (mm) | TYPE | PLY RATING | LI & SS | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| SW | OD | SLR | RC | |||||||
| 7.00-12 | 4.25 | - | 200 | 660 | 295 | 1969 | TL | 6 | 95A8 | |
| 10.0/80-12 | 9 | - | 250 | 714 | 313 | 2081 | TL | 6 | 110A8 | |
| 10.0/80-12 | 9 | - | 250 | 714 | 313 | 2081 | TL | 8 | 116A8 | |
| 10.0/80-12 | 9 | - | 250 | 714 | 313 | 2081 | TL | 10 | 121A8 | |
| 10.0/75-15.3 | 9 | - | 265 | 758 | 338 | 2198 | TT, TL | 8 | 119A8 | |
| 10.0/75-15.3 | 9 | - | 265 | 758 | 338 | 2198 | TT, TL | 10 | 123A8 | |
| 10.0/75-15.3 | 9 | - | 265 | 758 | 338 | 2198 | TT, TL | 12 | 126A8 | |
| 10.0/75-15.3 | 9 | - | 265 | 758 | 338 | 2198 | TT, TL | 14 | 130A8 | |
| 10.0/75-15.3 | 9 | - | 265 | 758 | 338 | 2198 | TT, TL | 18 | 135A8 | |
| 11.5/80-15.3 | 9 | - | 295 | 845 | 370 | 2476 | TT, TL | 10 | 131A8 | |
| 11.5/80-15.3 | 9 | - | 295 | 845 | 370 | 2476 | TT, TL | 12 | 135A8 | |
| 11.5/80-15.3 | 9 | - | 295 | 845 | 370 | 2476 | TT, TL | 14 | 139A8 | |
| 11.5/80-15.3 | 9 | - | 295 | 845 | 370 | 2476 | TT, TL | 16 | 141A8 | |
| 11.5/80-15.3 | 9 | - | 295 | 845 | 370 | 2476 | TT, TL | 18 | 143A8 | |
| 6.00-16 | 4.00E | - | 172 | 715 | 335 | 2138 | TT | 6 | 95A8 | |
| 10.5/65-16 | W9 | - | 260 | 775 | 354 | 2285 | TT | 10 | 123A8 | |
| 10.5/65-16 | W9 | - | 260 | 775 | 354 | 2285 | TT, TL | 14 | 130A8 | |
| 10.5/80-18 | W9 | - | 285 | 890 | 415 | 2665 | TL | 10 | 131A8 | |
| 10.5/80-18 | W9 | - | 285 | 890 | 415 | 2665 | TL | 14 | 138A8 | |
| 12.5/80-18 | W9 | - | 315 | 980 | 460 | 2910 | TL | 16 | 148A8 | |
IMPERIAL
METRIC
Technical Table 01
| TYRE SIZE | RIM SIZE | REC. RIM | ALT. RIM | UNLOADED DIMENSIONS (mm) | PLY RATING | LOAD INDEX SPEED SYMBOL | ||||
| SW | OD | SLR | RC | |||||||
| 15.0/70-18 | 18 | W13 |
W17 W19 |
400 | 980 | 440 | 2886 | 14 | 128 A8 |
 |
| 16 | 132 A9 |
|
||||||||
