Implement-Block
IM 171

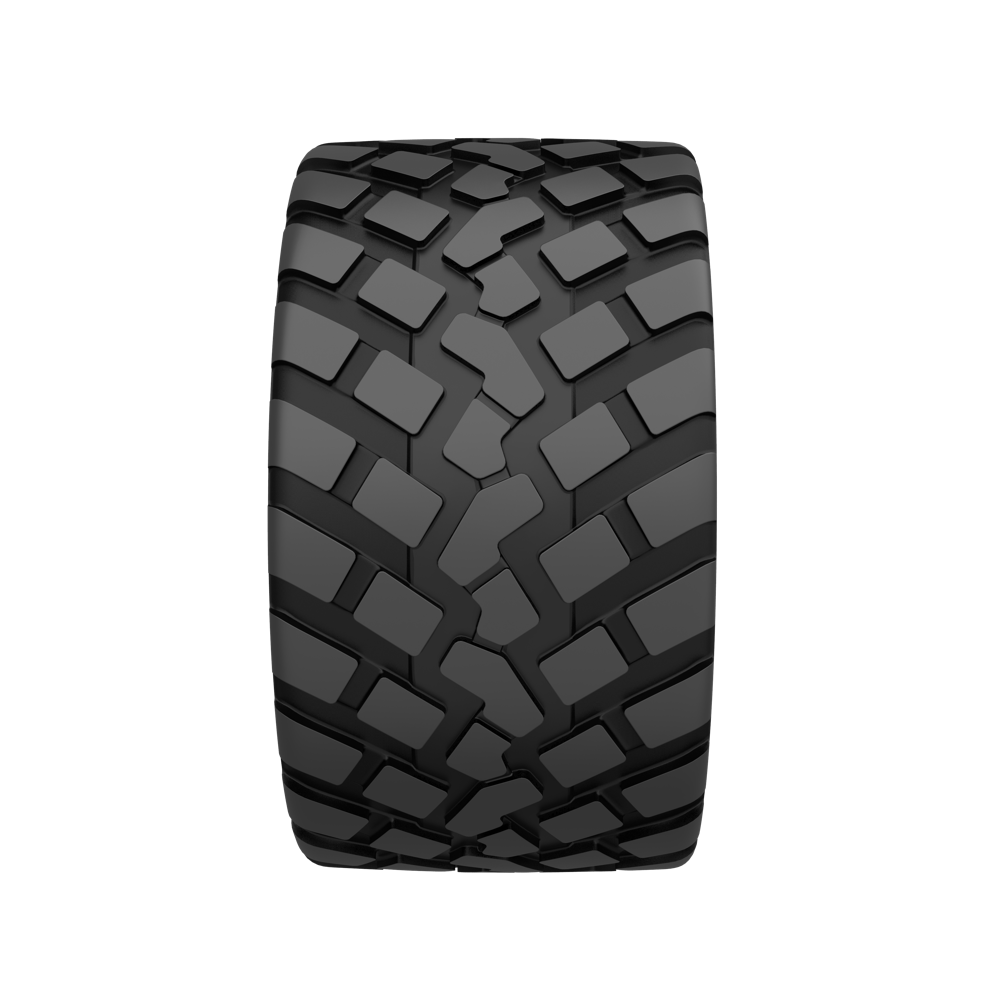

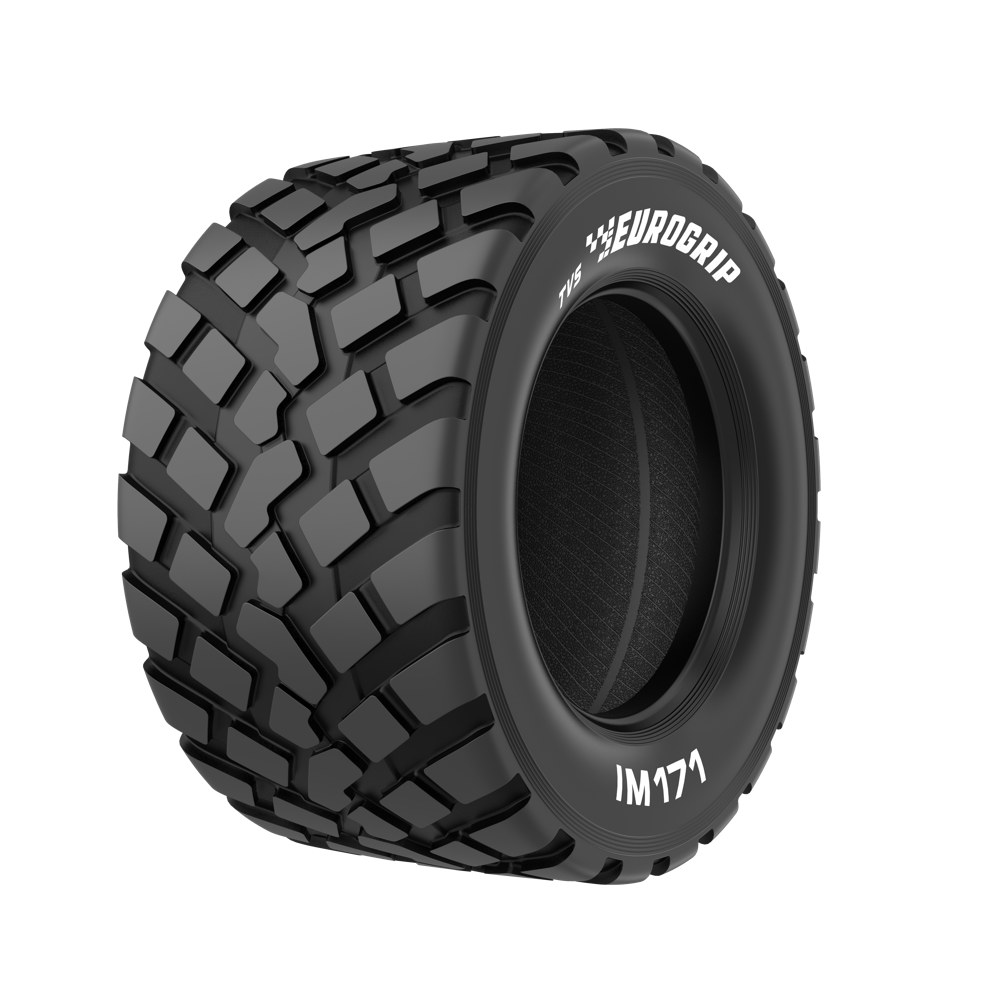

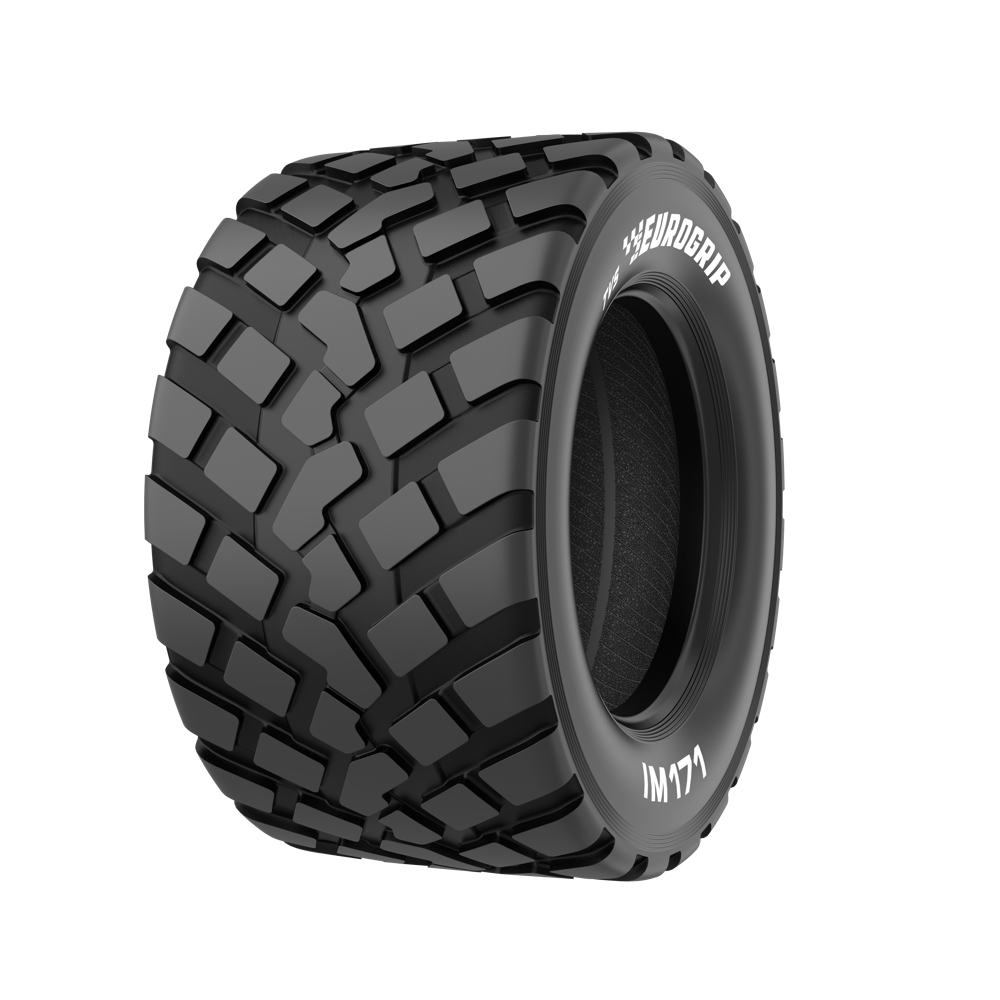

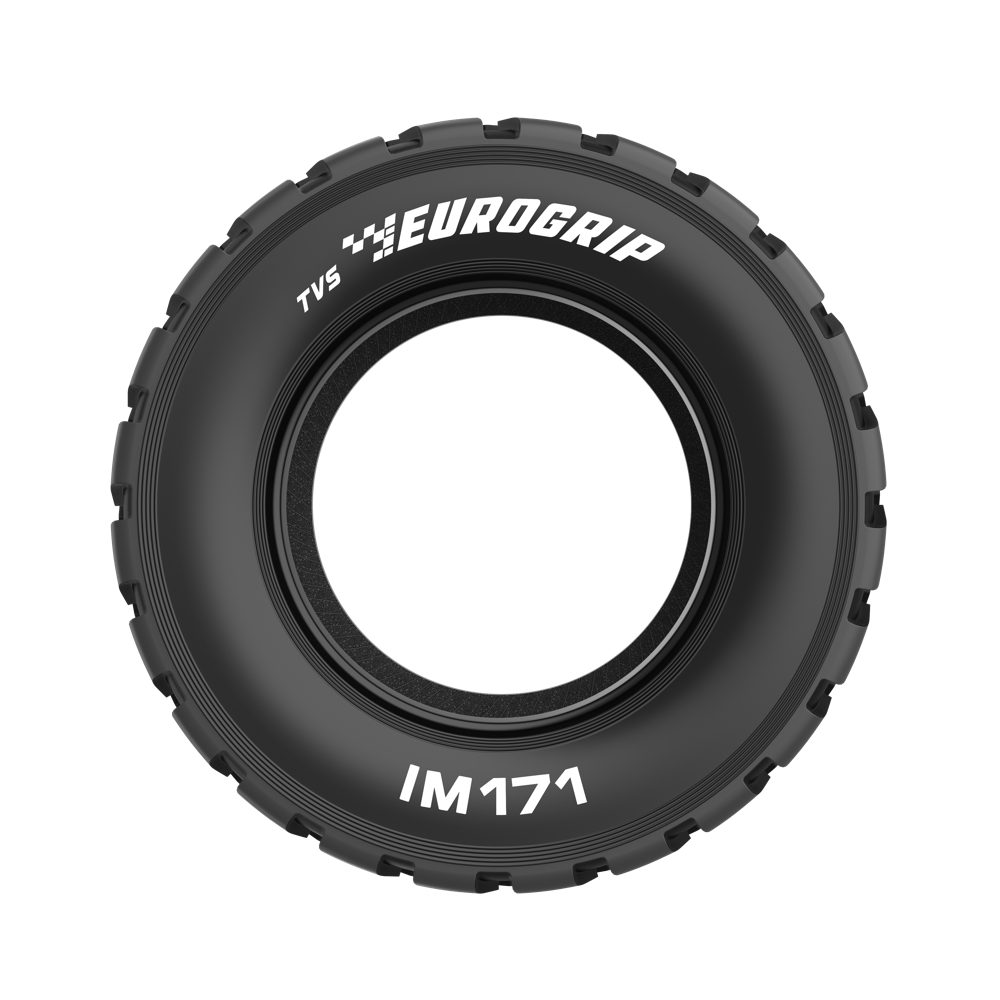

The IM 171 is designed for application in a variety of agro-industrial applications. Its block type directionaltread design is designed to provide good flotation, stability and traction over a wide range of under-foot
conditions. It provides stable and long service on hard surfaces such as construction sites or cattle sheds.
IMP
A8
Bias
Suitable for
Self Propelled Mixer Feeder
Trailer
Wheel Excavator
Compact Wheel Loader
Telescopic Handler
Technical Data
| TYRE SIZE | REC. RIM (inch) | ALT. RIM (inch) | UNLOADED DIMENSIONS (mm) | TYPE | PLY RATING | LI & SS | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| SW | OD | SLR | RC | |||||||
| 430/40-17 | 13 | - | 416 | 795 | 370 | 2445 | TL | 14 | 139A8 | 133A8 | |
| 430/40-17 | 13 | - | 416 | 795 | 370 | 2445 | TL | 22 | 150A8 | 138A8 | |
IMPERIAL
METRIC
Technical Table 01
| TYRE SIZE | RIM SIZE | REC. RIM | ALT. RIM | UNLOADED DIMENSIONS (mm) | PLY RATING | LOAD INDEX SPEED SYMBOL | ||||
| SW | OD | SLR | RC | |||||||
| 15.0/70-18 | 18 | W13 |
W17 W19 |
400 | 980 | 440 | 2886 | 14 | 128 A8 |
 |
| 16 | 132 A9 |
|
||||||||
Technical Data
| Tyre Size | Rec. RIM (inch) |
Alt. RIM (inch) |
Unloaded dimensions (mm) | Type | Ply Rating | Load Index & Speed Symbol | Fabric | Load table | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Section Width | Overall Diameter | Static Load Radius | Rolling Circumference | ||||||||
