Implement-Lug

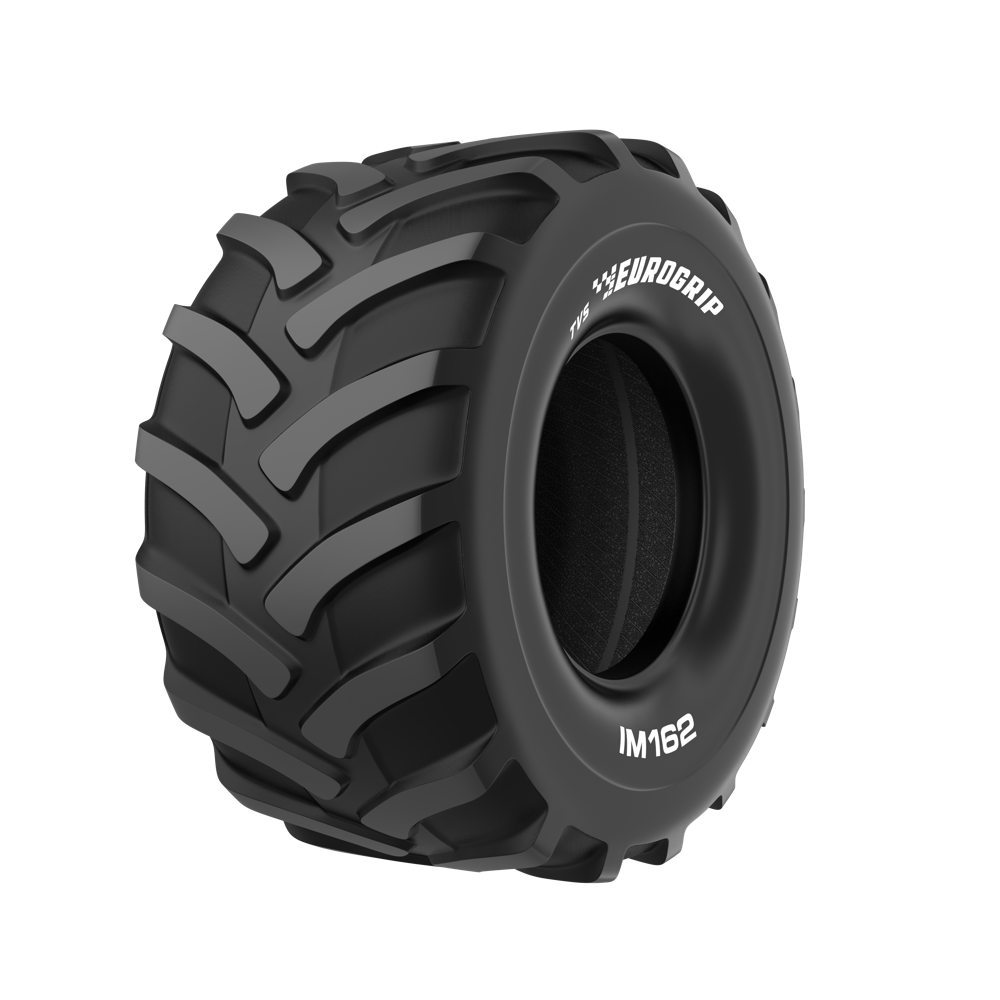

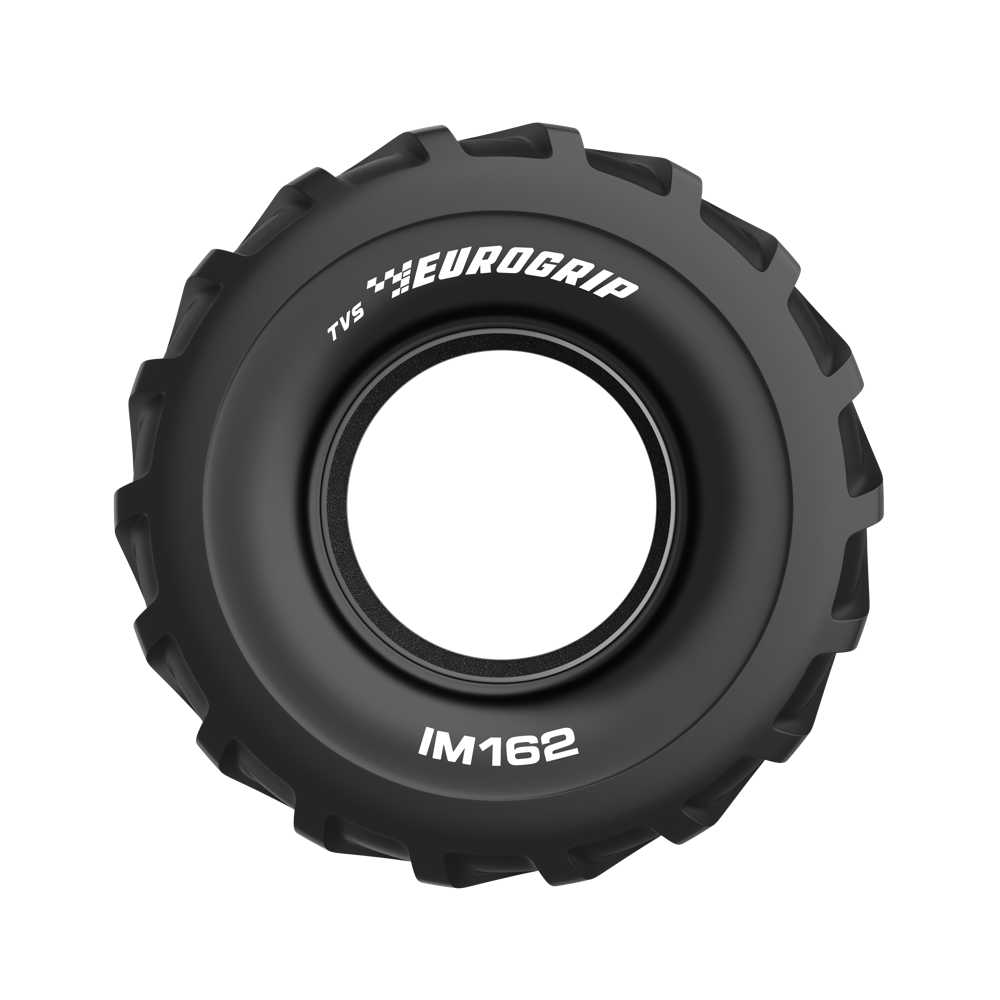

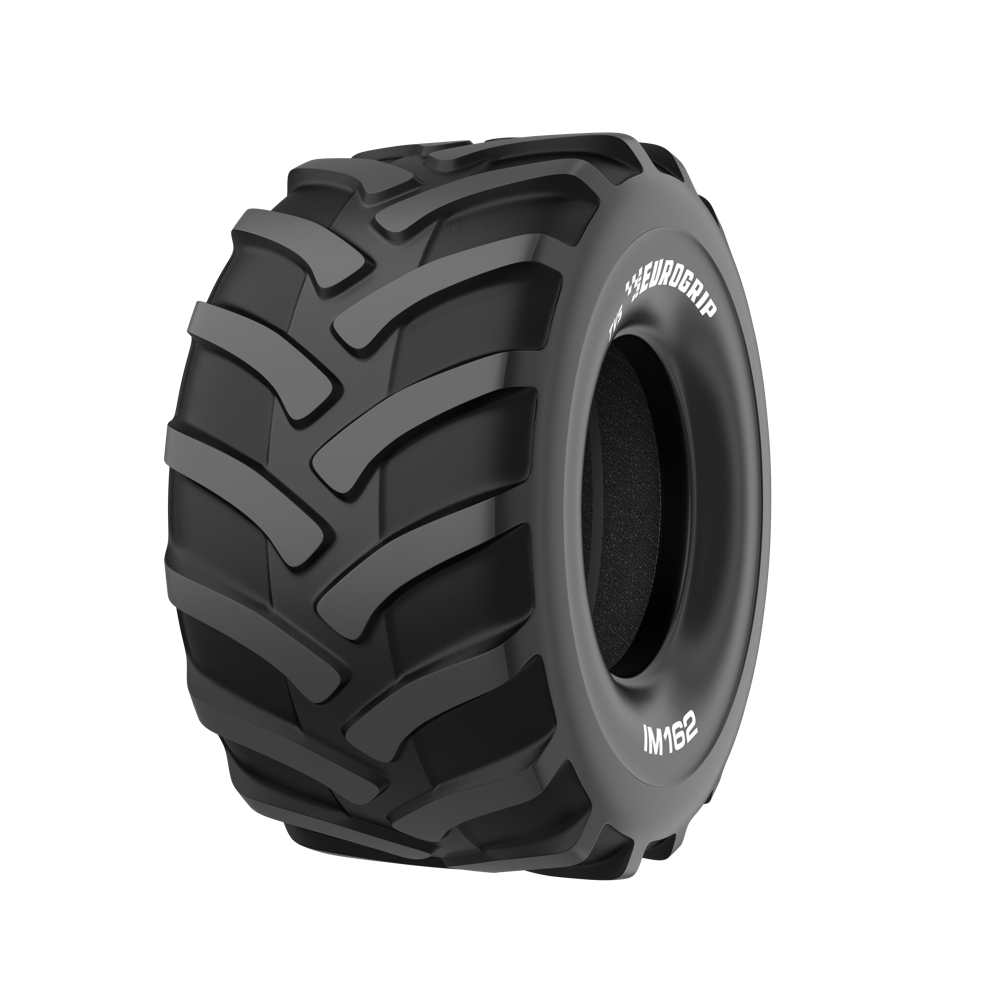

IM 162

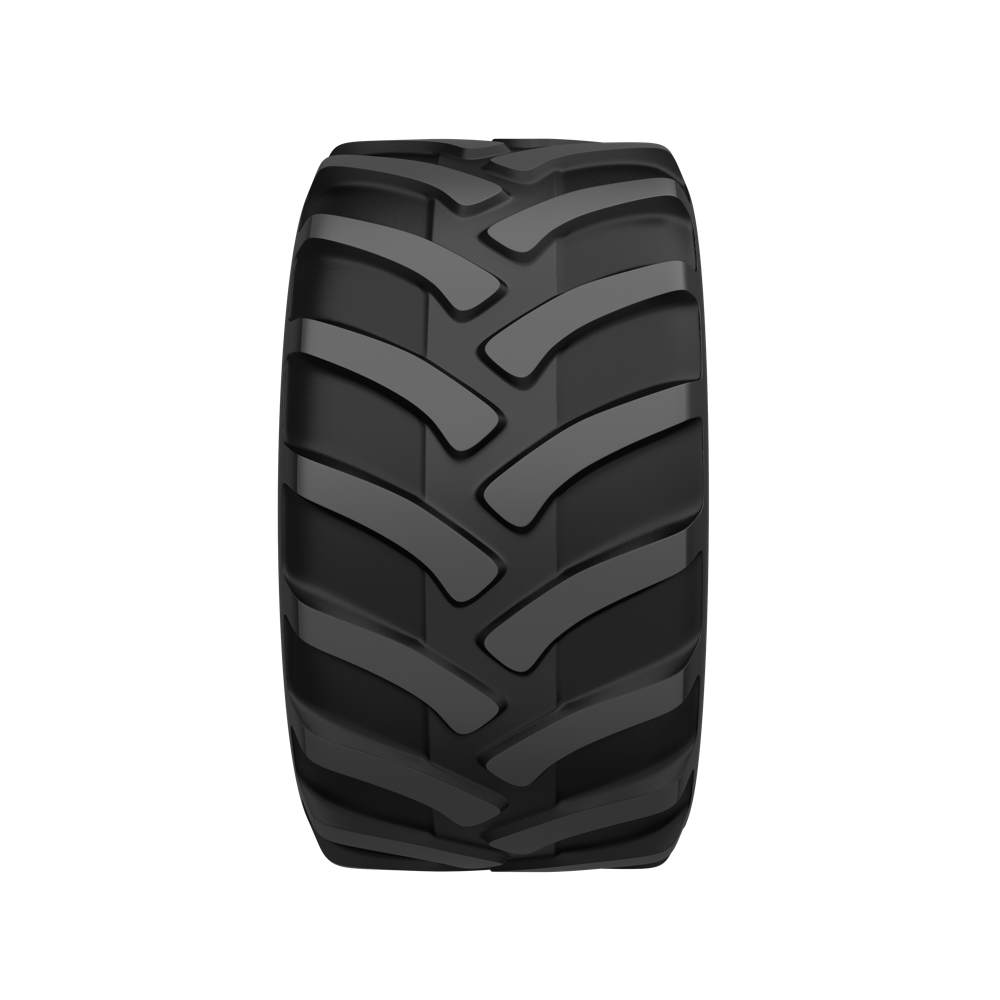

The IM 162 is designed for use in implements used for heavy duty agriculture. The thick solid lugs provide superior traction preventing slippages. The deep and ideally spaced lugs promote superior self-cleaning. It’s a tyre that can used both on soft and hard underfoot conditions.
IMP
A8
Bias
Suitable for
Trailer
Technical Data
| TYRE SIZE | REC. RIM (inch) | ALT. RIM (inch) | UNLOADED DIMENSIONS (mm) | TYPE | PLY RATING | LI & SS | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| SW | OD | SLR | RC | |||||||
| 320/60-12 | 10.50 I | - | 333 | 676 | 309 | 2040 | TT | - | 113A8 | 100A8 | |
| 320/60-12 | 10.50 I | - | 333 | 676 | 309 | 2040 | TT | - | 132A8 | 120A8 | |
| 280/60-15.5 | AG8.00 | - | 270 | 745 | 350 | 2240 | TL | 8 | 115A8 | 103A8 | |
| 280/60-15.5 | AG8.00 | - | 270 | 745 | 350 | 2240 | TT | 14 | 128A8 | 116A8 | |
IMPERIAL
METRIC
Technical Table 01
| TYRE SIZE | RIM SIZE | REC. RIM | ALT. RIM | UNLOADED DIMENSIONS (mm) | PLY RATING | LOAD INDEX SPEED SYMBOL | ||||
| SW | OD | SLR | RC | |||||||
| 15.0/70-18 | 18 | W13 |
W17 W19 |
400 | 980 | 440 | 2886 | 14 | 128 A8 |
 |
| 16 | 132 A9 |
|
||||||||
