Implement-Z Rib

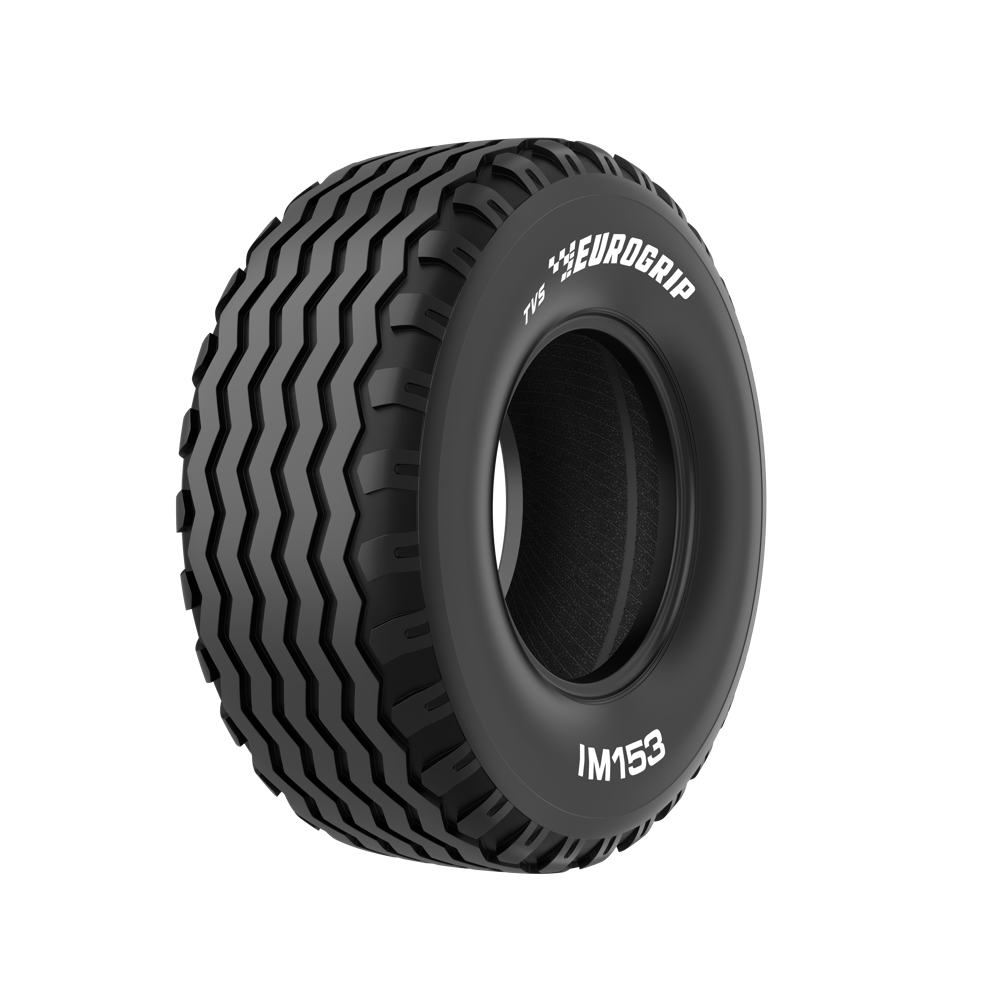

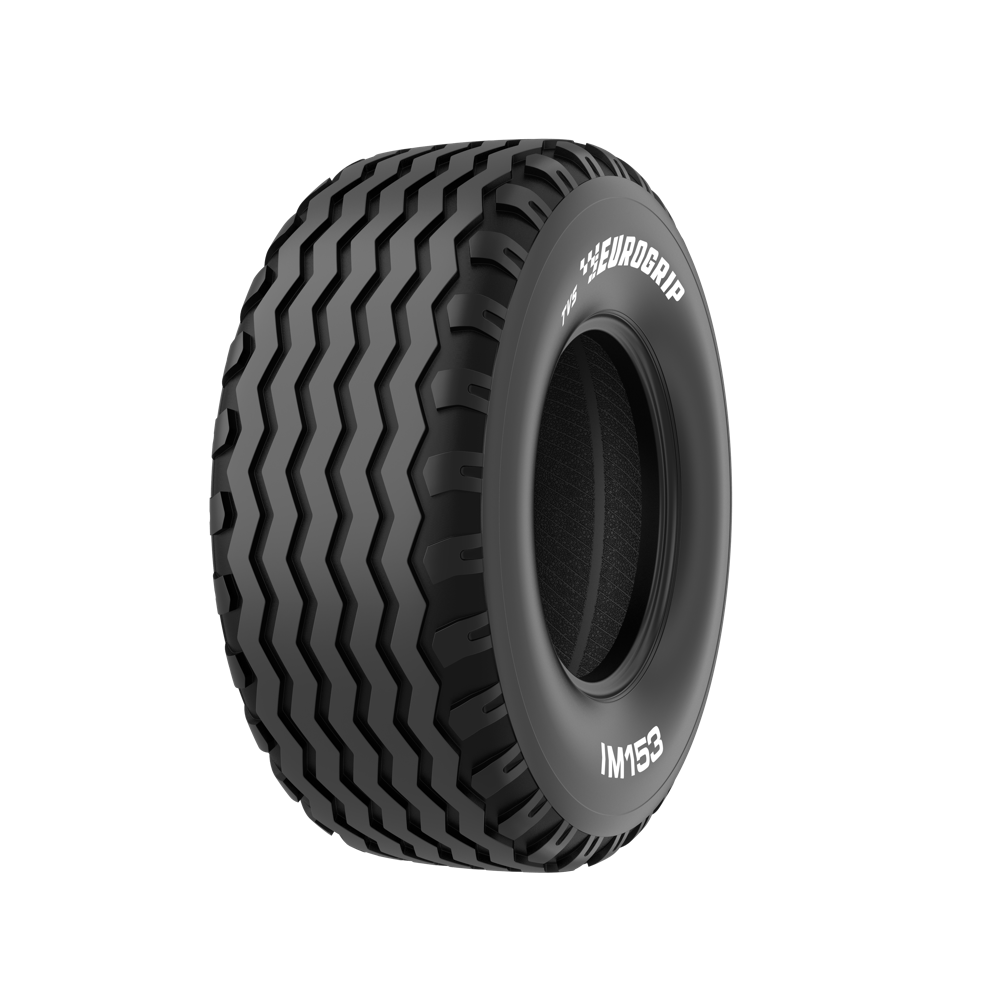

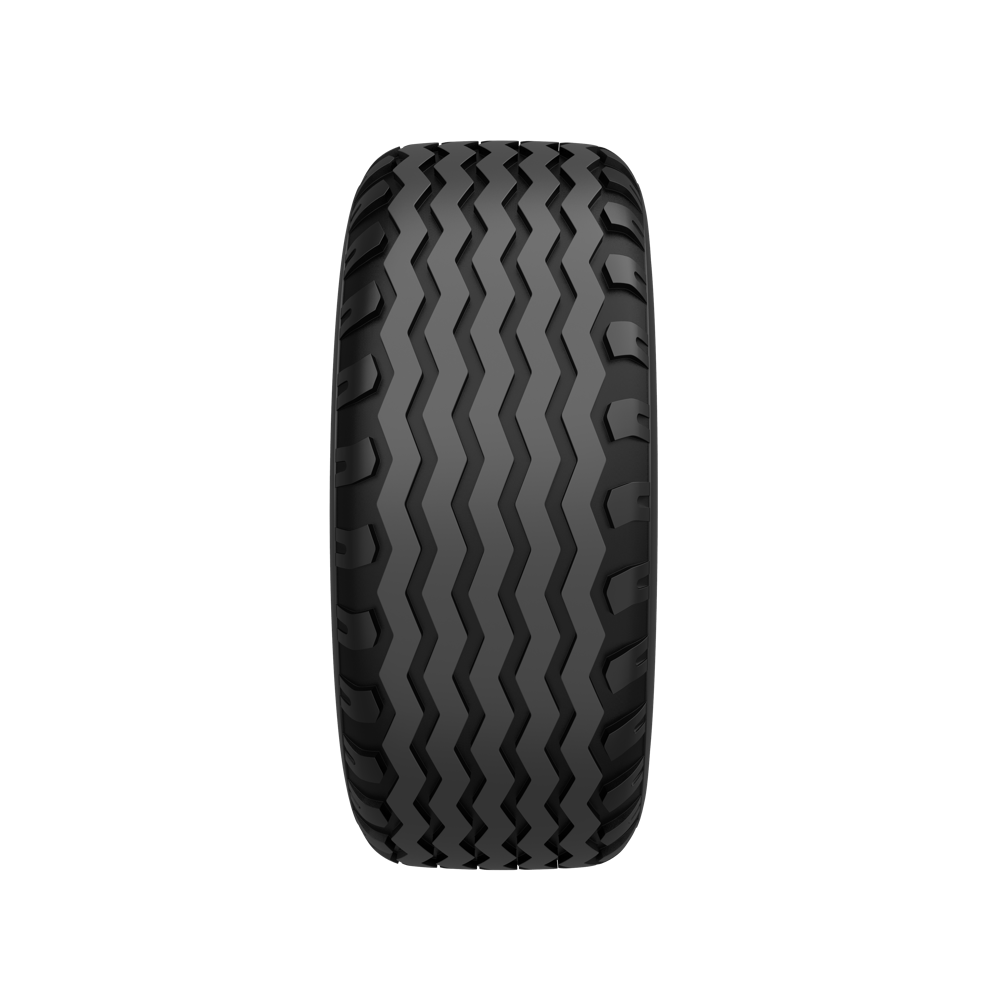

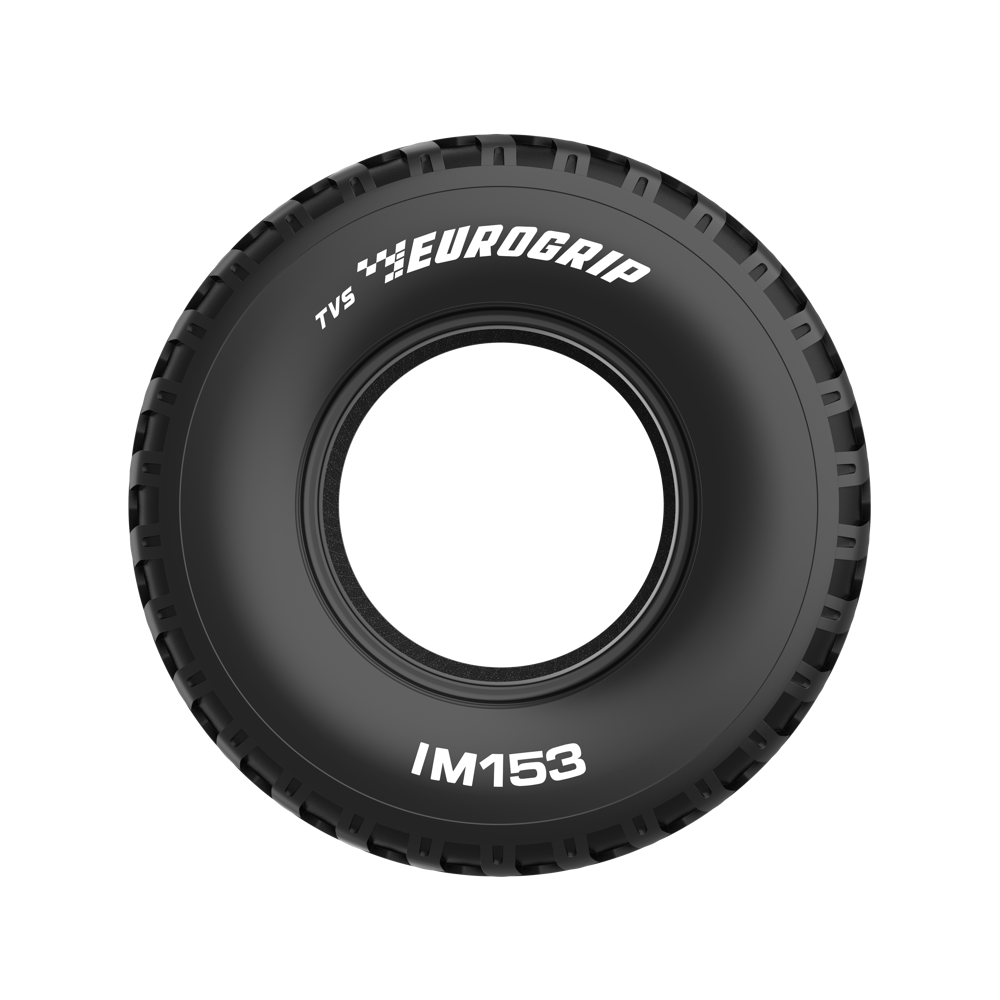

IM 153
The IM 153 has been designed for farm implements, trailers, balers and such. Ideal for both soil tillage and haulage, the tyre provides good stability and load carrying capacity. Its suitable for both field and on road use.
IMP
B
Bias
Suitable for
Trailer
Wagon
Round Baler
Planter
Seeder
Technical Data
| TYRE SIZE | REC. RIM (inch) | ALT. RIM (inch) | UNLOADED DIMENSIONS (mm) | TYPE | PLY RATING | LI & SS | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| SW | OD | SLR | RC | |||||||
| 340/55-16 | 11 | - | 345 | 780 | 350 | 2260 | TL | - | 140A8 | 137B | |
| 340/55-16 | 11 | - | 345 | 780 | 350 | 2260 | TL | - | 142A8 | 139B | |
| 360/65-16 | 11 | - | 375 | 870 | 390 | 2520 | TL | - | 142A8 | |
| 360/65-16 | 11 | - | 375 | 870 | 390 | 2520 | TL | - | 150A8 | |
IMPERIAL
METRIC
Technical Table 01
| TYRE SIZE | RIM SIZE | REC. RIM | ALT. RIM | UNLOADED DIMENSIONS (mm) | PLY RATING | LOAD INDEX SPEED SYMBOL | ||||
| SW | OD | SLR | RC | |||||||
| 15.0/70-18 | 18 | W13 |
W17 W19 |
400 | 980 | 440 | 2886 | 14 | 128 A8 |
 |
| 16 | 132 A9 |
|
||||||||
Technical Data
| Tyre Size | Rec. RIM (inch) |
Alt. RIM (inch) |
Unloaded dimensions (mm) | Type | Ply Rating | Load Index & Speed Symbol | Fabric | Load table | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Section Width | Overall Diameter | Static Load Radius | Rolling Circumference | ||||||||
