Implement-Z Rib

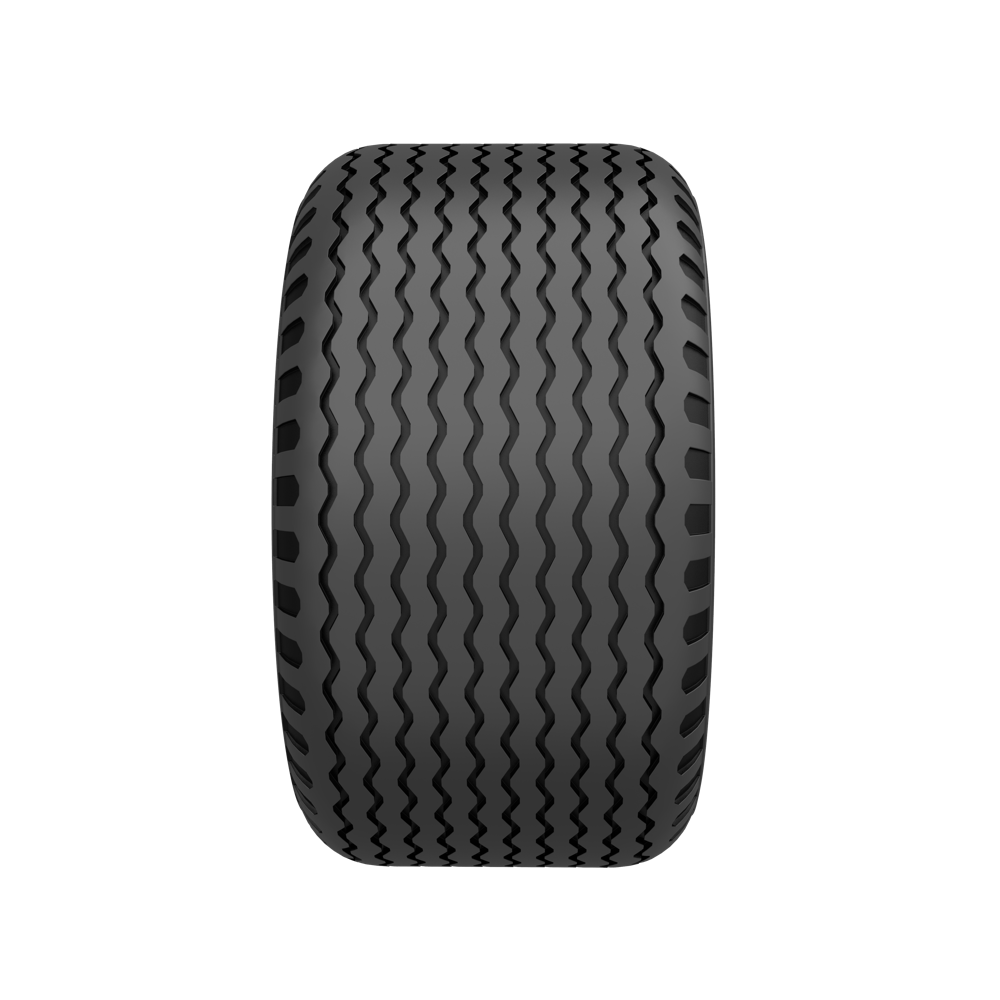

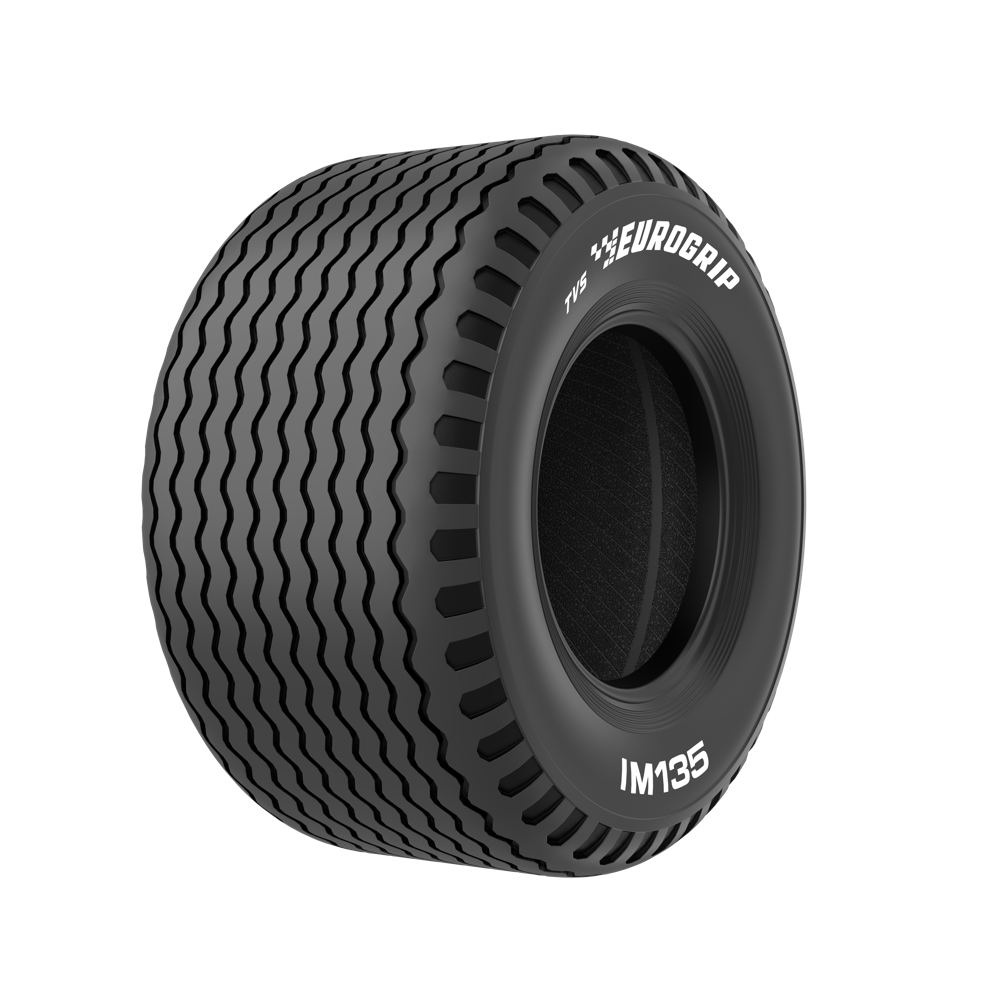

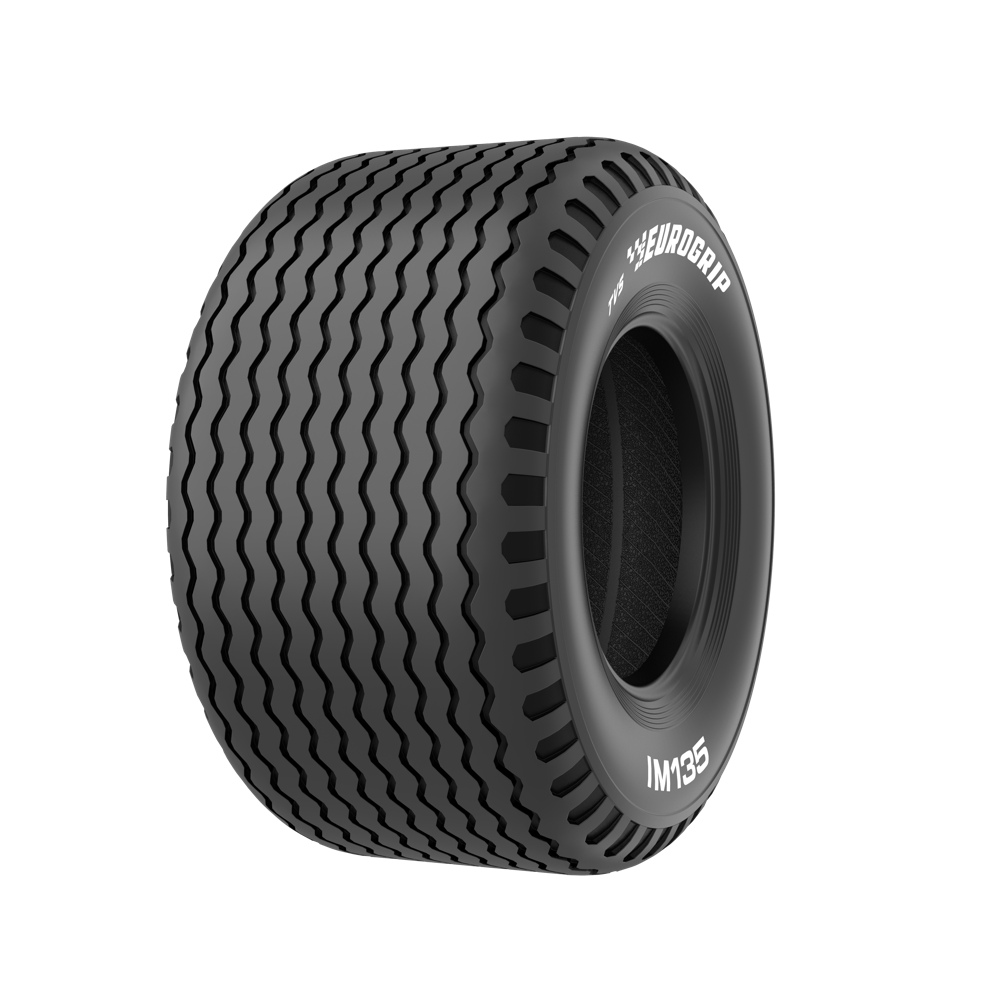

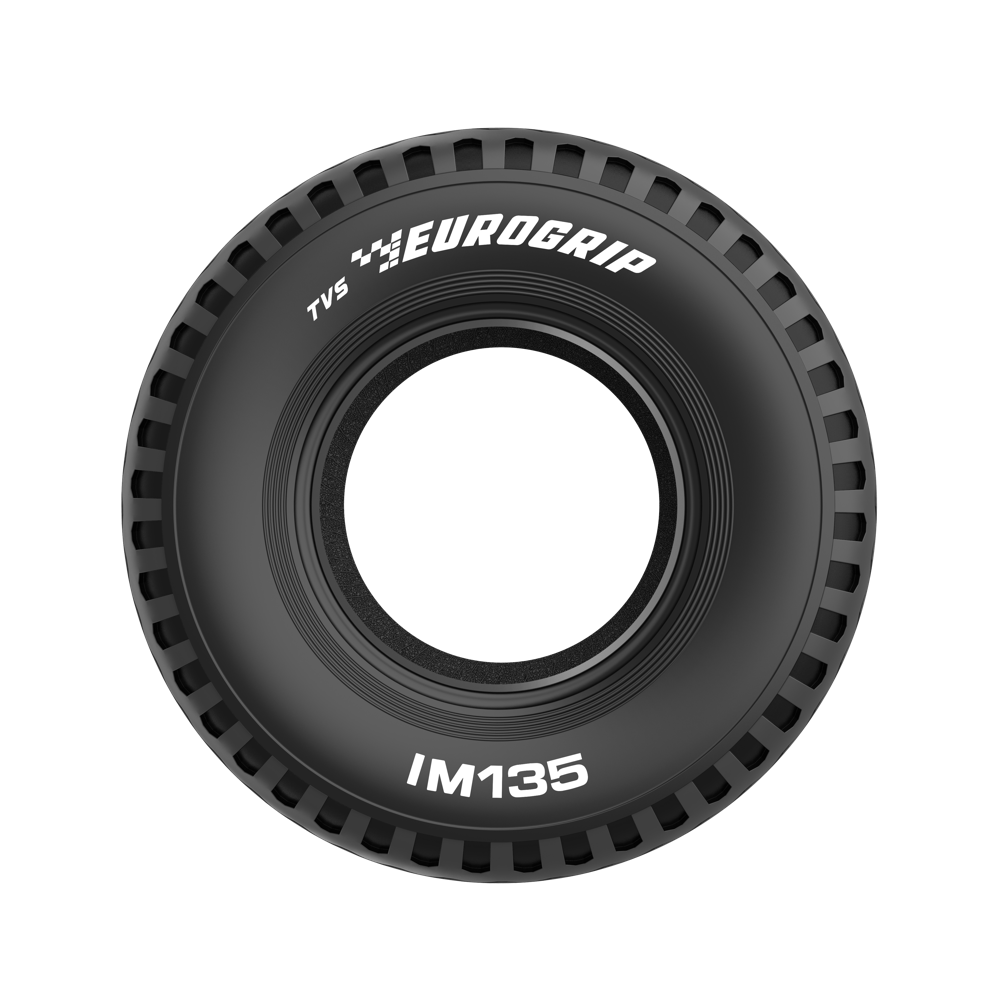

IM 135
Built for use in agricultural implements such as trailers, balers, ploughs, seeders etc. The IM 135 tyre with its multi groove design is ideal for towed agricultural equipment, providing good directional stability. With B speed rating, this tyre can be towed at speeds up to 50kph.
IMP
B
Bias
Suitable for
Trailer
Wagon
Round Baler
Planter
Seeder
Technical Data
| TYRE SIZE | REC. RIM (inch) | ALT. RIM (inch) | UNLOADED DIMENSIONS (mm) | TYPE | PLY RATING | LI & SS | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| SW | OD | SLR | RC | |||||||
| 520/50-17 | 16 | - | 518 | 932 | 418 | 2700 | TL | - | 159A8 | 156B | |
| 520/50-17 | 16 | - | 518 | 932 | 418 | 2700 | TL | - | 164A8/161B | |
IMPERIAL
METRIC
Technical Table 01
| TYRE SIZE | RIM SIZE | REC. RIM | ALT. RIM | UNLOADED DIMENSIONS (mm) | PLY RATING | LOAD INDEX SPEED SYMBOL | ||||
| SW | OD | SLR | RC | |||||||
| 15.0/70-18 | 18 | W13 |
W17 W19 |
400 | 980 | 440 | 2886 | 14 | 128 A8 |
 |
| 16 | 132 A9 |
|
||||||||
Technical Data
| Tyre Size | Rec. RIM (inch) |
Alt. RIM (inch) |
Unloaded dimensions (mm) | Type | Ply Rating | Load Index & Speed Symbol | Fabric | Load table | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Section Width | Overall Diameter | Static Load Radius | Rolling Circumference | ||||||||
